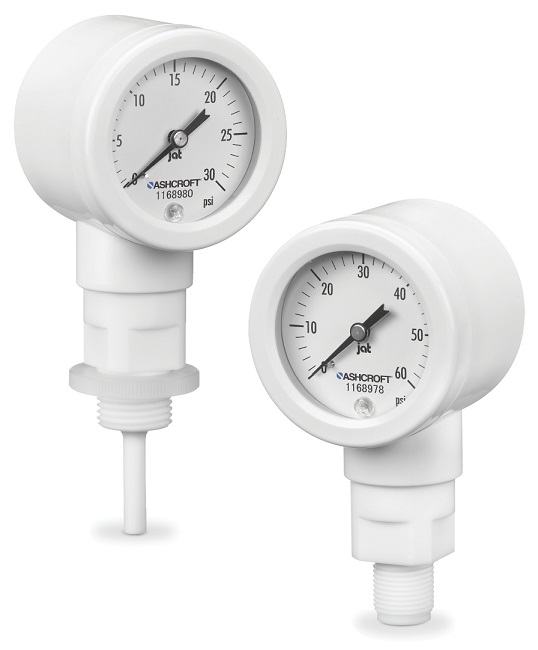

HPT – 63 毫米压力表 Ashcroft 63 mm HPT 防腐压力表

Ashcroft 63 mm HPT 防腐压力表为半导体和电子制造行业的化学品输送系统提供卓越的性能和可靠性。氮气泄漏测试以确保卓越的质量，而紧凑的设计是有限空间安装的理想选择。The Ashcroft 63 mm HPT anti-corrosion pressure gauge offers exceptional performance and reliability for chemical delivery systems within the semiconductor and electronic fabrication industries. Nitrogen leak tested to ensure superior quality, while the compact design is ideal for limited space installations.

HPT – 63 毫米压力表 Ashcroft 63 mm HPT anti-corrosion pressure gauge
Ashcroft 63 mm HPT 防腐压力表为半导体和电子制造行业的化学品输送系统

主要特征：
PTFE/PFA 接液部件
100% 氮气泄漏测试
10,000 级无尘室包装和装袋

精度
±1.5% 量程（范围 90 psi 及以上）
±2% 量程（范围 90 psi 及以下）

尺寸
63 毫米

范围
真空至 145 psi/10 bar

过程连接尺寸
G 3/8
R 3/8 短
管：?”、3/8”、?”、6 mm 和 8mm

过程连接位置
下部

外壳材料
聚丙烯

波纹管材料
PFA（全氟烷氧基）

插座材料
PTFE

窗口
PET

应用：工业市场：

化学品输送系统
晶圆制造
超纯水应用
半导体
制药

HPT – 63 mm Pressure Gauge
The Ashcroft 63 mm HPT anti-corrosion pressure gauge offers exceptional performance and reliability for chemical delivery systems within the semiconductor and electronic fabrication industries. Nitrogen leak tested to ensure superior quality, while the compact design is ideal for limited space installations.

Key Features:
PTFE/PFA Wetted Parts
100% Nitrogen leak tested
Class 10,000 cleanroom packed and bagged

Accuracy
±1.5% of span (Ranges 90 psi and above)
±2% of span (Ranges 90 psi and below)

Size
63 mm

Ranges
Vacuum to 145 psi/10 bar

Process Connection Size
G 3/8
R 3/8
Tube Stub: ?”, 3/8”, ?”, 6 mm, & 8mm

Process Connection Location
Lower

Case Material
Polypropylene

Bellows Material
PFA (Perfluoroalkoxy)

Socket Material
PTFE

Window
PET

Applications:
Industrial Market:

Chemical Delivery Systems
Wafer Manufacturing
Ultrapure Water Applications
Semiconductor
Pharmaceutical
