Autoclave Engineers Adapters/Couplings 接头

从1945年开始,Autoclave Engineers开始生产具有安全、可靠操作性的高压阀系统,它们可以适用于各种温度、压力和环境状况。今天,Autoclave Engineers已经发展成为各类高压行业提供可靠的高压阀、接头和管子的世界领先者。产品性能是Autoclave Engineers对客户的承诺,Autoclave的阀、接头和管子满足严格的标准,它的压力可以从0到150,000 psi(10343 bar) ,温度从 0 到 1200°F (650°C)有上千种变化。没有别的工厂能比Autoclave Engineers在高压要求方面做得更好,也没有别的工厂能比Autoclave Engineers做的系统更可靠和具有创新的特性。Autoclave Engineers的产品为满足客户的各种需求而设计,并且具有品质高,交货准时,价格适当的特点

AUTOCLAVE产品包括针阀 球阀 安全阀 仪表阀 特制的阀和阀组 气动执行器 接头 热电偶 压力表

Autoclave Engineers Adapters/Couplings 接头:
压力:0.055(1.4 bar)到150,000 psi (10343 bar)
温度:-423°F (-252°C)到1200°F (650°C)
连接尺寸:1/16”到1-5/16”的管外径
材质:316不锈钢

Adapters/Couplings

Couplings
Male to Female Adapters
Male to Male Adapters
Male to Male JIC Adapters
Male to Male BSPP Adapter
EZ-Union Adapters
Butt-Weld Adapters
Header Coupling Adapters
Bulkhead Adapters
Special Adapters
. KC105 One and Two piece adapters
. MC240 SAE Adapters Tube Caps and Gauge Connectors

W125 15,000(1034) 15F2211 6F2412 6F2612 4F2812 15F2416 15F2616 15F2916 15F2413 15F2613 15F2913
1/4 (6.35) SW250 15,000(1034) 6F4422 6F4622 6F4822 6F4426 6F4626 6F4926 6F4423 6F4623 6F4923
3/8 (9.52) SW375 15,000(1034) 6F6622 6F6822 6F6426 6F6626 6F6926 6F61226 6F61626 6F6423 6F6623 6F6923
1/2 (12.70) SW500 10,000(690) 4F8822 4F8426 4F8626 4F8926 4F81226 4F81626 6F8423 4F8623 4F8923
中圧 1/4 (6.35) SF250CX 20,000(1379) 20FX4466 20F4666 20F4966 20F41266 20F41666 43F41663 20F4463 20F4663 20F4963 20F4563
3/8 (9.52) SF375CX 20,000(1379) 20FX6666 20F6966 20F61266 20F61666 43F61663 20F6463 20F6663 20F6963 20F6563
9/16 (14.27) SF562CX 20,000(1379) 20FX9966 20F91266 20F91666 20F9463 20F9663 20F9963 20F9563
3/4 (19.05) SF750CX 20,000(1379) 20FX12 20F121666 20F12463 20F12663 20F12963 20F12563
1 (25.40) SF1000CX 20,000(1379) 20FX16 20F16463 20F16663 20F16963 20F16563
高圧 1 (25.40) F1000C43 43,000(2965) 43F16
1/4 (6.35) F250C 60,000(4137) 43F41633 60F4433 60F4633 60F4933 60F4533
3/8 (9.52) F375C 60,000(4137) 43F61633 60F6633 60F6033 60F6533
9/16 (14.27) F562C 60,000(4137) 43F91633 60F9933 60F9533
9/16 (14.27) F562C40 40,000(2760) 40F9933
5/16 (7.92) F312C150 150,000(10342) 150F5533
T 1/8 (3.18) NPT 10,000(690) 6F2281 6F2482 6F2682 4F2882 6F2486 6F2686 6F2986 6F21286 6F2483 6F2683 6F2983 6F2583
1/4 (6.35) NPT 10,000(690) 6F4281 6F4482 6F4682 4F4882 6F4486 6F4686 6F4986 6F41286 6F41686 6F4483 6F4683 6F4983 6F4583
3/8 (9.52) NPT 10,000(690) 6F6281 6F6482 6F6682 4F6882 6F6486 6F6686 6F6986 6F61286 6F61686 6F6483 6F6683 6F6983 6F6583
1/2 (12.70) NPT 10,000(690) 6F8281 6F8482 6F8682 4F8882 6F8486 6F8686 6F8986 6F81286 6F81686 6F8483 6F8683 6F8983 6F8583
3/4 (19.05) NPT 10,000(690) 4F12882 6F12686 6F12986 6F121286 6F121686 6F12983
1 (25.40) NPT 10,000(690) 6F16986 6F161686 6F16483 6F16983

1/8 (3.18) W125 15,000(1034) 15F2211 6F2412 6F2612 4F2812 15F2416 15F2616 15F2916 15F2413 15F2613 15F2913
1/4 (6.35) SW250 15,000(1034) 6F4422 6F4622 6F4822 6F4426 6F4626 6F4926 6F4423 6F4623 6F4923
3/8 (9.52) SW375 15,000(1034) 6F6622 6F6822 6F6426 6F6626 6F6926 6F61226 6F61626 6F6423 6F6623 6F6923
1/2 (12.70) SW500 10,000(690) 4F8822 4F8426 4F8626 4F8926 4F81226 4F81626 6F8423 4F8623 4F8923
中圧1/4 (6.35) SF250CX 20,000(1379) 20FX4466 20F4666 20F4966 20F41266 20F41666 43F41663 20F4463 20F4663 20F4963 20F4563
3/8 (9.52) SF375CX 20,000(1379) 20FX6666 20F6966 20F61266 20F61666 43F61663 20F6463 20F6663 20F6963 20F6563
9/16 (14.27) SF562CX 20,000(1379) 20FX9966 20F91266 20F91666 20F9463 20F9663 20F9963 20F9563
3/4 (19.05) SF750CX 20,000(1379) 20FX12 20F121666 20F12463 20F12663 20F12963 20F12563
1 (25.40) SF1000CX 20,000(1379) 20FX16 20F16463 20F16663 20F16963 20F16563
高圧1 (25.40) F1000C43 43,000(2965) 43F16
1/4 (6.35) F250C 60,000(4137) 43F41633 60F4433 60F4633 60F4933 60F4533
3/8 (9.52) F375C 60,000(4137) 43F61633 60F6633 60F6033 60F6533
9/16 (14.27) F562C 60,000(4137) 43F91633 60F9933 60F9533
9/16 (14.27) F562C40 40,000(2760) 40F9933
5/16 (7.92) F312C150 150,000(10342) 150F5533
T 1/8 (3.18) NPT 10,000(690) 6F2281 6F2482 6F2682 4F2882 6F2486 6F2686 6F2986 6F21286 6F2483 6F2683 6F2983 6F2583
1/4 (6.35) NPT 10,000(690) 6F4281 6F4482 6F4682 4F4882 6F4486 6F4686 6F4986 6F41286 6F41686 6F4483 6F4683 6F4983 6F4583
3/8 (9.52) NPT 10,000(690) 6F6281 6F6482 6F6682 4F6882 6F6486 6F6686 6F6986 6F61286 6F61686 6F6483 6F6683 6F6983 6F6583
1/2 (12.70) NPT 10,000(690) 6F8281 6F8482 6F8682 4F8882 6F8486 6F8686 6F8986 6F81286 6F81686 6F8483 6F8683 6F8983 6F8583
3/4 (19.05) NPT 10,000(690) 4F12882 6F12686 6F12986 6F121286 6F121686 6F12983
1 (25.40) NPT 10,000(690) 6F16986 6F161686 6F16483 6F16983

高圧低圧中圧 配管外径15,00015,00060,00060,000150,00020,00020,00060,00040,00015,00010,000-43,000CXO6600CXB6600CXK6602CXO990020,00020,00020,00040CKO9900--43CKO1643CB16CKO4400CB4401CK4402CKO6600CB6601CK6602CKO9900CB9901---CK9902SWO2200CXO4400SWB2200SWK2202SWO4400SWO8800SWB8800SWK8802

SWO6600SWB6600CXB4400CXK4402
SWB4400SWK4402CXB9900CXK9902CXK12CXO16CXB16CXK16CXO12CXB12SWK6602

CLF4400CF9CLF6600CF4CF6--CLF9900SLF2200--CXF4CLF9900-CXF6CXF9---SLF6600SLF8800SWF8SLF4400SWF4SWF6
40CS9600CS9600CS4600CS6600-SS2600CSX4600CSX6600CSX9600--SS8600SS4600SS6600

中圧 1/4 .109 MCTM4 90248 101F-1577 402A 402 P-0214 1/4-28 1010-0343
3/8 .203 MCTM6 90250 101F-1601 402C 402 P-0215 3/8-24 1010-0344
.312 MCTM920 90251 101F-5218 402E 402 P-0216 9/16-18 1010-0345
9/16 .359 MCTM910 90251 101F-1897 402E 402 P-0216 9/16-18 1010-0345
1/4 .083 MCTH4 90248 101F-1577 402A 402 P-0214 1/4-28 1010-0343
5/16 .062 MCTH5 90249 101F-1577 402B 402 P-0205 5/16-24 1030-0343

高圧 3/8 .125 MCTH6 90250 101F-1578 402C 402 P-0215 3/8-24 1010-0344
9/16 .188 MCTH960 90251 1010-0883 402E 402 P-0216 9/16-18 1010-0345
.250 MCTH940 90251 101C-7214 402E 402 P-0216 9/16-18 1010-0345

SF250CX P-0270CX A101A-2005 P-0270 102B-7568
SF375CX P-0271CX A2020-7310 P-0271 102B-7568
SF562CX P-0272CX A2030-7310 P-0896 102B-7568
SF750CX P-1726CX A102A-3376 P-1726 102B-7568
SF1000CX P-1727CX A102A-3375 P-1727 102B-7568
F250C P-0270CX A1010-0453 P-0270 102B-7568
F312C150 P-0271C150 A2040-7310 P-0271 102B-7568
F375C P-0271C A1020-0453 P-0271 102B-7568
F562C/C40 P-0272C A1030-0453 P-0272 102B-7568

Adapters/Couplings



Autoclave Engineers offers a complete line of standard adapters and couplings as well as special designs and materials.
Adapters:

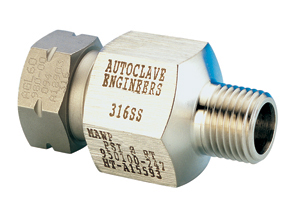

Male/female adapters are designed to join a female connection directly to another size and/or type of connection without the need for an additional coupling.

Couplings:
Couplings and reducer/adapter couplings accommodate female-to-female joining of any combination of standard size tubing listed.

Male-to-Male Adapters:
Male-to-male adapters are designed to join two female connections of any combination listed.

JIC Adapters:
Male-to-male adapters have one end machined with a 37° flare design.

BSPP Adapters:

Male-to-male adapters have one end machined with a British Standard Pipe Parallel thread and an 80° included angle cone seat.

Easy-Union Adapters:

O-ring face seal adapter.
Flat face style o-ring seal permits easy installation or removal of components.



Butt-Weld/Header Coupling Adapters:

Female to male adapters have one end machined for butt-welding to pipe, tubes, and headers.

Bulkhead Adapters:

Female to female adapters designed for panel mounting.

SAE O-Ring Adapters:

Female to male SAE/MS straight thread o-ring seal adapter.
For specials or other adapters not listed contact your local Sales Representative.

www.autoclaveengineers.com

Adapters/Couplings -Couplings

The couplings shown here permit the joining of any combination of standard size tubing or tubing and standard pipe with female-to-female couplings. Other couplings available on
special order.
Pressure Rating - The pressure rating of Autoclave couplings is based on the lower rated connection used.
How to use the Ordering Chart below:
1.
Locate “A” connection in the vertical column.

2.
Locate the desired “B” connection across the top of the chart.

3.
The catalog number of the required coupling is located at the intersection of the two columns.



“A” “B” Connection
Connection SpeedBite Medium Pressure High Pressure
Tube Outside in (mm) Connector Type Pressure psi (bar)* 1/8 W 125 1/4 SW 250 3/8 SW 375 1/2 SW 500 1/4 SF 250 CX 3/8 SF 375 CX 9/16 SF 562 CX 3/4 SF 750 CX 1 SF 1000 CX 1 SF 1000 CX43 1/4 F 250 C 3/8 F 375 C 9/16 F 562 C 9/16 F 562 C40 5/16 F 312 C150
1/8 (3.18) W125 11,000 (758) 15F 2211 6F 2412 6F 2612 4F 2812 15F 2416 15F 2616 15F 2916 15F 2413 15F 2613 15F 2913
1/4 (6.35) SW250 11,500 (793) 6F 4422 6F 4622 4F 4822 6F 4426 6F 4626 6F 4926 6F 4423 6F 4623 6F 4923
3/8 (9.52) SW375 10,000 (690) 6F 6622 4F 6822 6F 6426 6F 6626 6F 6926 6F 61226 6F 61626 6F 6423 6F 6623 6F 6923
1/2 (12.70) SW500 5,500 (3.79) 4F 8822 4F 8426 4F 8626 4F 8926 4F 81226 4F 81626 4F 8423 4F 8623 4F 8923
1/4 (6.35) SF250 CX 20,000 (1379) 20FX 4466 20F 4666 20F 4966 20F 41266 20F 41666 43FX 41663 20F 4463 20F 4663 20F 4963 20F 4563
3/8 (9.52) SF375 CX 20,000 (1379) 20FX 6666 20F 6966 20F 61266 20F 61666 43FX 61663 20F 6463 20F 6663 20F 6963 20F 6563
9/16 (14.27) SF562 CX 20,000 (1379) 20FX 9966 20F 91266 20F 91666 20F 9463 20F 9663 20F 9963 20F 9563
3/4 (19.05) SF750 CX 20,000 (1379) 20FX 12 20F 121666 20F 12463 20F 12663 20F 12963 20F 12563
1 SF1000 20,000 20FX 20F 20F 20F 20F
(25.40) CX (1379) 16 16463 16663 16963 16563
1 SF1000 43,000 43FX
(25.40) CX43 (2965) 16
1/4 (6.35) F250 C 60,000 (4137) 43FX 41633 60F 4433 60F 4633 60F 4933 60F 4533
3/8 (9.52) F375 C 60,000 (4137) 43FX 61633 60F 6633 60F 6933 60F 6533
9/16 (14.27) F562 C 60,000 (4137) 43FX 91633 60F 9933 60F 9533
9/16 (14.27) F562 C40 40,000 (2760) 40F 9933
5/16 (7.92) F312 C150 150,000 (10342) 150F 5533
1/8 (3.18) NPT 10,000 (690) 6F 2281 6F 2482 6F 2682 4F 2882 6F 2486 6F 2686 6F 2986 6F 21286 6F 2483 6F 2683 6F 2983 6F 2583
1/4 (6.35) NPT 10,000 (690) 6F 4281 6F 4482 6F 4682 4F 4882 6F 4486 6F 4686 6F 4986 6F 41286 6F 41686 6F 4483 6F 4683 6F 4983 6F 4583
3/8 (9.52) NPT 10,000 (690) 6F 6281 6F 6482 6F 6682 4F 6882 6F 6486 6F 6686 6F 6986 6F 61286 6F 61686 6F 6483 6F 6683 6F 6983 6F 6583
1/2 (12.70) NPT 10,000 (690) 6F 8281 6F 8482 6F 8682 4F 8882 6F 8486 6F 8686 6F 8986 6F 81286 6F 81686 6F 8483 6F 8683 6F 8983 6F 8583
3/4 (19.05) NPT 10,000 (690) 4F 12882 6F 12686 6F 12986 6F 121286 6F 121686 6F 12983
1 NPT 10,000 6F 6F 6F 6F
(25.40) (690) 16986 161686 16483 16983

*Maximum pressure rating is based on the lowest rating of any component. All dimensions for reference only and subject to change.
Actual working pressure may be determined by tubing pressure rating, if lower. For prompt service, Autoclave stocks select products. Consult your local representative.
CAUTION: See appropriate pressure section in reference to proper selection of tubing.

Coupling Dimensions - Speedbite

Connection Connection Catalog Dimension inches (mm)
“A” “B” Number A Hex B
W125 W125 15F221 0.50 (12.7) 1.25 (31.7)
W125 SW250 6F2412 0.63 (15.9) 1.44 (36.6)
W125 SW375 6F2612 0.75 (19.1) 1.50 (38.1)
W125 SW500 4F2812 1.00 (25.4) 1.63 (41.4)
W125 SF250CX 15F2416 0.63 (15.9) 1.38 (35.1)
W125 SF375CX 15F2616 0.75 (19.1) 1.50 (38.1)
W125 SF562CX 15F2916 1.00 (25.4) 1.75 (44.5)
W125 F250C 15F2413 0.75 (19.1) 1.25 (31.7)
W125 F375C 15F2613 1.00 (25.4) 1.50 (38.1)
W125 F562C 15F2913 1.38 (35.1) 1.75 (44.5)

SW250 SW250 6F4422 0.63 (15.9) 1.63 (41.4)
SW250 SW375 6F4622 0.75 (19.1) 1.69 (42.9)
SW250 SW500 4F4822 1.00 (25.4) 1.88 (47.8)
SW250 SF250CX 6F4426 0.63 (15.9) 1.63 (41.4)
SW250 SF375CX 6F4626 0.75 (19.1) 1.75 (44.5)
SW250 SF562CX 6F4926 1.00 (25.4) 2.00 (50.8)
SW250 F250C 6F4423 0.75 (19.1) 1.50 (38.1)
SW250 F375C 6F4623 1.00 (25.4) 1.69 (42.9)
SW250 F562C 6F4923 1.38 (35.1) 2.06 (52.3)

Connection Connection Catalog Dimension inches (mm)
“A” “B” Number A Hex B
SW375 SW375 6F6622 0.75 (19.1) 1.75 (44.5)
SW375 SW500 4F6822 1.00 (25.4) 1.88 (47.8)
SW375 SF250CX 6F6426 0.75 (19.1) 0.88 (22.2)
SW375 SF375CX 6F6626 0.75 (19.1) 1.75 (44.5)
SW375 SF562CX 6F6926 1.00 (25.4) 2.00 (50.8)
SW375 SF750CX 6F61226 1.38 (35.1) 2.25 (57.2)
SW375 SF1000CX 6F61626 1.75 (44.5) 3.00 (76.2)
SW375 F250C 6F6423 0.75 (19.1) 1.63 (41.4)
SW375 F375C 6F6623 1.00 (25.4) 1.81 (46.0)
SW375 F562C 6F6923 1.38 (35.1) 2.00 (50.8)

SW500 SW500 4F8822 1.00 (25.4) 2.00 (50.8)
SW500 SF250CX 4F8426 1.00 (25.4) 1.63 (41.4)
SW500 SF375CX 4F8626 1.00 (25.4) 1.88 (47.8)
SW500 SF562CX 4F8926 1.00 (25.4) 2.00 (50.8)
SW500 SF750CX 4F81226 1.38 (35.1) 2.25 (57.2)
SW500 SF1000CX 4F81626 1.75 (44.5) 3.00 (76.2)
SW500 F250C 4F8423 1.00 (25.4) 1.69 (42.9)
SW500 F375C 4F8623 1.00 (25.4) 1.88 (47.8)
SW500 F562C 4F8923 1.38 (35.1) 2.06 (52.3)

Coupling Dimensions - Medium Pressure

Connection Connection Catalog Dimension inches (mm)
“A” “B” Number A Hex B
SF250CX SF250CX 20FX4466 0.63 (15.9) 1.63 (41.4)
SF250CX SF375CX 20F4666 0.75 (19.1) 1.75 (44.5)
SF250CX SF562CX 20F4966 1.00 (25.4) 2.00 (50.8)
SF250CX SF750CX 20F41266 1.38 (35.1) 2.25 (57.2)
SF250CX SF1000CX 20F41666 1.75 (44.5) 2.75 (69.9)
SF250CX F250C 20F4463 0.75 (19.1) 1.38 (35.1)
SF250CX F375C 20F4663 1.00 (25.4) 1.63 (41.4)
SF250CX F562C 20F4963 1.38 (35.1) 1.88 (47.8)
SF250CX F312C150 20F4563 1.00 (25.4) 2.13 (54.1)
SF250CX SF1000CX43 43F41663 1.75 (44.5) 2.75 (69.9)

SF375CX SF375CX 20FX6666 0.75 (19.1) 1.75 (44.5)
SF375CX SF562CX 20F6966 1.00 (25.4) 2.00 (50.8)
SF375CX SF750CX 20F61266 1.38 (35.1) 2.25 (57.2)
SF375CX SF1000CX 20F61666 1.75 (44.5) 2.88 (73.0)
SF375CX F250C 20F6463 0.75 (19.1) 1.63 (41.4)
SF375CX F375C 20F6663 1.00 (25.4) 2.00 (50.8)
SF375CX F562C 20F6963 1.38 (35.1) 2.00 (50.8)
SF375CX F312C150C 20F6563 1.00 (25.4) 2.25 (57.2)
SF375CX SF1000CX43 43F61663 1.75 (44.5) 2.88 (73.0)

SF562CX SF562CX 20FX9966 1.00 (25.4) 2.13 (54.1)
SF562CX SF750CX 20F91266 1.38 (35.1) 2.50 (63.5)
SF562CX SF1000CX 20F91666 1.75 (44.5) 3.00 (76.2)
SF562CX F250C 20F9463 1.00 (25.4) 2.00 (50.8)
SF562CX F375C 20F9663 1.00 (25.4) 2.00 (50.8)
SF562CX F562C 20F9963 1.38 (35.1) 2.25 (57.2)
SF562CX F312C150C 20F9563 1.00 (25.4) 2.50 (63.5)

Connection Connection Catalog Dimension inches (mm)
“A” “B” Number A Hex B
SF750CX SF750CX 20FX12 1.38 (35.1) 2.50 (63.5)
SF750CX SF1000CX 20F121666 1.75 (44.5) 3.00 (76.2)
SF750CX F250C 20F12463 1.38 (35.1) 2.50 (63.5)
SF750CX F375C 20F12663 1.38 (35.1) 2.38 (60.33)
SF750CX F562C 20F12963 1.38 (35.1) 2.75 (69.9)
SF750CX F312C150 20F12563 1.38 (35.1) 2.75 (69.9)

SF1000CX SF1000CX 20FX16 1.75 (44.5) 3.50 (88.9)
SF1000CX F250C 20F16463 1.75 (44.5) 2.75 (69.9)
SF1000CX F375C 20F16663 1.75 (44.5) 2.88 (73.0)
SF1000CX F562C 20F16963 1.75 (44.5) 3.25 (82.6)
SF1000CX F312C150 20F16563 1.75 (44.5) 3.25 (82.6)

A HEX



B

Maximum pressure rating is based on the lowest rating of any component.
Actual working pressure may be determined by tubing pressure rating, if lower.
Note: For pressure rating see selection chart.

All dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult your local representative.



All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
Coupling Dimensions - High Pressure



Connection Connection Catalog
“A” “B” Number A Hex B
F250C F250C 60F4433 0.75 (19.1) 1.38 (35.1)
F250C F375C 60F4633 1.00 (25.4) 1.63 (41.4)
F250C F562C 60F4933 1.38 (35.1) 1.75 (44.5)
F250C F312C150 60F4533 1.00 (25.4) 2.00 (50.8)
F250C F1000CX43 43F41633 1.75 (44.5) 2.75 (69.9)

F375C F375C 60F6633 1.00 (25.4) 1.75 (44.5)
F375C F562C 60F6933 1.38 (35.1) 2.00 (50.8)
F375C F312C150 60F6533 1.00 (25.4) 2.25 (57.2)
F375C F1000CX43 43F61633 1.75 (44.5) 2.88 (73.0)

F562C F562C 60F9933 1.38 (35.1) 2.19 (55.6)
F562C40 F562C40 40F9933 1.38 (35.1) 2.19 (55.6)
F562C F312C150 60F9533 1.19 (30.1) 2.63 (66.7)
F562C SF1000CX43 43F91633 1.75 (44.5) 3.75 (82.6)

F312C150 F312C150 150F5533 1.38 (35.1) 2.50 (63.5)

SF1000CX43 SF1000CX43 43FX16 1.75 (44.5) 3.50 (88.9)

A HEX



B

Coupling Dimensions - National Pipe Thread (NPT)

Connection Connection Catalog Dimension inches (mm)
“A” “B” Number A Hex B
1/8 NPT W125 6F2281 0.63 (15.9) 1.38 (35.1)
1/8 NPT SW250 6F2482 0.63 (15.9) 1.50 (38.1)
1/8 NPT SW375 6F2682 0.75 (19.1) 1.63 (41.4)
1/8 NPT SW500 4F2882 1.00 (25.4) 1.50 (38.1)
1/8 NPT SF250CX 6F2486 0.63 (15.9) 1.38 (35.1)
1/8 NPT SF375CX 6F2686 0.75 (19.1) 1.50 (38.1)
1/8 NPT SF562CX 6F2986 1.00 (25.4) 1.63 (41.4)
1/8 NPT SF750CX 6F21286 1.38 (35.1) 1.75 (44.5)
1/8 NPT F250C 6F2483 0.75 (19.1) 1.38 (35.1)
1/8 NPT F375C 6F2683 1.00 (25.4) 1.63 (41.4)
1/8 NPT F562C 6F2983 1.38 (35.1) 1.82 (46.2)
1/8 NPT F312C150 6F2583 1.00 (25.4) 2.13 (54.1)

Maximum pressure rating is based on the lowest rating of any component.
Actual working pressure may be determined by tubing pressure rating, if lower.
Note: For pressure rating see selection chart.

All dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult your local representative.

Connection Connection Catalog Dimension inches (mm)
“A” “B” Number A Hex B
1/4 NPT W125 6F4281 0.75 (19.1) 1.50 (38.1)
1/4 NPT SW250 6F4482 0.75 (19.1) 1.63 (41.4)
1/4 NPT SW375 6F4682 0.75 (19.1) 1.75 (44.5)
1/4 NPT SW500 4F4882 0.75 (19.1) 1.63 (41.4)
1/4 NPT SF250CX 6F4486 0.75 (19.1) 1.63 (41.4)
1/4 NPT SF375CX 6F4686 0.75 (19.1) 1.75 (44.5)
1/4 NPT SF562CX 6F4986 1.00 (25.4) 2.00 (50.8)
1/4 NPT SF750CX 6F41286 1.38 (35.1) 1.75 (44.5)
1/4 NPT SF1000CX 6F41686 1.38 (35.1) 2.38 (60.33)
1/4 NPT F250C 6F4483 0.75 (19.1) 1.63 (41.4)
1/4 NPT F375C 6F4683 1.00 (25.4) 1.88 (47.8)
1/4 NPT F562C 6F4983 1.38 (35.1) 2.00 (50.8)
1/4 NPT F312C150 6F4583 1.00 (25.4) 2.50 (63.5)



A.
HEX.







B

Coupling Dimensions - National Pipe Thread (NPT) - con’t

Connection Connection Catalog Dimension inches (mm)
“A” “B” Number A Hex B
3/8 NPT W125 6F6281 1.00 (25.4) 1.63 (41.1)
3/8 NPT SW250 6F6482 1.00 (25.4) 1.75 (44.5)
3/8 NPT SW375 6F6682 1.00 (25.4) 1.88 (47.8)
3/8 NPT SW500 4F6882 1.00 (25.4) 1.75 (44.5)
3/8 NPT SF250CX 6F6486 0.94 (23.9) 1.63 (41.4)
3/8 NPT SF375CX 6F6686 0.94 (23.9) 1.82 (46.2)
3/8 NPT SF562CX 6F6986 1.00 (25.4) 2.00 (50.8)
3/8 NPT SF750CX 6F61286 1.38 (35.1) 2.38 (60.33)
3/8 NPT SF1000CX 6F61686 1.75 (44.5) 2.50 (63.5)
3/8 NPT F250C 6F6483 1.00 (25.4) 1.63 (41.4)
3/8 NPT F375C 6F6683 1.00 (25.4) 1.88 (47.8)
3/8 NPT F562C 6F6983 1.38 (35.1) 2.00 (50.8)
3/8 NPT F312C150 6F6583 1.00 (25.4) 2.25 (57.2

1/2 NPT W125 6F8281 1.19 (30.1) 2.00 (50.8)
1/2 NPT SW250 6F8482 1.88 (47.8) 2.13 (54.1)
1/2 NPT SW375 6F8682 1.88 (47.8) 2.13 (54.1)
1/2 NPT SW500 4F8882 1.19 (30.1) 2.25 (57.2)
1/2 NPT SF250CX 6F8486 1.19 (30.1) 2.00 (50.8)
1/2 NPT SF375CX 6F8686 1.19 (30.1) 2.13 (54.1)
1/2 NPT SF562CX 6F8986 1.19 (30.1) 2.25 (57.2)
1/2 NPT SF750CX 6F81286 1.38 (35.1) 2.63 (66.7)
1/2 NPT SF1000CX 6F81686 1.75 (44.5) 3.00 (76.2)
1/2 NPT F250C 6F8483 1.19 (30.1) 2.00 (50.8)
1/2 NPT F375C 6F8683 1.19 (30.1) 2.13 (54.1)
1/2 NPT F562C 6F8983 1.38 (35.1) 2.50 (63.5)
1/2 NPT F312C150 6F8583 1.19 (30.1) 2.50 (63.5)

Connection “A” Connection “B” Catalog Number Dimension inches (mm)
A Hex B
3/4 NPT SW500 4F12882 1.38 (35.1) 2.50 (63.5)
3/4 NPT SF375CX 6F12686 1.38 (35.1) 2.25 (57.2)
3/4 NPT SF562CX 6F12986 1.38 (35.1) 2.25 (57.2)
3/4 NPT SF750CX 6F121286 1.50 (38.1) 2.63 (66.7)
3/4 NPT SF1000CX 6F121686 1.75 (44.5) 3.00 (76.2)
3/4 NPT F562C 6F12983 1.38 (35.1) 2.38 (60.33)

1 NPT SF562CX 6F16986 1.75 (44.5) 2.63 (66.7)
1 NPT SF1000CX 6F161686 1.75 (44.5) 2.88 (73.0)
1 NPT F250C 6F16483 1.88 (47.8) 2.38 (60.33)
1 NPT F250C 6F16983 1.75 (44.5) 2.50 (63.5)
A

B HEX

Maximum pressure rating is based on the lowest rating of any component.
Actual working pressure may be determined by tubing pressure rating, if lower.
Note: For pressure rating see selection chart.

All dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult your local representative.



Other Adapters
Autoclave supplies many other types of adapters on special
order. These include Autoclave UniVersa-Lok swaged-type

Adapters/Couplings -Male/Female Adapters

Flat T
SpeedBite
High PressureMedium Pressure
Flat Bottom

Male /female adapters are designed to adapt a female connection to another size and/or type of connection without the need for additional couplings. In selecting an adapter involving two different sized connections, the larger connection should be on the male end where it is possible to maximize the mechanical strength of the adapter.
To use this chart:
1.
Locate MALE end in vertical column.

2.
Locate desired FEMALE end of adapter across top of chart.

3.
Catalog number of required adapter is located at intersection of columns.

4.
For one piece adapter add-OP to suffix of part number

All AE adapters are supplied complete with appropriate glands, collars, tube nuts and sleeves unless specified without.
connections, socketweld to O.D. tube or nominal pipe size,
male or female AN connections and others.
Materials
All Autoclave adapters are precision machined from cold-
worked Type 316 stainless steel. Other materials available on
special order.
Note: Special material couplings may be supplied with four flats in place of
standard hex.
FEMALE END
Connection SpeedBite Medium Pressure
Size and Type 1/8” W125 1/4” SW250 3/8” SW375 1/2” SW500 1/4” SF250CX 3/8” SF375CX 9/16” SF562CX 3/4” SF750CX 1” SF1000CX
Fits this Pressure 11,000 11,500 10,000 5,500 20,000 20,000 20,000 20,000 20,000
Female Rating (758.41) (792.88) (689.45) (379.21) (1378.93) (1378.93) (1378.93) (1378.93) (1378.93)
Connection PSI (bar)*
1/8” W125 11,000 (758.41) 6M24C2 6M26C2 4M28C2 6M24C6 6M26C6 6M29C6
1/4” SW250 11,500 (792.88) 6M42D1 6M46D2 4M48D2 6M44D6 6M46D6 6M49D6 6M412D6
3/8” SW375 10,000 (689.45) 6M62D1 6M64D2 4M68D2 6M64D6 6M66D6 6M69D6 6M612D6 6M616D6
1/2” SW500 5,500 (379.21) 4M82D1 4M84D2 4M86D2 4M84D6 4M86D6 4M89D6 4M812D6 4M816D6
1/4” SF250CX 20,000 (1378.93) 15MX42K1 6MX44K2 6MX46K2 4MX48K2 20M46K6 20M49K6 20M412K6 20M416K6
3/8” SF375CX 20,000 (1378.93) 15MX62K1 6MX64K2 6MX66K2 4MX68K2 20M64K6 20M69K6 20M612K6 20M616K6
9/16” SW562CX 20,000 (1378.93) 15MX92K1 6MX94K2 6MX96K2 4MX98K2 20M94K6 20M96K6 20M912K6 20M916K6
3/4” SF750CX 20,000 (1378.93) 6MX124K2 4MX126K2 4MX128K2 20M124K6 20M126K6 20M129K6 20M1216K6
1” SF1000CX 20,000 (1378.93) 6MX162K2 6MX164K2 6MX166K2 4MX168K2 20M164K6 20M166K6 20M169K6 20M1612K6
1” SF1000CX43 43,000 (2964.69)
1/4” F250C 60,000 (4136.85) 15M42B1 6M44B2 6M46B2 4M48B2 20M44B6 20M46B6 20M49B6 20M412B6
5/16” F321C150 150,000 (10342.14) 6M54B2 6M56B2 4M58B2 20M54B6 20M56B6 20M59B6 20M512B6
3/8” F375C 60,000 (4136.85) 15M62B1 6M64B2 6M66B2 4M68B2 20M64B6 20M66B6 20M69B6 20M612B6 20M616B6
9/16” F562C 60,000 (4136.85) 15M92B1 6M94B2 6M96B2 4M98B2 20M94B6 20M96B6 20M99B6 20M912B6 20M916B6
9/16” F562C40 40,000 (2757.90) 20M912G6
7/16” F437FB 10,000 (689.45) 15M72E1 6M74E2 6M76E2 4M78E2 15M74E6 15M76E6 15M79E6
9/16” F562FB 10,000 (689.45) 15M92E1 6M94E2 6M96E2 4M98E2 15M94E6 15M96E6 15M99E6 15M912E6 15M916E6
9/16” F562FT 10,000 (689.45) 15M92R1 6M94R2 6M96R2 4M98R2 15M94R6 15M96R6 15M99R6 15M912R6 15M916R6
3/4” F750FB 10,000 (689.45) 15M122E1 6M124E2 6M126E2 4M128E2 15M124E6 15M126E6 15M129E6 15M1212E6 15M1216E6
1/8” NPT 10,000 (689.45) 6M22N1 6M24N2 6M26N2 4M28N2 6M24N6 6M26N6 6M29N6
1/4” NPT 10,000 (689.45) 6M42N1 6M44N2 6M46N2 4M48N2 6M44N6 6M46N6 6M49N6 6M412N6 6M416N6
3/8” NPT 10,000 (689.45) 6M62N1 6M64N2 6M66N2 4M68N2 6M64N6 6M66N6 6M69N6 6M612N6 6M616N6
1/2” NPT 10,000 (689.45) 6M82N1 6M84N2 6M86N2 4M88N2 6M84N6 6M86N6 6M89N6 6M812N6 6M816N6
3/4” NPT 10,000 (689.45) 6M124N2 6M126N2 4M128N2 6M124N6 6M126N6 6M129N6 6M1212N6 6M1216N6
1” NPT 10,000 (689.45) 6M166N2 4M168N2 6M166N6 6M169N6 6M1612N6 6M1616N6

Note: * The maximum pressure rating for an adapter is determined by the connection component with the
LOWEST pressure rating; that is, the two end connections and the tubing or pipe used, whichever is
LOWER.
CAUTION: See appropriate pressure section in reference to proper selection of tubing.

All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.

FEMALE END
High Pressure National Pipe Thread (NPT)
1” 1/4” 5/16” 3/8” 9/16” 9/16” 1/8” 1/4” 3/8” 1/2” 3/4” 1”
SF1000CX43 F250C F312C150 F375C F562C F562C40 NPT NPT NPT NPT NPT NPT
43,000 60,000 150,000 60,000 60,000 40,000 10,000 10,000 10,000 10,000 10,000 10,000
(2964.69) (4136.85) (10342.14) (4136.85) (4136.85) (2757.90) (689.45) (689.45) (689.45) (689.45) (689.45) (689.45)
6M24C3 6M26C3 6M29C3 6M22C8 6M24C8 6M26C8 6M28C8
6M44D3 6M46D3 6M49D3 6M42D8 6M44D8 6M46D8 6M48D8 6M412D8
6M64D3 6M66D3 6M69D3 6M62D8 6M64D8 6M66D8 6M68D8 6M612D8 6M616D8
4M84D3 4M86D3 4M89D3 4M82D8 4M84D8 4M86D8 4M88D8 4M812D8 4M816D8
20M44K3 20M45K3 20M46K3 20M49K3 6MX42K8 6MX44K8 6MX46K8 6MX48K8 6MX412K8
20M64K3 20M65K3 20M66K3 20M69K3 6MX62K8 6MX64K8 6MX66K8 6MX68K8 6MX612K8 6MX616K8
20M94K3 20M95K3 20M96K3 20M99K3 6MX92K8 6MX94K8 6MX96K8 6MX98K8 6MX912K8 6MX916K8
20M124K3 20M125K3 20M126K3 20M129K3 20M129K40 6MX124K8 6MX126K8 6MX128K8 6MX1212K8 6MX1216K8
20M164K3 20M166K3 20M169K3 6MX164K8 6MX166K8 6MX168K8 6MX1612K8 6MX1616K8
43M164B3 43M166B3 43M169B3 43M169B40
43M416B6 60M45B3 60M46B3 60M49B3 6M42B8 6M44B8 6M46B8 6M48B8 6M412B8
60M54B3 60M56B3 60M59B3 6M58B8 6M512B8
43M616B6 60M64B3 60M65B3 60M69B3 6M62B8 6M64B8 6M66B8 6M68B8 6M612B8 6M616B8
43M916B6 60M94B3 60M95B3 60M96B3 6M92B8 6M94B8 6M96B8 6M98B8 6M912B8 6M916B8
6M98G8
15M74E3 15M76E3 15M79E3 6M72E8 6M74E8 6M76E8 6M78E8 6M712E8
15M94E3 15M96E3 6M92E8 6M94E8 6M96E8 6M98E8 6M912E8 6M916E8
15M94E3 15M96R3 15M99E3 6M92R8 6M94R8 6M96R8 6M98R8 6M912R8 6M916R8
15M124E3 15M126E3 15M129E3 6M122E8 6M124E8 6M126E8 6M128E8 6M1212E8 6M1216E8
6M24N3 6M26N3 6M29N3
6M44N3 6M45N3 6M46N3 6M49N3 6M48N8
6M64N3 6M66N3 6M69N3 6M69N40 6M68N8
6M84N3 6M86N3 6M89N3 6M89N40 6M812N8
6M124N3 6M126N3 6M129N3 6M122N8
6M166N3 6M169N3

AE Male/Female Adapters are available in a “one-piece” design. They are identical to the two piece For prompt service, Autoclave stocks select products. Consult factory.
designs in length and can be ordered by adding the suffix - OP to the two piece adapter part numbers
listed.





Adapters/Couplings -Male/Female Adapters

Speed Bite

Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
W125 W125
W125 SW250 6M24C2 0.63 (15.9) 1.29 (32.1)
W125 SW375 6M26C2 0.75 (19.1) 1.41 (35.8)
W125 SW500 4M28C2 1.00 (25.4) 1.53 (38.8)
W125 SF250CX 6M24C6 0.63 (15.9) 1.41 (35.8)
W125 SF375CX 6M26C6 0.75 (19.1) 1.41 (35.8)
W125 SF562CX 6M29C6 1.00 (25.4) 1.66 (42.1)
W125 SF750CX
W125 SF1000CX
W125 SF1000CX43
W125 F250C 6M24C3 .75 (19.1) 1.16 (29.5)
W125 F312C150
W125 F375C 6M26C3 1.00 (25.4) 1.34 (34.1)
W125 F562C 6M29C3 1.38 (35.1) 1.59 (40.5)
W125 F562C40
W125 1/8 NPT 6M22C8 0.63 (15.9) 1.25 (31.8)
W125 1/4 NPT 6M24C8 0.75 (19.1) 1.47 (37.3)
W125 3/8 NPT 6M26C8 1.00 (25.4) 1.53 (38.8)
W125 1/2 NPT 6M28C8 1.18 (30.1) 1.81 (46.0)
W125 3/4 NPT
W125 1 NPT

SW250 W125 6M42D1 0.63 (15.9) 1.08 (27.4)
SW250 SW250
SW250 SW375 6M46D2 0.75 (19.1) 1.64 (41.7)
SW250 SW500 4M48D2 1.00 (25.4) 1.77 (44.9)
SW250 SF250CX 6M44D6 0.63 (15.9) 1.52 (38.5)
SW250 SF375CX 6M46D6 0.75 (19.1) 1.77 (44.9)
SW250 SF562CX 6M49D6 1.00 (25.4) 1.89 (48.0)
SW250 SF750CX 6M412D6 1.38 (35.1) 2.27 (57.7)
SW250 SF1000CX
SW250 SF1000CX43
SW250 F250C 6M44D3 .75 (19.1) 1.27 (32.2)
SW250 F312C150
SW250 F375C 6M46D3 1.00 (25.4) 1.70 (43.3)
SW250 F562C 6M49D3 1.38 (35.1) 1.77 (44.9)
SW250 F562C40
SW250 1/8 NPT 6M42D8 0.63 (15.9) 1.39 (35.3)
SW250 1/4 NPT 6M44D8 0.75 (19.1) 1.64 (41.7)
SW250 3/8 NPT 6M46D8 1.00 (25.4) 1.70 (43.3)
SW250 1/2 NPT 6M48D8 1.18 (30.1) 1.95 (49.6)
SW250 3/4 NPT 6M412D8 1.38 (35.1) 2.21 (56.0)
SW250 1 NPT

Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
SW375 W125 6M62D1 0.75 (19.1) 1.16 (29.4)
SW375 SW250 6M64D2 0.75 (19.1) 1.41 (35.7)
SW375 SW375
SW375 SW500 4M68D2 1.00 (25.4) 1.78 (45.3)
SW375 SF250CX 6M64D6 0.75 (19.1) 1.41 (35.9)
SW375 SF375CX 6M66D6 0.75 (19.1) 1.59 (40.4)
SW375 SF562CX 6M69D6 1.00 (25.4) 1.72 (43.7)
SW375 SF750CX 6M612D6 1.38 (35.1) 2.28 (57.9)
SW375 SF1000CX 6M616D6 1.75 (44.5) 2.78 (70.7)
SW375 SF1000CX43
SW375 F250C 6M64D3 .75 (19.1) 1.41 (35.7)
SW375 F312C150
SW375 F375C 6M66D3 1.00 (25.4) 1.66 (42.2)
SW375 F562C 6M69D3 1.38 (35.1) 1.78 (45.3)
SW375 F562C40
SW375 1/8 NPT 6M62D8 0.75 (19.1) 1.41 (35.7)
SW375 1/4 NPT 6M64D8 0.75 (19.1) 1.66 (42.2)
SW375 3/8 NPT 6M66D8 1.00 (25.4) 1.78 (45.3)
SW375 1/2 NPT 6M68D8 1.18 (30.1) 1.97 (50.0)
SW375 3/4 NPT 6M612D8 1.38 (35.1) 2.28 (57.9)
SW375 1 NPT 6M616D8 1.75 (44.5) 2.78 (70.7)

SW500 W125 4M82D1 0.94 (23.8) 1.22 (31.0)
SW500 SW250 4M84D2 0.94 (23.8) 1.34 (34.1)
SW500 SW375 4M86D2 0.94 (23.8) 1.47 (37.3)
SW500 SW500
SW500 SF250CX 4M84D6 1.00 (25.4) 1.59 (40.5)
SW500 SF375CX 4M86D6 1.00 (25.4) 1.59 (40.5)
SW500 SF562CX 4M89D6 1.00 (25.4) 1.66 (42.2)
SW500 SF750CX 4M812D6 1.38 (35.1) 2.09 (53.2)
SW500 SF1000CX 4M816D6 1.75 (44.5) 2.72 (69.0)
SW500 SF1000CX43
SW500 F250C 4M84D3 0.94 (23.8) 1.41 (35.7)
SW500 F312C150
SW500 F375C 4M86D3 1.00 (25.4) 1.59 (40.5)
SW500 F562C 4M89D3 1.38 (35.1) 1.72 (43.7)
SW500 F562C40
SW500 1/8 NPT 4M82D8 1.00 (25.4) 1.34 (34.1)
SW500 1/4 NPT 4M84D8 1.00 (25.4) 1.47 (37.3)
SW500 3/8 NPT 4M86D8 1.00 (25.4) 1.72 (43.7)
SW500 1/2 NPT 4M88D8 1.18 (30.1) 2.16 (54.7)
SW500 3/4 NPT 4M812D8 1.38 (35.1) 2.22 (56.3)
SW500 1 NPT 4M816D8 1.75 (44.5) 2.47 (62.7)

For prompt service, Autoclave stocks select products.

Maximum pressure rating is based on the lowest rating of any Consult factory.
component. Actual working pressure may be determined by
tubing pressure rating, if lower.
Note: For pressure rating see selection chart.
All Dimensions for reference only and subject to change.



Medium Pressure

Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
SF250CX W125 15MX42K1 0.63 (15.9) 1.34 (34.1)
SF250CX SW250 6MX44K2 0.63 (15.9) 1.59 (40.5)
SF250CX SW375 6MX46K2 0.75 (19.1) 1.59 (40.5)
SF250CX SW500 4MX48K2 1.00 (25.4) 1.00 (25.4)
SF250CX SF250CX
SF250CX SF375CX 20M46K6 0.75 (19.1) 1.59 (40.5)
SF250CX SF562CX 20M49K6 1.00 (25.4) 1.97 (50.0)
SF250CX SF750CX 20M412K6 1.38 (35.1) 2.34 (59.5)
SF250CX SF1000CX 20M416K6 1.75 (44.5) 2.84 (72.2)
SF250CX SF1000CX43
SF250CX F250C 20M44K3 .75 (19.1) 1.28 (32.5)
SF250CX F312C150 20M45K3 1.00 (25.4) 2.09 (53.2)
SF250CX F375C 20M46K3 1.00 (25.4) 1.59 (40.5)
SF250CX F562C 20M49K3 1.38 (35.1) 1.97 (50.0)
SF250CX F562C40
SF250CX 1/8 NPT 6MX42K8 0.63 (15.9) 1.47(37.3)
SF250CX 1/4 NPT 6MX44K8 0.75 (19.1) 1.59 (40.5)
SF250CX 3/8 NPT 6MX46K8 1.00 (25.4) 1.66 (42.2)
SF250CX 1/2 NPT 6MX48K8 1.18 (30.1) 1.97 (50.0)
SF250CX 3/4 NPT 6MX412K8 1.38 (35.1) 2.09 (53.2)
SF250CX 1 NPT

SF375CX W125 15MX62K1 0.63 (15.9) 1.50 (38.1)
SF375CX SW250 6MX64K2 0.63 (15.9) 1.63 (41.3)
SF375CX SW375 6MX66K2 1.00 (25.4) 1.82 (46.0)
SF375CX SW500 4MX68K2 1.00 (25.4) 2.00 (50.8)
SF375CX SF250CX 20M64K6 0.63 (15.9) 1.39 (35.2)
SF375CX SF375CX
SF375CX SF562CX 20M69K6 1.00 (25.4) 2.06 (52.4)
SF375CX SF750CX 20M612K6 1.38 (35.1) 2.50 (63.5)
SF375CX SF1000CX 20M616K6 1.75 (44.5) 3.06 (77.8)
SF375CX SF1000CX43
SF375CX F250C 20M64K3 .75 (19.1) 1.44 (36.5)
SF375CX F312C150 20M65K3 1.00 (25.4) 2.25 (57.2)
SF375CX F375C 20M66K3 1.00 (25.4) 1.63 (41.3)
SF375CX F562C 20M69K3 1.38 (35.1) 1.88 (47.6)
SF375CX F562C40
SF375CX 1/8 NPT 6MX62K8 0.63 (15.9) 1.75 (44.5)
SF375CX 1/4 NPT 6MX64K8 0.75 (19.1) 1.81 (46.0)
SF375CX 3/8 NPT 6MX66K8 1.00 (25.4) 1.88 (47.6)
SF375CX 1/2 NPT 6MX68K8 1.18 (30.1) 2.12 (54.0)
SF375CX 3/4 NPT 6MX612K8 1.38 (35.1) 2.38 (60.3)
SF375CX 1 NPT 6MX616K8 1.75 (44.5) 2.63 (66.7)

Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
SW562CX W125 15MX92K1 0.81 (20.6) 1.75 (44.5)
SW562CX SW250 6MX94K2 0.94 (23.8) 1.75 (44.5)
SW562CX SW375 6MX96K2 0.94 (23.8) 1.75 (44.5)
SW562CX SW500 4MX98K2 1.00 (25.4) 1.94 (49.2)
SW562CX SF250CX 20M94K6 0.94 (23.8) 1.34 (34.1)
SW562CX SF375CX 20M96K6 0.94 (23.8) 1.34 (59.5)
SW562CX SF562CX
SW562CX SF750CX 20M912K6 1.38 (35.1) 3.12 (79.3)
SW562CX SF1000CX 20M916K6 1.75 (44.5) 3.75 (95.3)
SW562CX SF1000CX43
SW562CX F250C 20M94K3 .81 (20.6) 1.81 (46.0)
SW562CX F312C150 20M95K3 1.00 (25.4) 2.50 (63.5)
SW562CX F375C 20M96K3 1.00 (25.4) 2.00 (50.8)
SW562CX F562C 20M99K3 1.38 (35.1) 2.12 (54.0)
SW562CX F562C40
SW562CX 1/8 NPT 6MX92K8 0.94 (23.8) 1.75 (44.5)
SW562CX 1/4 NPT 6MX94K8 0.94 (23.8) 2.18 (55.5)
SW562CX 3/8 NPT 6MX96K8 0.94 (23.8) 2.18 (55.5)
SW562CX 1/2 NPT 6MX98K8 1.18 (30.1) 2.44 (61.9)
SW562CX 3/4 NPT 6MX912K8 1.50 (38.1) 2.50 (63.5)
SW562CX 1 NPT 6MX916K8 1.75 (44.5) 3.00 (76.2)

SF750CX W125
SF750CX SW250 6MX124K2 1.18 (30.1) 2.06 (52.4)
SF750CX SW375 6MX126K2 1.18 (30.1) 1.97 (50.0)
SF750CX SW500 4MX128K2 1.00 (25.4) 2.75 (69.9)
SF750CX SF250CX 20M124K6 1.18 (30.1) 2.06 (52.4)
SF750CX SF375CX 20M126K6 1.18 (30.1) 2.06 (52.4)
SF750CX SF562CX 20M129K6 1.18 (30.1) 1.69 (61.9)
SF750CX SF750CX
SF750CX SF1000CX 20M1216K6 1.75 (44.5) 3.50 (88.9)
SF750CX SF1000CX43
SF750CX F250C 20M124K3 0.81 (20.6) 2.50 (63.5)
SF750CX F312C150 20M125K3 1.00 (25.4) 3.12 (79.3)
SF750CX F375C 20M126K3 1.18 (30.1) 2.06 (52.4)
SF750CX F562C 20M129K3 1.31 (58.6) 2.12 (54.0)
SF750CX F562C40 20M129K40 1.38 (35.1) 2.38 (60.4)
SF750CX 1/8 NPT
SF750CX 1/4 NPT 6MX124K8 0.81 (20.6) 2.50 (63.5)
SF750CX 3/8 NPT 6MX126K8 1.00 (25.4) 2.88 (73.0)
SF750CX 1/2 NPT 6MX128K8 1.18 (30.1) 2.88 (73.0)
SF750CX 3/4 NPT 6MX1212K8 1.38 (35.1) 3.12 (79.3)
SF750CX 1 NPT 6MX1216K8 1.75 (44.5) 3.50 (88.9)

For prompt service, Autoclave stocks select products.
Maximum pressure rating is based on the lowest rating of any Consult factory.
component. Actual working pressure may be determined by
tubing pressure rating, if lower.
Note: For pressure rating see selection chart.
All Dimensions for reference only and subject to change.





Adapter configurations may vary from outline shown

A.
Hex





Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
SF1000CX W125 6MX162K2 1.38 (35.1) 2.69 (68.3)
SF1000CX SW250 6MX164K2 1.38 (35.1) 2.63 (66.7)
SF1000CX SW375 6MX166K2 1.38 (35.1) 2.63 (66.7)
SF1000CX SW500 4MX168K2 1.18 (30.1) 4.25 (108.0)
SF1000CX SF250CX 20M164K6 1.38 (35.1) 2.63 (66.7)
SF1000CX SF375CX 20M166K6 1.38 (35.1) 2.63 (66.7)
SF1000CX SF562CX 20M169K6 1.38 (35.1) 2.63 (66.7)
SF1000CX SF750CX 20M1612K6 1.50 (38.1) 2.12 (54.0)
SF1000CX SF1000CX
SF1000CX SF1000CX43
SF1000CX F250C 20M164K3 1.38 (35.1) 2.18 (55.6)
SF1000CX F312C150
SF1000CX F375C 20M166K3 1.38 (35.1) 2.18 (55.6)
SF1000CX F562C 20M169K3 1.50 (38.1) 2.44 (61.9)
SF1000CX F562C40
SF1000CX 1/8 NPT
SF1000CX 1/4 NPT 6MX164K8 1.50 (38.1) 3.18 (81.0)
SF1000CX 3/8 NPT 6MX166K8 1.75 (44.5) 3.18 (81.0)
SF1000CX 1/2 NPT 6MX168K8 1.75 (44.5) 3.18 (81.0)
SF1000CX 3/4 NPT 6MX1612K8 1.75 (44.5) 3.18 (81.0)
SF1000CX 1 NPT 6MX1616K8 1.75 (44.5) 3.18 (81.0)

Adapter configurations may vary from outline shown
High Pressure





For prompt service, Autoclave stocks select products.

Maximum pressure rating is based on the lowest rating of any
Consult factory.

component. Actual working pressure may be determined by
tubing pressure rating, if lower.
A

Note: For pressure rating see selection chart.
Hex

All Dimensions for reference only and subject to change.
B

Note: Adapter configurations may vary from outline shown
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
F312C150 W125
F312C150 SW250 6M54B2 0.75 (19.1) 2.13 (54.0)
F312C150 SW375 6M56B2 0.75 (19.1) 2.25 (57.2)
F312C150 SW500 4M58B2 1.00 (25.4)
F312C150 SF250CX 20M54B6 0.75 (19.1) 2.00 (50.8)
F312C150 SF375CX 20M56B6 0.75 (19.1) 2.25 (57.2)
F312C150 SF562CX 20M59B6 1.00 (25.4) 2.38 (60.4)
F312C150 SF750CX 20M512B6 1.38 (35.1) 3.00 (76.2)
F312C150 SF1000CX
F312C150 SF1000CX43
F312C150 F250C 60M54B3 1.00 (25.4) 2.06 (52.4)
F312C150 F312C150
F312C150 F375C 60M56B3 1.00 (25.4) 2.25 (57.2)
F312C150 F562C 60M59B3 1.38 (35.1) 2.56 (65.1)
F312C150 F562C40
F312C150 1/8 NPT
F312C150 1/4 NPT
F312C150 3/8 NPT
F312C150 1/2 NPT 6M58B8 1.18 (30.1) 2.69 (68.3)
F312C150 3/4 NPT 6M512B8 1.38 (35.1) 2.88 (73.0)
F312C150 1 NPT

F375C W125 15M62B1 0.81 (20.6) 1.44 (36.5)
F375C SW250 6M64B2 0.81 (20.6) 1.69 (42.8)
F375C SW375 6M66B2 0.81 (20.6) 1.69 (42.8)
F375C SW500 4M68B2 1.00 (25.4) 1.75 (44.5)
F375C SF250CX 20M64B6 0.81 (20.6) 1.75 (44.5)
F375C SF375CX 20M66B6 0.81 (20.6) 1.88 (47.6)
F375C SF562CX 20M69B6 1.00 (25.4) 2.00 (50.8)
F375C SF750CX 20M612B6 1.38 (35.1) 2.25 (57.2)
F375C SF1000CX 20M616B6 1.75 (44.5) 3.25 (82.6)
F375C SF1000CX43 43M616B6 1.75 (44.5) 3.25 (82.6)
F375C F250C 60M64B3 .81 (20.6) 1.63 (41.3)
F375C F312C150 60M65B3 1.00 (25.4) 2.25 (57.2)
F375C F375C
F375C F562C 60M69B3 1.38 (35.1) 1.63 (41.3)
F375C F562C40
F375C 1/8 NPT 6M62B8 0.81 (20.6) 1.50 (38.1)
F375C 1/4 NPT 6M64B8 0.81 (20.6) 1.75 (44.5)
F375C 3/8 NPT 6M66B8 1.00 (25.4) 2.00 (50.8)
F375C 1/2 NPT 6M68B8 1.18 (30.1) 2.25 (57.2)
F375C 3/4 NPT 6M612B8 1.38 (35.1) 2.50 (63.5)
F375C 1 NPT 6M616B8 1.75 (44.5) 2.75 (69.9)

Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
F562C W125 15M92B1 1.18 (30.1) 1.50 (38.1)
F562C SW250 6M94B2 1.18 (30.1) 1.69 (42.8)
F562C SW375 6M96B2 1.18 (30.1) 1.69 (42.8)
F562C SW500 4M98B2 1.18 (30.1) 1.75 (44.5)
F562C SF250CX 20M94B6 1.18 (30.1) 1.69 (42.8)
F562C SF375CX 20M96B6 1.18 (30.1) 1.81 (46.0)
F562C SF562CX 20M99B6 1.18 (30.1) 1.94 (49.2)
F562C SF750CX 20M912B6 1.38 (35.1) 2.31 (58.7)
F562C SF1000CX 20M916B6 1.75 (44.5) 3.31 (84.1)
F562C SF1000CX43 43M916B6 1.75 (44.5) 3.31 (84.1)
F562C F250C 60M94B3 1.18 (30.1) 1.69 (42.8)
F562C F312C150 60M95B3 1.18 (30.1) 2.31 (58.7)
F562C F375C 60M96B3 1.18 (30.1) 1.88 (47.6)
F562C F562C
F562C F562C40
F562C 1/8 NPT 6M92B8 0.94 (23.8) 1.81 (46.0)
F562C 1/4 NPT 6M94B8 0.94 (23.8) 1.81 (46.0)
F562C 3/8 NPT 6M96B8 0.94 (23.8) 1.81 (46.0)
F562C 1/2 NPT 6M98B8 1.18 (30.1) 2.13 (54.0)
F562C 3/4 NPT 6M912B8 1.50 (38.1) 2.31 (58.7)
F562C 1 NPT 6M916B8 1.75 (44.5) 1.69 (42.8)

F562C40 W125
F562C40 SW250
F562C40 SW375
F562C40 SW500
F562C40 SF250CX
F562C40 SF375CX
F562C40 SF562CX
F562C40 SF750CX 20M912G6 1.38 (35.1) 2.50 (63.5)
F562C40 SF1000CX
F562C40 SF1000CX43
F562C40 F250C
F562C40 F312C150
F562C40 F375C
F562C40 F562C
F562C40 F562C40
F562C40 1/8 NPT
F562C40 1/4 NPT
F562C40 3/8 NPT
F562C40 1/2 NPT 6M98G8 1.18 (30.1) 2.13 (54.0)
F562C40 3/4 NPT
F562C40 1 NPT

Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Note: For pressure rating see selection chart.
All Dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult factory.



A.
Hex







B

Adapter configurations may vary from outline shown
Flat Bottom



Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
F437FB W125 15M72E1 0.50 (12.7) 1.41 (35.8)
F437FB SW250 6M74E2 0.63 (15.9) 1.53 (38.9)
F437FB SW375 6M76E2 0.75 (19.1) 1.91 (48.4)
F437FB SW500 4M78E2 1.00 (25.4) 2.16 (54.8)
F437FB SF250CX 15M74E6 0.63 (15.9) 1.53 (38.9)
F437FB SF375CX 15M76E6 0.75 (19.1) 1.78 (45.2)
F437FB SF562CX 15M79E6 1.00 (25.4) 1.91 (48.4)
F437FB SF750CX
F437FB SF1000CX
F437FB SF1000CX43
F437FB F250C 15M74E3 .75 (19.1) 1.53 (38.9)
F437FB F312C150
F437FB F375C 15M76E3 1.00 (25.4) 1.78 (45.2)
F437FB F562C 15M79E3 1.38 (35.1) 2.03 (51.6)
F437FB F562C40
F437FB 1/8 NPT 6M72E8 .63 (15.9) 1.59 (40.4)
F437FB 1/4 NPT 6M74E8 .75 (19.1) 1.78 (45.2)
F437FB 3/8 NPT 6M76E8 1.00 (25.4) 1.91 (48.4)
F437FB 1/2 NPT 6M78E8 1.18 (30.1) 2.16 (54.8)
F437FB 3/4 NPT 6M712E8 n/a n/a
F437FB 1 NPT

F562FB W125 15M92E1 0.63 (15.9) 1.44 (36.5)
F562FB SW250 6M94E2 0.75 (19.1) 2.06 (52.4)
F562FB SW375 6M96E2 0.75 (19.1) 2.25 (57.2)
F562FB SW500 4M98E2 1.00 (25.4) 2.18 (55.5)
F562FB SF250CX 15M94E6 0.63 (15.9) 1.81 (46.0)
F562FB SF375CX 15M96E6 0.75 (19.1) 2.06 (52.4)
F562FB SF562CX 15M99E6 1.00 (25.4) 1.18 (30.1)
F562FB SF750CX 15M912E6 1.38 (35.1) 2.81 (71.4)
F562FB SF1000CX 15M916E6 n/a n/a
F562FB SF1000CX43
F562FB F250C 15M94E3 .81 (20.6) 1.94 (49.2)
F562FB F312C150
F562FB F375C 15M96E3 1.00 (25.4) 2.44 (61.9)
F562FB F562C
F562FB F562C40
F562FB 1/8 NPT 6M92E8 0.63 (15.9) 1.94 (49.2)
F562FB 1/4 NPT 6M94E8 0.75 (19.1) 2.18 (55.5)
F562FB 3/8 NPT 6M96E8 1.00 (25.4) 2.31 (58.7)
F562FB 1/2 NPT 6M98E8 1.18 (30.1) 1.63 (41.3)
F562FB 3/4 NPT 6M912E8 1.38 (35.1) 2.06 (52.4)
F562FB 1 NPT 6M916E8 1.88 (47.6) 2.25 (57.2)

Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
F750FB W125 15M122E1 0.75 (19.1) 1.69 (42.8)
F750FB SW250 6M124E2 0.81 (20.6) 2.06 (52.4)
F750FB SW375 6M126E2 0.75 (19.1) 1.94 (49.2)
F750FB SW500 4M128E2 1.00 (25.4) 2.18 (55.5)
F750FB SF250CX 15M124E6 0.81 (20.6) 1.94 (49.2)
F750FB SF375CX 15M126E6 0.81 (20.6) 2.06 (52.4)
F750FB SF562CX 15M129E6 1.00 (25.4) 1.31 (33.3)
F750FB SF750CX 15M1212E6 1.38 (35.1) 1.69 (42.8)
F750FB SF1000CX 15M1216E6 1.75 (44.5) 3.31 (84.1)
F750FB SF1000CX43
F750FB F250C 15M124E3 1.00 (25.4) 1.94 (49.2)
F750FB F312C150
F750FB F375C 15M126E3 1.00 (25.4) 2.18 (55.5)
F750FB F562C 15M129E3 1.38 (35.1) 2.31 (58.7)
F750FB F562C40
F750FB 1/8 NPT 6M122E8 0.94 (23.8) 1.81 (46.0)
F750FB 1/4 NPT 6M124E8 1.00 (25.4) 2.31 (58.7)
F750FB 3/8 NPT 6M126E8 1.00 (25.4) 2.18 (55.5)
F750FB 1/2 NPT 6M128E8 1.18 (30.1) 2.69 (68.3)
F750FB 3/4 NPT 6M1212E8 1.38 (35.1) 2.69 (68.3)
F750FB 1 NPT 6M1216E8 1.88 (47.6) 3.18 (81.0)

Flat Top



F562FT W125 15M92R1 0.75 (19.1) 0.94 (23.9)
F562FT SW250 6M94R2 0.75 (19.1) 1.50 (38.1)
F562FT SW375 6M96R2 0.75 (19.1) 1.50 (38.1)
F562FT SW500 4M98R2 1.00 (25.4) 1.63 (41.3)
F562FT SF250CX 15M94R6 0.75 (19.1) 1.25 (31.8)
F562FT SF375CX 15M96R6 0.75 (19.1) 1.50 (38.1)
F562FT SF562CX 15M99R6 1.00 (25.4) 1.63 (41.3)
F562FT SF750CX 15M912R6 n/a n/a
F562FT SF1000CX 15M916R6 n/a n/a
F562FT SF1000CX43
F562FT F250C 15M94R3 0.75 (19.1) 1.25 (31.8)
F562FT F312C150
F562FT F375C 15M96R3 1.00 (25.4) 1.50 (38.1)
F562FT F562C 15M99R3 1.38 (35.1) 1.75 (44.5)
F562FT F562C40
F562FT 1/8 NPT 6M92R8 0.75 (19.1) 1.25 (31.8)
F562FT 1/4 NPT 6M94R8 0.75 (19.1) 1.44 (36.5)
F562FT 3/8 NPT 6M96R8 0.94 (23.8) 1.56 (39.7)
F562FT 1/2 NPT 6M98R8 1.18 (30.1) 2.00 (50.8)
F562FT 3/4 NPT 6M912R8 n/a n/a
F562FT 1 NPT 6M916R8 n/a n/a

Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Note: For pressure rating see selection chart.
All Dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult factory.

National Pipe Thread (NPT)



Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
1/8 NPT W125 6M22N1 0.50 (12.7) 1.00 (25.4)
1/8 NPT SW250 6M24N2 0.63 (15.9) 1.25 (31.8)
1/8 NPT SW375 6M26N2 0.75 (19.1) 1.44 (36.5)
1/8 NPT SW500 4M28N2 1.00 (25.4) 1.50 (38.1)
1/8 NPT SF250CX 6M24N6 0.63 (15.9) 1.81 (46.0)
1/8 NPT SF375CX 6M26N6 0.75 (19.1) 1.38 (35.1)
1/8 NPT SF562CX 6M29N6 1.00 (25.4) 1.75 (44.5)
1/8 NPT SF750CX
1/8 NPT SF1000CX
1/8 NPT SF1000CX43
1/8 NPT F250C 6M24N3 0.75 (19.1) 1.25 (31.8)
1/8 NPT F312C150
1/8 NPT F375C 6M26N3 1.00 (25.4) 1.50 (38.1)
1/8 NPT F562C 6M29N3 1.38 (35.1) 1.63 (41.3)
1/8 NPT F562C40
1/8 NPT 1/8 NPT
1/8 NPT 1/4 NPT
1/8 NPT 3/8 NPT
1/8 NPT 1/2 NPT
1/8 NPT 3/4 NPT
1/8 NPT 1 NPT

1/4 NPT W125 6M42N1 0.63 (15.9) 1.13 (28.6)
1/4 NPT SW250 6M44N2 0.63 (15.9) 1.38 (35.1)
1/4 NPT SW375 6M46N2 0.75 (19.1) 1.50 (38.1)
1/4 NPT SW500 4M48N2 1.00 (25.4) 1.75 (44.5)
1/4 NPT SF250CX 6M44N6 0.63 (15.9) 1.38 (35.1)
1/4 NPT SF375CX 6M46N6 0.75 (19.1) 1.56 (39.7)
1/4 NPT SF562CX 6M49N6 1.00 (25.4) 1.75 (44.5)
1/4 NPT SF750CX 6M412N6 1.38 (35.1) 2.25 (57.2)
1/4 NPT SF1000CX 6M416N6 1.75 (44.5) 2.88 (73.0)
1/4 NPT SF1000CX43
1/4 NPT F250C 6M44N3 0.75 (19.1) 1.38 (35.1)
1/4 NPT F312C150 6M45N3 1.00 (25.4) 2.50 (63.5)
1/4 NPT F375C 6M46N3 1.00 (25.4) 1.63 (41.3)
1/4 NPT F562C 6M49N3 1.38 (35.1) 1.75 (44.5)
1/4 NPT F562C40
1/4 NPT 1/8 NPT
1/4 NPT 1/4 NPT
1/4 NPT 3/8 NPT
1/4 NPT 1/2 NPT 6M48N8 1.18 (30.1) 2.25 (57.2)
1/4 NPT 3/4 NPT
1/4 NPT 1 NPT

Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
3/8 NPT W125 6M62N1 0.75 (19.1) 1.13 (28.6)
3/8 NPT SW250 6M64N2 0.75 (19.1) 1.38 (35.1)
3/8 NPT SW375 6M66N2 0.75 (19.1) 1.50 (38.1)
3/8 NPT SW500 4M68N2 1.00 (25.4) 1.75 (44.5)
3/8 NPT SF250CX 6M64N6 0.75 (19.1) 1.38 (35.1)
3/8 NPT SF375CX 6M66N6 0.75 (19.1) 1.50 (38.1)
3/8 NPT SF562CX 6M69N6 1.00 (25.4) 1.75 (44.5)
3/8 NPT SF750CX 6M612N6 1.38 (35.1) 2.00 (50.8)
3/8 NPT SF1000CX 6M616N6 1.75 (44.5) 2.88 (73.0)
3/8 NPT SF1000CX43
3/8 NPT F250C 6M64N3 0.75 (19.1) 1.38 (35.1)
3/8 NPT F312C150
3/8 NPT F375C 6M66N3 1.00 (25.4) 1.63 (41.3)
3/8 NPT F562C 6M69N3 1.38 (35.1) 1.75 (44.5)
3/8 NPT F562C40 6M69N40 1.38 (35.1) 1.75 (44.5)
3/8 NPT 1/8 NPT
3/8 NPT 1/4 NPT
3/8 NPT 3/8 NPT
3/8 NPT 1/2 NPT 6M68N8 1.18 (30.1) 2.25 (57.2)
3/8 NPT 3/4 NPT
3/8 NPT 1 NPT

1/2 NPT W125 6M82N1 1.00 (25.4) 2.50 (63.5)
1/2 NPT SW250 6M84N2 1.00 (25.4) 1.63 (41.3)
1/2 NPT SW375 6M86N2 1.00 (25.4) 1.63 (41.3)
1/2 NPT SW500 4M88N2 1.00 (25.4) 1.88 (47.6)
1/2 NPT SF250CX 6M84N6 1.00 (25.4) 1.38 (35.1)
1/2 NPT SF375CX 6M86N6 1.00 (25.4) 1.63 (41.3)
1/2 NPT SF562CX 6M89N6 1.00 (25.4) 1.94 (49.2)
1/2 NPT SF750CX 6M812N6 1.38 (35.1) 2.18 (55.5)
1/2 NPT SF1000CX 6M816N6 1.75 (44.5) 2.81 (71.4)
1/2 NPT SF1000CX43
1/2 NPT F250C 6M84N3 1.00 (25.4) 1.50 (38.1)
1/2 NPT F312C150
1/2 NPT F375C 6M86N3 1.00 (25.4) 1.75 (44.5)
1/2 NPT F562C 6M89N3 1.38 (35.1) 1.88 (47.6)
1/2 NPT F562C40 6M89N40 1.38 (35.1) 1.75 (44.5)
1/2 NPT 1/8 NPT
1/2 NPT 1/4 NPT
1/2 NPT 3/8 NPT
1/2 NPT 1/2 NPT
1/2 NPT 3/4 NPT 6M812N8 1.38 (35.1) 2.25 (57.2)
1/2 NPT 1 NPT

For prompt service, Autoclave stocks select products.
*Maximum pressure rating is based on the lowest rating of any
Consult factory.
component. Actual working pressure may be determined by
tubing pressure rating, if lower.
Note: For pressure rating see selection chart.
All Dimensions for reference only and subject to change.





National Pipe Thread (NPT)



Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
3/4 NPT W125
3/4 NPT SW250 6M124N2 1.18 (30.1) 1.75 (44.5)
3/4 NPT SW375 6M126N2 1.18 (30.1) 1.75 (44.5)
3/4 NPT SW500 4M128N2 1.18 (30.1) 1.75 (44.5)
3/4 NPT SF250CX 6M124N6 1.18 (30.1) 1.75 (44.5)
3/4 NPT SF375CX 6M126N6 1.18 (30.1) 1.75 (44.5)
3/4 NPT SF562CX 6M129N6 1.38 (35.1) 2.00 (50.8)
3/4 NPT SF750CX 6M1212N6 1.38 (35.1) 2.25 (57.2)
3/4 NPT SF1000CX 6M1216N6 1.75 (44.5) 2.88 (73.0)
3/4 NPT SF1000CX43
3/4 NPT F250C 6M124N3 1.18 (30.1) 1.75 (44.5)
3/4 NPT F312C150
3/4 NPT F375C 6M126N3 1.18 (30.1) 2.00 (50.8)
3/4 NPT F562C 6M129N3 1.38 (35.1) 2.13 (54.0)
3/4 NPT F562C40
3/4 NPT 1/8 NPT 6M122N8 1.18 (30.1) 1.63 (41.3)
3/4 NPT 1/4 NPT
3/4 NPT 3/8 NPT
3/4 NPT 1/2 NPT
3/4 NPT 3/4 NPT
3/4 NPT 1 NPT

Male End Fits this Connection Female End Catalog Number Dimension inches (mm)
A Hex B
1 NPT W125
1 NPT SW250
1 NPT SW375 6M166N2 1.38 (35.1) 1.75 (44.5)
1 NPT SW500 4M168N2 1.38 (35.1) 1.75 (44.5)
1 NPT SF250CX
1 NPT SF375CX 6M166N6 1.38 (35.1) 2.00 (50.8)
1 NPT SF562CX 6M169N6 1.38 (35.1) 2.25 (57.2)
1 NPT SF750CX 6M1612N6 1.38 (35.1) 2.63 (66.7)
1 NPT SF1000CX 6M1616N6 1.75 (44.5) 3.06 (77.8)
1 NPT SF1000CX43
1 NPT F250C
1 NPT F312C150
1 NPT F375C 6M166N3 1.38 (35.1) 2.00 (50.8)
1 NPT F562C 6M169N3 1.38 (35.1) 2.25 (57.2)
1 NPT F562C40
1 NPT 1/8 NPT
1 NPT 1/4 NPT
1 NPT 3/8 NPT
1 NPT 1/2 NPT
1 NPT 3/4 NPT
1 NPT 1 NPT

Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Note: For pressure rating see selection chart.
All Dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult factory.

A.
Hex

B

Adapters/Couplings -Male-to-Male One Piece Adapters



Autoclave Engineer’s standard male-to-male one piece adapters are available in low, medium, and high pressure configurations. Standard male-to-male adapters are machined from cold worked stainless steel. Other materials are available upon request. Contact your local Sales Representative for optional information. The following tables list our standard
adapters with dimensions.
Adapter End Configuration





‘L’ Low Pressure ‘H’ High Pressure ‘RH’ Reverse High Pressure

‘M’ Medium Pressure
Ordering Procedure



M6 H9 Pressure Male Available End Connections
(X 1000 psi) Adapter

L2 - 1/8” Low Pressure M4 - 1/4” Medium Pressure H4 - 1/4” High Pressure P4 - 1/4” NPT RH9 - 9/16” -18 Reverse High L4 - 1/4” Low Pressure M6 - 3/8” Medium Pressure H5 - 5/16” High Pressure P6 - 3/8” NPT RH12 - 3/4” -16 Reverse High L6 - 3/8” Low Pressure M9 - 9/16” Medium Pressure H6 - 3/8” High Pressure P8 - 1/2” NPT RH14 - 7/8” -14 Reverse High L8 - 1/2” Low Pressure M12 - 3/4” Medium Pressure H9 - 9/16” High Pressure RH16 - 1” -12 Reverse High
M16 - 1” Medium Pressure RH21 - 1-5/16” -12 Reverse High
Note: Special material one piece adapters may be supplied with four flats in place of standard hex.
Low-Pressure to Low-Pressure Adapters

Catalog Number Connection L/P Connection L/P Dimension inches (mm)
A Hex B
11MAL2L2 W125 W125 0.50 (12.7) 1.38 (34.9)
11MAL2L4 W125 SW250 0.63 (15.9) 1.63 (41.3)
11MAL4L4 SW250 SW250 0.63 (15.9) 1.88 (47.6)
5MAL8L8 SW500 SW500 1.00 (25.4) 2.13 (54.0)

Low-Pressure to Medium-Pressure Adapters

Catalog Number Connection L/P Connection M/P Dimension inches (mm)
A Hex B
11MAL4M4 SW250 SF375CX 0.63 (15.9) 1.86 (47.3)

Medium-Pressure to Medium-Pressure Adapters

Catalog Number Connection M/P Connection M/P Dimension inches (mm)
A Hex B
20MAM4M4 SF250CX SF250CX 0.50 (12.7) 1.69 (42.9)
20MAM4M6 SF250CX SF375CX 0.63 (15.9) 1.88 (47.6)
20MAM4M9 SF250CX SF562CX 0.94 (23.8) 2.38 (60.3)
20MAM4M12 SF250CX SF750CX 1.19 (30.1) 2.69 (68.2)
20MAM4M16 SF250CX SF1000CX 1.38 (34.9) 3.38 (85.7)
20MAM6M6 SF375CX SF375CX 0.63 (15.9) 2.25 (57.1)
20MAM6M9 SF375CX SF562CX 0.94 (23.8) 2.38 (60.3)
20MAM6M12 SF375CX SF750CX 1.19 (30.1) 2.81 (71.4)
20MAM6M16 SF375CX SF1000CX 1.38 (34.9) 3.38 (85.7)
20MAM9M9 SF562CX SF562CX 0.94 (23.8) 2.50 (63.5)
20MAM9M12 SF562CX SF750CX 1.19 (30.1) 3.00 (76.2)
20MAM9M16 SF562CX SF1000CX 1.38 (34.9) 2.69 (68.2)
20MAM12M12 SF750CX SF750CX 1.19 (30.1) 3.13 (79.3)
20MAM12M16 SF750CX SF1000CX 1.38 (34.9) 3.81 (96.8)
20MAM16M4 SF1000CX SF250CX 1.38 (34.9) 3.25 (82.6)
20MAM16M16 SF1000CX SF1000CX 1.38 (34.9) 4.38 (111.1)

Medium-Pressure to High-Pressure Adapters

Catalog Number Connection M/P Connection H/P Dimension inches (mm)
A Hex B
20MAM4H4 SF250CX F250C 0.63 (15.9) 1.75 (44.5)
20MAM4H6 SF250CX F375C 0.81 (20.6) 2.13 (54.0)
20MAM4H9 SF250CX F562C 1.19 (30.1) 2.63 (66.7)
20MAM6H4 SF375CX F250C 0.63 (15.9) 1.94 (49.2)
20MAM6H6 SF375CX F375C 0.81 (20.6) 2.38 (60.3)
20MAM6H9 SF375CX F562C 1.19 (30.1) 2.69 (68.2)
20MAM9H4 SF562CX F250C 0.81 (20.6) 2.25 (57.1)
20MAM9H6 SF562CX F375C 0.81 (20.6) 2.56 (65.0)
20MAM9H9 SF562CX F562C 1.19 (30.1) 2.94 (74.6)
20MAM12H4 SF750CX F250C 1.19 (30.1) 2.63 (66.7)
20MAM12H6 SF750CX F375C 1.19 (30.1) 2.88 (73.0)
20MAM12H9 SF750CX F562C 1.19 (30.1) 3.00 (76.2)
20MAM16H4 SF1000CX F250C 1.38 (34.9) 3.25 (82.6)
20MAM16H6 SF1000CX F375C 1.38 (34.9) 3.50 (89.0)
20MAM16H9 SF1000CX F562C 1.38 (34.9) 3.69 (93.6)



Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Note: For pressure rating see ordering procedure.
All Dimensions for reference only and subject to change.

For prompt service, Autoclave stocks select products.
Consult factory.

High-Pressure to High-Pressure Adapters

A
Catalog Number Connection H/P Connection H/P Dimension inches (mm)
A Hex B
40MAH9H9 F562C40 F562C40 1.19 (30.1) 2.94 (74.6)
60MAH4H4 F250C F250C 0.63 (15.9) 1.69 (42.8)
60MAH4H5 60MAH4H6 F250C F250C F312C150 F375C 0.75 (19.1) 0.81 (20.6) 2.63 (66.7) 2.13 (54.0)
60MAH4H9 F250C F562C 1.19 (30.1) 2.56 (65.0)
60MAH5H6 F312C150 F375C 0.81 (20.6) 2.81 (71.4)
60MAH6H6 F375C F375C 0.81 (20.6) 2.25 (57.1)
60MAH6H9 F375C F562C 1.19 (30.1) 2.88 (73.0)
60MAH9H9 F562C F562C 1.19 (30.1) 3.00 (76.2)
150MAH5H5 F312C150 F312C150 0.75 (19.1) 3.38 (85.7)



Low-Pressure to NPT Adapters
Catalog Number Connection L/P Connection NPT Dimension inches (mm)
A Hex B
10MAL2P2 W125 1/8” 0.50 (12.7) 1.38 (34.9)
10MAL2P4 W125 1/4” 0.63 (15.9) 1.63 (41.2)
10MAL4P2 SW250 1/8” 0.63 (15.9) 1.63 (41.2)
10MAL4P4 SW250 1/4” 0.63 (15.9) 1.75 (44.5)
5MAL8P6 SW500 3/8” 1.00 (25.4) 2.00 (50.0)

Medium-Pressure to NPT Adapters
Catalog Number Connection M/P Connection NPT Dimension inches (mm)
A Hex B
10MAM4P4 SF250CX 1/4” 0.63 (15.9) 1.75 (44.5)
10MAM4P6 SF250CX 3/8” 0.75 (19.1) 1.81 (46.2)
10MAM4P8 SF250CX 1/2” 0.94 (23.8) 2.19 (55.5)
10MAM6P4 SF375CX 1/4” 0.63 (15.9) 1.94 (49.1)
10MAM6P6 SF375CX 3/8” 0.75 (19.1) 2.00 (50.8)
10MAM6P8 SF375CX 1/2” 0.94 (23.8) 2.38 (60.3)
10MAM9P4 SF562CX 1/4” 0.81 (20.6) 2.25 (57.1)
10MAM9P6 SF562CX 3/8” 0.81 (20.6) 2.13 (54.0)
10MAM9P8 SF562CX 1/2” 0.94 (23.8) 2.56 (65.0)
10MAM12P4 SF750CX 1/4” 1.19 (30.1) 2.63 (66.7)
10MAM12P6 SF750CX 3/8” 1.19 (30.1) 2.63 (66.7)
10MAM12P8 SF750CX 1/2” 1.19 (30.1) 2.81 (71.4)
10MAM16P4 SF1000CX 1/4” 1.38 (34.9) 3.38 (85.7)
10MAM16P6 SF1000CX 3/8” 1.38 (34.9) 3.31 (84.1)
10MAM16P8 SF1000CX 1/2” 1.38 (34.9) 3.44 (87.3)



A

Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Note: For pressure rating see ordering procedure.
All Dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult factory.

High-Pressure to NPT Adapters

Catalog Number Connection H/P Connection NPT Dimension inches (mm)
A Hex B
10MAH4P4 F250C 1/4” 0.63 (15.9) 1.81 (46.2)
10MAH4P6 F250C 3/8” 0.75 (19.1) 1.88 (47.6)
10MAH4P8 10MAH6P4 F250C F375C 1/2” 1/4” 0.94 (23.8) 0.81 (20.6) 2.25 (57.1) 2.13 (54.0)
10MAH6P6 F375C 3/8” 0.81 (20.6) 2.13 (54.0)
10MAH6P8 F375C 1/2” 0.94 (23.8) 2.50 (63.5)
10MAH9P4 F562C 1/4” 1.19 (30.1) 2.63 (66.7)
10MAH9P6 F562C 3/8” 1.19 (30.1) 2.56 (65.0)
10MAH9P8 F562C 1/2” 1.19 (30.1) 2.75 (69.9)

NPT to NPT Adapters

Catalog Number Connection NPT Connection NPT Dimension inches (mm)
A Hex B
10MAP4P4 1/4 1/4” 0.63 (15.9) 1.81 (46.2)
10MAP4P6 1/4 3/8” 0.75 (19.1) 1.88 (47.6)
10MAP4P8 1/4 1/2” 0.94 (23.8) 2.31 (58.7)
10MAP6P6 3/8 3/8” 0.75 (19.1) 1.88 (47.6)
10MAP6P8 3/8 1/2” 0.94 (23.8) 2.31 (58.7)
10MAP8P8 1/2 1/2” 0.94 (23.8) 2.50 (63.5)

A
B
Medium-Pressure to Reverse High-Pressure Adapters

Catalog Number Connection M/P Connection RH Dimension inches (mm)
A Hex B
20MAM4RH9 SF250CX 9/16” 0.63 (15.9) 1.56 (39.7)
20MAM4RH12 SF250CX 3/4” 0.81 (20.6) 1.88 (47.6)
20MAM4RH16 SF250CX 1” 1.00 (25.4) 2.13 (54.0)
20MAM6RH9 SF375CX 9/16” 0.63 (15.9) 1.69 (42.8)
20MAM6RH12 SF375CX 3/4” 0.81 (20.6) 1.81 (46.2)
20MAM6RH16 SF375CX 1” 1.00 (25.4) 2.25 (57.1)
20MAM9RH9 SF562CX 9/16” 0.94 (23.8) 2.00 (50.8)
20MAM9RH12 SF562CX 3/4” 0.94 (23.8) 2.13 (54.0)
20MAM9RH14 SF562CX 7/8” 0.94 (23.8) 2.44 (61.9)
20MAM9RH16 SF562CX 1” 1.00 (25.4) 2.25 (57.1)
20MAM12RH9 SF750CX 9/16” 1.19 (30.1) 2.38 (60.3)
20MAM12RH12 SF750CX 3/4” 1.19 (30.1) 2.44 (61.9)
20MAM12RH16 SF750CX 1” 1.19 (30.1) 2.50 (63.5)
20MAM12RH21 SF750CX 1-5/16” 1.50 (38.1) 2.75 (69.9)
20MAM16RH9 SF1000CX 9/16” 1.38 (34.9) 3.13 (79.3)
20MAM16RH12 SF1000CX 3/4” 1.38 (34.9) 3.19 (80.9)
20MAM16RH14 SF1000CX 7/8” 1.38 (34.9) 3.34 (84.9)
20MAM16RH16 SF1000CX 1” 1.38 (34.9) 3.38 (85.7)
20MAM16RH21 SF1000CX 1-5/16” 1.50 (38.1) 3.25 (82.6)

Maximum pressure rating is based on the lowest rating of any component. Actual working pressure
may be determined by tubing pressure rating, if lower.
Note: For pressure rating see ordering procedure.

All Dimensions for reference only and are subject to change. For prompt service, Autoclave stocks select products. Consult factory.

High-Pressure to Reverse High-Pressure Adapters
Catalog Number Connection H/P Connection RH Dimension inches (mm)
A Hex B
26MAH4RH16 F250C 1” 1.00 (25.4) 2.13 (54.0)
26MAH6RH16 F375C 1” 1.00 (25.4) 2.25 (57.1)
26MAH9RH16 F562C 1” 1.19 (30.1) 2.69 (68.2)
30MAH4RH12 F250C 3/4” 0.81 (20.6) 1.88 (47.6)
30MAH6RH12 F375C 3/4” 0.81 (20.6) 2.06 (54.0)
30MAH9RH12 F562C 3/4” 1.19 (30.1) 2.50 (63.5)
40MAH4RH9 40MAH6RH9 F250C F375C 9/16” 9/16” 0.63 (15.9) 0.81 (20.6) 1.56 (39.7) 1.94 (49.1)
40MAH9RH9 F562C 9/16” 1.19 (30.1) 2.38 (60.3)

Reverse High-Pressure to Reverse High-Pressure Adapters

NPT to Reverse High-Pressure Adapters
Catalog Number Connection NPT Connection RH Dimension inches (mm)
A Hex B
10MAP4RH9 1/4 9/16” 0.63 (15.9) 1.63 (41.2)
10MAP4RH12 1/4 3/4” 0.81 (20.6) 1.88 (47.6)
10MAP4RH16 1/4 1” 1.00 (25.4) 2.25 (57.1)
10MAP6RH9 3/8 9/16” 0.75 (19.1) 1.81 (46.2)
10MAP6RH12 3/8 3/4” 0.81 (20.6) 1.94 (49.1)
10MAP6RH16 3/8 1” 1.00 (25.4) 2.13 (54.0)
10MAP8RH9 1/2 9/16” 0.94 (23.8) 2.00 (50.8)
10MAP8RH12 1/2 3/4” 0.94 (23.8) 2.13 (54.0)
10MAP8RH14 1/2 7/8” 1.00 (25.4) 2.25 (57.1)
10MAP8RH16 1/2 1” 1.00 (25.4) 2.31 (58.7)
10MAP12RH12 3/4 3/4” 1.19 (30.1) 2.31 (58.7)
10MAP12RH16 3/4 1” 1.38 (34.9) 2.63 (66.7)
10MAP16RH16 1 1” 1.38 (34.9) 2.81 (71.4)

Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Note: For pressure rating see ordering procedure.
All Dimensions for reference only and are subject to change.
For prompt service, Autoclave stocks select products. Consult factory.

Adapters/Couplings -Male-to-Male JIC One Piece Adapters



Autoclave Engineer’s male-to-male JIC one-piece adapters are available in low, medium, and high pressure configurations. JIC adapters are machined from cold worked stainless steel. Other materials are available upon request. Contact your local Sales Representative for optional information. The following tables list our standard adapters with dimensions.
Adapter End Configuration







37°

JIC connections consist of a 37° angle.
Ordering Procedure

Typical catalog number: 20 MA M4 J4

Pressure Male Available End Connections
(X 1000 psi) Adapter

J4 - 1/4” JIC L4 - 1/4” Low Pressure M4 - 1/4” Medium Pressure H4 - 1/4” High Pressure P4 - 1/4” NPT
J6 - 3/8” JIC L6 - 3/8” Low Pressure M6 - 3/8” Medium Pressure H6 - 3/8” High Pressure P6 - 3/8” NPT
J8 - 1/2” JIC L8 - 1/2” Low Pressure M9 - 9/16” Medium Pressure H9 - 9/16” High Pressure P8 - 1/2” NPT
J10 - 5/8” JIC M12 - 3/4” Medium Pressure
J12 - 3/4” JIC M16 - 1” Medium Pressure
J16 - 1” JIC

Note: Special material one piece adapters may be supplied with four flats in place of standard hex.
Low-Pressure to JIC Adapters
Catalog Number Connection L/P Connection JIC Dimension inches (mm)
A Hex B
11MAL4J4 SW250 1/4” 0.75 (19.1) 1.88 (47.6)

Medium-Pressure to JIC Adapters
Catalog Number Connection M/P Connection JIC Dimension inches (mm)
A Hex B
15MAM4J12 SF250CX 3/4” 1.38 (34.9) 2.25 (57.1)
15MAM6J12 SF375CX 3/4” 1.38 (34.9) 2.44 (61.9)
15MAM9J12 SF562CX 3/4” 1.38 (34.9) 2.69 (68.2)
15MAM12J12 SF750CX 3/4” 1.38 (34.9) 2.88 (73.0)
15MAM12J16 SF750CX 1” 1.50 (34.9) 2.88 (73.0)
15MAM16J12 SF1000CX 3/4” 1.38 (34.9) 3.38 (85.7)
15MAM16J16 SF1000CX 1” 1.50 (38.1) 3.50 (89.0)
20MAM4J4 SF250CX 1/4” 0.75 (19.1) 1.63 (41.3)
20MAM4J6 SF250CX 3/8” 0.81 (20.6) 1.75 (44.5)
20MAM4J8 SF250CX 1/2” 1.00 (25.4) 2.00 (50.8)
20MAM6J4 SF375CX 1/4” 0.75 (19.1) 1.75 (44.5)
20MAM6J6 SF375CX 3/8” 0.81 (20.6) 1.81 (46.0)
20MAM6J8 SF375CX 1/2” 1.00 (25.4) 2.00 (50.8)
20MAM9J4 SF562CX 1/4” 0.94 (23.8) 2.13 (54.0)
20MAM9J6 SF562CX 3/8” 0.94 (23.8) 2.13 (54.0)
20MAM9J8 SF562CX 1/2” 1.00 (25.4) 2.25 (57.1)
20MAM12J4 SF750CX 1/4” 1.19 (30.1) 2.38 (60.3)
20MAM12J6 SF750CX 3/8” 1.19 (30.1) 2.38 (60.3)
20MAM12J8 SF750CX 1/2” 1.19 (30.1) 2.50 (63.5)
20MAM16J4 SF1000CX 1/4” 1.38 (34.9) 3.13 (79.3)
20MAM16J6 SF1000CX 3/8” 1.38 (34.9) 3.13 (79.3)
20MAM16J8 SF1000CX 1/2” 1.38 (34.9) 3.13 (79.3)



A

High-Pressure to JIC Adapters
Catalog Number Connection H/P Connection JIC Dimension inches (mm)
A Hex B
20MAH4J4 F250C 1/4” 0.75 (19.1) 1.63 (41.3)
20MAH4J6 F250C 3/8” 0.81 (20.6) 1.63 (41.3)
20MAH4J8 F250C 1/2” 1.00 (25.4) 1.88 (47.6)
20MAH6J4 F375C 1/4” 0.81 (20.6) 1.94 (49.1)
20MAH6J6 F375C 3/8” 0.81 (20.6) 1.94 (49.1)
20MAH6J8 F375C 1/2” 1.00 (25.4) 2.19 (55.5)
20MAH9J4 F562C 1/4” 1.19 (30.1) 2.31 (58.7)
20MAH9J6 F562C 3/8” 1.19 (30.1) 2.31 (58.7)
20MAH9J8 F562C 1/2” 1.19 (30.1) 2.38 (60.3)
20MAH4J10 F250C 5/8” 1.19 (30.1) 2.13 (54.0)



Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Note: For pressure rating see ordering procedure.
All Dimensions for reference only and are subject to change.
For prompt service, Autoclave stocks select products. Consult factory.

JIC to JIC Adapters

Catalog Number Connection JIC Connection JIC
A Hex B
20MAJ6J6 3/8 3/8” 0.81 (20.6) 1.56 (39.7)

A



B
NPT to JIC Adapters

Catalog Number Connection NPT Connection JIC Dimension inches (mm)
A Hex B
10MAP4J4 1/4 1/4” 0.75 (19.1) 1.69 (42.8)
10MAP4J6 1/4 3/8” 0.81 (20.6) 1.75 (44.5)
10MAP4J8 1/4 1/2” 1.00 (25.4) 1.94 (49.1)
10MAP4J12 1/4 3/4” 1.38 (34.9) 2.25 (57.1)
10MAP6J4 3/8 1/4” 0.75 (19.1) 1.69 (42.8)
10MAP6J6 3/8 3/8” 0.81 (20.6) 1.75 (44.5)
10MAP6J8 3/8 1/2” 1.00 (25.4) 1.81 (46.0)
10MAP6J12 3/8 3/4” 1.38 (34.9) 2.25 (57.1)
10MAP8J4 10MAP8J8 1/2 1/2 1/4” 1/2” 0.94 (23.8) 1.00 (25.4) 2.00 (50.8) 2.13 (54.0)
10MAP8J12 1/2 3/4” 1.38 (34.9) 2.44 (61.9)



Maximum pressure rating is based on the lowest rating of any component. Actual working pressure
may be determined by tubing pressure rating, if lower.
Note: For pressure rating see ordering procedure.

All Dimensions for reference only and are subject to change. For prompt service, Autoclave stocks select products. Consult factory.

Adapters/Couplings -Male-to-Male BSPP One Piece Adapters



Autoclave Engineer’s male-to-male one piece BSPP (British Standard Parallel Pipe Thread) adapters are available in a number of configurations. BSPP adapters are machined from cold worked stainless steel. Other materials available upon request. Contact your local Sales Representative for optional information. The following tables list our standard adapters with dimensions.
Adapter End Configuration





BSPP connections consist of an 80° included angle
Ordering Procedure
Typical catalog number: 20 MA M4 B4

Pressure Male Available End Connections
(X 1000 psi) Adapter

B4 - 1/4” BSPP M4 - 1/4” Medium Pressure H4 - 1/4” High Pressure P4 - 1/4” NPT B6 - 3/8” BSPP M6 - 3/8” Medium Pressure H6 - 3/8” High Pressure P6 - 3/8” NPT B8 - 1/2” BSPP M9 - 9/16” Medium Pressure H9 - 9/16” High Pressure P8 - 1/2” NPT
M12 - 3/4” Medium Pressure RH9 - 9/16” Reverse High Pressure
M16 - 1” Medium Pressure RH12 - 3/4” Reverse High Pressure
RH16 - 1” Reverse High Pressure

Note: Special material one piece adapters may be supplied with four flats in place of standard hex.
Medium-Pressure to BSPP Adapters

Catalog Number Connection M/P Connection BSPP Dimension inches (mm)
A Hex B
10MAM4B4 SF250CX 1/4” 0.63 (15.9) 1.81 (46.0)
10MAM6B4 SF375CX 1/4” 0.63 (15.9) 1.94 (49.3)
10MAM9B4 SF562CX 1/4” 0.81 (20.6) 2.25 (57.2)
10MAM12B4 SF750CX 1/4” 1.88 (30.2) 2.63 (66.8)
10MAM16B4 SF750CX 1/4” 1.38 (34.9) 3.25 (82.6)

High-Pressure to BSPP Adapters

Catalog Number Connection H/P Connection BSPP Dimension inches (mm)
A Hex B
10MAH4B4 F250C 1/4” 0.63 (15.9) 1.75 (44.5)
10MAH6B4 F375C 1/4” 0.81 (20.6) 2.13 (54.1)
10MAH9B4 F562C 1/4” 1.88 (30.2) 2.56 (65.0)

BSPP to BSPP Adapters

Catalog Number Connection BSPP Connection BSPP Dimension inches (mm)
A Hex B
10MAB4B4 1/4” 1/4” 0.63 (15.9) 1.81 (46.0)

NPT to BSPP Adapters

Catalog Number Connection NPT Connection BSPP Dimension inches (mm)
A Hex B
10MAP4B4 1/4” 1/4” 0.63 (15.9) 1.75 (44.5)
10MAP6B4 3/8” 1/4” 0.75 (19.1) 1.88 (30.2)
10MAP8B4 1/2” 1/4” 0.94 (23.8) 2.13 (54.1)

Reverse High Pressure to BSPP Adapters

Catalog Number Connection R/H Connection BSPP Dimension inches (mm)
A Hex B
10MARH9B2 9/16” 1/8” 0.63 (15.9) 1.56 (39.6)
10MARH9B4 9/16” 1/4” 0.63 (15.9) 1.56 (39.6)
10MARH12B4 3/4” 1/4” 0.81 (20.6) 1.81 (46.0)
10MARH16B4 1” 1/4” 1.00 (25.4) 2.00 (50.8)



Maximum pressure rating is based on the lowest rating of any All Dimensions for reference only and are subject to
component. Actual working pressure may be determined by change.
tubing pressure rating, if lower.
Note: For pressure rating see selection chart. For prompt service, Autoclave stocks select products. Consult factory.



Adapters/Couplings -EZ-Union Adapters



Autoclave Engineers offers an EZ-Union adapter providing a fast and simple way to install or remove components from a pressure system. The face seal o-ring design provides a positive seal with easy and reliable operation. EZ-Union adapters can be provided with any standard or special connection combination. Optional materials available upon request. Contact your local Sales Representative for optional information and sizes not shown. The following tables show the standard adapters with dimensions.
EZ-Union Adapter

Ordering Procedure





Typical catalog number: 15 EZ M12 BW16

Pressure EZ- Female to Female Available End Connections
(X 1000 psi) EZMA- Male to Male

BW4 - 1/4” Butt-Weld M4 - 1/4” Medium Pressure H4 - 1/4” High Pressure P4 - 1/4” NPT BW6 - 3/8” Butt-Weld M6 - 3/8” Medium Pressure H6 - 3/8” High Pressure P6 - 3/8” NPT BW8 - 9/16” Butt-Weld M9 - 9/16” Medium Pressure H9 - 9/16” High Pressure P8 - 1/2” NPT BW12 - 3/4” Butt-Weld M12 - 3/4” Medium Pressure BW16 - 1” Butt-Weld M16 - 1” Medium Pressure
EZ-Union Female to Male Adapter - Medium Pressure to Butt-Weld Adapters
Catalog Female Male Dimension inches (mm)
Number M/P BW A B C Hex D Across Flats E Across Flats F Diameter
15EZ166BW6 SF375CX 1”Tube 3.63 (92.20) 2.00 (50.80) 2.25 (57.15) 1.38 (35.05) 1.38 (35.05) 0.50 (12.70)
15EZ169BW6 SF562CX 1”Tube 3.63 (92.20) 2.00 (50.80) 2.25 (57.15) 1.38 (35.05) 1.38 (35.05)
15EZ1612BW6 SF750CX 1”Tube 3.63 (92.20) 2.00 (50.80) 2.25 (57.15) 1.38 (35.05) 1.38 (35.05)

EZ-Union Male to Male Adapter - Medium Pressure to Butt-Weld Adapters
Catalog Number Male M/P Male BW Dimension inches (mm)
A Hex B C Hex D Across Flats E Across Flats F Diameter
15EZMAM12BW16 SF750CX 1” Tube 5.50 (137.70) 2.00 (50.80) 1.75 (44.45) 0.87 (22.09) - 0.50 (12.70)

Note1: EZ-Unions are constructed from 316 SS and are supplied with a Buna-N o-ring as standard. Note: For pressure rating see ordering procedure.
Weld ends are made from super Duplex F255. All Dimensions for reference only and subject to change.
Note 2: Gland and collar supplied with high pressure connections. For prompt service, Autoclave stocks select products. Consult factory.
Maximum pressure rating is based on the lowest rating of any component. Actual working pressure
may be determined by tubing pressure rating, if lower.



Adapters/Couplings -Butt-Weld Adapters

Autoclave Engineer’s Butt-Weld adapters are available in a number of configurations. The following tables show models for all three pressure ranges. Models not shown and special material adapters are available upon request. Contact your local Sales Representative for more information.

Note: Standard Butt-weld adapters made from 316 SS.
Butt-Weld Adapters

Weld Connection AE Low Pressure - Female Connection
Type Size/Schedule SW250 SW375 SW500
Pipe Butt-Weld 3/4” / XXS M128W2B-XXS

Weld Connection AE Medium Pressure - Female Connection
Type Size/Schedule SF250CX SF375CX SF562CX SF750CX SF1000CX
Pipe Butt-Weld 1/8” / 80 M24W6B-XS M26W6B-XS
Pipe Butt-Weld 1/4” / 80 M44W6B-XS M46W6B-XS M49W6B-XS
Pipe Butt-Weld 3/8” / 80 M64W6B-XS M66W6B-XS M69W6B-XS M612W6B-XS
Pipe Butt-Weld 1/2” / 80 M84W6B-XS M89W6B-XS
Pipe Butt-Weld 1/2” / XXS M89W6B-XXS M812WB6-XXS M816WB6-XXS
Pipe Butt-Weld 3/4” / 80 M129W6B-XS
Pipe Butt-Weld 3/4” / 160 M129W6B-160
Pipe Butt-Weld 3/4” / XXS M129W6B-XXS M1212W6B-XXS M1216W6B-XXS
Pipe Butt-Weld 1” / XXS M1616W6B-XXS

Weld Connection AE High Pressure - Female Connection
Type Size/Schedule F250C F375C F562C F562C40 SF1000CX43
Pipe Butt-Weld 1” / XXS M169W8B-XXS

Butt-Weld to Low-Pressure



Catalog Number Male BW Female LP Dimension inches (mm)
A Hex B C
M128W2B-XXS 3/4” SW500 1.19 (30.23) 2.00 (50.80) 0.81 (20.57)

Butt-Weld to Medium-Pressure



Catalog Number Male BW Female LP Dimension inches (mm)
A Hex B C
M24W6B-XS 1/8” SF250CX 0.63 (15.88) 1.00 (25.40) 0.38 (9.53)
M26W6B-XS 1/8” SF375CX 0.75 (19.05) 1.31 (33.32) 0.38 (9.53)
M44W6B-XS 1/4” SF250CX 0.63 (15.88) 1.18 (29.97) 0.56 (14.27)
M46W6B-XS 1/4” SF375CX 0.75 (19.05) 1.50 (38.10) 0.56 (14.27)
M49W6B-XS 1/4” SF562CX 1.00 (25.40) 1.56 (39.67) 0.56 (14.27)
M64W6B-XS 3/8” SF250CX 0.75 (19.05) 1.25 (31.75) 0.63 (15.88)
M66W6B-XS 3/8” SF375CX 0.75 (19.05) 1.56 (39.67) 0.63 (15.88)
M69W6B-XS 3/8” SF562CX 1.00 (25.40) 1.63 (41.28) 0.63 (15.88)
M612W6B-XS 3/8” SF750CX 1.38 (34.93) 1.94 (49.20) 0.63 (15.88)
M84W6B-XS 1/2” SF250CX 1.00 (25.40) 1.38 (34.93) 0.81 (20.57)
M89W6B-XS 1/2” SF562CX 1.00 (25.40) 1.81 (45.97) 0.81 (20.57)
M89W6B-XXS 1/2” SF562CX 1.00 (25.40) 1.81 (45.97) 0.81 (20.57)
M812W6B-XXS 1/2” SF750CX 1.38 (34.93) 2.13 (53.98) 0.81 (20.57)
M816W6B-XXS 1/2” SF1000CX 1.75 (44.45) 2.81 (71.37) 0.81 (20.57)
M129W6B-XS 3/4” SF562CX 1.19 (30.23) 1.81 (45.97) 0.81 (20.57)
M129W6B-160 3/4” SF562CX 1.19 (30.23) 2.00 (50.80) 0.81 (20.57)
M129W6B-XXS 3/4” SF562CX 1.19 (30.23) 2.00 (50.80) 0.81 (20.57)
M1212W6B-XXS 3/4” SF750CX 1.38 (34.93) 2.06 (52.32) 0.81 (20.57)
M1216W6B-XXS 3/4” SF1000CX 1.75 (44.45) 2.69 (68.25) 0.81 (20.57)
M1616W6B-XXS 1” SF1000CX 1.75 (44.45) 3.25 (82.55) 1.31 (33.32)

Butt-Weld to High-Pressure



Catalog Number Male BW Female LP Dimension inches (mm)
A Hex B C
M169W8B-XXS 1” F562C 1.38 (34.93) 2.44 (61.90) 1.22 (30.99)

Gland and collar supplied with high pressure connections. Note: For pressure rating see ordering procedure.
All Dimensions for reference only and are subject to change.
Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by piping pressure rating, contact factory. For prompt service, Autoclave stocks select products. Consult factory.

Adapters/Couplings -Header Couplings



Autoclave Engineer’s offers weld style Header Couplings in a number of designs and materials. The standard materials are SAE4130 and Inconel 625. Other materials are listed in the tables. Header couplings are available drilled through or blind drilled, allowing final drill through after welding. The couplings can be supplied with any style of Autoclave connection or special connections if required. Header couplings come standard with 316 SS glands and collars for our medium and high-pressure connections. Models not shown are available upon request. Contact your local sales representative.
Header Coupling

Ordering Procedure





Typical catalog number: HC F M16 W 625 DT
Header Coupling

Female Medium-Pressure Header Coupling Blind End

Catalog Pressure Female Dimension inches (mm)
Number Material psi (bar) M/P A Flats B C D E
HCFM16W316 316 SS 10,000 (690) SF1000CX20 1.75** (44.45) 2.62 (66.55) 1.00 (25.40) 1.38 (34.93) 0.56 (14.27)
HCFM16W2205 2205 Duplex 15,000 (1034) SF1000CX10 1.75 (44.45) 3.00 (76.20) 1.05 (26.59) 1.31 (33.27) 0.69 (17.48)

Female High-Pressure Header Coupling Blind End

Catalog Pressure Female Dimension inches (mm)
Number Material psi (bar) H/P A Flats B C D E
HCFH9W4130 SAE-4130 15,000 (1034) F562C 1.50 (38.10) 2.31 (58.67) 1.19 (30.18) 1.31 (33.27) 0.19 (4.75)
HCFH9W625 Inconel 625 30,000 (2068) F562C 1.50 (38.10) 2.31 (58.67) 1.19 (30.18) 1.31 (33.27) 0.19 (4.75)
HCFH16W4130 SAE-4130 20,000 (1379) SF1000CX43 1.75 (44.45) 3.00 (76.20) 1.05 (26.59) 1.32 (33.53) 0.44 (11.10)
HCFH16W625 Inconel 625 22,000 (1551) SF1000CX43 1.75 (44.45) 3.00 (76.20) 1.05 (26.59) 1.32 (33.53) 0.44 (11.10)

Gland and collar supplied with high pressure connections. All Dimensions for reference only and are subject to change. For prompt service, Autoclave stocks select products. Consult factory.
Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Female Medium-Pressure Header Coupling Drill Through

Catalog Pressure Female Dimension inches (mm)
Number Material psi (bar) M/P A Flats B C D E
HCFM12W4130DT SAE-4130 20,000 (1379) SF750CX 1.375 (34.93) 2.63 (66.68) 1.05 (26.59) 1.32 (33.53) 0.44 (11.10)
HCFM16W4130DT SAE-4130 20,000 (1379) SF1000CX 1.75 (44.45) 3.00 (76.20) 1.05 (26.59) 1.32 (33.53) 0.56 (14.27)
HCFM16W105DT SA-105 12,000 (827) SF1000CX 1.75 (44.45) 3.00 (76.20) 1.05 (26.59) 1.32 (33.53) 0.56 (14.27)

Female High-Pressure Header Coupling Drill Through

Catalog Pressure Female Dimension inches (mm)
Number Material psi (bar) H/P A Flats B C D E
HCFH9W4130DT SAE-4130 20,000 (1379) F562C 1.13 (28.58) 2.44 (61.98) 1.13 (28.70) 1.31 (33.27) 0.36 (9.12)
HCFH9W105DT SA-105 20,000 (1379) F562C 2.00 (50.80) 2.00 (50.80) 0.00 (0.00) 0.00 (0.00) 0.19 (4.78)

Gland and collar supplied with high pressure adapters. Note: For pressure rating see ordering procedure.
Maximum pressure rating is based on the lowest rating of any component. All Dimensions for reference only and are subject to change. Actual working pressure may be determined by tubing pressure rating, if lower.
For prompt service, Autoclave stocks select products. Consult factory.

Adapters/Couplings -Bulkhead Adapters



Autoclave Engineers bulkhead adapters are used to connect tubing or piping of different sizes and configurations through the panel. Bulkhead adapters are machined from cold worked stainless steel. Other material and connections are available. Contact your local Sales Repersentative for optional information.
Bulkhead Adapter





Ordering Procedure

Typical catalog number: 20 BA M J16 F H4



Pressure Bulkhead Male Connection Female Connection
(X 1000 psi) Adapter
Available End Connections
J4 - 1/4” JIC J6 - 3/8” JIC J8 - 1/2” JIC J10 - 5/8” JIC J12 - 3/4” JIC J16 - 1” JIC L4 - 1/4” Low Pressure L6 - 3/8” Low Pressure L8 - 1/2” Low Pressure M4 - 1/4” Medium Pressure M6 - 3/8” Medium Pressure M9 - 9/16” Medium Pressure M12 - 3/4” Medium Pressure M16 - 1” Medium Pressure H4 - 1/4” High Pressure H6 - 3/8” High Pressure H9 - 9/16” High Pressure RH9 - 9/16” Reverse High Pressure RH12 - 3/4” Reverse High Pressure RH16 - 1” Reverse High Pressure P4 - 1/4” NPT P6 - 3/8” NPT P8 - 1/2” NPT

Note: Special material adapters may be supplied with four flats in place of standard hex.

JIC to Low Pressure

Male Connection AE Low Pressure - Female Connection
JIC SW250 SW375 SW500
1/4” 6BAMJ4FL4
3/8”
1/2”

JIC to Medium Pressure

Male Connection AE Medium Pressure - Female Connection
JIC SF250CX SF375CX SF562CX SF750CX SF1000CX
1/4” 20BAMJ4FM4 20BAMJ4FM6
3/8” 20BAMJ6FM4 20BAMJ6FM6 20BAMJ6FM9
1/2” 20BAMJ8FM6 20BAMJ8FM9 20BAMJ8FM12

JIC to High Pressure

Male Connection AE High Pressure - Female Connection
JIC F250C F375C F562C
1/4” 20BAMJ4FH4
3/8”
1/2”

Note: For pressure rating see ordering procedure. All Dimensions for reference only and are subject Maximum pressure rating is based on the lowest
Gland and collar supplied with adapter.
to change. rating of any component. Actual working pressure may be determined by tubing pressure rating, if
For prompt service, Autoclave stocks select lower.

products. Consult factory.

Reverse High Pressure to Medium Pressure

Catalog Number Male R/H Female M/P Dimension inches (mm)
A Panel Hole B C D Max E Hex
20BAMRH9FM6 9/16” SF375CX 0.94 (23.88) 2.63 (66.80) 1.13 (28.70) 0.38 (9.65) 1.00 (25.40)
20BAMRH9FM9 9/16” SF562CX 1.13 (28.58) 3.00 (76.20) 1.28 (32.51) 0.38 (9.65) 1.38 (34.93)
20BAMRH12FM9 3/4” SF562CX 1.13 (28.58) 3.13 (79.50) 1.41 (35.81) 0.38 (9.65) 1.38 (34.93)
20BAMRH12FM16 3/4” SF1000CX 1.94 (49.28) 4.26 (108.20) 2.13 (54.10) 0.38 (9.65) 2.13 (54.10)
20BAMRH16FM16 1” SF1000CX 1.94 (49.28) 4.41 (112.01) 2.28 (57.91) 0.38 (9.65) 2.13 (54.10)

Reverse High Pressure to High Pressure

Catalog Number Male R/H Female H/P Dimension inches (mm)
A Panel Hole B C D Max E Hex
40BAMRH9FH4 9/16” F250C 0.94 (23.88) 2.50 (63.50) 1.00 (25.40) 0.38 (9.65) 1.00 (25.40)
40BAMRH9FH9 9/16” F562C 1.69 (42.85) 3.38 (85.85) 1.50 (38.10) 0.38 (9.65) 1.88 (47.75)
30BAMRH12FH9 3/4” F562C 1.69 (42.85) 3.50 (88.90) 1.62 (41.15) 0.38 (9.65) 1.88 (47.75)

Pipe to Medium Pressure

Catalog Number Male NPT Female M/P Dimension inches (mm)
A Panel Hole B C D Max E Hex
10BAMP6FM6 3/8” SF375CX 0.94 (23.88) 2.75 (69.85) 1.25 (31.75) 0.38 (9.53) 1.00 (25.40)

Gland and collar supplied with adapter.
Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Note: For pressure rating see ordering procedure.
All Dimensions for reference only and are subject to change.

For prompt service, Autoclave stocks select products. Consult factory.

JIC to Low Pressure

Catalog Number Male JIC Female LP Dimension inches (mm)
A Panel Hole B C D Max E Hex
6BAMJ4FL 1/4” SW250 0.94 (23.88) 2.29 (58.04) 0.91 (23.11) 0.38 (9.65) 1.00 (25.40)

JIC to Medium Pressure

Catalog Number Male JIC Female MP Dimension inches (mm)
A Panel Hole B C D Max E Hex
20BAMJ4FM4 1/4” SF250CX 0.81 (20.62) 2.25 (57.15) 0.91 (23.11) 0.38 (9.53) 1.00 (25.40)
20BAMJ4FM6 1/4” SF375CX 0.81 (20.62) 2.44 (61.93) 0.94 (23.88) 0.38 (9.53) 1.00 (25.40)
20BAMJ6FM4 3/8” SF250CX 0.81 (20.62) 2.25 (57.15) 0.91 (23.11) 0.38 (9.53) 1.00 (25.40)
20BAMJ6FM6 3/8” SF375CX 0.94 (23.88) 2.44 (61.98) 0.94 (23.88) 0.38 (9.53) 1.00 (25.40)
20BAMJ6FM9 3/8” SF562CX 1.13 (28.58) 2.75 (69.85) 1.16 (29.46) 0.38 (9.53) 1.38 (34.93)
20BAMJ8FM6 1/2” SF375CX 0.81 (20.62) 2.53 (64.26) 1.03 (26.16) 0.38 (9.53) 1.00 (25.40)
20BAMJ8FM9 1/2” SF562CX 1.13 (28.58) 3.00 (76.20) 1.41 (35.69) 0.38 (9.53) 1.38 (34.93)
20BAMJ8FM12 1/2” SF750CX 1.69 (42.85) 3.13 (79.38) 1.41 (35.69) 0.38 (9.53) 1.88 (47.75)

JIC to High Pressure

Catalog Number Male JIC Female HP Dimension inches (mm)
A Panel Hole B C D Max E Hex
20BAMJ4FH4 1/4” F250C 0.81 (20.62) 2.44 (61.90) 1.06 (26.97) 0.38 (9.53) 1.00 (25.40)

Gland and collar supplied with adapter.
Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Note: For pressure rating see ordering procedure.
All Dimensions for reference only and are subject to change.

For prompt service, Autoclave stocks select products. Consult factory.

Adapters/Couplings -Special Adapters
Autoclave Engineers also offers a line of components that assist in adapting into and out of specialized connections with Autoclave Medium Pressure products. Along with the adapters shown, Autoclave can provide other special adapters to fill your requirements. Contact your local Sales representative for information.
AE Medium Pressure (Male)

KC105 - 2 Piece KC105 - 1 Piece
Connection AE Medium Pressure (Male)
Type Pipe Size (inches) SF250CX SF375CX SF562CX SF750CX SF1000CX
1/4 M44KC9B M46KC9B M49KC9B
KC105 (2 piece) 3/8 M64KC9B M66KC9B M69KC9B
1/2 M86KC9B M89KC9B M812KC9B M816KC9B
5/8 M1012KC9B M1016KC9B
3/4 M126KC9B M1212KC9B M1216KC9B
1 M1616KC9B
KC105 (1 piece) 1/4 M44KC9B-1
3/8 M66KC9B-1
1/2 M89KC9B-1
3/4 M129KC9B-1

AE Medium Pressure (Female) SAE/MS Male

Note: O-rings are standard Buna-N.

MC240
MC240 (SAE/MS Straight thread Boss)
Connection SAE/MS AE Medium Pressure (Female)
Type Thread Size (inches) SF250CX SF375CX SF562CX SF750CX SF1000CX
5/16-24 M24MC6B M26MC6B
7/16-20 M44MC6B M46MC6B M49MC6B
MC240 9/16-18 M64MC6B M66MC6B M69MC6B
(SAE/MS) 3/4-16 M86MC6B M89MC6B M812MC6B
7/8-14 M1012MC6B M1016MC6B
1 1/16 - 12 M1212MC6B M1216MC6B
1 5/16-12 M1616MC6B

Note: KC105 adapter ends are manufactured to NASA standard. For pressure ratings and additional information contact your local sales representative.

Adapters/Couplings -Female Tube Caps / Gauge Connectors



Female Tube Caps - Low Pressure

Catalog Number Connection Type Outside Diameter Tube-Inches Pressure Rating psi (bar)* Dimension inches (mm)
A Hex B
SWTC2 W125 1/8 11000 (758.4) 0.50 (12.7) 0.63 (15.9)
SWTC4 SW250 1/4 11500 (792.8) 0.63 (15.9) 1.00 (25.4)
SWTC6 SW375 3/8 10000 (689.5) 0.75 (19.1) 1.09 (27.8)
SWTC8 SW500 1/2 5500 (379.2) 1.00 (25.4) 1.25 (31.8)

Female Tube Caps - Medium Pressure

Catalog Number Connection Type Outside Diameter Tube-Inches Pressure Rating psi (bar)* Dimension inches (mm)
A Hex B
20TC4X SF250CX 1/4 20000 (1378.9) 0.63 (15.9) 0.81 (20.6)
20TC6X SF375CX 3/8 20000 (1378.9) 0.75 (19.1) 1.13 (28.6)
20TC9X SF562CX 9/16 20000 (1378.9) 1.00 (25.4) 1.38 (34.9)
20TC12X SF750CX 3/4 20000 (1378.9) 1.38 (34.9) 1.75 (44.5)
20TC16X SF1000CX 1 20000 (1378.9) 1.75 (44.5) 2.25 (57.1)

Tube cap configuration may vary from outline shown.
Female Tube Caps - High Pressure Tube Caps Female Tube Caps - JIC

Catalog Number Connection Type Outside Diameter Tube-Inches Pressure Rating psi (bar)* Dimension inches (mm)
A Hex B
43CT16X SF1000CX-43 1 43000 (29647) 1.75 (44.5) 2.25 (57.1)

60TC4C F250C 1/4 60000 (4136.7) 0.75 (19.1) 0.75 (19.1)
60TC6C F375C 3/8 60000 (4136.7) 1.00 (25.4) 1.13 (28.6)
60TC9C F562C 9/16 60000 (4136.7) 2.25 (57.1) 1.38 (34.9)

*Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined For prompt service, Autoclave stocks select products.
by tubing pressure rating, if lower.Note: All tube caps are furnished with connection components unless otherwise Consult factory.
specified. All dimensions for reference only and subject to change.





* Maximum pressure rating must not exceed rating of tubing used.
Note: All tube caps are furnished with connection components unless otherwise specified.
All dimensions for reference only and subject to change.









Gauge Connectors

To Fit This Gauge Connection . 1/4” NPT 1/2” NPT 1/2” NPS
Seal Type Tube Cone Tube Cone Gasket
With This Female Tubing Connection 60,000 PSI (4136.8 bar) 60,000 PSI (4136.8 bar) 60,000 PSI (4136.8 bar)
High Pressure 1/4” F250C CG4400 CG4800 CG8400
9/16” F562C CG9800 CG8900

Gauge Connectors

To Fit This Gauge Connection . 1/4” High Pressure F250C
Seal Type H.P. Cone
With This Male Tubing Connection 20,000 PSI (1378.9 bar)
Medium Pressure 9/16” SF562CX 101F-1707

NPT: National Pipe Thread Note: For gauge connector without collars and glands, add the following suffix: -WO NPS: National Straight Pipe Thread For gauge connector for sour gas applications, add the following suffix: -SOG or -SOGWO
Gauge Connectors

Catalog Number Gauge Connection Type Outside Diameter Tube-Inches Pressure Rating psi (bar) Dimension inches (mm)
A Hex B
CG4400 Tube Cone 1/4 60000 (4136.7) 1.00 (25.4) .813 (20.6) See Figure 1
CG4800 Tube Cone 1/4 60000 (4136.7) 1.19 (30.1) .94 (23.8)
CG9800 Tube Cone 9/16 60000 (4136.7) 1.50 (38.1) 1.25 (31.8)
See Figure 2
CG8400 Gasket 1/4 60000 (4136.7) 1.19 (30.1) 1.19 (30.1)
CG8900 Gasket 9/16 60000 (4136.7) 1.38 (34.9) 2.25 (57.1)

101F-1707 1/4” High Pressure 9/16 20000 (1379) 0.63 (15.9) 2.75 (69.9) See Figure 3

  Increase Industrial &Trade Co., Ltd.
北京因科思工贸有限公司 | 美国DMK Engineering Solutions公司

地址:北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编:100102
电话:010-84282935;84283983;84289077
手机:13910962635 ( 微信号)
Web: www.increaseinc.cn
Email: ownlevel@vip.sina.com
传真:010-84288762
