Altronic是燃气发动机点火系统的专业生产厂家，其主要产品 数字式点火系统 和 机械式点火系统 以其技术领先、品质，在该领域已享誉30余年。1966年，Altronic用于单缸发电机的机械式点火系统问世以来，如今机械式点火系统产品已经发展到四大系列，可应用于功率范围从10马力（7.46千瓦）到10,000马力（7,457千瓦）的发动机。
ALTRONIC高品质的点火系统，已经被CATERPILLAR，WAUKESHA，COOPER，CUMMINS，INGERSOLL-RAND，MAN，ARROW 等著名的气体发动机生产厂家所采用。
Altronic另外一个主要产品系列就是数字式诊断测试和控制系统。 Altronic同时还生产点火系统的附件系列，包括工业用火花塞及其导线。80年代中期，Altronic开始致力于数字式点火系统的开发和研制。至今，国际上主要燃气发动机生产厂家多数已经采用了Altronic数字式点火系统。
ALTRONIC高品质的点火系统，已经被CATERPILLAR，WAUKESHA，COOPER，CUMMINS，INGERSOLL-RAND，MAN，ARROW
等著名的气体发动机生产厂家所采用。 产品包括：Altronic磁电机点火系统 Altronic DC1点火系统 Altronic CD200点火系统 Altronic CD200D点火系统 Altronic DISN点火系统 Altronic CPU95点火系统 Altronic CPU2000点火系统 Altronic 点火配件
Altronic点火系统产品
|
|

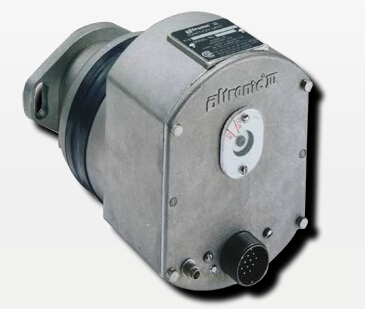

Altronic磁电机点火系统 |
Altronic DC1点火系统 |
|
|

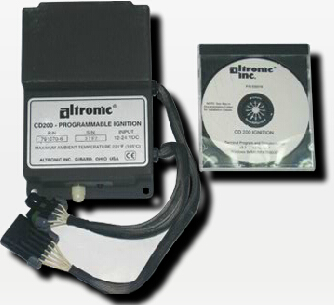

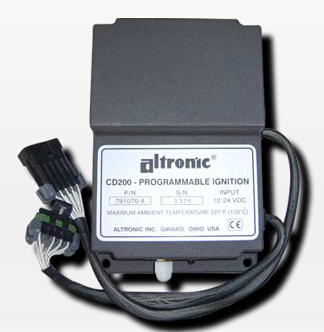

Altronic CD200点火系统 |

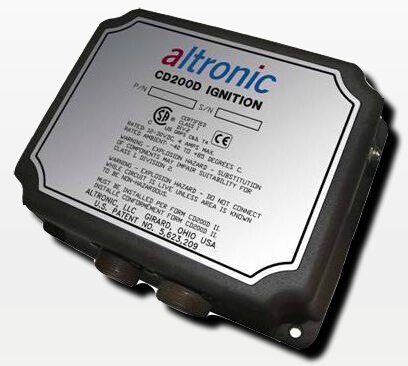

Altronic CD200D点火系统 |
|
|

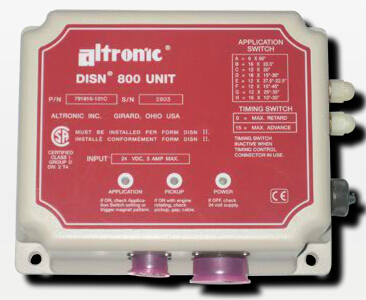

Altronic DISN点火系统 |

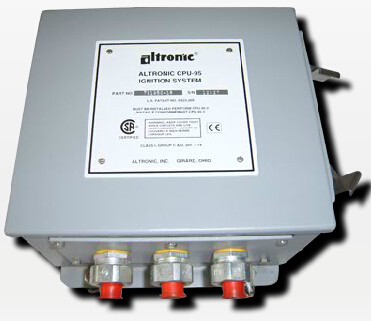

Altronic CPU95点火系统 |
|
|
Altronic CPU2000点火系统 |

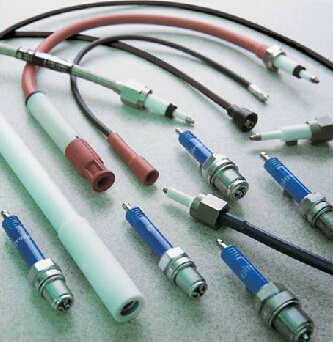

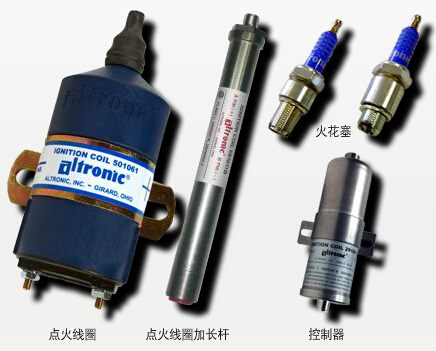

Altronic 点火配件 |
|
|
Altronic 点火配件 |
|
ALTRONIC CPU-2000 IGNITION SYSTEM APPLICATION LIST
LARGE ENGINES, 3-20 CYLINDERS FORM CPU-2000 AL 1-02
REQUIRED ITEMS:

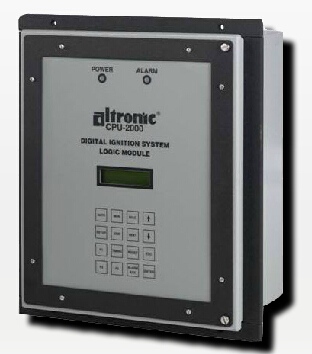

A) CPU-2000 LOGIC MODULE -1 per system
PART NO. DESCRIPTION
291100-1
W620004-V2.1
Logic Module
Firmware Option: ModBus communication and dual secondary diagnostics*
291100-1S
W620004-V2.1S1
Logic Module, no test function
Firmware Option: ModBus communication and dual secondary diagnostics*
*
NOTE: To update older units to these features, order firmware upgrade kit 620003-V2.1 or
620003-V2.1S1 (no test function).
MEMORY PART NO. CODE (see application listings). Example: F2A360.HS012#005
DESIGNATOR DESCRIPTION
F Letter in alphabet corresponding to no. of engine cylinders:
C=3, D=4, E=5, F=6, G=7, H=8, I=9, J=10, L=12, N=14, P=16,
R=18, T=20, X=24, Z=32
2 Engine stroke-cycle:
2 = 2-cycle
4 = 4-cycle
6 = 2-cycle with two outputs for each cylinder/2nd plug cutout feature
8 = 4-cycle with two outputs for each cylinder/2nd plug cutout feature
A Altronic firing pattern code:
A = even firing pattern, Other letters = odd firing pattern
360 No. of sensed teeth or holes:
360 = 360 holes or teeth
H Memory series code:
H = CPU-2000
S Timing curve code:
A = 48 degree retard for 4-20 mA input, 3 degrees retard default timing
B = 36 degree retard for 4-20 mA input, 3 degrees retard default timing
C = 24 degree retard for 4-20 mA input, 3 degrees retard default timing
N = special range vs. 4-20 mA or RPM, non-factory programmed
S = special range vs. 4-20 mA or RPM, factory programmed
X = no timing curve programmed
012 Special timing curve version no.
#005 Feature code (add numbers chosen; only one choice permitted per feature):
001 = 1-step retard when misc. input is grounded
016 = 1-step retard when rpm is less than 200
002 = Max. energy when misc. input is grounded
032 = Max. energy when rpm is less than 200
004 = Multi-strike firing when misc. input is grounded
064 = Multi-strike firing when rpm is less than 200
008 = Fire 2nd plug only when misc. input is grounded
128 = Fire 2nd plug only when rpm is less than 200
Example: 005 = feature 001 + feature 004.
2nd example:
L4H360.HC#080
12-cylinder, 4-cycle
45E-75E firing pattern (L4H)
360 sensed teeth
24E timing range for 4-20mA
Feature codes 016 and 064 selected
-1
ALTRONIC CPU-2000 IGNITION SYSTEM APPLICATION LIST
LARGE ENGINES, 3-20 CYLINDERS FORM CPU-2000 AL 1-02
REQUIRED ITEMS:
B) CPU-2000 OUTPUT MODULE -1 per system
PART NO. DESCRIPTION
291116-1 Output Module, 16 outputs
291132-1 Output Module, 32 outputs (standard)
291132-2 Output Module, 32 outputs (special - see NOTE below)
NOTE: Optimum results are obtained with the optional Diagnostic Module if each ignition coil is
connected to a separate primary output. To realize this on 9-16 cylinder engines with two ignition
coils per cylinder, use:
-Output Module 291132-1 where the application listing indicates note 2.
-Output Module 291132-2 where the application listing indicates note 3. This Output Module
allows engine with close firing angles to fire two outputs simultaneously. Note that the multi-
strike feature is NOT available in Output Module 291132-2.
C) CPU-2000 DIAGNOSTIC MODULE (OPTIONAL) -1 item from each category per system
PART NO. DESCRIPTION
Diagnostic Module:
291105-1
W601868-V2.1
Diagnostic Module
Firmware Option: ModBus communication and dual secondary diagnostic
Cable Assembly, Diagnostic Module to Output Module:
293031-24 Cable, shielded, 180E connector, 24" conduit
293031-48 Cable, shielded, 180E connector, 48" conduit
293031-72 Cable, shielded, 180E connector, 72" conduit
Cable Assembly, Diagnostic Module to Junction Box:
593050 Pickup Cable, unshielded, 90E connector, 48" conduit, 50 ft. cable
593052-L Pickup Cable, shielded, 180E connector, L" conduit, 25 ft. cable
L = 6", 12", 18", 24", 36", 48", 72", 96"
593057-L Pickup Cable, shielded, 90E connector, L" conduit, 25 ft. cable
L = 6", 12", 18", 24", 36", 48", 72", 96"
NOTE: Logic Module EPROM (601707) and Microprocessor (601747) must be Version 2.0 or
higher to operate properly with the Diagnostic Module. To update older units to the latest features
(Version 2.1), order firmware upgrade kit 620003-V2.1 or 620003-V2.1S1 (no test function).
D) CABLE ASSEMBLY, LOGIC MODULE TO OUTPUT OR DIAGNOSTIC MODULE -1 per system
PART NO. DESCRIPTION
293030-25 Cable, shielded, 180E connector, 72" conduit, 25' leads
293030-50 Cable, shielded, 180E connector, 72" conduit, 50' leads
293030-75 Cable, shielded, 180E connector, 72" conduit, 75' leads
-2
ALTRONIC CPU-2000 IGNITION SYSTEM APPLICATION LIST
LARGE ENGINES, 3-20 CYLINDERS FORM CPU-2000 AL 1-02
REQUIRED ITEMS:
E) OUTPUT HARNESS, CPU-2000 UNIT TO J-BOX -1 per system
PART NO. DESCRIPTION
293023-8 Harness, shielded, 90E connector, 48" conduit, 72" leads, 8 outputs
293023-16 Harness, shielded, 90E connector, 48" conduit, 72" leads, 16 outputs
293026-8 Harness, shielded, 90E connector, 84" conduit, 120" leads, 8 outputs
293026-16 Harness, shielded, 90E connector, 84" conduit, 120" leads, 16 outputs
293027-8 Harness, shielded, 90E connector, 144" conduit, 180" leads, 8 outputs
293027-16 Harness, shielded, 90E connector, 144" conduit, 180" leads, 16 outputs
293028-8 Harness, shielded, 90E connector, 96" conduit, 180" leads, 8 outputs
293028-16 Harness, shielded, 90E connector, 96" conduit, 180" leads, 16 outputs
NOTE:
Output Module 291116-1 requires one of the above harnesses.
Output Modules 291132-1 and 291132-2 require two harnesses 29302x-16.
F) MAGNETIC PICKUP -2 per system
PART NO. DESCRIPTION
691118-1 Magnetic Pickup, 5/8"-18 thread x 1.75" threaded body length
691118-2 Magnetic Pickup, 5/8"-18 thread x 2.50" threaded body length
691118-3 Magnetic Pickup, 5/8"-18 thread x 3.00" threaded body length
691118-4 Magnetic Pickup, 5/8"-18 thread x 4.50" threaded body length
691118-6 Magnetic Pickup, 5/8"-18 thread x 6.00" threaded body length
G) CABLE ASSEMBLY, MAGNETIC PICKUP -2 per system
PART NO. DESCRIPTION
593048-L Pickup Cable, shielded, 180E connector, L" conduit, 50 ft. cable
L = 12", 18", 24", 36", 48", 72", 96"
593054-L Pickup Cable, shielded, 90E connector, L" conduit, 50 ft. cable
L = 12", 18", 24", 36", 48", 72", 96"
693104-1 Pickup Cable, unshielded, 180E connector, 10 ft. cable
693104-2 Pickup Cable, unshielded, 180E connector, 20 ft. cable
693104-3 Pickup Cable, unshielded, 180E connector, 30 ft. cable
693104-4 Pickup Cable, unshielded, 180E connector, 40 ft. cable
693104-5 Pickup Cable, unshielded, 180E connector, 50 ft. cable
NOTE: Above shielded cables are CSA certified for Class I, Divison 2, Group D hazardous
locations when used with other applicable CSA-certified Altronic components.
-3
ALTRONIC CPU-2000 IGNITION SYSTEM APPLICATION LIST
LARGE ENGINES, 3-20 CYLINDERS FORM CPU-2000 AL 1-02
REQUIRED ITEMS:
H) CYCLE TRIGGER (4-CYCLE ENGINES ONLY) - 1 from each category below per system
PART NO. DESCRIPTION
Trigger Magnet (camshaft mount):
260604 Trigger Magnet, 3/4" dia. x 8 mm thread (max. rotating circle is 15" dia.)
260605 Trigger Magnet, 3/4" hex x 8 mm thread (max. rotating circle is 15" dia.)
720002 Trigger Magnet, 3/8" hex x 8 mm thread (max. rotating circle is 6" dia.)
Hall-effect Pickup:
591014-2 Hall-effect Pickup, 5/8"-18 thread x 2.5" threaded body length
591014-4 Hall-effect Pickup, 5/8"-18 thread x 4.0" threaded body length
Pickup Cable:
593050 Pickup Cable, unshielded, 180E connector, 25 ft. cable
593052-L Pickup Cable, shielded, 180E connector, L" conduit, 25 ft. cable
L = 6", 12", 18", 24", 36", 48", 72", 96"
593057-L Pickup Cable, shielded, 90E connector, L" conduit, 25 ft. cable
L = 6", 12", 18", 24", 36", 48", 72", 96"
NOTE: Above shielded cables are CSA certified for Class I, Divison 2, Group D hazardous
locations when used with other applicable CSA-cerified Altronic components.
I) IGNITION COILS -1 per spark plug
PART NO. DESCRIPTION
291001 Unshielded Coil
291001-S Shielded Coil
591008 Integral Coil, 1"-20 thread x 5.6" length
NOTE: IF RETROFITTING FROM AN ALTRONIC II-CPU SYSTEM, ITEMS E, F, G, H AND I ABOVE
CAN BE REUSED.
-4
ALTRONIC CPU-2000 IGNITION SYSTEM APPLICATION LIST
LARGE ENGINES, 3-20 CYLINDERS FORM CPU-2000 AL 1-02
-5
ALTRONIC CPU-2000 IGNITION SYSTEM APPLICATION LIST
LARGE ENGINES, 3-20 CYLINDERS FORM CPU-2000 AL 1-02
ENGINE MODEL NO.
FIRING
PATTERN
CPU-2000
OUTPUT MOD.
MEMORY
CODE NO.
QTY.
COILS NOTES
CLARK
BA,HBA,HBA-T,HLA -5
-6
-8
-10
72E
291116-1 E2Axxx.HA 10 1
60E
291116-1 F2Axxx.HA 12 1
67.5E-22.5E
291116-1 H2Cxxx.HA 16 1
36E
291116-1 J2Axxx.HA 20 2
MA,HMA,HMB,TMB -4
-6
-8
-10
90E
291116-1 D2Axxx.HA 4 / 8 1
60E
291116-1 F2Axxx.HA 6 / 12 1
22.5E-67.5E
291116-1 H2Hxxx.HA 8 / 16 1
36E
291116-1 J2Axxx.HA 10 / 20 2
RA,HRA,HRA-T,HSRA-32
-4
-5
-6
-8
120E
291116-1 C2Axxx.HA 6 1
90E
291116-1 D2Axxx.HA 8 1
72E
291116-1 E2Axxx.HA 10 1
60E
291116-1 F2Axxx.HA 12 1
45E
291116-1 H2Axxx.HA 16 1
TCV,TCVA,TCVC -10
TCVD,TPV -12
-16
-20
50E-22E
291116-1 J2Txxx.HA 20 2
50E-10E
291116-1 L2Txxx.HA 24 3
22.5-27.5-22.5-17.5 291116-1 P2Hxxx.HA 32 2
14E-22E
291132-1 T2Hxxx.HA 40 6
TLA,TLAC,TLAD,TRA -5
-6
-8
-10
72E
291116-1 E2Axxx.HA 10 1
60E
291116-1 F2Axxx.HA 12 1
67.5E-22.5E
291116-1 H2Cxxx.HA 16 1
36E
291116-1 J2Axxx.HA 20 2
TVM -10
-12
50E-22E
291116-1 J2Txxx.HA 20 6
50E-10E
291116-1 L2Txxx.HA 24 6
VRA -12
-16
-20
8-55-2-55 291116-1 L2Qxxx.HA 24 6
Contact factory 291116-1 P2xxxx.HA 32 6
Contact factory 291132-1 T2xxxx.HA 40 6
COOPER BESSEMER
GMV (short stroke) -4
-6
-8
-10
63E-117E
291116-1 D2Fxxx.HA 4
63E-57E
291116-1 F2Fxxx.HA 6
63E-27E
291116-1 H2Fxxx-HA 8
63E-9E
291116-1 J2Fxxx.HA 10 3
GMV,GMVA,GMVC -4
GMVE,GMVG,GMVH -6
-8
(flat crank) -8
-10
-12
60E-120E
291116-1 D2Bxxx.HA 8 1
60E
291116-1 F2Axxx.HA 12 1
60E-30E
291116-1 H2Txxx.HA 16 1
0-60-0-120 291116-1 H2Nxxx.HA 16 6
60E-12E
291116-1 J2Bxxx.HA 20 3
0E-60E
291116-1 L2Rxxx.HA 24 6
COOPER BESSEMER LISTING CONTINUED ON NEXT PAGE
-6
ALTRONIC CPU-2000 IGNITION SYSTEM APPLICATION LIST
LARGE ENGINES, 3-20 CYLINDERS FORM CPU-2000 AL 1-02
ENGINE MODEL NO.
FIRING
PATTERN
CPU-2000
OUTPUT MOD.
MEMORY
CODE NO.
QTY.
COILS NOTES
COOPER BESSEMER (continued)
GMW,GMWA,GMWC -6
GMWE,GMWH -8
-10
-12
-16
36E-84E
291116-1 F2Dxxx.HA 12 1
36E-54E
291116-1 H2Dxxx.HA 16 1
36E
291116-1 J2Axxx.HA 20 2
36E-24E
291116-1 L2Dxxx.HA 24 2
36E-9E
291116-1 P2Dxxx.HA 32 3
GMX,GMXA,GMXB -4
GMXC,GMXD,GMXE -6
-8
-10
-12
63E-117E
291116-1 D2Fxxx.HA 4 1
63E-57E
291116-1 F2Fxxx.HA 6 1
63E-27E
291116-1 H2Fxxx.HA 8 1
63E-9E
291116-1 J2Fxxx.HA 10 3
0-63-0-57 291116-1 L2Xxxx.HA 12 6
JS, LS -6
-6
-8
-8
120E
291116-1 F4Axxx.HC 12 1
4E-116E
291116-1 L4Sxxx.HC 12
90E
291116-1 H4Axxx.HC 16 1
4E-86E
291116-1 P4Sxxx.HC 16
LSV -12
-12
-16
-16
36E-84E
291116-1 L4Lxxx.HC 24 2
4-32-4-80 291132-1 X4Lxxx.HC 24
36E-54E
291116-1 P4Lxxx.HC 32 2
4-32-4-50 291132-1 Z4Lxxx.HC 32
Q145,Q145H -8
Q155,Q155H -12
(QUAD) -16
-20
60E-30E
291116-1 H2Txxx.HA 16 1
0E-60E
291116-1 L2Rxxx.HA 24 6
15E-30E
291116-1 P2Bxxx.HA 32 6
24E-12E
291132-1 T2Bxxx.HA 40 6
V-250,V-275,W-330 -6
-8
-10
(odd crank) -10
-12
(63E crank) -12
(76.5E crank) -12
-16
36E-84E
291116-1 F2Dxxx.HA 12 1
36E-54E
291116-1 H2Dxxx.HA 16 1
36E
291116-1 J2Axxx.HA 20 2
30-6-30-84-306-
30-54-36-54 291116-1 J2Wxxx.HA 20 3
36E-24E
291116-1 L2Dxxx.HA 24 2
36-18-3627-
36-27 291116-1 L2Vxxx.HA 24 2
9-27-40.536-
40.5-27 291116-1 L2Uxxx.HA 24 3
18-18-36-18 291116-1 P2Exxx.HA 32 2
Z-330 -12
-16
(90E crank) -16
40E-20E
291116-1 L2Zxxx.HA 24 2
20-20-30-20 291116-1 P2Zxxx.HA 32 2
0-40-0-50 291116-1 P2Nxxx.HA 32 6
-7
ALTRONIC CPU-2000 IGNITION SYSTEM APPLICATION LIST
LARGE ENGINES, 3-20 CYLINDERS FORM CPU-2000 AL 1-02
FIRING CPU-2000 MEMORY QTY.
ENGINE MODEL NO. PATTERN OUTPUT MOD. CODE NO. COILS NOTES
DE LAVAL
HVA -6
-8
-12
-16
120E
291116-1 F4Axxx.HC 12 1
46E-134E
291116-1 H4Oxxx.HC 16 1
46E-74E
291116-1 L4Oxxx.HC 24 2
46E-44E
291116-1 P4Oxxx.HC 32 2
INGERSOLL RAND
KVG, KVGR -26
-36
-48
-48
-62
-82
-83
-103
-104
-123
-410
-410
-412
-510
-510
-512
165E-75E
291116-1 F4Cxxx.HC 6
165E-75E
291116-1 F4Cxxx.HC 6
90-90-90-13590-
90-90-45 291116-1 H4Exxx.HC 8
90-135-45-13590-
45-135-45 291116-1 H4Kxxx.HC 8
165E-75E
291116-1 F4Cxxx.HC 6
45E-135E
291116-1 H4Hxxx.HC 8
90-90-90-13590-
90-90-45 291116-1 H4Exxx.HC 8
117E-27E
291116-1 J4Exxx.HC 10
117E-27E
291116-1 J4Exxx.HC 10
45E-75E
291116-1 L4Hxxx.HC 12
117E-27E
291116-1 J4Exxx.HC 10
45-120-75-45-7545-
75-120-45-75 291116-1 J4Gxxx.HC 10
45E-75E
291116-1 L4Hxxx.HC 12
117E-27E
291116-1 J4Exxx.HC 10
45-120-75-45-7545-
75-120-45-75 291116-1 J4Gxxx.HC 10
45E-75E
291116-1 L4Hxxx.HC 12
KVS, KVSE -36
KVSF, KVSR -48
-410
-412
-510
-512
-612
165E-75E
291116-1 F4Cxxx.HC 12 1
90-135-45-13590-
45-135-45 291116-1 H4Kxxx.HC 16 1
45-75-45-75-12045-
75-45-75-120 291116-1 J4Sxxx.HC 20 2
45E-75E
291116-1 L4Hxxx.HC 24 2
45-75-45-75-12045-
75-45-75-120 291116-1 J4Sxxx.HC 20 2
45E-75E
291116-1 L4Hxxx.HC 24 2
45E-75E
291116-1 L4Hxxx.HC 24 2
KVT, KVR -38
-410
-512
-616
90-90-90-13590-
90-90-45 291116-1 H4Exxx.HC 16 1
117E-27E
291116-1 J4Exxx.HC 20 2
45E-75E
291116-1 L4Hxxx.HC 24 2
45E
291116-1 P4Axxx.HC 32 2
INGERSOLL-RAND LISTING CONTINUED ON NEXT PAGE
-8
A P P L IC A T ION L IS TA L T R ONIC C P U-2000 IG NIT ION S Y S T E M
LARGE ENGINES, 3-20 CYLINDERS FORM CPU-2000 AL 1-02
ENGINE MODEL NO.
FIRING
PATTERN
CPU-2000
OUTPUT MOD.
MEMORY
CODE NO.
QTY.
COILS NOTES
INGERSOLL RAND (continued)
PKVG, PKVGR -6
-8
-10
-12
-16
165 .-75 .
291116-1 F4Cxxx.HC 6
90-90-90-13590-
90-90-45 291116-1 H4Exxx.HC 8
117 .-27 .
291116-1 J4Exxx.HC 10
45.-75 .
291116-1 L4Hxxx.HC 12
45.
291116-1 P4Axxx.HC 16
PKVS, PKVSR -6
-8
-10
-12
-16
165 .-75 .
291116-1 F4Cxxx.HC 12 1
90-135-45-135
90-45-135-45 291116-1 H4Kxxx.HC 16 1
45-75-45-75-12045-
75-45-75-120 291116-1 J4Sxxx.HC 20 2
45.-75 .
291116-1 L4Hxxx.HC 24 2
45.
291116-1 P4Axxx.HC 32 2
PKVT -12 75.-45 .
291116-1 L4Cxxx.HC 24 2
PSVG -6
-8
-10
-12
185 .-55 .
291116-1 F4Pxxx.HC 6
90-90-90-6590-
90-90-115 291116-1 H4Pxxx.HC 8
137 .-7.
291116-1 J4Pxxx.HC 10
65.-55 .
291116-1 L4Pxxx.HC 12
SVG -6
-8
-10
-12
180 .-60 .
291116-1 F4Bxxx.HC 6
90-90-90-60-90-
90-90-120 291116-1 H4Gxxx.HC 8
132 .-12 .
291116-1 J4Dxxx.HC 10
60.
291116-1 L4Axxx.HC 12
SVS,TVS,TVR -8
-10
-12
90-135-45-135
90-45-135-45 291116-1 H4Kxxx.HC 16 1
117 .-27 .
291116-1 J4Exxx.HC 20 2
45.-75 .
291116-1 L4Hxxx.HC 24 2
M.E.P.
M.E.P. -6
-8
-10
-12
60.
291116-1 F2A318.HC 12 1,4
45.
291116-1 H2A318.HC 16 1,4
36.
291116-1 J2A318.HC 20 2,4
30.
291116-1 L2A318.HC 24 3,4
NORDBERG
FSE -6
-1316
120 .
291116-1 F4Axxx.HC 12 1
45 .
291116-1 P4Axxx.HC 32 2
RUSTON
RK270G -12
-16
75 .-45 .
291116-1 L4C292.HC 24 2,4
45 .
291116-1 P4A292.HC 32 2,4
-9
ALTRONIC CPU-2000 IGNITION SYSTEM APPLICATION LIST
LARGE ENGINES, 3-20 CYLINDERS FORM CPU-2000 AL 1-02
ENGINE MODEL NO.
FIRING
PATTERN
CPU-2000
OUTPUT MOD.
MEMORY
CODE NO.
QTY.
COILS NOTES
SUPERIOR
825 Series -6
G, GT -8
-12
-16
120E
291116-1 F4A230.HC 6 4
90E
291116-1 H4A230.HC 8 4
48E-72E
291116-1 L4D276.HC 12 4,5
48E-42E
291116-1 P4G276.HC 16 4,5
GTL -6
-8
-12
-16
120E
291116-1 F4A230.HC 6 4
90E
291116-1 H4A230.HC 8 4
48E-72E
291116-1 L4D276.HC 12 4,5
48E-42E
291116-1 P4G276.HC 16 4,5
GTLA, GTLB -6
-8
-12
-16
120E
291116-1 F4A230.HC 6 4
90E
291116-1 H4A230.HC 8 4
48E-72E
291116-1 L4D276.HC 12 4
48E-42E
291116-1 P4G276.HC 16 4
SGT -12
-16
48E-72E
291116-1 L4D276.HC 12 4,5
48E-42E
291116-1 P4G276.HC 16 4,5
SGTA, SGTB -8
-12
-16
90E
291116-1 H4A230.HC 8 4
48E-72E
291116-1 L4D276.HC 12 4
48E-42E
291116-1 P4G276.HC 16 4
2400 Series 2406G
2408G
2412G
2416G
120E
291116-1 F4A180.HC 6 4
90E
291116-1 H4A180.HC 8 4
60E
291116-1 L4A180.HC 12 4
60E-30E
291116-1 P4T180.HC 16 4
WORTHINGTON
LTC -3
-4
-5
-6
-8
120E
291116-1 C2Axxx.HA 6 1
90E
291116-1 D2Axxx.HA 8 1
72E
291116-1 E2Axxx.HA 10 1
60E
291116-1 F2Axxx.HA 12 1
45E
291116-1 H2Axxx.HA 16 1
ML (MAINLINER) -5
-6
-7
-8
-10
72E
291116-1 E2Axxx.HA 10 1
60E
291116-1 F2Axxx.HA 12 1
51.43E
291116-1 G2Axxx.HA 14 1
45E
291116-1 H2Axxx.HA 16 1
36E
291116-1 J2Axxx.HA 20 2
MLV (MAINLINER) - 10
- 12
- 14
- 16
- 18
-20
36E
291116-1 J2Axxx.HA 20 2
36E-24E
291116-1 L2Dxxx.HA 24 2
36E-15.43E
291116-1 N2Dxxx.HA 28 3
36E-9E
291116-1 P2Dxxx.HA 32 3
36E-4E
291132-1 R2Dxxx.HA 36 6
0E-36E
291132-1 T2Rxxx.HA 40 6
WORTHINGTON LISTING CONTINUED ON NEXT PAGE
-10
ALTRONIC CPU-2000 IGNITION SYSTEM APPLICATION LIST
LARGE ENGINES, 3-20 CYLINDERS FORM CPU-2000 AL 1-02
ENGINE MODEL NO.
FIRING
PATTERN
CPU-2000
OUTPUT MOD.
MEMORY
CODE NO.
QTY.
COILS NOTES
WORTHINGTON (continued)
SLHC -4
-5
-6
-7
-8
-10
180-90-180-270 291116-1 D4Sxxx.HC 8 1
144E
291116-1 E4Axxx.HC 10 1
120E
291116-1 F4Axxx.HC 12 1
102.86E
291116-1 G4Axxx.HC 14 1
90E
291116-1 H4Axxx.HC 16 1
72E
291116-1 J4Axxx.HC 20 2
UTC, SUTC -5
-6
-7
-8
-8
-10
72E
291116-1 E2Axxx.HA 10 1
60E
291116-1 F2Axxx.HA 12 1
51.43E
291116-1 G2Axxx.HA 14 1
45E
291116-1 H2Axxx.HA 16 1
0E-90E
291116-1 H2Rxxx.HA 16 6
36E
291116-1 J2Axxx.HA 20 2
|
