Danfoss Coils
Danfoss Solenoid valves and coils are usually ordered separately - this allows maximum flexibility and enables the users of these products to select a valve and coil which best suit their needs.
BA Coil
9 W a.c. / 15 W d.c. IP00 |
BB Coil
10 W a.c. / 18 W d.c. IP00 |
BE Coil
10 W a.c. / 18 W d.c. IP67 |
BG Coil
12 W a.c. / 20 W d.c. IP67 |
| Power Consumption |
| Cut in: |
a.c. : 39 VA |
a.c.: 44 VA |
a.c.: 44 VA |
a.c.: 55 VA |
| Holding: |
a.c.:19VA (9W), d.c.:15W |
a.c.:21VA (10W), d.c.:18W |
a.c.:21VA (10W), d.c.:18W |
a.c.26 VA(12 W), d.c.:20W |
| Voltage tolerance: |
220 / 380 V a.c. coils: 10%, -15%. 230/400 V a.c. coils: +6%, -10%. Other a.c. oils with NC valve +10%, -15%. Other a.c. coils with NO valves and all d.c. coils ± 10% |
| Connection: |
Spade terminals |
Spade terminals |
Terminal box |
Terminal box |
|
to DIN 43650 form A |
to DIN 43650 form A |
Pg 13.5 |
Pg 13.5 |
| Enclosure: |
IP00 |
IP00 |
IP67 |
IP67 |
| With cable plug: |
IP65 |
IP65 |
N/a |
N/a |
| Ambient temp. |
| AC: |
40oC |
80oC |
80oC (50oC for 50/60Hz coils) |
80oC |
| DC: |
40oC |
50oC |
50oC |
50oC |
| Duty rating: |
continuous |
continuous |
continuous |
continuous |
| Suitability with valve type: |
a.c. |
d.c. |
|
|
|
| EV210B |
yes |
yes |
yes |
yes |
yes |
| EV220B |
yes |
yes |
yes |
yes |
yes |
| EV250B |
|
|
yes |
yes |
yes |
| EV310B |
yes |
yes |
|
|
|
| EV212B |
yes |
|
yes |
yes |
yes |
| EV222B |
|
|
yes |
yes |
yes |

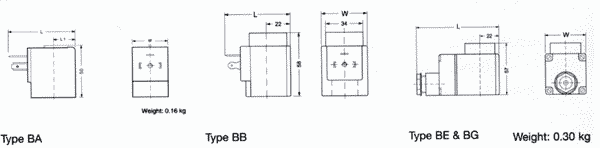

Dimensions and weight
| Coil type |
BA |
BB |
BE |
BG |
| L without cable plug |
54mm |
62mm |
- |
- |
| L with cable plug |
79mm |
85mm |
94mm |
112mm |
| L1 |
19mm |
22mm |
22mm |
30mm |
| W |
32mm |
46mm |
46mm |
68mm |
Type B coils - A. C. voltage
| |
Type BA
(9 W, IP00) |
Type BB
(10 W, IP00) |
Type BE
(10 W, IP67) |
Type BG
(12 W, IP67) |
| Supply voltage |
Designation |
Code No. |
Designation |
Code No. |
Designation |
Code No |
Designation |
Code No |
| 24 V 50 Hz |
BA024A |
042N7508 |
BB024AS |
018F7358 |
BE024AS |
018F6707 |
BG024AS |
018F6807 |
| 48 V 50 Hz |
BA048A |
042N7508 |
- |
- |
BE048AS |
018F6709 |
- |
- |
| 115 V 50 Hz |
BA115A |
042N7512 |
BB115AS |
018F7361 |
BE115AS |
018F6711 |
- |
- |
| 230 V 50 Hz |
BA230A |
042N7501 |
BB230AS |
018F7351 |
BE230AS |
018F6701 |
BG230AS |
018F6801 |
| 240 V 50Hz |
BA240A |
042N7502 |
BB240AS |
018F7352 |
BE240AS |
018F6702 |
BG240AS |
018F6802 |
| 380-400 V 50 Hz |
BA380A |
042N7504 |
BB380AS |
018F7353 |
BE380AS |
018F6703 |
BG380AS |
018F6803 |
| 110 V 50/60 Hz |
- |
- |
BB110CS |
018F7360 |
BE110CS |
018F6730 |
- |
- |
| 230 V 50/60 Hz |
- |
- |
BB230CS |
018F7363 |
BE230CS |
018F6732 |
- |
- |
| 24 V 60 Hz |
BA024B |
042N7520 |
BB024BS |
018F7365 |
BE024BS |
018F6715 |
BG024BS |
018F6815 |
| 115 V 60 Hz |
BA115B |
042N7522 |
- |
- |
BE115BS |
018F6710 |
- |
- |
| 220 V 60 Hz |
BA220B |
042N7523 |
- |
- |
BE220BS |
018F6714 |
BG220BS |
018F6814 |
| Cable plug to IP65 enclosure |
|
042B0156 |
|
042N0156 |
IP67 cable plug fitted as standard |
IP67 cable plug fitted as standard |
Type B Coils d.c. voltage
| |
Type BA (15 W IP00) |
Type BB (18 W IP00) |
Type BE (18 W IP 67) |
Type BG (20W IP67) |
| Supply voltage |
Desi |
Code No. |
Desi |
Code No. |
Desi |
Code No. |
Desig |
Code No. |
| 12 V |
BA012D |
042N7550 |
BB012DS |
018F7396 |
BE012DS |
018F6756 |
BG012DS |
018F6856 |
| 24 V |
BA024D |
042N7551 |
BB024DS |
018F7397 |
BE024DS |
018F6757 |
BG024DS |
018F6857 |
| Cable plug to IP65 Enclosure |
 |
042N0156 |
|
042N0156 |
IP67 cable plug fitted as standard |
IP67 cable plug fitted as standard |
Spare Parts - Permanent Magnet
 |
|
With this device, it is possible to operate solenoid valves during installation without actually wiring the coil.
Code no. 191L4655 - ￡16.42
For other spare parts please contact us.
|
Other Danfoss Coils
Hum Free Coil 20W a.c.
- For installations sensitive to noise
- Robust and reliable coils
- Windings of class H insulated wire moulded into the coil body
- Ambient temperature: up to +50oC
- Built in rectifier
- Suitable for moist environments
- 1m 3-core flying lead
- IP67 coil enclosure
|
|
 |
Type BO, EEx m II T4 coils, 10 W a.c. / 10 W d.c.
- For explosion risk environments
- For EV210B, EV220B and EV250B valves
- Approved for application in zone 1 areas in accordance with the standards EN 50014 including AMD 1-5 and EN 50028
- Ambient temperature: up to +40oC
- IP67 with 5 m 3-core flying lead
- Seal kit as accessory for extremely wet and aggressive environments
|
|
 |
Coils with flying lead
- IP67 coils complete with 1 m 3 core cable
- Saves time on installation
- Continuously rated
- 80oC amb. temperature
- Available as standard in all common voltages
|
|
|
|
|
