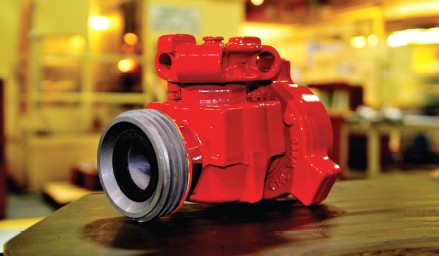

FMC Flowline Plug Valves
Weco ULT and DR plug valves are quarter-turn valves designed for a wide range of drilling, production and pressure pumping applications. These valves are offered in pressures up to 20,000 psi CWP and range in size from 1 to 4 inches. They are available in a variety of end connections. Sour gas models available.
3 inch and Larger ULT Plug Valve Brochure.pdf
Weco 1" ULT Plug Valve Brochure
Weco 2" ULT Plug Valve OMM
Weco Plug Valves Brochure
|
|
ULT Dual Body Plug Valves
(Weco Union x Flanged End Connections) |
|

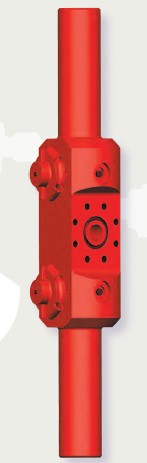

ULT Dual Body Plug Valves
(Drill Pipe Connections) |
ULT Flanged Plug Valves
(Flanged End Connections) |
ULT Plug Valves Weco Plug Valve Specifications
Plug Valves Model |
Nominal
Size,in. |
Part No. |
Part No.-LT |
Weco End Connection |
service |
CWP PSI/BAR |
Weight lb(kg) |
|
| ULT 150 |
1 |
P516114 |
P516114-LT |
1502 |
Standard |
15,000 (1034) |
37 (16.8) |
|
| ULT 100 |
1 |
P524578 |
|
1502 |
Sour |
10,000 (690) |
37 (16.8) |
|
| ULT 150 |
1x2 |
P516108 |
P516108-LT |
1502 |
Standard |
15,000 (1034) |
43 (19.5) |
|
| 1x2 (.38 bore) |
P516146 |
P516146-LT |
1502 |
Standard |
15,000 (1034) |
58 (26.3) |
|
| ULT 100 |
1x2 |
P516208 |
|
1502 |
Sour |
10,000 (690) |
37 (16.8) |
|
| ULT 150 |
2 |
3247527 |
|
1502 |
Standard |
15,000 (1034) |
93 (42.2) |
|
| ULT 100 |
2 |
3248705 |
|
1502 |
Sour |
10,000 (690) |
93 (42.2) |
|
| DR 200 |
2 |
3223008 |
|
2002 |
Standard |
20,000 (1380) |
83 (37.6) |
|
| 2 |
3234183 |
|
2202 |
Sour |
15,000 (1034) |
83 (37.6) |
|
| ULT 150 (Manual) |
3 |
3265904 |
3265904-LT |
1502 |
Standard |
15,000 (1034) |
238 (108) |
|
| ULT 100 (Manual) |
3 |
P501010 |
|
1502 |
Sour |
10,000 (690) |
241 (109) |
|
| ULT 150 (Hydraulic) |
3 |
3265123 |
3265123-LT |
1502 |
Standard |
15,000 (1034) |
337 (153) |
|
| ULT 100 (Hydraulic) |
3 |
3267427 |
|
1502 |
Sour |
10,000 (690) |
340 (154) |
|
| ULT 150 (Handwheel) |
3 |
3265122 |
3265122-LT |
1502 |
Standard |
15,000 (1034) |
288 (131) |
|
| ULT 100 (Handwheel) |
3 |
3265257 |
|
1502 |
Sour |
10,000 (690) |
288 (131) |
|
| ULT 200 (Hydraulic) |
3 |
P519087 |
P519087-LT |
2002 |
Standard |
20,000 (1380) |
754 (342) |
|
| ULT 200 (Handwheel) |
3 |
P519453 |
P519453-LT |
2002 |
Standard |
20,000 (1380) |
634 (288) |
|
| ULT 150 (Handwheel) |
3 |
P522233 |
|
2202 |
Sour |
15,000 (1034) |
640 (290) |
|
| ULT 100 (Hydraulic) |
4 |
P518352 |
P518352-LT |
1002 |
Standard |
10,000 (690) |
738 (335) |
|
| ULT 100 (Handwheel) |
4 |
P518356 |
P518356-LT |
1002 |
Standard |
10,000 (690) |
660 (299) |
|
| ULT 150 (Hydraulic) |
4 |
P516015 |
P516015-LT |
1502 |
Standard |
15,000 (1034) |
774 (351) |
|
| ULT 150 (Handwheel) |
4 |
P518749 |
P518749-LT |
1502 |
Standard |
15,000 (1034) |
660 (299) |
|
|
|
|
|
|
|
|
|
|
| ULT 150 |
1 |
4.69 (119) |
5.88 (149) |
6.59 (167) |
1.75 (45) |
2.88 (73) |
— |
— |
| ULT 100 |
1 |
4.69 (119) |
5.88 (149) |
6.59 (167) |
1.75 (45) |
2.88 (73) |
— |
— |
| ULT 150 |
1x2 |
4.69 (119) |
5.88 (149) |
6.59 (167) |
1.75 (45) |
3.93 (100) |
— |
— |
| 1x2 |
4.69 (119) |
5.88 (149) |
6.59 (167) |
1.75 (45) |
3.93 (100) |
— |
— |
| (.38 bore) |
| ULT 100 |
1x2 |
4.69 (119) |
5.88 (149) |
6.59 (167) |
1.75 (45) |
3.93 (100) |
— |
— |
| DR 150 |
2 |
6 (152) |
7.88 (200) |
8.05 (205) |
2.62 (67) |
3.93 (100) |
— |
— |
| 2 |
6 (152) |
7.88 (200) |
8.05 (205) |
2.62 (67) |
3.93 (100) |
— |
— |
| DR 200 |
2 |
6.06 (154) |
9.19 (233) |
8.05 (205) |
2.62 (67) |
3.76 (96) |
— |
— |
| 2 |
6.06 (154) |
9.19 (233) |
8.05 (205) |
2.62 (67) |
3.76 (96) |
— |
— |
| ULT 150 (Manual) |
3 |
— |
— |
14.27 (363) |
5 (127) |
4.55 (116) |
— |
15.69 (399) |
| ULT 100 (Manual) |
3 |
— |
— |
14.27 (363) |
5 (127) |
4.55 (116) |
— |
15.69 (399) |
| ULT 150 (Hydraulic) |
3 |
— |
— |
21.81 (554) |
5 (127) |
4.55 (116) |
— |
15.69 (399) |
| ULT 100 (Hydraulic) |
3 |
— |
— |
21.81 (554) |
5 (127) |
4.55 (116) |
— |
15.69 (399) |
| ULT 150 (Handwheel) |
3 |
— |
— |
14.47 (368) |
5 (127) |
4.55 (116) |
22.12 (562) |
15.69 (399) |
| ULT 100 (Handwheel) |
3 |
— |
— |
14.47 (368) |
5 (127) |
4.55 (116) |
22.12 (562) |
15.69 (399) |
| ULT 200 (Hydraulic) |
3 |
— |
— |
29.63 (753) |
6.26 (159) |
6 (152) |
— |
22.08 (561) |
| ULT 200 (Handwheel) |
3 |
— |
— |
17.62 (448) |
6.26 (159) |
6 (152) |
36.88 (937) |
22.08 (561) |
| ULT 150 (Handwheel) |
3 |
— |
— |
17.62 (448) |
6.26 (159) |
6 (152) |
36.88 (937) |
22.08 (561) |
| ULT 100 (Hydraulic) |
4 |
— |
— |
28.49 (724) |
7.00 (118) |
4.94 (126) |
— |
22.85 (580) |
| ULT 100 (Handwheel) |
4 |
— |
— |
19.1 (485) |
7.00 (118) |
4.94 (126) |
38.36 (974) |
22.85 (580) |
| ULT 150 (Hydraulic) |
4 |
— |
— |
28.49 (724) |
7.00 (118) |
4.94 (126) |
— |
22.85 (580) |
| ULT 150 (Handwheel) |
4 |
— |
— |
19.1 (485) |
7.00 (118) |
4.94 (126) |
38.29 (973) |
22.85 (580) |
2"
ULT50
ULT100
ULT150
2"
ULT 50
ULT150
1-1/2"
ULT150
2"
ULT200
2"
ULT200
Repair Kit P538985 P543731
1(1) Grease Fitting 1 3226457 3262409
2 Lock Nut, Hex 1 3226656 3226656
3 (1) Plug Cap 1 P533920 P533920
4 Grease Retainer Ring 1 P534583 P534583
5 (1) Body Cap 1 P533865 P543329
6 O-Ring for Body Cap 1 3226706 3233599
7 O-Ring for Plug 2 3217008 3237995
8 Nylon Backup Ring 2 3217010 3217010
9 Plug 1 P533856 P533856
10 Seal Segment 2 P534062 P543331
11 Side Segment 2 P534571 P534571
12 Inner Seal 2 P534581 P543335
13 Outer Seal 2 P534582 P543334
|
