Gardner-Denver CentrifugalPumps
Gardner Denver has an assortment of rugged, light to medium weight centrifugal pumps that can be used in a variety of oilfield operationd.The segmented construction allows for easy, low cost maintenance as well as the ability to modify rotation,packing, wear plates,and drive shafts to meet your needs.
Pump Model |
Operatin Ranges (BHP) |
Pressure Ranges(PSI) |
Flow Rates(GPM) |
4 × 5C-Pump |
5-30 |
15-50 |
200-950 |
5 × 6C-Pump |
10-60 |
20-70 |
200-1150 |
L × C-Pump |
20-100 |
30-100 |
50-1150 |
10 × 12C-Pump |
50-200 |
15-85 |
500-4500 |
10 × 12HD C-Pump |
50-280 |
15-110 |
500-5000 |

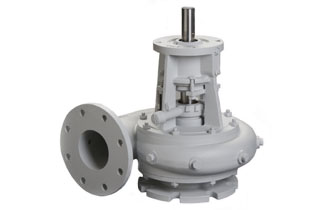

4X5
The Gardner Denver 4X5 centrifugal pump is a small, compact design for super charging the reciprocating, triplex, well service pumps. These centrifugal pumps may also be used in Industrial applications.
5X6
Slightly larger than the 4X5, the Gardner Denver 5X6 centrifugal pump is ideal for charging larger stimulation and fracturing pumps. These centrifugal pumps may also be used in Industrial applications.
2045LX
The Gardner Denver 2045LX centrifugal pump is a hybrid model for charging higher horsepower cementing pumps. These centrifugal pumps may also be used in Industrial applications.
10x12
Gardner Denver's largest centrifugal pump for high flow rate applications. Configured at the factory for your specific pumping needs, the 10X12 comes with several packing and wear plate options. These centrifugal pumps may also be used in Industrial applications.
10X12HD
The heavy duty version of the Gardner Denver 10x12 centrifugal pump. This pump contains upgraded bearings, wear plate, and input shaft for severe duty applications. These centrifugal pumps may also be used in Industrial applications.
|
