Triplex and Quintuplex Plunger Pumps （ 25 to 300 HP ）
Gardner Denver offers a complete line of plunger pumps designed to meet applications that require continuous service.Pumps range in size from2-inch to6-inch stroke and are rated from25to30 horsepower.The Gardner Denver line has many fluid-end combinations to meet your application needs,including aluminum bronze for water-flood,salt water disposal ,steam recovery,as well as carbon steel for pipeline testing, water-blast and hydrocarbon services.
Pump Model |
Horsepower (BHP) |
Stroke (In) |
Plunger Size (in) |
Rate (GPM) Min Max |
Pressure(PSI) Min Max |
GD-25T(TQB) |
25 |
2 |
1-2.25 |
5 62 |
675 2250 |
GD-45T(TQW) |
45 |
2.5 |
1-2.75 |
6 106 |
675 5000 |
GD-55T(TQC) |
55 |
3 |
1.75-3 |
19 110 |
735 2100 |
GD-65T(TAC) |
65 |
3 |
1--3 |
5 138 |
735 5000 |
GD-100T(TDD) |
100 |
4 |
1.75-3.5 |
22 213 |
745 3000 |
GD-125T(TEE) |
125 |
5 |
1--4 |
5 286 |
675 6500 |
GD-135Q(QBX) |
135 |
3.5 |
1.5-3 |
25 268 |
780 3110 |
GD-150T(TAE) |
150 |
5 |
1.25-4.25 |
14 341 |
680 7850 |
GD-180T(TFE) |
180 |
5 |
1.25-4.25 |
14 341 |
815 9415 |
GD-205T(TFE) |
205 |
5 |
1.25-4.25 |
14 341 |
930 10000 |
GD-215T(THE) |
215 |
5 |
4--5.5 |
41 462 |
720 2944 |
GD-300Q(QAF) |
300 |
6 |
1.375-4.5 |
34 764 |
605 6480 |
| Pump Model |
Horsepower |
Stroke |
Plunger Sizes (in) |
Rod Load |
Rate (GPM) |
Pressure Ranges (PSI) |
(BHP) |
(in) |
(min) |
(max) |
(lbs) |
(min) |
(max) |
(min) |
(max) |
GD-1600 |
1600 |
8 |
3.75 |
6.5 |
200,000 |
115 |
1,135 |
2,150 |
18,100 |
GD-2250T |
2250 |
8 |
3.75 |
7.0 |
237,500 |
115 |
1,319 |
2,293 |
21,500 |
GD-2500Q |
2500 |
8 |
3.75 |
6.75 |
196,350 |
191 |
2,044 |
1,900 |
17,800 |
C-2500 |
2500 |
8 |
3.75 |
7.5 |
225,000 |
191 |
2,523 |
1,550 |
20,000 |
| GD-3000 |
3000 |
11 |
4.5 |
7.0 |
350,000 |
114 |
1,375 |
3,350 |
22,000 |
| Pump Model |
Horsepower |
Stroke |
Plunger Sizes (mm) |
Rod Load |
Rate (m3/h) |
Pressure Ranges (bar) |
(kW) |
(mm) |
(min) |
(max) |
(N) |
(min) |
(max) |
(min) |
(max) |
GD-1600 |
1,195 |
203.2 |
95.3 |
165 |
889,644 |
26 |
258 |
148 |
1,248 |
GD-2250T |
1,678 |
203.2 |
95.3 |
177.8 |
1,056,453 |
26 |
300 |
158 |
1,482 |
GD-2500Q |
1,864 |
203.2 |
95.3 |
171.5 |
873,408 |
43 |
464 |
131 |
1,227 |
C-2500 |
1,864 |
203.2 |
95.3 |
190.5 |
1,000,850 |
43 |
573 |
107 |
1,379 |
| GD-3000 |
2,237 |
279.4 |
114.3 |
177.8 |
1,556,878 |
26 |
312 |
231 |
1,517 |

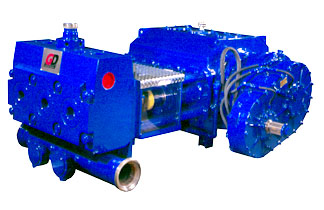

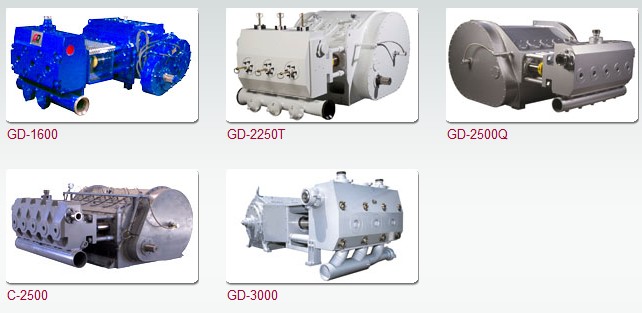

GD-1600
The Gardner Denver GD-1600 pump is ideal for lightweight, truck mounted units such as body loads and trailers where space and weight limitations exist. The GD-1600 is designed with patented power end components and the convenience of through stud fluid end configurations for easy removal and maintenance.
GD-2250T
An upgrade of the HD-2250 pump, the GD-2250T utilizes the best features from the Twentieth Century, Geoquip, and Chaparral 2250 BHP product lines. The GD-2250T offers new fluid end and power end technologies for extended service lives in the harshest well stimulation environments.
GD-2500Q
With continuous power end and fluid end upgrades, the GD-2500Q has been specifically designed to meet your high flow rate requirements in harsh environments, such as the Barnett Shale. Team the heavy duty power end with upgraded valve over valve fluid ends or Y style fluid ends for ultimate durability.
C-2500
The C-2500 quintuplex pump was originally designed by Chaparral Machine in Odessa, TX for stimulation service in the Barnett Shale. For extended service life, the C-2500 also features the EWS and YWS fluid ends with patented stem guided valve designs.
GD-3000
Field proven as the most powerful well stimulation pump on the market. No other pump combines the performance of high pressure and high flow rate into a single, lightweight, rugged unit. A variety of fluid end options are also available to cover all your pressure and flow requirements.
|
