Well Servicing and Well Stimulation Pumps
本产品具有先进的设计，适用于全球范围内的油田及工业设备。三缸泵和五缸泵的设计具有多方面的作用，包括粘合性、酸化处理、热油处理、以及其他常规的作业。
名称：Well Servicing Pumps
功率范围：600 到1500 HP
WELL STIMULATION PUMPS
名称：INTERMITTENT SERVICE
功率范围：1250 到1600 HP

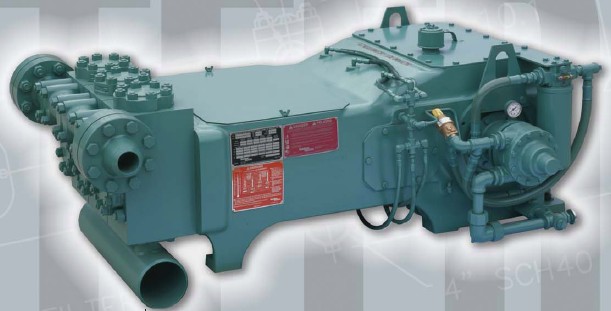

Gardner Denver Triplex Pumps (165 to 400 HP)
Gardner Denver Well Servicing pumps are specifically designed for cementing,acidizing,sand control,hot oil service,and general work-over service.With intermittent duty service and pressure ratings to 10,000psi,Gardner Denver Well Servicing Pumps not only meet but surpass the rugged demands of the petroleum service industry.
Specifications |
3 × 5& 4 × 5 TEE |
TGE |
TGF |
PAH |
TGH |
Rated Brake Horsepower |
165 |
165 |
225 |
310 |
400 |
Stroke Length(inches) |
5 |
5 |
6 |
8 |
8 |
Maximum Rod Load(ibs) |
44,000 |
44,000 |
84,000 |
127,235 |
159,000 |
Gear Ratio |
NA |
5:1 |
5:1 |
4.7:1 |
10.15:1 |

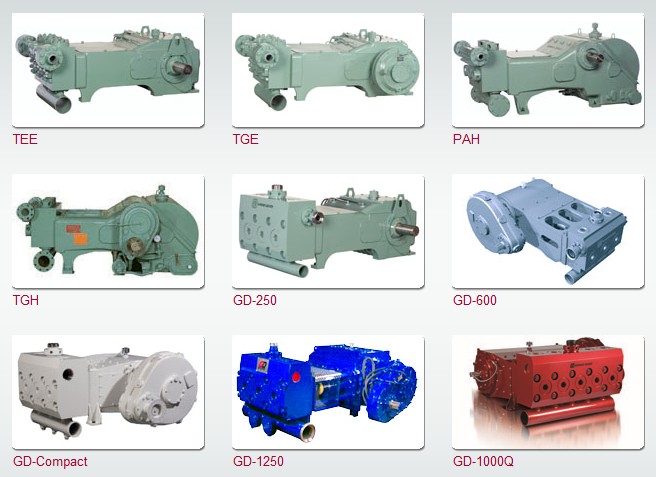

| Pump Model |
Horsepower |
Stroke |
Plunger Sizes (in) |
Rod Load |
Rate (GPM) |
Pressure Ranges (PSI) |
(BHP) |
(in) |
(min) |
(max) |
(lbs) |
(min) |
(max) |
(min) |
(max) |
| TEE |
165 |
5 |
1.75 |
4.00 |
44,000 |
8 |
245 |
975 |
10,000 |
| TGE |
165 |
5 |
1.75 |
4.00 |
44,000 |
8 |
245 |
975 |
10,000 |
| PAH |
310 |
8 |
3.50 |
5.00 |
128,000 |
34 |
357 |
1,350 |
10,000 |
| TGH |
400 |
8 |
4.00 |
5.00 |
159,000 |
44 |
357 |
1,632 |
10,000 |
| GD-250 |
250 |
5 |
2.00 |
5.00 |
50,000 |
10 |
362 |
1,009 |
15,000 |
| GD-600 |
600 |
6 |
2.75 |
5.00 |
100,000 |
46 |
688 |
1,345 |
16,845 |
GD-Compact |
600 |
6 |
2.75 |
4.50 |
100,000 |
46 |
558 |
1,660 |
16,845 |
GD-1250 |
1,250 |
8 |
3.75 |
6.50 |
200,000 |
115 |
1,135 |
1,700 |
18,100 |
| Pump Model |
Horsepower |
Stroke |
Plunger Sizes (mm) |
Rod Load |
Rate (m3/h) |
Pressure Ranges (bar) |
(kW) |
(mm) |
(min) |
(max) |
(N) |
(min) |
(max) |
(min) |
(max) |
| TEE |
123 |
127 |
44 |
102 |
195,722 |
1.8 |
55.6 |
67 |
690 |
| TGE |
123 |
127 |
44 |
102 |
195,722 |
1.8 |
55.6 |
67 |
690 |
| PAH |
231 |
203 |
89 |
127 |
570,564 |
7.7 |
81.1 |
93 |
690 |
| TGH |
298 |
203 |
102 |
127 |
707,267 |
7.7 |
81.1 |
113 |
690 |
| GD-250 |
186 |
127.0 |
51 |
127.0 |
222,411 |
2.34 |
82 |
70 |
1,034 |
| GD-600 |
447 |
152.4 |
70 |
152.4 |
444,822 |
10.5 |
156 |
93 |
1,161 |
GD-Compact |
447 |
152.4 |
70 |
152.4 |
444,822 |
10.5 |
127 |
115 |
1,161 |
GD-1250 |
932 |
203.2 |
95 |
165.1 |
889,644 |
26 |
258 |
118 |
1,248 |
|
