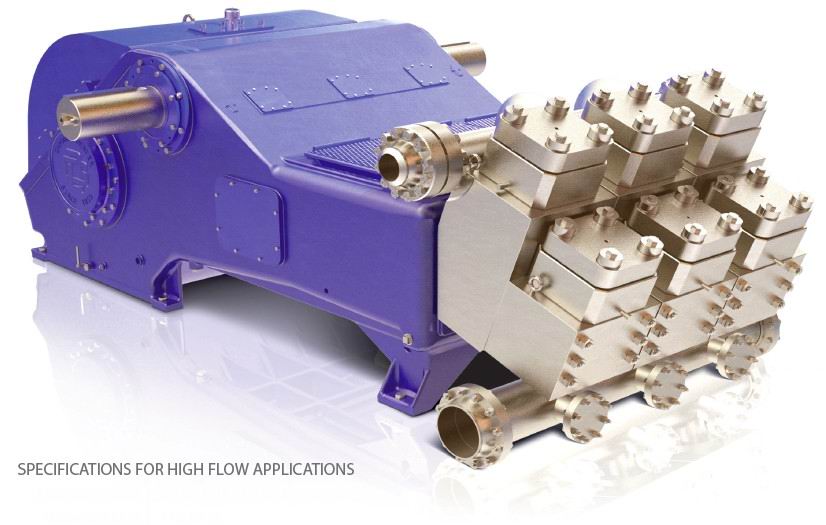

PZ-2400 Offshoe drilling pump海上钻井泵

PZ-2400 OFFSHORE DRILLING PUMP SPECIFICATIONS FOR HIGH FLOW APPLICATIONS规格参数：

Maximum Input： 2,400 BHP (1,790 kw)
Maximum RPM ：110 RPM
Stroke Length： 14” (356 mm)
Piston Load： 185,000 lbs. (822,921 N)
Pump Weight： 63,500 lbs. (28,803 kg) with skid and hydraulic tensioning system
Gear Ratio： 4.033:1

PZ-2400 OFFSHORE DRILLING PUMP

STANDARD FEATURES标准规格参数：

Patent Pending, severe duty, Y-type fluid modules
SMART Pump monitoring and data acquisition technology
High strength, cast power frame, eccentric, . connecting rods, and crossheads
Full roller bearing construction
Heat treated alloy steel, double helical AGMA drive gears
Double extended jackshaft for mounting sheaves or sprockets
Replaceable bronze crosshead slides
Full open valve seats
Fabricated, log style suction manifold
Hydrostatic tested cast steel
discharge manifold
API suction and discharge connections.

OPTIONAL FEATURES可选参数：

DNV, ABS, API or other third party certifications
. Steel transportation and placement skid for . pump only or larger maintenance skid with non-slip decking
Heat treated alloy steel, valve over valve interchangeable fluid end modules
Centrifugal suction charging pump.
Suction stabilizer and / or discharge damper.
Full open valve seats.
Custom packaging available.
Clear Lexan covers on side and rear hood inspection .
ports.
