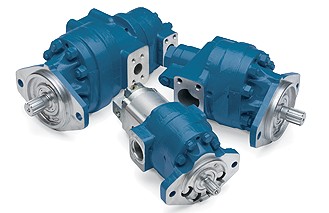

Haldex F20 and F30 Series Pumps

10 to 75 GPM @ 1800 RPM

Steel gears, cast iron housing and journal bearings give high efficiency and allow high speed operation, but journal bearing pumps should not be operated under heavy load at less than 600 RPM.

Pumps are designed for in-line direct drive. Please consult your nearest Womack office to see if pump should be de-rated for side drive.

Series F20 and F30 Double Pumps
Please check with your nearest Womack office for maximum permissible torque and/or side load on input shaft of double or tandem pumps.

Model F20009. This is a mating of a Series F20 and a Series W9 pump. See listings on preceding pages for pump characteristics. Standard pumps include SAE B 2-bolt front flange; 1 5/8-12 inlet port serving both pumps; 1 5/16-12 outlet port on Series F20, 3/4-16 threaded port on 09; splined shaft SAE B; no relief valve; CW rotation. Choose displacements of both pumps from preceding listings.

Model F2020. This is a mating of two Series F20 pumps. See listings on preceding pages for pump characteristics. Standard pumps include SAE B 2-bolt front flange; inlet port 4-bolt 2" diameter serving both pumps; outlet 4-bolt 1" diameter on both sections; SAE B splined shaft; CW rotation.

Model F3020. This is a combination of F30 pump next to shaft with F20 rear pump. Standard pumps include SAE C 4-bolt front flange; inlet 4-bolt 2" diameter, serving both sections; outlet 4-bolt 1 1/4" diameter on shaft end pump, 4-bolt 1" diameter on cover end pump; round keyed shaft 1 1/4" diameter clockwise rotation.

Model F3030. This is a combination of two Series F30 pumps. Standard pumps include SAE C 4-bolt front flange; inlet port 4-bolt 2 1/2" diameter; outlet port 4-bolt 1 1/4" diameter for each section; straight keyed shaft 1 1/4" diameter; CW rotation.

Thru-Drive F20T and F30T Single Pumps
A thru-drive pump is the same as the single pumps in the F20 and F30 series except they have a mounting flange on the rear cover for mounting another pump. We suggest contacting your nearestWomack sales office for assistance when selecting thru-drive or double pumps.
