Contents:

Roundline cylinders

Cylinders with guiding

Norgren In-house cylinders

Compact cylinders

Slide tables

Special products

Profile cylinders - Tie-rod cylinders

Rotary actuators

Additional ranges

LINTRA ® - pneumatic

Grippers

Switches

LINTRA ® - electric

Stainless steel - Clean line

Single acting / Double acting
Roundline cylinders
(including cylinders conforming to Standard ISO 6432)

RM/59100/C RM/28000/M RT/57100/M, RT/57300/M
Ø 2,5 ...4 mm ISO 6432
Ø 10 ...25 mm		 Ø 8 ...40 mm

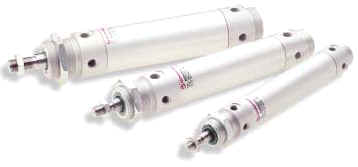

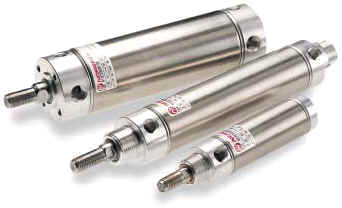

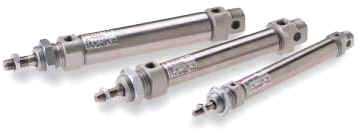

RM/8000/M RT/57200/M RM/55401/M
ISO 6432
Ø 10 ...25 mm		 Ø 8 ...63 mm Ø 32 ...100 mm
Compact cylinders
(including cylinders conforming to Standards ISO 6431 – pitch dimensions VDMA 24562 – pitch dimensions)

RM/191000/M, RM/193000/M RM/91000/M, RM/93000/M M/50100
ISO 6431,VDMA 24562
Ø 20 ...63 mm		 Ø 12 ...63 mm Ø 8 ...63 mm

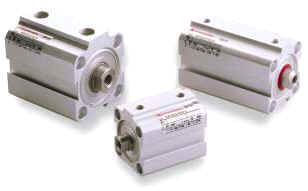

RM/192000/M RM/92000/M M/50200
ISO 6431,VDMA 24562
Ø 20 ...125 mm		 Ø 12 ...100 mm Ø 8 ...63 mm
Profile cylinders - Tie-rod cylinders
(all conforming to Standards ISO 6431 VDMA 24562 NFE 49 003-1)

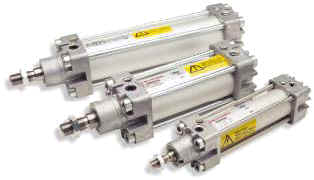

PRA/181000,../M, PRA/183000,../M RA/28000,../M, RA/28300,../M PRA/282000
ISO,VDMA,NFE
Ø 32 ...100 mm		 ISO,VDMA,NFE
Ø 32 ...100 mm		 Cylinder with integrated valve
and positon sensor
Ø 32 ...100 mm
PRA/182000,../M RA/8000,../M PRA/282000/M/P
ISO,VDMA,NFE
Ø 32 ...125 mm		 ISO,VDMA,NFE
Ø 32 ...320 mm		 Airmotor (Oscillator)
Ø 50 ...100 mm
RA/8000/P1-P4, RA/8000/P5-P8 PSA/182000/F1 QA/8000
Foxboro/Siemens positioner
Ø 63 ...320 mm		 Positioner
Ø 40 ...125 mm		 Guide blocks for RA/8000,PRA/182000
Ø 32 ...100 mm
LINTRA ®
Pneumatic rodless cylinders

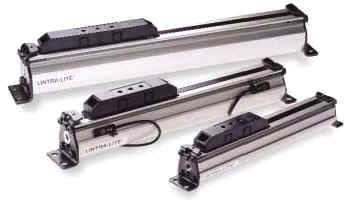

A44000 M/44000 M/46000,../M
LINTRA-LITE
Ø 25 ...40 mm		 LINTRA-Compact
Ø 25 ...40 mm		 Internal guided
Ø 16 ...80 mm

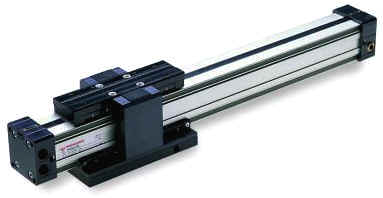

M/46000/L M/46100,../M M/46200,../M
Internal guided with brake
Ø 25 ...63 mm		 External guided
Ø 16 ...80 mm		 Precision roller guided
Ø 25 ...80 mm
M/46800/M,.../HM M/46800/PM M/46900/IA,../M
Heavy duty guided
Ø 20 ...40 mm		 Heavy duty precision guided
Ø 16,25,40,63 mm		 TWIN-LINTRA
Ø 25 ...40 mm
LINTRA ®
Electric linear actuators
M/49000 M/49100 M/49200
Internal guided
Ø 32,40,63 mm		 External guided
Ø 25 ...63 mm		 Precision roller guided
Ø 25 ...63 mm
Cylinders with guiding

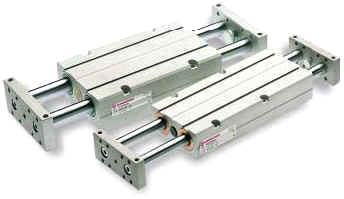

M/60100/M M/61000/M,../MR RM/192000/N6
Slide units
Ø 10 ...40 mm		 Guiding and stopper cylinders
Ø 32 ...100 mm		 Compact slides
Ø 25,32 mm
Slide tables
M/61200/M,../MR M/261000/... M/261100/...
Slide tables
Ø 16 ...32 mm		 Compact precision linear slide tables
Ø 6 ...16 mm		 Precision linear slide tables
Ø 10,12 mm
M/261200/... M/261300/... M/261400/...
Low profile linear slide tables
Ø 8 ...20 mm		 Compact linear slide tables
Ø 10,16 mm		 Synchronous linear slide tables
Ø 6 mm
Rotary actuators
(including actuators conforming to Standards ISO 6431 – pitch dimensions VDMA 24562 – pitch dimensions)
M/60210/M M/60270/M M/60280 ...,M/60284,../TI
Miniature rotary actuators
0,23 ...1,0 Nm/6 bar		 Compact rotary actuators
1,5 ...7,4 Nm/6 bar		 Mini vane type
0,2 ...9,3 Nm/6 bar
M/60281/IE ...,M/60284/IE,../TE M/60285 ...,M/60288 M/162000,../M
Mini vane type
0,35 ...9,3 Nm/6 bar		 Vane type
5,8 ...242 Nm/6 bar		 Rack &pinion type, ISO, VDMA,
7,2 ...306 Nm/6 bar
Grippers

M/160300/M/11 M/160340/M/11 - M/160350/M/11
Angular grippers
Ø 8 ...25 mm		 Parallel grippers
Ø 8 ...25 mm
M/160300/M/12 -  M/160330/M/12 M/160340/M/12 -  M/160350/M/12 -  M/160360/M/12 - M/160380/M/12 -  M/160390/M/12
Angular grippers
Ø 8 ...25 mm		 Parallel grippers
Ø 8 ...50 mm
Stainless steel Clean line
Stainless steel materials: AISI 303, AISI 304, AISI 316 Corrosion resistant cylinders

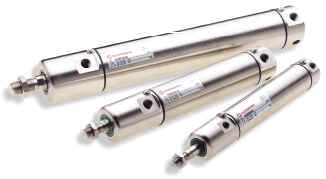

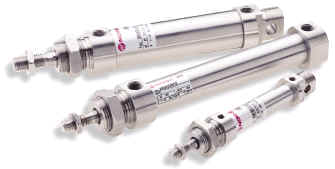

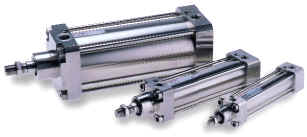

KM/8000/M KM/55001/M KA/8000,../M
Stainless steel, ISO 6432
Ø 12 ...25 mm		 Stainless steel, ISO 6431
Ø 32 ...125 mm		 Stainless steel, ISO 6431, VDMA 24562
Ø 32 ...200 mm

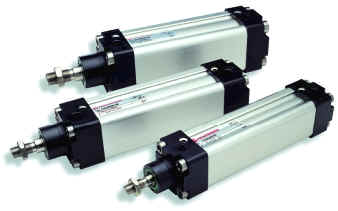

KM/31000 PVA/8000/M VM/46000,.../M, VM/46100,.../M
Stainless steel, air bellows, serviceable
Ø 220 ...400 mm		 Clean line profile, ISO 6431,VDMA 24562
Ø 32 ...100 mm		 Corrosion resistant rodless cylinders
Internal and external guided
Ø 20 ...80 mm
Norgren - In-house cylinders
Series CP/Ø RM/900,../M M/1000
CNOMO cylinders
Ø 32 ...200 mm		 Imperial cylinders
Ø 1¼ ...14"		 Heavy duty cylinders
Ø 2½ ...12"
Special products

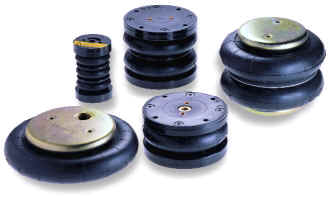

PM/31000 M/31000 VSM/55600/N2
Compact air bellows
Ø 80 ...325 mm		 Air bellows,serviceable
Ø 175 ...700 mm		 Hollow piston rod cylinders
Ø 25 &40 mm
Additional ranges
LSE, LSE H M/3000 M/59610, M/59612 -  M/59614, M/59620, M/59625 -
C/59838, C/59857 -  M/598333, M/59845, M/59864
Clamping units
1:8, 1:11, 1:17		 Impact cylinders
Ø 2 ...6"		 Shock absorbers
0,9 ...27200 kg

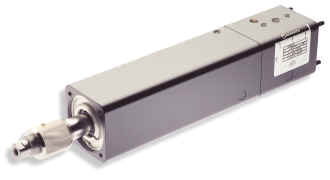

M/55900 M/1428, M/1429, M/163, M/164 M/1525, M/1540
Air/oil converters
0,24 ...5 dm3		 Air reservoirs
0,1dm3 ...2,0 dm3		 In-line positioner
Ø 2½ & 4"
Switches
Reed M/50 -  M/369, M/370 QM/32 - TQM/31, TQM/33 M/40
Solid state M/50 - M/418, M/419, M/420, M/421, M/344, M/345, M/346 QM/132 M/41, M/42
