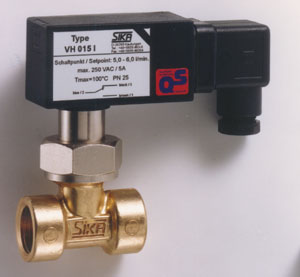

Pipe size
- DN 10, DN 15, DN 20, DN 25,
DN 32, DN 40, DN 50

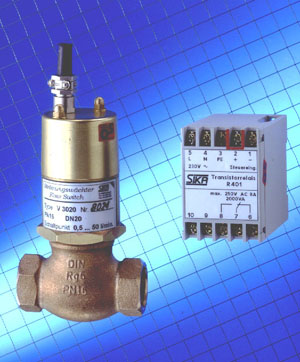

SIKA FLOW SWITCH V 3000流量开关

Size
- DN 10, DN 15, DN 20, DN 25,
DN 32, DN 40, DN 50

Setpoint ranges ( H2O, 20°C )
- 4,0 l/min ... 83,0 l/min

Max. flow rate
- 10 l/min ... 250 l/min

Electrical connection

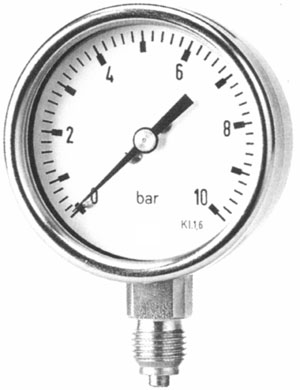

Pressure gauges of Type MPS with electro-mechanical contact devices ( standard or magnet contact ) are delivered ex factory with connection cable in the rear wall of the casing and 1 m cable length.
Generally all pressure gauges of Type MPE and pressure gauges with oil filling are delivered with plug connector at the right-hand side of the casing.
An exception are pressure gauges to be installed in panels, the plug connector is positioned in the rear wall.
Pressure gauges with inductive contact have a cable connecting box.
If the plug connector is installed at the rear side of an instrument of nominal size NG 100, a Blow-out ( 25 mm dia ) cannot be installed.
The adjacent sketches show the precise position of connection cable and plug connectors.
The plug connector has 6 pins and one earth terminal. The terminal box has 6 terminals only.

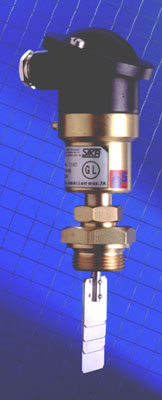

- Approved by German Lloyd, certificate
No.: 89 824-94 HH
- Suitable for water, oil, etc.
- Insert installation into pipe or T-pieces
DN 25 ... DN 50 or bigger
- Four paddles in different sizes included,
selection in accordance to the pipe size
- Robust construction
- Vibration proof to 4 g
- Wide set point ranges universally
insertable
- Setoint adjustment by paddle size selection
and by adjustment screw
- Micro switch with high contact rating

Size of pipe section
- DN 25, DN 32, DN 40, DN 50

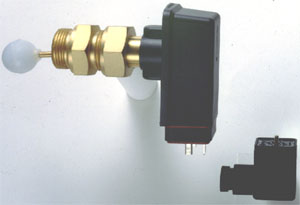

Instrument versions
- Brass, Stainless, Plastic

with
- 3/4" BSP male, ball float PVDF
- 3/4" BSP male, stainless steel float
- 3/4" BSP male, elbow float bar,
ball float PVDF
( only brass and stainless steel version )

with
- Plug connection, standard: DIN 43650
- 1,5 m connecting cable

SIKA MODE:
VHS 05M,VHS 06M,VHS 01M,VHS 08M,VHS 10M,VHS 15M, VHS 15MA,VHS 20M,VHS 25M,VHS 32M,VHS 40M,VHS 50M,VKS 15MKU,VKS 20MKU,VKS 25MKU,VKS 32MKU,VKS 40MKU,VKS 50MKU

VTH
- economy-priced type for standard and serial applictions

Accuracy
- ± 1% of range

Reproducibility
- ± 0,2%

Measurement range
2...40 l/min

VTP
- high pressures, high temperatures, fuels

Accuracy
- ± 1% of range

Reproducibility
- ± 0,2%

Measurement range
2...40 l/min

VTI
- magnet-free rotor, high measurement accuracy, high resolution

Accuracy
- ± 0,5% of range

Reproducibility
- ± 0,1%

Measurement range
2...40 l/min

VTH15,VTH 15KS,VTP15MS,VTP15VA,VTI15MS,VTI15K5
