SNAP-TITE 71Series quick coupling
Flat Face, No-Spill, Drybreak, Push-to-Connect Hose Coupling - Snap-tite 71 Series
The 71 Series couplings are designed for today's applications including special features for modern needs - drybreak, push-to-connect, high pressure, rugged & versatile. Extra large flow chambers and Snap-tites's exclusive valve design permit exceptional flow while maintaining low pressure drop. Designed for use up to 10,000 psi (690 bar) in both Steel and Stainless Steel options this rugged design is suited for high impulse applications. Drybreak design minimizes fluid loss and air inclusion. Also refered to as; Flat Face, Flush Face, Clean Break, No Drip, Dry Break, Quick Action, Quick Connect, Quick Disconnect, High Pressure, Subsea, Hose Coupling. Steel plating conforms to ROHS and WEEE European Union Directives.

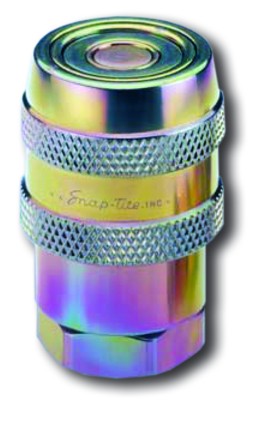

| Steel Coupler |
|
|
|
| SIZE |
PART # BSPP |
PART # NPT |
MAX W.P. |
| ?” |
71-3C4-4RP |
71-3C4-4F |
690 |
| 3/8” |
71-3C6-6RP |
71-3C4-6F |
690 |
| ?” |
71-3C8-8RP |
71-3C4-8F |
690 |
| ?” |
71-3C12-12RP |
71-3C4-12F |
520 |
| 1” |
71-3C16-16RP |
71-3C4-16F |
520 |
|

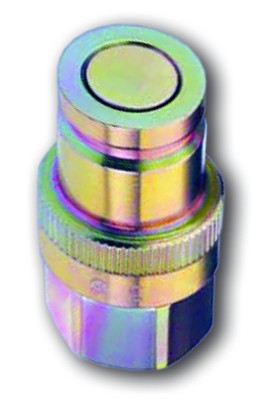

Steel Adaptor |
|
|
|
| SIZE |
PART # BSPP |
PART # NPT |
MAX W.P. |
| ?” |
71-3N4-4RP |
71-3N4-4F |
690 |
| 3/8” |
71-3N6-6RP |
71-3N4-6F |
690 |
| ?” |
71-3N8-8RP |
71-3N4-8F |
690 |
| ?” |
71-3N12-12RP |
71-3N4-12F |
520 |
| 1” |
71-3N16-16RP |
71-3N4-16F |
520 |
|

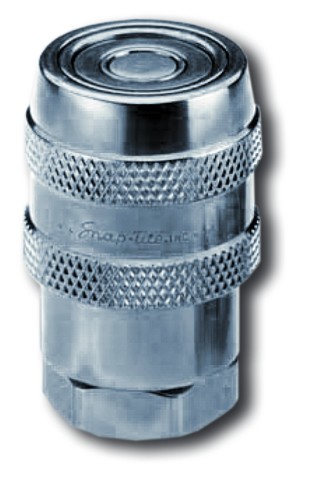

Stainless Steel Coupler |
|
|
|
| SIZE |
PART # BSPP |
PART # NPT |
MAX W.P. |
| ?” |
S71-3C4-4RP |
S71-3C4-4F |
345 |
| 3/8” |
S71-3C6-6RP |
S71-3C4-6F |
345 |
| ?” |
S71-3C8-8RP |
S71-3C4-8F |
345 |
| ?” |
S71-3C12-12RP |
S71-3C4-10F |
345 |
| 1” |
S71-3C16-16RP |
S71-3C4-12F |
280 |
|

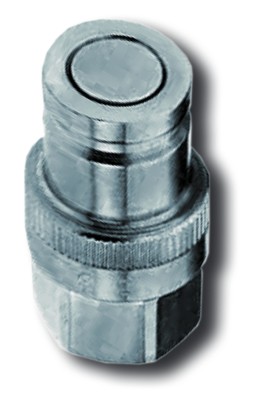

Stainless Steel Adaptor |
|
|
|
| SIZE |
PART # BSPP |
PART # NPT |
MAX W.P. |
| ?” |
S71-3N4-4RP |
S71-3N4-4F |
345 |
| 3/8” |
S71-3N6-6RP |
S71-3N4-6F |
345 |
| ?” |
S71-3N8-8RP |
S71-3N4-8F |
345 |
| ?” |
S71-3N12-12RP |
S71-3N4-10F |
345 |
| 1” |
S71-3N16-16RP |
S71-3N4-12F |
280 |
|
71C2-2F
71C2-4F
71-3C4-4F
71-3C6-6F
71-3C8-8F
71-3C12-12F
71-3C16-16F
71N2-2M
71N2-4F
71N2-4M
71N2-4EF
71N2-4MOS
71N2-5MOS
71N2-6M
71N2-14MM
71-3N4-4F
71-3N6-6F
71-3N8-8F
71-3N12-12F
71-3N16-16F
S71-3C4-4F
S71-3C6-6F
S71-3C8-8F
S71-3C12-12F
S71-3C16-16F
S71-3N4-4F
S71-3N6-6F
S71-3N8-8F
S71-3N12-12F
S71-3N16-16F
|
