Parker 针阀
Parker Needle Valves

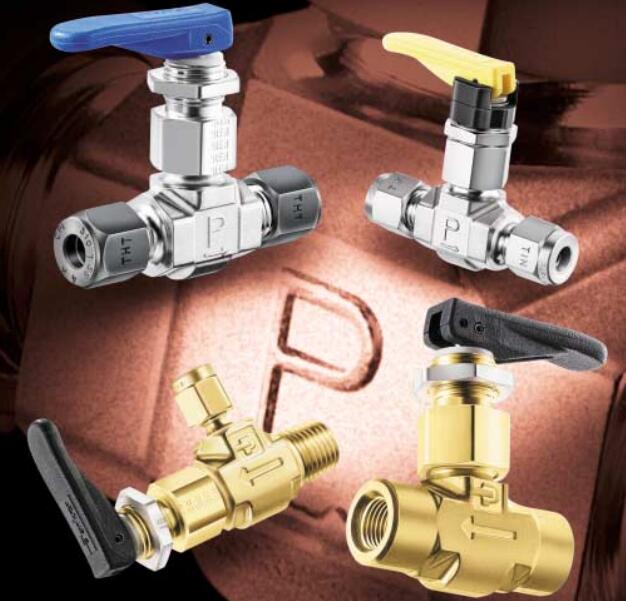

Needle Valve, Toggle Valve - VQ Series

Parker's VQ Series toggle valves are quick acting valves for simple open or close systems with low pressure (300 PSI) requirements.

Parker's VQ Series Toggle Valves are the right combination of performance and value for manual or pneumatic on-off control in moderate pressure and temperature applications. The manual version employs a toggle handle for quick action at pressures up to 300 psig (21 bar). Compact double acting, normally closed, and normally open pneumatically actuated versions of this valve are ideal for automatic control at pressures up to 600 psig (41 bar).

Needle Valve, Toggle Valve - VQ Series

Markets:
- Research
- Oil and Gas
- Chemical
- Petrochemical


Features/Benefits:
- Quick acting
- Inline and angle patterns
- Available with CPI, A-LOK, male and female NPT end connections
- Panel mountable
- Color-coded handles
- 316 stainless steel and brass body construction
- Stem seal materials:
Fluorocarbon Rubber
Nitrile Rubber
Ethylene Propylene Rubber
- Highly Fluorinated Fluorocarbon Rubber
- Optional handle positioners and anti-lock handles
- 100% factory tested
- Available in normally open, normally closed, and double acting models
- Mounting bracket standard for actuated models

Applications:
- Test Panels
- Purge Systems
- Rapid Fill Systems

Technical Specifications

Needle Valve, Toggle Valve - VQ Series 型号

Part Connection 1 Size Connection 2 Size Connection 1 Style Connection 2 Style Body Shape Stem Material Maximum Temperature Rating (F) Maximum Temperature Rating (C) Minimum Working Temperature (F) Minimum Working Temperature (C) Maximum Working Pressure (psi) Maximum Working Pressure (Bar) Body Material Body Size Seal Material
2A-V4AQ-BN-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2A-V4AQ-BN-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2A-V4AQ-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2A-V4AQ-EPR-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2A-V4AQ-EPR-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2A-V4AQ-KZ-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2A-V4AQ-KZ-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2A-V4AQ-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2A-V4LQ-BN-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2A-V4LQ-BN-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2A-V4LQ-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2A-V4LQ-EPR-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2A-V4LQ-EPR-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2A-V4LQ-KZ-BP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2A-V4LQ-KZ-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2A-V4LQ-SSP 1/8" 1/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2F-V4AQ-BN-BP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2F-V4AQ-BN-SSP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2F-V4AQ-BP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2F-V4AQ-EPR-BP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2F-V4AQ-EPR-SSP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2F-V4AQ-KZ-BP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2F-V4AQ-KZ-SSP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2F-V4AQ-SSP 1/8" 1/8" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2F-V4LQ-BN-BP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2F-V4LQ-BN-SSP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2F-V4LQ-BP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2F-V4LQ-EPR-BP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2F-V4LQ-EPR-SSP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2F-V4LQ-KZ-BP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2F-V4LQ-KZ-SSP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2F-V4LQ-SSP 1/8" 1/8" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2M-V4AQ-BN-BP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2M-V4AQ-BN-SSP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2M-V4AQ-BP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2M-V4AQ-EPR-BP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2M-V4AQ-EPR-SSP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2M-V4AQ-KZ-BP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2M-V4AQ-KZ-SSP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2M-V4AQ-SSP 1/8" 1/8" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2M-V4LQ-BN-BP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2M-V4LQ-BN-SSP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2M-V4LQ-BP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2M-V4LQ-EPR-BP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2M-V4LQ-EPR-SSP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2M-V4LQ-KZ-BP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2M-V4LQ-KZ-SSP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2M-V4LQ-SSP 1/8" 1/8" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2Z-V4AQ-BN-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2Z-V4AQ-BN-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2Z-V4AQ-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2Z-V4AQ-EPR-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2Z-V4AQ-EPR-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2Z-V4AQ-KZ-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2Z-V4AQ-KZ-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2Z-V4AQ-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
2Z-V4LQ-BN-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
2Z-V4LQ-BN-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
2Z-V4LQ-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
2Z-V4LQ-EPR-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
2Z-V4LQ-EPR-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
2Z-V4LQ-KZ-BP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
2Z-V4LQ-KZ-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
2Z-V4LQ-SSP 1/8" 1/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
4A-V4AQ-BN-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
4A-V4AQ-BN-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
4A-V4AQ-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
4A-V4AQ-EPR-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
4A-V4AQ-EPR-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
4A-V4AQ-KZ-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
4A-V4AQ-KZ-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
4A-V4AQ-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
4A-V4LQ-BN-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
4A-V4LQ-BN-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
4A-V4LQ-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
4A-V4LQ-EPR-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
4A-V4LQ-EPR-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
4A-V4LQ-KZ-BP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
4A-V4LQ-KZ-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
4A-V4LQ-SSP 1/4" 1/4" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
4F-V6AQ-BN-BP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
4F-V6AQ-BN-SSP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
4F-V6AQ-BP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
4F-V6AQ-EPR-BP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
4F-V6AQ-EPR-SSP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
4F-V6AQ-KZ-BP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
4F-V6AQ-KZ-SSP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
4F-V6AQ-SSP 1/4" 1/4" NPT F NPT F Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
4F-V6LQ-BN-BP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
4F-V6LQ-BN-SSP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
4F-V6LQ-BP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
4F-V6LQ-EPR-BP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
4F-V6LQ-EPR-SSP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
4F-V6LQ-KZ-BP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
4F-V6LQ-KZ-SSP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
4F-V6LQ-SSP 1/4" 1/4" NPT F NPT F Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
4M-V4AQ-BN-BP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
4M-V4AQ-BN-SSP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
4M-V4AQ-BP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
4M-V4AQ-EPR-BP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
4M-V4AQ-EPR-SSP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
4M-V4AQ-KZ-BP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
4M-V4AQ-KZ-SSP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
4M-V4AQ-SSP 1/4" 1/4" NPT M NPT M Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
4M-V4LQ-BN-BP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
4M-V4LQ-BN-SSP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
4M-V4LQ-BP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
4M-V4LQ-EPR-BP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
4M-V4LQ-EPR-SSP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
4M-V4LQ-KZ-BP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
4M-V4LQ-KZ-SSP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
4M-V4LQ-SSP 1/4" 1/4" NPT M NPT M Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
4Z-V4AQ-BN-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
4Z-V4AQ-BN-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
4Z-V4AQ-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
4Z-V4AQ-EPR-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
4Z-V4AQ-EPR-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
4Z-V4AQ-KZ-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
4Z-V4AQ-KZ-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
4Z-V4AQ-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
4Z-V4LQ-BN-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
4Z-V4LQ-BN-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
4Z-V4LQ-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
4Z-V4LQ-EPR-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
4Z-V4LQ-EPR-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
4Z-V4LQ-KZ-BP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
4Z-V4LQ-KZ-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
4Z-V4LQ-SSP 1/4" 1/4" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
6A-V4AQ-BN-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
6A-V4AQ-BN-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
6A-V4AQ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
6A-V4AQ-EPR-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
6A-V4AQ-EPR-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
6A-V4AQ-KZ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
6A-V4AQ-KZ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
6A-V4AQ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
6A-V4LQ-BN-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
6A-V4LQ-BN-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
6A-V4LQ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
6A-V4LQ-EPR-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
6A-V4LQ-EPR-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
6A-V4LQ-KZ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
6A-V4LQ-KZ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
6A-V4LQ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
6A-V6AQ-BN-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
6A-V6AQ-BN-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
6A-V6AQ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
6A-V6AQ-EPR-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
6A-V6AQ-EPR-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
6A-V6AQ-KZ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
6A-V6AQ-KZ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
6A-V6AQ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
6A-V6LQ-BN-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
6A-V6LQ-BN-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
6A-V6LQ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
6A-V6LQ-EPR-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
6A-V6LQ-EPR-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
6A-V6LQ-KZ-BP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
6A-V6LQ-KZ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
6A-V6LQ-SSP 3/8" 3/8" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
6Z-V4AQ-BN-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
6Z-V4AQ-BN-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
6Z-V4AQ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
6Z-V4AQ-EPR-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
6Z-V4AQ-EPR-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
6Z-V4AQ-KZ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
6Z-V4AQ-KZ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
6Z-V4AQ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
6Z-V4LQ-BN-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Nitrile Rubber
6Z-V4LQ-BN-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Nitrile Rubber
6Z-V4LQ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Fluorocarbon Rubber
6Z-V4LQ-EPR-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Ethylene Propylene Rubber
6Z-V4LQ-EPR-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Ethylene Propylene Rubber
6Z-V4LQ-KZ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 1/4" Highly Flourinated Fluorocarbon Rubber
6Z-V4LQ-KZ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Highly Flourinated Fluorocarbon Rubber
6Z-V4LQ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 1/4" Fluorocarbon Rubber
6Z-V6AQ-BN-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
6Z-V6AQ-BN-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
6Z-V6AQ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
6Z-V6AQ-EPR-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
6Z-V6AQ-EPR-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
6Z-V6AQ-KZ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
6Z-V6AQ-KZ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
6Z-V6AQ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
6Z-V6LQ-BN-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
6Z-V6LQ-BN-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
6Z-V6LQ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
6Z-V6LQ-EPR-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
6Z-V6LQ-EPR-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
6Z-V6LQ-KZ-BP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
6Z-V6LQ-KZ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
6Z-V6LQ-SSP 3/8" 3/8" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
8A-V6AQ-BN-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
8A-V6AQ-BN-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
8A-V6AQ-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
8A-V6AQ-EPR-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
8A-V6AQ-EPR-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
8A-V6AQ-KZ-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
8A-V6AQ-KZ-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
8A-V6AQ-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
8A-V6LQ-BN-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
8A-V6LQ-BN-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
8A-V6LQ-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
8A-V6LQ-EPR-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
8A-V6LQ-EPR-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
8A-V6LQ-KZ-BP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
8A-V6LQ-KZ-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
8A-V6LQ-SSP 1/2" 1/2" Two Ferrule Compression Two Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
8Z-V6AQ-BN-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
8Z-V6AQ-BN-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
8Z-V6AQ-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
8Z-V6AQ-EPR-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
8Z-V6AQ-EPR-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
8Z-V6AQ-KZ-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
8Z-V6AQ-KZ-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
8Z-V6AQ-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Angle PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
8Z-V6LQ-BN-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Nitrile Rubber
8Z-V6LQ-BN-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Nitrile Rubber
8Z-V6LQ-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Fluorocarbon Rubber
8Z-V6LQ-EPR-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Ethylene Propylene Rubber
8Z-V6LQ-EPR-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Ethylene Propylene Rubber
8Z-V6LQ-KZ-BP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Brass 3/8" Highly Flourinated Fluorocarbon Rubber
8Z-V6LQ-KZ-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Highly Flourinated Fluorocarbon Rubber
8Z-V6LQ-SSP 1/2" 1/2" Single Ferrule Compression Single Ferrule Compression Inline PTFE 200 93 -20 -29 300 21 Stainless Steel 3/8" Fluorocarbon Rubber
