Parker 排气阀
Parker Purge Valves

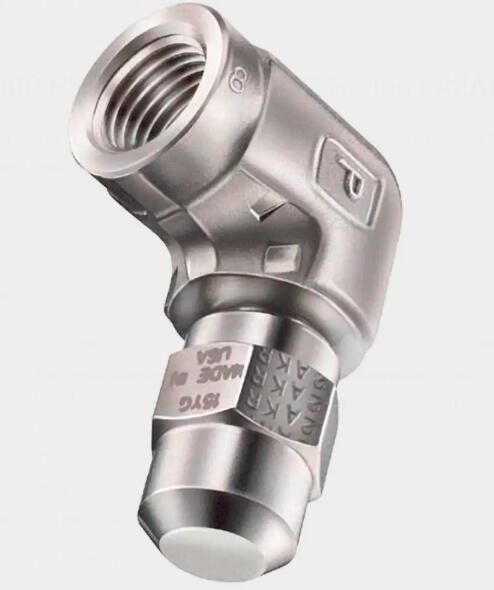

Bleed Valve,4000 PSI Purge Valve - PG Series

Parker's PG Series Purge Valves may be utilized as either bleed, purge, or drain valves in systems up to 4,000 PSI.





Parker's PG Series Purge Valves may be utilized as either very compact, bleed, purge, or drain valve. This valve only requires a quarter turn with a wrench from finger-tight to ensure a leak-tight seal on the first make-up. Additional wrenching ensures a leak-tight seal up to the rated pressure.
These valves do not have a cap thread seal. It is imperative to open the valve slowly and direct the vent hole away from persons operating or near the valve. Because of the absence of a cap seal, small amounts of media will flow through the cap thread area when the valves are opened.



Bleed Valve,4000 PSI Purge Valve - PG Series



Markets:
- Chemical
- Oil and Gas
- Research
- Petrochemical

Features/Benefits:
- A 0.055 inch (1.4 mm) diameter vent hole in the cap bleeds, drains, or purges system pressure
- Hex cap permits finger-tight or wrench assisted closure
- Crimped cap resists accidental disassembly
- A variety of body styles offers system design flexibility, reduced space requirements, and helps eliminate leak paths
- Available in a variety of end configurations including: CPI?, A-LOK?, male and female NPT, SAE, and Tube Adapter connections
- 100% factory tested
- Optional PTFE Ball requires only finger-tight torque to achieve a leak-tight seal

Applications:
- Fill tanks
- Drain Systems



Technical Specifications

Maximum Operating Pressure: 4000, 3000, 200 psi, 276, 207, 14 barg
Maximum Operating Temperature: 316, 204, 177 °C, 600, 400, 350 °F
Minimum Operating Temperature: -54, '-29 °C, -65, -20 °F
Connection Type: Two Ferrule Compression Fitting, Single Ferrule Compression Fitting, NPT M, NPT F, Tube Adaptor
Connection Size: 1/8", 1/4", 3/8", 1/2", 6mm, 8mm
Body Type: Straight, 90° Elbow, 45° Elbow, Inline Tee, Angle Tee, Union
Materials of Construction: 316 Stainless Steel, Brass, Carbon Steel
Ball Material: 316 Stainless Steel, PTFE



Bleed Valve,4000 PSI Purge Valve - PG Series 型号


Part Connection Style Connection Size Body Type Material Ball Material
2APG4AB Two Ferrule Compression Fitting 1/8" 90° Elbow Brass 316 Stainless Steel
2APG4ABT Two Ferrule Compression Fitting 1/8" 90° Elbow Brass PTFE
2APG4AS Two Ferrule Compression Fitting 1/8" 90° Elbow Carbon Steel 316 Stainless Steel
2APG4ASS Two Ferrule Compression Fitting 1/8" 90° Elbow 316 Stainless Steel 316 Stainless Steel
2APG4ASST Two Ferrule Compression Fitting 1/8" 90° Elbow 316 Stainless Steel PTFE
2APG4AST Two Ferrule Compression Fitting 1/8" 90° Elbow Carbon Steel PTFE
2APG4EB Two Ferrule Compression Fitting 1/8" 45° Elbow Brass 316 Stainless Steel
2APG4EBT Two Ferrule Compression Fitting 1/8" 45° Elbow Brass PTFE
2APG4ES Two Ferrule Compression Fitting 1/8" 45° Elbow Carbon Steel 316 Stainless Steel
2APG4ESS Two Ferrule Compression Fitting 1/8" 45° Elbow 316 Stainless Steel 316 Stainless Steel
2APG4ESST Two Ferrule Compression Fitting 1/8" 45° Elbow 316 Stainless Steel PTFE
2APG4EST Two Ferrule Compression Fitting 1/8" 45° Elbow Carbon Steel PTFE
2APG4LB Two Ferrule Compression Fitting 1/8" Straight Brass 316 Stainless Steel
2APG4LBT Two Ferrule Compression Fitting 1/8" Straight Brass PTFE
2APG4LS Two Ferrule Compression Fitting 1/8" Straight Carbon Steel 316 Stainless Steel
2APG4LSS Two Ferrule Compression Fitting 1/8" Straight 316 Stainless Steel 316 Stainless Steel
2APG4LSST Two Ferrule Compression Fitting 1/8" Straight 316 Stainless Steel PTFE
2APG4LST Two Ferrule Compression Fitting 1/8" Straight Carbon Steel PTFE
2APG4TAB Two Ferrule Compression Fitting 1/8" Angle Tee Brass 316 Stainless Steel
2APG4TABT Two Ferrule Compression Fitting 1/8" Angle Tee Brass PTFE
2APG4TAS Two Ferrule Compression Fitting 1/8" Angle Tee Carbon Steel 316 Stainless Steel
2APG4TASS Two Ferrule Compression Fitting 1/8" Angle Tee 316 Stainless Steel 316 Stainless Steel
2APG4TASST Two Ferrule Compression Fitting 1/8" Angle Tee 316 Stainless Steel PTFE
2APG4TAST Two Ferrule Compression Fitting 1/8" Angle Tee Carbon Steel PTFE
2APG4TLB Two Ferrule Compression Fitting 1/8" Inline Tee Brass 316 Stainless Steel
2APG4TLBT Two Ferrule Compression Fitting 1/8" Inline Tee Brass PTFE
2APG4TLS Two Ferrule Compression Fitting 1/8" Inline Tee Carbon Steel 316 Stainless Steel
2APG4TLSS Two Ferrule Compression Fitting 1/8" Inline Tee 316 Stainless Steel 316 Stainless Steel
2APG4TLSST Two Ferrule Compression Fitting 1/8" Inline Tee 316 Stainless Steel PTFE
2APG4TLST Two Ferrule Compression Fitting 1/8" Inline Tee Carbon Steel PTFE
2APG4UB Two Ferrule Compression Fitting 1/8" Union Brass 316 Stainless Steel
2APG4UBT Two Ferrule Compression Fitting 1/8" Union Brass PTFE
2APG4US Two Ferrule Compression Fitting 1/8" Union Carbon Steel 316 Stainless Steel
2APG4USS Two Ferrule Compression Fitting 1/8" Union 316 Stainless Steel 316 Stainless Steel
2APG4USST Two Ferrule Compression Fitting 1/8" Union 316 Stainless Steel PTFE
2APG4UST Two Ferrule Compression Fitting 1/8" Union Carbon Steel PTFE
2FPG4AB NPT F 1/8" 90° Elbow Brass 316 Stainless Steel
2FPG4ABT NPT F 1/8" 90° Elbow Brass PTFE
2FPG4AS NPT F 1/8" 90° Elbow Carbon Steel 316 Stainless Steel
2FPG4ASS NPT F 1/8" 90° Elbow 316 Stainless Steel 316 Stainless Steel
2FPG4ASST NPT F 1/8" 90° Elbow 316 Stainless Steel PTFE
2FPG4AST NPT F 1/8" 90° Elbow Carbon Steel PTFE
2FPG4EB NPT F 1/8" 45° Elbow Brass 316 Stainless Steel
2FPG4EBT NPT F 1/8" 45° Elbow Brass PTFE
2FPG4ES NPT F 1/8" 45° Elbow Carbon Steel 316 Stainless Steel
2FPG4ESS NPT F 1/8" 45° Elbow 316 Stainless Steel 316 Stainless Steel
2FPG4ESST NPT F 1/8" 45° Elbow 316 Stainless Steel PTFE
2FPG4EST NPT F 1/8" 45° Elbow Carbon Steel PTFE
2FPG4LB NPT F 1/8" Straight Brass 316 Stainless Steel
2FPG4LBT NPT F 1/8" Straight Brass PTFE
2FPG4LS NPT F 1/8" Straight Carbon Steel 316 Stainless Steel
2FPG4LSS NPT F 1/8" Straight 316 Stainless Steel 316 Stainless Steel
2FPG4LSST NPT F 1/8" Straight 316 Stainless Steel PTFE
2FPG4LST NPT F 1/8" Straight Carbon Steel PTFE
2FPG4TAB NPT F 1/8" Angle Tee Brass 316 Stainless Steel
2FPG4TABT NPT F 1/8" Angle Tee Brass PTFE
2FPG4TAS NPT F 1/8" Angle Tee Carbon Steel 316 Stainless Steel
2FPG4TASS NPT F 1/8" Angle Tee 316 Stainless Steel 316 Stainless Steel
2FPG4TASST NPT F 1/8" Angle Tee 316 Stainless Steel PTFE
2FPG4TAST NPT F 1/8" Angle Tee Carbon Steel PTFE
2FPG4TLB NPT F 1/8" Inline Tee Brass 316 Stainless Steel
2FPG4TLBT NPT F 1/8" Inline Tee Brass PTFE
2FPG4TLS NPT F 1/8" Inline Tee Carbon Steel 316 Stainless Steel
2FPG4TLSS NPT F 1/8" Inline Tee 316 Stainless Steel 316 Stainless Steel
2FPG4TLSST NPT F 1/8" Inline Tee 316 Stainless Steel PTFE
2FPG4TLST NPT F 1/8" Inline Tee Carbon Steel PTFE
2FPG4UB NPT F 1/8" Union Brass 316 Stainless Steel
2FPG4UBT NPT F 1/8" Union Brass PTFE
2FPG4US NPT F 1/8" Union Carbon Steel 316 Stainless Steel
2FPG4USS NPT F 1/8" Union 316 Stainless Steel 316 Stainless Steel
2FPG4USST NPT F 1/8" Union 316 Stainless Steel PTFE
2FPG4UST NPT F 1/8" Union Carbon Steel PTFE
2MPG4AB NPT M 1/8" 90° Elbow Brass 316 Stainless Steel
2MPG4ABT NPT M 1/8" 90° Elbow Brass PTFE
2MPG4AS NPT M 1/8" 90° Elbow Carbon Steel 316 Stainless Steel
2MPG4ASS NPT M 1/8" 90° Elbow 316 Stainless Steel 316 Stainless Steel
2MPG4ASST NPT M 1/8" 90° Elbow 316 Stainless Steel PTFE
2MPG4AST NPT M 1/8" 90° Elbow Carbon Steel PTFE
2MPG4EB NPT M 1/8" 45° Elbow Brass 316 Stainless Steel
2MPG4EBT NPT M 1/8" 45° Elbow Brass PTFE
2MPG4ES NPT M 1/8" 45° Elbow Carbon Steel 316 Stainless Steel
2MPG4ESS NPT M 1/8" 45° Elbow 316 Stainless Steel 316 Stainless Steel
2MPG4ESST NPT M 1/8" 45° Elbow 316 Stainless Steel PTFE
2MPG4EST NPT M 1/8" 45° Elbow Carbon Steel PTFE
2MPG4LB NPT M 1/8" Straight Brass 316 Stainless Steel
2MPG4LBT NPT M 1/8" Straight Brass PTFE
2MPG4LS NPT M 1/8" Straight Carbon Steel 316 Stainless Steel
2MPG4LSS NPT M 1/8" Straight 316 Stainless Steel 316 Stainless Steel
2MPG4LSST NPT M 1/8" Straight 316 Stainless Steel PTFE
2MPG4LST NPT M 1/8" Straight Carbon Steel PTFE
2MPG4TAB NPT M 1/8" Angle Tee Brass 316 Stainless Steel
2MPG4TABT NPT M 1/8" Angle Tee Brass PTFE
2MPG4TAS NPT M 1/8" Angle Tee Carbon Steel 316 Stainless Steel
2MPG4TASS NPT M 1/8" Angle Tee 316 Stainless Steel 316 Stainless Steel
2MPG4TASST NPT M 1/8" Angle Tee 316 Stainless Steel PTFE
2MPG4TAST NPT M 1/8" Angle Tee Carbon Steel PTFE
2MPG4TLB NPT M 1/8" Inline Tee Brass 316 Stainless Steel
2MPG4TLBT NPT M 1/8" Inline Tee Brass PTFE
2MPG4TLS NPT M 1/8" Inline Tee Carbon Steel 316 Stainless Steel
2MPG4TLSS NPT M 1/8" Inline Tee 316 Stainless Steel 316 Stainless Steel
2MPG4TLSST NPT M 1/8" Inline Tee 316 Stainless Steel PTFE
2MPG4TLST NPT M 1/8" Inline Tee Carbon Steel PTFE
2MPG4UB NPT M 1/8" Union Brass 316 Stainless Steel
2MPG4UBT NPT M 1/8" Union Brass PTFE
2MPG4US NPT M 1/8" Union Carbon Steel 316 Stainless Steel
2MPG4USS NPT M 1/8" Union 316 Stainless Steel 316 Stainless Steel
2MPG4USST NPT M 1/8" Union 316 Stainless Steel PTFE
2MPG4UST NPT M 1/8" Union Carbon Steel PTFE
2TAPG4AB Tube Adaptor 1/8" 90° Elbow Brass 316 Stainless Steel
2TAPG4ABT Tube Adaptor 1/8" 90° Elbow Brass PTFE
2TAPG4AS Tube Adaptor 1/8" 90° Elbow Carbon Steel 316 Stainless Steel
2TAPG4ASS Tube Adaptor 1/8" 90° Elbow 316 Stainless Steel 316 Stainless Steel
2TAPG4ASST Tube Adaptor 1/8" 90° Elbow 316 Stainless Steel PTFE
2TAPG4AST Tube Adaptor 1/8" 90° Elbow Carbon Steel PTFE
2TAPG4EB Tube Adaptor 1/8" 45° Elbow Brass 316 Stainless Steel
2TAPG4EBT Tube Adaptor 1/8" 45° Elbow Brass PTFE
2TAPG4ES Tube Adaptor 1/8" 45° Elbow Carbon Steel 316 Stainless Steel
2TAPG4ESS Tube Adaptor 1/8" 45° Elbow 316 Stainless Steel 316 Stainless Steel
2TAPG4ESST Tube Adaptor 1/8" 45° Elbow 316 Stainless Steel PTFE
2TAPG4EST Tube Adaptor 1/8" 45° Elbow Carbon Steel PTFE
2TAPG4LB Tube Adaptor 1/8" Straight Brass 316 Stainless Steel
2TAPG4LBT Tube Adaptor 1/8" Straight Brass PTFE
2TAPG4LS Tube Adaptor 1/8" Straight Carbon Steel 316 Stainless Steel
2TAPG4LSS Tube Adaptor 1/8" Straight 316 Stainless Steel 316 Stainless Steel
2TAPG4LSST Tube Adaptor 1/8" Straight 316 Stainless Steel PTFE
2TAPG4LST Tube Adaptor 1/8" Straight Carbon Steel PTFE
2TAPG4TAB Tube Adaptor 1/8" Angle Tee Brass 316 Stainless Steel
2TAPG4TABT Tube Adaptor 1/8" Angle Tee Brass PTFE
2TAPG4TAS Tube Adaptor 1/8" Angle Tee Carbon Steel 316 Stainless Steel
2TAPG4TASS Tube Adaptor 1/8" Angle Tee 316 Stainless Steel 316 Stainless Steel
2TAPG4TASST Tube Adaptor 1/8" Angle Tee 316 Stainless Steel PTFE
2TAPG4TAST Tube Adaptor 1/8" Angle Tee Carbon Steel PTFE
2TAPG4TLB Tube Adaptor 1/8" Inline Tee Brass 316 Stainless Steel
2TAPG4TLBT Tube Adaptor 1/8" Inline Tee Brass PTFE
2TAPG4TLS Tube Adaptor 1/8" Inline Tee Carbon Steel 316 Stainless Steel
2TAPG4TLSS Tube Adaptor 1/8" Inline Tee 316 Stainless Steel 316 Stainless Steel
2TAPG4TLSST Tube Adaptor 1/8" Inline Tee 316 Stainless Steel PTFE
2TAPG4TLST Tube Adaptor 1/8" Inline Tee Carbon Steel PTFE
2TAPG4UB Tube Adaptor 1/8" Union Brass 316 Stainless Steel
2TAPG4UBT Tube Adaptor 1/8" Union Brass PTFE
2TAPG4US Tube Adaptor 1/8" Union Carbon Steel 316 Stainless Steel
2TAPG4USS Tube Adaptor 1/8" Union 316 Stainless Steel 316 Stainless Steel
2TAPG4USST Tube Adaptor 1/8" Union 316 Stainless Steel PTFE
2TAPG4UST Tube Adaptor 1/8" Union Carbon Steel PTFE
2ZPG4AB Single Ferrule Compression Fitting 1/8" 90° Elbow Brass 316 Stainless Steel
2ZPG4ABT Single Ferrule Compression Fitting 1/8" 90° Elbow Brass PTFE
2ZPG4AS Single Ferrule Compression Fitting 1/8" 90° Elbow Carbon Steel 316 Stainless Steel
2ZPG4ASS Single Ferrule Compression Fitting 1/8" 90° Elbow 316 Stainless Steel 316 Stainless Steel
2ZPG4ASST Single Ferrule Compression Fitting 1/8" 90° Elbow 316 Stainless Steel PTFE
2ZPG4AST Single Ferrule Compression Fitting 1/8" 90° Elbow Carbon Steel PTFE
2ZPG4EB Single Ferrule Compression Fitting 1/8" 45° Elbow Brass 316 Stainless Steel
2ZPG4EBT Single Ferrule Compression Fitting 1/8" 45° Elbow Brass PTFE
2ZPG4ES Single Ferrule Compression Fitting 1/8" 45° Elbow Carbon Steel 316 Stainless Steel
2ZPG4ESS Single Ferrule Compression Fitting 1/8" 45° Elbow 316 Stainless Steel 316 Stainless Steel
2ZPG4ESST Single Ferrule Compression Fitting 1/8" 45° Elbow 316 Stainless Steel PTFE
2ZPG4EST Single Ferrule Compression Fitting 1/8" 45° Elbow Carbon Steel PTFE
2ZPG4LB Single Ferrule Compression Fitting 1/8" Straight Brass 316 Stainless Steel
2ZPG4LBT Single Ferrule Compression Fitting 1/8" Straight Brass PTFE
2ZPG4LS Single Ferrule Compression Fitting 1/8" Straight Carbon Steel 316 Stainless Steel
2ZPG4LSS Single Ferrule Compression Fitting 1/8" Straight 316 Stainless Steel 316 Stainless Steel
2ZPG4LSST Single Ferrule Compression Fitting 1/8" Straight 316 Stainless Steel PTFE
2ZPG4LST Single Ferrule Compression Fitting 1/8" Straight Carbon Steel PTFE
2ZPG4TAB Single Ferrule Compression Fitting 1/8" Angle Tee Brass 316 Stainless Steel
2ZPG4TABT Single Ferrule Compression Fitting 1/8" Angle Tee Brass PTFE
2ZPG4TAS Single Ferrule Compression Fitting 1/8" Angle Tee Carbon Steel 316 Stainless Steel
2ZPG4TASS Single Ferrule Compression Fitting 1/8" Angle Tee 316 Stainless Steel 316 Stainless Steel
2ZPG4TASST Single Ferrule Compression Fitting 1/8" Angle Tee 316 Stainless Steel PTFE
2ZPG4TAST Single Ferrule Compression Fitting 1/8" Angle Tee Carbon Steel PTFE
2ZPG4TLB Single Ferrule Compression Fitting 1/8" Inline Tee Brass 316 Stainless Steel
2ZPG4TLBT Single Ferrule Compression Fitting 1/8" Inline Tee Brass PTFE
2ZPG4TLS Single Ferrule Compression Fitting 1/8" Inline Tee Carbon Steel 316 Stainless Steel
2ZPG4TLSS Single Ferrule Compression Fitting 1/8" Inline Tee 316 Stainless Steel 316 Stainless Steel
2ZPG4TLSST Single Ferrule Compression Fitting 1/8" Inline Tee 316 Stainless Steel PTFE
2ZPG4TLST Single Ferrule Compression Fitting 1/8" Inline Tee Carbon Steel PTFE
2ZPG4UB Single Ferrule Compression Fitting 1/8" Union Brass 316 Stainless Steel
2ZPG4UBT Single Ferrule Compression Fitting 1/8" Union Brass PTFE
2ZPG4US Single Ferrule Compression Fitting 1/8" Union Carbon Steel 316 Stainless Steel
2ZPG4USS Single Ferrule Compression Fitting 1/8" Union 316 Stainless Steel 316 Stainless Steel
2ZPG4USST Single Ferrule Compression Fitting 1/8" Union 316 Stainless Steel PTFE
2ZPG4UST Single Ferrule Compression Fitting 1/8" Union Carbon Steel PTFE
4APG4AB Two Ferrule Compression Fitting 1/4" 90° Elbow Brass 316 Stainless Steel
4APG4ABT Two Ferrule Compression Fitting 1/4" 90° Elbow Brass PTFE
4APG4AS Two Ferrule Compression Fitting 1/4" 90° Elbow Carbon Steel 316 Stainless Steel
4APG4ASS Two Ferrule Compression Fitting 1/4" 90° Elbow 316 Stainless Steel 316 Stainless Steel
4APG4ASST Two Ferrule Compression Fitting 1/4" 90° Elbow 316 Stainless Steel PTFE
4APG4AST Two Ferrule Compression Fitting 1/4" 90° Elbow Carbon Steel PTFE
4APG4EB Two Ferrule Compression Fitting 1/4" 45° Elbow Brass 316 Stainless Steel
4APG4EBT Two Ferrule Compression Fitting 1/4" 45° Elbow Brass PTFE
4APG4ES Two Ferrule Compression Fitting 1/4" 45° Elbow Carbon Steel 316 Stainless Steel
4APG4ESS Two Ferrule Compression Fitting 1/4" 45° Elbow 316 Stainless Steel 316 Stainless Steel
4APG4ESST Two Ferrule Compression Fitting 1/4" 45° Elbow 316 Stainless Steel PTFE
4APG4EST Two Ferrule Compression Fitting 1/4" 45° Elbow Carbon Steel PTFE
4APG4LB Two Ferrule Compression Fitting 1/4" Straight Brass 316 Stainless Steel
4APG4LBT Two Ferrule Compression Fitting 1/4" Straight Brass PTFE
4APG4LS Two Ferrule Compression Fitting 1/4" Straight Carbon Steel 316 Stainless Steel
4APG4LSS Two Ferrule Compression Fitting 1/4" Straight 316 Stainless Steel 316 Stainless Steel
4APG4LSST Two Ferrule Compression Fitting 1/4" Straight 316 Stainless Steel PTFE
4APG4LST Two Ferrule Compression Fitting 1/4" Straight Carbon Steel PTFE
4APG4TAB Two Ferrule Compression Fitting 1/4" Angle Tee Brass 316 Stainless Steel
4APG4TABT Two Ferrule Compression Fitting 1/4" Angle Tee Brass PTFE
4APG4TAS Two Ferrule Compression Fitting 1/4" Angle Tee Carbon Steel 316 Stainless Steel
4APG4TASS Two Ferrule Compression Fitting 1/4" Angle Tee 316 Stainless Steel 316 Stainless Steel
4APG4TASST Two Ferrule Compression Fitting 1/4" Angle Tee 316 Stainless Steel PTFE
4APG4TAST Two Ferrule Compression Fitting 1/4" Angle Tee Carbon Steel PTFE
4APG4TLB Two Ferrule Compression Fitting 1/4" Inline Tee Brass 316 Stainless Steel
4APG4TLBT Two Ferrule Compression Fitting 1/4" Inline Tee Brass PTFE
4APG4TLS Two Ferrule Compression Fitting 1/4" Inline Tee Carbon Steel 316 Stainless Steel
4APG4TLSS Two Ferrule Compression Fitting 1/4" Inline Tee 316 Stainless Steel 316 Stainless Steel
4APG4TLSST Two Ferrule Compression Fitting 1/4" Inline Tee 316 Stainless Steel PTFE
4APG4TLST Two Ferrule Compression Fitting 1/4" Inline Tee Carbon Steel PTFE
4APG4UB Two Ferrule Compression Fitting 1/4" Union Brass 316 Stainless Steel
4APG4UBT Two Ferrule Compression Fitting 1/4" Union Brass PTFE
4APG4US Two Ferrule Compression Fitting 1/4" Union Carbon Steel 316 Stainless Steel
4APG4USS Two Ferrule Compression Fitting 1/4" Union 316 Stainless Steel 316 Stainless Steel
4APG4USST Two Ferrule Compression Fitting 1/4" Union 316 Stainless Steel PTFE
4APG4UST Two Ferrule Compression Fitting 1/4" Union Carbon Steel PTFE
4FPG4AB NPT F 1/4" 90° Elbow Brass 316 Stainless Steel
4FPG4ABT NPT F 1/4" 90° Elbow Brass PTFE
4FPG4AS NPT F 1/4" 90° Elbow Carbon Steel 316 Stainless Steel
4FPG4ASS NPT F 1/4" 90° Elbow 316 Stainless Steel 316 Stainless Steel
4FPG4ASST NPT F 1/4" 90° Elbow 316 Stainless Steel PTFE
4FPG4AST NPT F 1/4" 90° Elbow Carbon Steel PTFE
4FPG4EB NPT F 1/4" 45° Elbow Brass 316 Stainless Steel
4FPG4EBT NPT F 1/4" 45° Elbow Brass PTFE
4FPG4ES NPT F 1/4" 45° Elbow Carbon Steel 316 Stainless Steel
4FPG4ESS NPT F 1/4" 45° Elbow 316 Stainless Steel 316 Stainless Steel
4FPG4ESST NPT F 1/4" 45° Elbow 316 Stainless Steel PTFE
4FPG4EST NPT F 1/4" 45° Elbow Carbon Steel PTFE
4FPG4LB NPT F 1/4" Straight Brass 316 Stainless Steel
4FPG4LBT NPT F 1/4" Straight Brass PTFE
4FPG4LS NPT F 1/4" Straight Carbon Steel 316 Stainless Steel
4FPG4LSS NPT F 1/4" Straight 316 Stainless Steel 316 Stainless Steel
4FPG4LSST NPT F 1/4" Straight 316 Stainless Steel PTFE
4FPG4LST NPT F 1/4" Straight Carbon Steel PTFE
4FPG4TAB NPT F 1/4" Angle Tee Brass 316 Stainless Steel
4FPG4TABT NPT F 1/4" Angle Tee Brass PTFE
4FPG4TAS NPT F 1/4" Angle Tee Carbon Steel 316 Stainless Steel
4FPG4TASS NPT F 1/4" Angle Tee 316 Stainless Steel 316 Stainless Steel
4FPG4TASST NPT F 1/4" Angle Tee 316 Stainless Steel PTFE
4FPG4TAST NPT F 1/4" Angle Tee Carbon Steel PTFE
4FPG4TLB NPT F 1/4" Inline Tee Brass 316 Stainless Steel
4FPG4TLBT NPT F 1/4" Inline Tee Brass PTFE
4FPG4TLS NPT F 1/4" Inline Tee Carbon Steel 316 Stainless Steel
4FPG4TLSS NPT F 1/4" Inline Tee 316 Stainless Steel 316 Stainless Steel
4FPG4TLSST NPT F 1/4" Inline Tee 316 Stainless Steel PTFE
4FPG4TLST NPT F 1/4" Inline Tee Carbon Steel PTFE
4FPG4UB NPT F 1/4" Union Brass 316 Stainless Steel
4FPG4UBT NPT F 1/4" Union Brass PTFE
4FPG4US NPT F 1/4" Union Carbon Steel 316 Stainless Steel
4FPG4USS NPT F 1/4" Union 316 Stainless Steel 316 Stainless Steel
4FPG4USST NPT F 1/4" Union 316 Stainless Steel PTFE
4FPG4UST NPT F 1/4" Union Carbon Steel PTFE
4MPG4AB NPT M 1/4" 90° Elbow Brass 316 Stainless Steel
4MPG4ABT NPT M 1/4" 90° Elbow Brass PTFE
4MPG4AS NPT M 1/4" 90° Elbow Carbon Steel 316 Stainless Steel
4MPG4ASS NPT M 1/4" 90° Elbow 316 Stainless Steel 316 Stainless Steel
4MPG4ASST NPT M 1/4" 90° Elbow 316 Stainless Steel PTFE
4MPG4AST NPT M 1/4" 90° Elbow Carbon Steel PTFE
4MPG4EB NPT M 1/4" 45° Elbow Brass 316 Stainless Steel
4MPG4EBT NPT M 1/4" 45° Elbow Brass PTFE
4MPG4ES NPT M 1/4" 45° Elbow Carbon Steel 316 Stainless Steel
4MPG4ESS NPT M 1/4" 45° Elbow 316 Stainless Steel 316 Stainless Steel
4MPG4ESST NPT M 1/4" 45° Elbow 316 Stainless Steel PTFE
4MPG4EST NPT M 1/4" 45° Elbow Carbon Steel PTFE
4MPG4LB NPT M 1/4" Straight Brass 316 Stainless Steel
4MPG4LBT NPT M 1/4" Straight Brass PTFE
4MPG4LS NPT M 1/4" Straight Carbon Steel 316 Stainless Steel
4MPG4LSS NPT M 1/4" Straight 316 Stainless Steel 316 Stainless Steel
4MPG4LSST NPT M 1/4" Straight 316 Stainless Steel PTFE
4MPG4LST NPT M 1/4" Straight Carbon Steel PTFE
4MPG4TAB NPT M 1/4" Angle Tee Brass 316 Stainless Steel
4MPG4TABT NPT M 1/4" Angle Tee Brass PTFE
4MPG4TAS NPT M 1/4" Angle Tee Carbon Steel 316 Stainless Steel
4MPG4TASS NPT M 1/4" Angle Tee 316 Stainless Steel 316 Stainless Steel
4MPG4TASST NPT M 1/4" Angle Tee 316 Stainless Steel PTFE
4MPG4TAST NPT M 1/4" Angle Tee Carbon Steel PTFE
4MPG4TLB NPT M 1/4" Inline Tee Brass 316 Stainless Steel
4MPG4TLBT NPT M 1/4" Inline Tee Brass PTFE
4MPG4TLS NPT M 1/4" Inline Tee Carbon Steel 316 Stainless Steel
4MPG4TLSS NPT M 1/4" Inline Tee 316 Stainless Steel 316 Stainless Steel
4MPG4TLSST NPT M 1/4" Inline Tee 316 Stainless Steel PTFE
4MPG4TLST NPT M 1/4" Inline Tee Carbon Steel PTFE
4MPG4UB NPT M 1/4" Union Brass 316 Stainless Steel
4MPG4UBT NPT M 1/4" Union Brass PTFE
4MPG4US NPT M 1/4" Union Carbon Steel 316 Stainless Steel
4MPG4USS NPT M 1/4" Union 316 Stainless Steel 316 Stainless Steel
4MPG4USST NPT M 1/4" Union 316 Stainless Steel PTFE
4MPG4UST NPT M 1/4" Union Carbon Steel PTFE
4TAPG4AB Tube Adaptor 1/4" 90° Elbow Brass 316 Stainless Steel
4TAPG4ABT Tube Adaptor 1/4" 90° Elbow Brass PTFE
4TAPG4AS Tube Adaptor 1/4" 90° Elbow Carbon Steel 316 Stainless Steel
4TAPG4ASS Tube Adaptor 1/4" 90° Elbow 316 Stainless Steel 316 Stainless Steel
4TAPG4ASST Tube Adaptor 1/4" 90° Elbow 316 Stainless Steel PTFE
4TAPG4AST Tube Adaptor 1/4" 90° Elbow Carbon Steel PTFE
4TAPG4EB Tube Adaptor 1/4" 45° Elbow Brass 316 Stainless Steel
4TAPG4EBT Tube Adaptor 1/4" 45° Elbow Brass PTFE
4TAPG4ES Tube Adaptor 1/4" 45° Elbow Carbon Steel 316 Stainless Steel
4TAPG4ESS Tube Adaptor 1/4" 45° Elbow 316 Stainless Steel 316 Stainless Steel
4TAPG4ESST Tube Adaptor 1/4" 45° Elbow 316 Stainless Steel PTFE
4TAPG4EST Tube Adaptor 1/4" 45° Elbow Carbon Steel PTFE
4TAPG4LB Tube Adaptor 1/4" Straight Brass 316 Stainless Steel
4TAPG4LBT Tube Adaptor 1/4" Straight Brass PTFE
4TAPG4LS Tube Adaptor 1/4" Straight Carbon Steel 316 Stainless Steel
4TAPG4LSS Tube Adaptor 1/4" Straight 316 Stainless Steel 316 Stainless Steel
4TAPG4LSST Tube Adaptor 1/4" Straight 316 Stainless Steel PTFE
4TAPG4LST Tube Adaptor 1/4" Straight Carbon Steel PTFE
4TAPG4TAB Tube Adaptor 1/4" Angle Tee Brass 316 Stainless Steel
4TAPG4TABT Tube Adaptor 1/4" Angle Tee Brass PTFE
4TAPG4TAS Tube Adaptor 1/4" Angle Tee Carbon Steel 316 Stainless Steel
4TAPG4TASS Tube Adaptor 1/4" Angle Tee 316 Stainless Steel 316 Stainless Steel
4TAPG4TASST Tube Adaptor 1/4" Angle Tee 316 Stainless Steel PTFE
4TAPG4TAST Tube Adaptor 1/4" Angle Tee Carbon Steel PTFE
4TAPG4TLB Tube Adaptor 1/4" Inline Tee Brass 316 Stainless Steel
4TAPG4TLBT Tube Adaptor 1/4" Inline Tee Brass PTFE
4TAPG4TLS Tube Adaptor 1/4" Inline Tee Carbon Steel 316 Stainless Steel
4TAPG4TLSS Tube Adaptor 1/4" Inline Tee 316 Stainless Steel 316 Stainless Steel
4TAPG4TLSST Tube Adaptor 1/4" Inline Tee 316 Stainless Steel PTFE
4TAPG4TLST Tube Adaptor 1/4" Inline Tee Carbon Steel PTFE
4TAPG4UB Tube Adaptor 1/4" Union Brass 316 Stainless Steel
4TAPG4UBT Tube Adaptor 1/4" Union Brass PTFE
4TAPG4US Tube Adaptor 1/4" Union Carbon Steel 316 Stainless Steel
4TAPG4USS Tube Adaptor 1/4" Union 316 Stainless Steel 316 Stainless Steel
4TAPG4USST Tube Adaptor 1/4" Union 316 Stainless Steel PTFE
4TAPG4UST Tube Adaptor 1/4" Union Carbon Steel PTFE
4ZPG4AB Single Ferrule Compression Fitting 1/4" 90° Elbow Brass 316 Stainless Steel
4ZPG4ABT Single Ferrule Compression Fitting 1/4" 90° Elbow Brass PTFE
4ZPG4AS Single Ferrule Compression Fitting 1/4" 90° Elbow Carbon Steel 316 Stainless Steel
4ZPG4ASS Single Ferrule Compression Fitting 1/4" 90° Elbow 316 Stainless Steel 316 Stainless Steel
4ZPG4ASST Single Ferrule Compression Fitting 1/4" 90° Elbow 316 Stainless Steel PTFE
4ZPG4AST Single Ferrule Compression Fitting 1/4" 90° Elbow Carbon Steel PTFE
4ZPG4EB Single Ferrule Compression Fitting 1/4" 45° Elbow Brass 316 Stainless Steel
4ZPG4EBT Single Ferrule Compression Fitting 1/4" 45° Elbow Brass PTFE
4ZPG4ES Single Ferrule Compression Fitting 1/4" 45° Elbow Carbon Steel 316 Stainless Steel
4ZPG4ESS Single Ferrule Compression Fitting 1/4" 45° Elbow 316 Stainless Steel 316 Stainless Steel
4ZPG4ESST Single Ferrule Compression Fitting 1/4" 45° Elbow 316 Stainless Steel PTFE
4ZPG4EST Single Ferrule Compression Fitting 1/4" 45° Elbow Carbon Steel PTFE
4ZPG4LB Single Ferrule Compression Fitting 1/4" Straight Brass 316 Stainless Steel
4ZPG4LBT Single Ferrule Compression Fitting 1/4" Straight Brass PTFE
4ZPG4LS Single Ferrule Compression Fitting 1/4" Straight Carbon Steel 316 Stainless Steel
4ZPG4LSS Single Ferrule Compression Fitting 1/4" Straight 316 Stainless Steel 316 Stainless Steel
4ZPG4LSST Single Ferrule Compression Fitting 1/4" Straight 316 Stainless Steel PTFE
4ZPG4LST Single Ferrule Compression Fitting 1/4" Straight Carbon Steel PTFE
4ZPG4TAB Single Ferrule Compression Fitting 1/4" Angle Tee Brass 316 Stainless Steel
4ZPG4TABT Single Ferrule Compression Fitting 1/4" Angle Tee Brass PTFE
4ZPG4TAS Single Ferrule Compression Fitting 1/4" Angle Tee Carbon Steel 316 Stainless Steel
4ZPG4TASS Single Ferrule Compression Fitting 1/4" Angle Tee 316 Stainless Steel 316 Stainless Steel
4ZPG4TASST Single Ferrule Compression Fitting 1/4" Angle Tee 316 Stainless Steel PTFE
4ZPG4TAST Single Ferrule Compression Fitting 1/4" Angle Tee Carbon Steel PTFE
4ZPG4TLB Single Ferrule Compression Fitting 1/4" Inline Tee Brass 316 Stainless Steel
4ZPG4TLBT Single Ferrule Compression Fitting 1/4" Inline Tee Brass PTFE
4ZPG4TLS Single Ferrule Compression Fitting 1/4" Inline Tee Carbon Steel 316 Stainless Steel
4ZPG4TLSS Single Ferrule Compression Fitting 1/4" Inline Tee 316 Stainless Steel 316 Stainless Steel
4ZPG4TLSST Single Ferrule Compression Fitting 1/4" Inline Tee 316 Stainless Steel PTFE
4ZPG4TLST Single Ferrule Compression Fitting 1/4" Inline Tee Carbon Steel PTFE
4ZPG4UB Single Ferrule Compression Fitting 1/4" Union Brass 316 Stainless Steel
4ZPG4UBT Single Ferrule Compression Fitting 1/4" Union Brass PTFE
4ZPG4US Single Ferrule Compression Fitting 1/4" Union Carbon Steel 316 Stainless Steel
4ZPG4USS Single Ferrule Compression Fitting 1/4" Union 316 Stainless Steel 316 Stainless Steel
4ZPG4USST Single Ferrule Compression Fitting 1/4" Union 316 Stainless Steel PTFE
4ZPG4UST Single Ferrule Compression Fitting 1/4" Union Carbon Steel PTFE
6APG4AB Two Ferrule Compression Fitting 3/8" 90° Elbow Brass 316 Stainless Steel
6APG4ABT Two Ferrule Compression Fitting 3/8" 90° Elbow Brass PTFE
6APG4AS Two Ferrule Compression Fitting 3/8" 90° Elbow Carbon Steel 316 Stainless Steel
6APG4ASS Two Ferrule Compression Fitting 3/8" 90° Elbow 316 Stainless Steel 316 Stainless Steel
6APG4ASST Two Ferrule Compression Fitting 3/8" 90° Elbow 316 Stainless Steel PTFE
6APG4AST Two Ferrule Compression Fitting 3/8" 90° Elbow Carbon Steel PTFE
6APG4EB Two Ferrule Compression Fitting 3/8" 45° Elbow Brass 316 Stainless Steel
6APG4EBT Two Ferrule Compression Fitting 3/8" 45° Elbow Brass PTFE
6APG4ES Two Ferrule Compression Fitting 3/8" 45° Elbow Carbon Steel 316 Stainless Steel
6APG4ESS Two Ferrule Compression Fitting 3/8" 45° Elbow 316 Stainless Steel 316 Stainless Steel
6APG4ESST Two Ferrule Compression Fitting 3/8" 45° Elbow 316 Stainless Steel PTFE
6APG4EST Two Ferrule Compression Fitting 3/8" 45° Elbow Carbon Steel PTFE
6APG4LB Two Ferrule Compression Fitting 3/8" Straight Brass 316 Stainless Steel
6APG4LBT Two Ferrule Compression Fitting 3/8" Straight Brass PTFE
6APG4LS Two Ferrule Compression Fitting 3/8" Straight Carbon Steel 316 Stainless Steel
6APG4LSS Two Ferrule Compression Fitting 3/8" Straight 316 Stainless Steel 316 Stainless Steel
6APG4LSST Two Ferrule Compression Fitting 3/8" Straight 316 Stainless Steel PTFE
6APG4LST Two Ferrule Compression Fitting 3/8" Straight Carbon Steel PTFE
6APG4TAB Two Ferrule Compression Fitting 3/8" Angle Tee Brass 316 Stainless Steel
6APG4TABT Two Ferrule Compression Fitting 3/8" Angle Tee Brass PTFE
6APG4TAS Two Ferrule Compression Fitting 3/8" Angle Tee Carbon Steel 316 Stainless Steel
6APG4TASS Two Ferrule Compression Fitting 3/8" Angle Tee 316 Stainless Steel 316 Stainless Steel
6APG4TASST Two Ferrule Compression Fitting 3/8" Angle Tee 316 Stainless Steel PTFE
6APG4TAST Two Ferrule Compression Fitting 3/8" Angle Tee Carbon Steel PTFE
6APG4TLB Two Ferrule Compression Fitting 3/8" Inline Tee Brass 316 Stainless Steel
6APG4TLBT Two Ferrule Compression Fitting 3/8" Inline Tee Brass PTFE
6APG4TLS Two Ferrule Compression Fitting 3/8" Inline Tee Carbon Steel 316 Stainless Steel
6APG4TLSS Two Ferrule Compression Fitting 3/8" Inline Tee 316 Stainless Steel 316 Stainless Steel
6APG4TLSST Two Ferrule Compression Fitting 3/8" Inline Tee 316 Stainless Steel PTFE
6APG4TLST Two Ferrule Compression Fitting 3/8" Inline Tee Carbon Steel PTFE
6APG4UB Two Ferrule Compression Fitting 3/8" Union Brass 316 Stainless Steel
6APG4UBT Two Ferrule Compression Fitting 3/8" Union Brass PTFE
6APG4US Two Ferrule Compression Fitting 3/8" Union Carbon Steel 316 Stainless Steel
6APG4USS Two Ferrule Compression Fitting 3/8" Union 316 Stainless Steel 316 Stainless Steel
6APG4USST Two Ferrule Compression Fitting 3/8" Union 316 Stainless Steel PTFE
6APG4UST Two Ferrule Compression Fitting 3/8" Union Carbon Steel PTFE
6FPG4AB NPT F 3/8" 90° Elbow Brass 316 Stainless Steel
6FPG4ABT NPT F 3/8" 90° Elbow Brass PTFE
6FPG4AS NPT F 3/8" 90° Elbow Carbon Steel 316 Stainless Steel
6FPG4ASS NPT F 3/8" 90° Elbow 316 Stainless Steel 316 Stainless Steel
6FPG4ASST NPT F 3/8" 90° Elbow 316 Stainless Steel PTFE
6FPG4AST NPT F 3/8" 90° Elbow Carbon Steel PTFE
6FPG4EB NPT F 3/8" 45° Elbow Brass 316 Stainless Steel
6FPG4EBT NPT F 3/8" 45° Elbow Brass PTFE
6FPG4ES NPT F 3/8" 45° Elbow Carbon Steel 316 Stainless Steel
6FPG4ESS NPT F 3/8" 45° Elbow 316 Stainless Steel 316 Stainless Steel
6FPG4ESST NPT F 3/8" 45° Elbow 316 Stainless Steel PTFE
6FPG4EST NPT F 3/8" 45° Elbow Carbon Steel PTFE
6FPG4LB NPT F 3/8" Straight Brass 316 Stainless Steel
6FPG4LBT NPT F 3/8" Straight Brass PTFE
6FPG4LS NPT F 3/8" Straight Carbon Steel 316 Stainless Steel
6FPG4LSS NPT F 3/8" Straight 316 Stainless Steel 316 Stainless Steel
6FPG4LSST NPT F 3/8" Straight 316 Stainless Steel PTFE
6FPG4LST NPT F 3/8" Straight Carbon Steel PTFE
6FPG4TAB NPT F 3/8" Angle Tee Brass 316 Stainless Steel
6FPG4TABT NPT F 3/8" Angle Tee Brass PTFE
6FPG4TAS NPT F 3/8" Angle Tee Carbon Steel 316 Stainless Steel
6FPG4TASS NPT F 3/8" Angle Tee 316 Stainless Steel 316 Stainless Steel
6FPG4TASST NPT F 3/8" Angle Tee 316 Stainless Steel PTFE
6FPG4TAST NPT F 3/8" Angle Tee Carbon Steel PTFE
6FPG4TLB NPT F 3/8" Inline Tee Brass 316 Stainless Steel
6FPG4TLBT NPT F 3/8" Inline Tee Brass PTFE
6FPG4TLS NPT F 3/8" Inline Tee Carbon Steel 316 Stainless Steel
6FPG4TLSS NPT F 3/8" Inline Tee 316 Stainless Steel 316 Stainless Steel
6FPG4TLSST NPT F 3/8" Inline Tee 316 Stainless Steel PTFE
6FPG4TLST NPT F 3/8" Inline Tee Carbon Steel PTFE
6FPG4UB NPT F 3/8" Union Brass 316 Stainless Steel
6FPG4UBT NPT F 3/8" Union Brass PTFE
6FPG4US NPT F 3/8" Union Carbon Steel 316 Stainless Steel
6FPG4USS NPT F 3/8" Union 316 Stainless Steel 316 Stainless Steel
6FPG4USST NPT F 3/8" Union 316 Stainless Steel PTFE
6FPG4UST NPT F 3/8" Union Carbon Steel PTFE
6MPG4AB NPT M 3/8" 90° Elbow Brass 316 Stainless Steel
6MPG4ABT NPT M 3/8" 90° Elbow Brass PTFE
6MPG4AS NPT M 3/8" 90° Elbow Carbon Steel 316 Stainless Steel
6MPG4ASS NPT M 3/8" 90° Elbow 316 Stainless Steel 316 Stainless Steel
6MPG4ASST NPT M 3/8" 90° Elbow 316 Stainless Steel PTFE
6MPG4AST NPT M 3/8" 90° Elbow Carbon Steel PTFE
6MPG4EB NPT M 3/8" 45° Elbow Brass 316 Stainless Steel
6MPG4EBT NPT M 3/8" 45° Elbow Brass PTFE
6MPG4ES NPT M 3/8" 45° Elbow Carbon Steel 316 Stainless Steel
6MPG4ESS NPT M 3/8" 45° Elbow 316 Stainless Steel 316 Stainless Steel
6MPG4ESST NPT M 3/8" 45° Elbow 316 Stainless Steel PTFE
6MPG4EST NPT M 3/8" 45° Elbow Carbon Steel PTFE
6MPG4LB NPT M 3/8" Straight Brass 316 Stainless Steel
6MPG4LBT NPT M 3/8" Straight Brass PTFE
6MPG4LS NPT M 3/8" Straight Carbon Steel 316 Stainless Steel
6MPG4LSS NPT M 3/8" Straight 316 Stainless Steel 316 Stainless Steel
6MPG4LSST NPT M 3/8" Straight 316 Stainless Steel PTFE
6MPG4LST NPT M 3/8" Straight Carbon Steel PTFE
6MPG4TAB NPT M 3/8" Angle Tee Brass 316 Stainless Steel
6MPG4TABT NPT M 3/8" Angle Tee Brass PTFE
6MPG4TAS NPT M 3/8" Angle Tee Carbon Steel 316 Stainless Steel
6MPG4TASS NPT M 3/8" Angle Tee 316 Stainless Steel 316 Stainless Steel
6MPG4TASST NPT M 3/8" Angle Tee 316 Stainless Steel PTFE
6MPG4TAST NPT M 3/8" Angle Tee Carbon Steel PTFE
6MPG4TLB NPT M 3/8" Inline Tee Brass 316 Stainless Steel
6MPG4TLBT NPT M 3/8" Inline Tee Brass PTFE
6MPG4TLS NPT M 3/8" Inline Tee Carbon Steel 316 Stainless Steel
6MPG4TLSS NPT M 3/8" Inline Tee 316 Stainless Steel 316 Stainless Steel
6MPG4TLSST NPT M 3/8" Inline Tee 316 Stainless Steel PTFE
6MPG4TLST NPT M 3/8" Inline Tee Carbon Steel PTFE
6MPG4UB NPT M 3/8" Union Brass 316 Stainless Steel
6MPG4UBT NPT M 3/8" Union Brass PTFE
6MPG4US NPT M 3/8" Union Carbon Steel 316 Stainless Steel
6MPG4USS NPT M 3/8" Union 316 Stainless Steel 316 Stainless Steel
6MPG4USST NPT M 3/8" Union 316 Stainless Steel PTFE
6MPG4UST NPT M 3/8" Union Carbon Steel PTFE
6TAPG4AB Tube Adaptor 3/8" 90° Elbow Brass 316 Stainless Steel
6TAPG4ABT Tube Adaptor 3/8" 90° Elbow Brass PTFE
6TAPG4AS Tube Adaptor 3/8" 90° Elbow Carbon Steel 316 Stainless Steel
6TAPG4ASS Tube Adaptor 3/8" 90° Elbow 316 Stainless Steel 316 Stainless Steel
6TAPG4ASST Tube Adaptor 3/8" 90° Elbow 316 Stainless Steel PTFE
6TAPG4AST Tube Adaptor 3/8" 90° Elbow Carbon Steel PTFE
6TAPG4EB Tube Adaptor 3/8" 45° Elbow Brass 316 Stainless Steel
6TAPG4EBT Tube Adaptor 3/8" 45° Elbow Brass PTFE
6TAPG4ES Tube Adaptor 3/8" 45° Elbow Carbon Steel 316 Stainless Steel
6TAPG4ESS Tube Adaptor 3/8" 45° Elbow 316 Stainless Steel 316 Stainless Steel
6TAPG4ESST Tube Adaptor 3/8" 45° Elbow 316 Stainless Steel PTFE
6TAPG4EST Tube Adaptor 3/8" 45° Elbow Carbon Steel PTFE
6TAPG4LB Tube Adaptor 3/8" Straight Brass 316 Stainless Steel
6TAPG4LBT Tube Adaptor 3/8" Straight Brass PTFE
6TAPG4LS Tube Adaptor 3/8" Straight Carbon Steel 316 Stainless Steel
6TAPG4LSS Tube Adaptor 3/8" Straight 316 Stainless Steel 316 Stainless Steel
6TAPG4LSST Tube Adaptor 3/8" Straight 316 Stainless Steel PTFE
6TAPG4LST Tube Adaptor 3/8" Straight Carbon Steel PTFE
6TAPG4TAB Tube Adaptor 3/8" Angle Tee Brass 316 Stainless Steel
6TAPG4TABT Tube Adaptor 3/8" Angle Tee Brass PTFE
6TAPG4TAS Tube Adaptor 3/8" Angle Tee Carbon Steel 316 Stainless Steel
6TAPG4TASS Tube Adaptor 3/8" Angle Tee 316 Stainless Steel 316 Stainless Steel
6TAPG4TASST Tube Adaptor 3/8" Angle Tee 316 Stainless Steel PTFE
6TAPG4TAST Tube Adaptor 3/8" Angle Tee Carbon Steel PTFE
6TAPG4TLB Tube Adaptor 3/8" Inline Tee Brass 316 Stainless Steel
6TAPG4TLBT Tube Adaptor 3/8" Inline Tee Brass PTFE
6TAPG4TLS Tube Adaptor 3/8" Inline Tee Carbon Steel 316 Stainless Steel
6TAPG4TLSS Tube Adaptor 3/8" Inline Tee 316 Stainless Steel 316 Stainless Steel
6TAPG4TLSST Tube Adaptor 3/8" Inline Tee 316 Stainless Steel PTFE
6TAPG4TLST Tube Adaptor 3/8" Inline Tee Carbon Steel PTFE
6TAPG4UB Tube Adaptor 3/8" Union Brass 316 Stainless Steel
6TAPG4UBT Tube Adaptor 3/8" Union Brass PTFE
6TAPG4US Tube Adaptor 3/8" Union Carbon Steel 316 Stainless Steel
6TAPG4USS Tube Adaptor 3/8" Union 316 Stainless Steel 316 Stainless Steel
6TAPG4USST Tube Adaptor 3/8" Union 316 Stainless Steel PTFE
6TAPG4UST Tube Adaptor 3/8" Union Carbon Steel PTFE
6ZPG4AB Single Ferrule Compression Fitting 3/8" 90° Elbow Brass 316 Stainless Steel
6ZPG4ABT Single Ferrule Compression Fitting 3/8" 90° Elbow Brass PTFE
6ZPG4AS Single Ferrule Compression Fitting 3/8" 90° Elbow Carbon Steel 316 Stainless Steel
6ZPG4ASS Single Ferrule Compression Fitting 3/8" 90° Elbow 316 Stainless Steel 316 Stainless Steel
6ZPG4ASST Single Ferrule Compression Fitting 3/8" 90° Elbow 316 Stainless Steel PTFE
6ZPG4AST Single Ferrule Compression Fitting 3/8" 90° Elbow Carbon Steel PTFE
6ZPG4EB Single Ferrule Compression Fitting 3/8" 45° Elbow Brass 316 Stainless Steel
6ZPG4EBT Single Ferrule Compression Fitting 3/8" 45° Elbow Brass PTFE
6ZPG4ES Single Ferrule Compression Fitting 3/8" 45° Elbow Carbon Steel 316 Stainless Steel
6ZPG4ESS Single Ferrule Compression Fitting 3/8" 45° Elbow 316 Stainless Steel 316 Stainless Steel
6ZPG4ESST Single Ferrule Compression Fitting 3/8" 45° Elbow 316 Stainless Steel PTFE
6ZPG4EST Single Ferrule Compression Fitting 3/8" 45° Elbow Carbon Steel PTFE
6ZPG4LB Single Ferrule Compression Fitting 3/8" Straight Brass 316 Stainless Steel
6ZPG4LBT Single Ferrule Compression Fitting 3/8" Straight Brass PTFE
6ZPG4LS Single Ferrule Compression Fitting 3/8" Straight Carbon Steel 316 Stainless Steel
6ZPG4LSS Single Ferrule Compression Fitting 3/8" Straight 316 Stainless Steel 316 Stainless Steel
6ZPG4LSST Single Ferrule Compression Fitting 3/8" Straight 316 Stainless Steel PTFE
6ZPG4LST Single Ferrule Compression Fitting 3/8" Straight Carbon Steel PTFE
6ZPG4TAB Single Ferrule Compression Fitting 3/8" Angle Tee Brass 316 Stainless Steel
6ZPG4TABT Single Ferrule Compression Fitting 3/8" Angle Tee Brass PTFE
6ZPG4TAS Single Ferrule Compression Fitting 3/8" Angle Tee Carbon Steel 316 Stainless Steel
6ZPG4TASS Single Ferrule Compression Fitting 3/8" Angle Tee 316 Stainless Steel 316 Stainless Steel
6ZPG4TASST Single Ferrule Compression Fitting 3/8" Angle Tee 316 Stainless Steel PTFE
6ZPG4TAST Single Ferrule Compression Fitting 3/8" Angle Tee Carbon Steel PTFE
6ZPG4TLB Single Ferrule Compression Fitting 3/8" Inline Tee Brass 316 Stainless Steel
6ZPG4TLBT Single Ferrule Compression Fitting 3/8" Inline Tee Brass PTFE
6ZPG4TLS Single Ferrule Compression Fitting 3/8" Inline Tee Carbon Steel 316 Stainless Steel
6ZPG4TLSS Single Ferrule Compression Fitting 3/8" Inline Tee 316 Stainless Steel 316 Stainless Steel
6ZPG4TLSST Single Ferrule Compression Fitting 3/8" Inline Tee 316 Stainless Steel PTFE
6ZPG4TLST Single Ferrule Compression Fitting 3/8" Inline Tee Carbon Steel PTFE
6ZPG4UB Single Ferrule Compression Fitting 3/8" Union Brass 316 Stainless Steel
6ZPG4UBT Single Ferrule Compression Fitting 3/8" Union Brass PTFE
6ZPG4US Single Ferrule Compression Fitting 3/8" Union Carbon Steel 316 Stainless Steel
6ZPG4USS Single Ferrule Compression Fitting 3/8" Union 316 Stainless Steel 316 Stainless Steel
6ZPG4USST Single Ferrule Compression Fitting 3/8" Union 316 Stainless Steel PTFE
6ZPG4UST Single Ferrule Compression Fitting 3/8" Union Carbon Steel PTFE
8APG4AB Two Ferrule Compression Fitting 1/2" 90° Elbow Brass 316 Stainless Steel
8APG4ABT Two Ferrule Compression Fitting 1/2" 90° Elbow Brass PTFE
8APG4AS Two Ferrule Compression Fitting 1/2" 90° Elbow Carbon Steel 316 Stainless Steel
8APG4ASS Two Ferrule Compression Fitting 1/2" 90° Elbow 316 Stainless Steel 316 Stainless Steel
8APG4ASST Two Ferrule Compression Fitting 1/2" 90° Elbow 316 Stainless Steel PTFE
8APG4AST Two Ferrule Compression Fitting 1/2" 90° Elbow Carbon Steel PTFE
8APG4EB Two Ferrule Compression Fitting 1/2" 45° Elbow Brass 316 Stainless Steel
8APG4EBT Two Ferrule Compression Fitting 1/2" 45° Elbow Brass PTFE
8APG4ES Two Ferrule Compression Fitting 1/2" 45° Elbow Carbon Steel 316 Stainless Steel
8APG4ESS Two Ferrule Compression Fitting 1/2" 45° Elbow 316 Stainless Steel 316 Stainless Steel
8APG4ESST Two Ferrule Compression Fitting 1/2" 45° Elbow 316 Stainless Steel PTFE
8APG4EST Two Ferrule Compression Fitting 1/2" 45° Elbow Carbon Steel PTFE
8APG4LB Two Ferrule Compression Fitting 1/2" Straight Brass 316 Stainless Steel
8APG4LBT Two Ferrule Compression Fitting 1/2" Straight Brass PTFE
8APG4LS Two Ferrule Compression Fitting 1/2" Straight Carbon Steel 316 Stainless Steel
8APG4LSS Two Ferrule Compression Fitting 1/2" Straight 316 Stainless Steel 316 Stainless Steel
8APG4LSST Two Ferrule Compression Fitting 1/2" Straight 316 Stainless Steel PTFE
8APG4LST Two Ferrule Compression Fitting 1/2" Straight Carbon Steel PTFE
8APG4TAB Two Ferrule Compression Fitting 1/2" Angle Tee Brass 316 Stainless Steel
8APG4TABT Two Ferrule Compression Fitting 1/2" Angle Tee Brass PTFE
8APG4TAS Two Ferrule Compression Fitting 1/2" Angle Tee Carbon Steel 316 Stainless Steel
8APG4TASS Two Ferrule Compression Fitting 1/2" Angle Tee 316 Stainless Steel 316 Stainless Steel
8APG4TASST Two Ferrule Compression Fitting 1/2" Angle Tee 316 Stainless Steel PTFE
8APG4TAST Two Ferrule Compression Fitting 1/2" Angle Tee Carbon Steel PTFE
8APG4TLB Two Ferrule Compression Fitting 1/2" Inline Tee Brass 316 Stainless Steel
8APG4TLBT Two Ferrule Compression Fitting 1/2" Inline Tee Brass PTFE
8APG4TLS Two Ferrule Compression Fitting 1/2" Inline Tee Carbon Steel 316 Stainless Steel
8APG4TLSS Two Ferrule Compression Fitting 1/2" Inline Tee 316 Stainless Steel 316 Stainless Steel
8APG4TLSST Two Ferrule Compression Fitting 1/2" Inline Tee 316 Stainless Steel PTFE
8APG4TLST Two Ferrule Compression Fitting 1/2" Inline Tee Carbon Steel PTFE
8APG4UB Two Ferrule Compression Fitting 1/2" Union Brass 316 Stainless Steel
8APG4UBT Two Ferrule Compression Fitting 1/2" Union Brass PTFE
8APG4US Two Ferrule Compression Fitting 1/2" Union Carbon Steel 316 Stainless Steel
8APG4USS Two Ferrule Compression Fitting 1/2" Union 316 Stainless Steel 316 Stainless Steel
8APG4USST Two Ferrule Compression Fitting 1/2" Union 316 Stainless Steel PTFE
8APG4UST Two Ferrule Compression Fitting 1/2" Union Carbon Steel PTFE
8FPG4AB NPT F 1/2" 90° Elbow Brass 316 Stainless Steel
8FPG4ABT NPT F 1/2" 90° Elbow Brass PTFE
8FPG4AS NPT F 1/2" 90° Elbow Carbon Steel 316 Stainless Steel
8FPG4ASS NPT F 1/2" 90° Elbow 316 Stainless Steel 316 Stainless Steel
8FPG4ASST NPT F 1/2" 90° Elbow 316 Stainless Steel PTFE
8FPG4AST NPT F 1/2" 90° Elbow Carbon Steel PTFE
8FPG4EB NPT F 1/2" 45° Elbow Brass 316 Stainless Steel
8FPG4EBT NPT F 1/2" 45° Elbow Brass PTFE
8FPG4ES NPT F 1/2" 45° Elbow Carbon Steel 316 Stainless Steel
8FPG4ESS NPT F 1/2" 45° Elbow 316 Stainless Steel 316 Stainless Steel
8FPG4ESST NPT F 1/2" 45° Elbow 316 Stainless Steel PTFE
8FPG4EST NPT F 1/2" 45° Elbow Carbon Steel PTFE
8FPG4LB NPT F 1/2" Straight Brass 316 Stainless Steel
8FPG4LBT NPT F 1/2" Straight Brass PTFE
8FPG4LS NPT F 1/2" Straight Carbon Steel 316 Stainless Steel
8FPG4LSS NPT F 1/2" Straight 316 Stainless Steel 316 Stainless Steel
8FPG4LSST NPT F 1/2" Straight 316 Stainless Steel PTFE
8FPG4LST NPT F 1/2" Straight Carbon Steel PTFE
8FPG4TAB NPT F 1/2" Angle Tee Brass 316 Stainless Steel
8FPG4TABT NPT F 1/2" Angle Tee Brass PTFE
8FPG4TAS NPT F 1/2" Angle Tee Carbon Steel 316 Stainless Steel
8FPG4TASS NPT F 1/2" Angle Tee 316 Stainless Steel 316 Stainless Steel
8FPG4TASST NPT F 1/2" Angle Tee 316 Stainless Steel PTFE
8FPG4TAST NPT F 1/2" Angle Tee Carbon Steel PTFE
8FPG4TLB NPT F 1/2" Inline Tee Brass 316 Stainless Steel
8FPG4TLBT NPT F 1/2" Inline Tee Brass PTFE
8FPG4TLS NPT F 1/2" Inline Tee Carbon Steel 316 Stainless Steel
8FPG4TLSS NPT F 1/2" Inline Tee 316 Stainless Steel 316 Stainless Steel
8FPG4TLSST NPT F 1/2" Inline Tee 316 Stainless Steel PTFE
8FPG4TLST NPT F 1/2" Inline Tee Carbon Steel PTFE
8FPG4UB NPT F 1/2" Union Brass 316 Stainless Steel
8FPG4UBT NPT F 1/2" Union Brass PTFE
8FPG4US NPT F 1/2" Union Carbon Steel 316 Stainless Steel
8FPG4USS NPT F 1/2" Union 316 Stainless Steel 316 Stainless Steel
8FPG4USST NPT F 1/2" Union 316 Stainless Steel PTFE
8FPG4UST NPT F 1/2" Union Carbon Steel PTFE
8MPG4AB NPT M 1/2" 90° Elbow Brass 316 Stainless Steel
8MPG4ABT NPT M 1/2" 90° Elbow Brass PTFE
8MPG4AS NPT M 1/2" 90° Elbow Carbon Steel 316 Stainless Steel
8MPG4ASS NPT M 1/2" 90° Elbow 316 Stainless Steel 316 Stainless Steel
8MPG4ASST NPT M 1/2" 90° Elbow 316 Stainless Steel PTFE
8MPG4AST NPT M 1/2" 90° Elbow Carbon Steel PTFE
8MPG4EB NPT M 1/2" 45° Elbow Brass 316 Stainless Steel
8MPG4EBT NPT M 1/2" 45° Elbow Brass PTFE
8MPG4ES NPT M 1/2" 45° Elbow Carbon Steel 316 Stainless Steel
8MPG4ESS NPT M 1/2" 45° Elbow 316 Stainless Steel 316 Stainless Steel
8MPG4ESST NPT M 1/2" 45° Elbow 316 Stainless Steel PTFE
8MPG4EST NPT M 1/2" 45° Elbow Carbon Steel PTFE
8MPG4LB NPT M 1/2" Straight Brass 316 Stainless Steel
8MPG4LBT NPT M 1/2" Straight Brass PTFE
8MPG4LS NPT M 1/2" Straight Carbon Steel 316 Stainless Steel
8MPG4LSS NPT M 1/2" Straight 316 Stainless Steel 316 Stainless Steel
8MPG4LSST NPT M 1/2" Straight 316 Stainless Steel PTFE
8MPG4LST NPT M 1/2" Straight Carbon Steel PTFE
8MPG4TAB NPT M 1/2" Angle Tee Brass 316 Stainless Steel
8MPG4TABT NPT M 1/2" Angle Tee Brass PTFE
8MPG4TAS NPT M 1/2" Angle Tee Carbon Steel 316 Stainless Steel
8MPG4TASS NPT M 1/2" Angle Tee 316 Stainless Steel 316 Stainless Steel
8MPG4TASST NPT M 1/2" Angle Tee 316 Stainless Steel PTFE
8MPG4TAST NPT M 1/2" Angle Tee Carbon Steel PTFE
8MPG4TLB NPT M 1/2" Inline Tee Brass 316 Stainless Steel
8MPG4TLBT NPT M 1/2" Inline Tee Brass PTFE
8MPG4TLS NPT M 1/2" Inline Tee Carbon Steel 316 Stainless Steel
8MPG4TLSS NPT M 1/2" Inline Tee 316 Stainless Steel 316 Stainless Steel
8MPG4TLSST NPT M 1/2" Inline Tee 316 Stainless Steel PTFE
8MPG4TLST NPT M 1/2" Inline Tee Carbon Steel PTFE
8MPG4UB NPT M 1/2" Union Brass 316 Stainless Steel
8MPG4UBT NPT M 1/2" Union Brass PTFE
8MPG4US NPT M 1/2" Union Carbon Steel 316 Stainless Steel
8MPG4USS NPT M 1/2" Union 316 Stainless Steel 316 Stainless Steel
8MPG4USST NPT M 1/2" Union 316 Stainless Steel PTFE
8MPG4UST NPT M 1/2" Union Carbon Steel PTFE
8TAPG4AB Tube Adaptor 1/2" 90° Elbow Brass 316 Stainless Steel
8TAPG4ABT Tube Adaptor 1/2" 90° Elbow Brass PTFE
8TAPG4AS Tube Adaptor 1/2" 90° Elbow Carbon Steel 316 Stainless Steel
8TAPG4ASS Tube Adaptor 1/2" 90° Elbow 316 Stainless Steel 316 Stainless Steel
8TAPG4ASST Tube Adaptor 1/2" 90° Elbow 316 Stainless Steel PTFE
8TAPG4AST Tube Adaptor 1/2" 90° Elbow Carbon Steel PTFE
8TAPG4EB Tube Adaptor 1/2" 45° Elbow Brass 316 Stainless Steel
8TAPG4EBT Tube Adaptor 1/2" 45° Elbow Brass PTFE
8TAPG4ES Tube Adaptor 1/2" 45° Elbow Carbon Steel 316 Stainless Steel
8TAPG4ESS Tube Adaptor 1/2" 45° Elbow 316 Stainless Steel 316 Stainless Steel
8TAPG4ESST Tube Adaptor 1/2" 45° Elbow 316 Stainless Steel PTFE
8TAPG4EST Tube Adaptor 1/2" 45° Elbow Carbon Steel PTFE
8TAPG4LB Tube Adaptor 1/2" Straight Brass 316 Stainless Steel
8TAPG4LBT Tube Adaptor 1/2" Straight Brass PTFE
8TAPG4LS Tube Adaptor 1/2" Straight Carbon Steel 316 Stainless Steel
8TAPG4LSS Tube Adaptor 1/2" Straight 316 Stainless Steel 316 Stainless Steel
8TAPG4LSST Tube Adaptor 1/2" Straight 316 Stainless Steel PTFE
8TAPG4LST Tube Adaptor 1/2" Straight Carbon Steel PTFE
8TAPG4TAB Tube Adaptor 1/2" Angle Tee Brass 316 Stainless Steel
8TAPG4TABT Tube Adaptor 1/2" Angle Tee Brass PTFE
8TAPG4TAS Tube Adaptor 1/2" Angle Tee Carbon Steel 316 Stainless Steel
8TAPG4TASS Tube Adaptor 1/2" Angle Tee 316 Stainless Steel 316 Stainless Steel
8TAPG4TASST Tube Adaptor 1/2" Angle Tee 316 Stainless Steel PTFE
8TAPG4TAST Tube Adaptor 1/2" Angle Tee Carbon Steel PTFE
8TAPG4TLB Tube Adaptor 1/2" Inline Tee Brass 316 Stainless Steel
8TAPG4TLBT Tube Adaptor 1/2" Inline Tee Brass PTFE
8TAPG4TLS Tube Adaptor 1/2" Inline Tee Carbon Steel 316 Stainless Steel
8TAPG4TLSS Tube Adaptor 1/2" Inline Tee 316 Stainless Steel 316 Stainless Steel
8TAPG4TLSST Tube Adaptor 1/2" Inline Tee 316 Stainless Steel PTFE
8TAPG4TLST Tube Adaptor 1/2" Inline Tee Carbon Steel PTFE
8TAPG4UB Tube Adaptor 1/2" Union Brass 316 Stainless Steel
8TAPG4UBT Tube Adaptor 1/2" Union Brass PTFE
8TAPG4US Tube Adaptor 1/2" Union Carbon Steel 316 Stainless Steel
8TAPG4USS Tube Adaptor 1/2" Union 316 Stainless Steel 316 Stainless Steel
8TAPG4USST Tube Adaptor 1/2" Union 316 Stainless Steel PTFE
8TAPG4UST Tube Adaptor 1/2" Union Carbon Steel PTFE
8ZPG4AB Single Ferrule Compression Fitting 1/2" 90° Elbow Brass 316 Stainless Steel
8ZPG4ABT Single Ferrule Compression Fitting 1/2" 90° Elbow Brass PTFE
8ZPG4AS Single Ferrule Compression Fitting 1/2" 90° Elbow Carbon Steel 316 Stainless Steel
8ZPG4ASS Single Ferrule Compression Fitting 1/2" 90° Elbow 316 Stainless Steel 316 Stainless Steel
8ZPG4ASST Single Ferrule Compression Fitting 1/2" 90° Elbow 316 Stainless Steel PTFE
8ZPG4AST Single Ferrule Compression Fitting 1/2" 90° Elbow Carbon Steel PTFE
8ZPG4EB Single Ferrule Compression Fitting 1/2" 45° Elbow Brass 316 Stainless Steel
8ZPG4EBT Single Ferrule Compression Fitting 1/2" 45° Elbow Brass PTFE
8ZPG4ES Single Ferrule Compression Fitting 1/2" 45° Elbow Carbon Steel 316 Stainless Steel
8ZPG4ESS Single Ferrule Compression Fitting 1/2" 45° Elbow 316 Stainless Steel 316 Stainless Steel
8ZPG4ESST Single Ferrule Compression Fitting 1/2" 45° Elbow 316 Stainless Steel PTFE
8ZPG4EST Single Ferrule Compression Fitting 1/2" 45° Elbow Carbon Steel PTFE
8ZPG4LB Single Ferrule Compression Fitting 1/2" Straight Brass 316 Stainless Steel
8ZPG4LBT Single Ferrule Compression Fitting 1/2" Straight Brass PTFE
8ZPG4LS Single Ferrule Compression Fitting 1/2" Straight Carbon Steel 316 Stainless Steel
8ZPG4LSS Single Ferrule Compression Fitting 1/2" Straight 316 Stainless Steel 316 Stainless Steel
8ZPG4LSST Single Ferrule Compression Fitting 1/2" Straight 316 Stainless Steel PTFE
8ZPG4LST Single Ferrule Compression Fitting 1/2" Straight Carbon Steel PTFE
8ZPG4TAB Single Ferrule Compression Fitting 1/2" Angle Tee Brass 316 Stainless Steel
8ZPG4TABT Single Ferrule Compression Fitting 1/2" Angle Tee Brass PTFE
8ZPG4TAS Single Ferrule Compression Fitting 1/2" Angle Tee Carbon Steel 316 Stainless Steel
8ZPG4TASS Single Ferrule Compression Fitting 1/2" Angle Tee 316 Stainless Steel 316 Stainless Steel
8ZPG4TASST Single Ferrule Compression Fitting 1/2" Angle Tee 316 Stainless Steel PTFE
8ZPG4TAST Single Ferrule Compression Fitting 1/2" Angle Tee Carbon Steel PTFE
8ZPG4TLB Single Ferrule Compression Fitting 1/2" Inline Tee Brass 316 Stainless Steel
8ZPG4TLBT Single Ferrule Compression Fitting 1/2" Inline Tee Brass PTFE
8ZPG4TLS Single Ferrule Compression Fitting 1/2" Inline Tee Carbon Steel 316 Stainless Steel
8ZPG4TLSS Single Ferrule Compression Fitting 1/2" Inline Tee 316 Stainless Steel 316 Stainless Steel
8ZPG4TLSST Single Ferrule Compression Fitting 1/2" Inline Tee 316 Stainless Steel PTFE
8ZPG4TLST Single Ferrule Compression Fitting 1/2" Inline Tee Carbon Steel PTFE
8ZPG4UB Single Ferrule Compression Fitting 1/2" Union Brass 316 Stainless Steel
8ZPG4UBT Single Ferrule Compression Fitting 1/2" Union Brass PTFE
8ZPG4US Single Ferrule Compression Fitting 1/2" Union Carbon Steel 316 Stainless Steel
8ZPG4USS Single Ferrule Compression Fitting 1/2" Union 316 Stainless Steel 316 Stainless Steel
8ZPG4USST Single Ferrule Compression Fitting 1/2" Union 316 Stainless Steel PTFE
8ZPG4UST Single Ferrule Compression Fitting 1/2" Union Carbon Steel PTFE
M6APG4AB Two Ferrule Compression Fitting 6mm 90° Elbow Brass 316 Stainless Steel
M6APG4ABT Two Ferrule Compression Fitting 6mm 90° Elbow Brass PTFE
M6APG4AS Two Ferrule Compression Fitting 6mm 90° Elbow Carbon Steel 316 Stainless Steel
M6APG4ASS Two Ferrule Compression Fitting 6mm 90° Elbow 316 Stainless Steel 316 Stainless Steel
M6APG4ASST Two Ferrule Compression Fitting 6mm 90° Elbow 316 Stainless Steel PTFE
M6APG4AST Two Ferrule Compression Fitting 6mm 90° Elbow Carbon Steel PTFE
M6APG4EB Two Ferrule Compression Fitting 6mm 45° Elbow Brass 316 Stainless Steel
M6APG4EBT Two Ferrule Compression Fitting 6mm 45° Elbow Brass PTFE
M6APG4ES Two Ferrule Compression Fitting 6mm 45° Elbow Carbon Steel 316 Stainless Steel
M6APG4ESS Two Ferrule Compression Fitting 6mm 45° Elbow 316 Stainless Steel 316 Stainless Steel
M6APG4ESST Two Ferrule Compression Fitting 6mm 45° Elbow 316 Stainless Steel PTFE
M6APG4EST Two Ferrule Compression Fitting 6mm 45° Elbow Carbon Steel PTFE
M6APG4LB Two Ferrule Compression Fitting 6mm Straight Brass 316 Stainless Steel
M6APG4LBT Two Ferrule Compression Fitting 6mm Straight Brass PTFE
M6APG4LS Two Ferrule Compression Fitting 6mm Straight Carbon Steel 316 Stainless Steel
M6APG4LSS Two Ferrule Compression Fitting 6mm Straight 316 Stainless Steel 316 Stainless Steel
M6APG4LSST Two Ferrule Compression Fitting 6mm Straight 316 Stainless Steel PTFE
M6APG4LST Two Ferrule Compression Fitting 6mm Straight Carbon Steel PTFE
M6APG4TAB Two Ferrule Compression Fitting 6mm Angle Tee Brass 316 Stainless Steel
M6APG4TABT Two Ferrule Compression Fitting 6mm Angle Tee Brass PTFE
M6APG4TAS Two Ferrule Compression Fitting 6mm Angle Tee Carbon Steel 316 Stainless Steel
M6APG4TASS Two Ferrule Compression Fitting 6mm Angle Tee 316 Stainless Steel 316 Stainless Steel
M6APG4TASST Two Ferrule Compression Fitting 6mm Angle Tee 316 Stainless Steel PTFE
M6APG4TAST Two Ferrule Compression Fitting 6mm Angle Tee Carbon Steel PTFE
M6APG4TLB Two Ferrule Compression Fitting 6mm Inline Tee Brass 316 Stainless Steel
M6APG4TLBT Two Ferrule Compression Fitting 6mm Inline Tee Brass PTFE
M6APG4TLS Two Ferrule Compression Fitting 6mm Inline Tee Carbon Steel 316 Stainless Steel
M6APG4TLSS Two Ferrule Compression Fitting 6mm Inline Tee 316 Stainless Steel 316 Stainless Steel
M6APG4TLSST Two Ferrule Compression Fitting 6mm Inline Tee 316 Stainless Steel PTFE
M6APG4TLST Two Ferrule Compression Fitting 6mm Inline Tee Carbon Steel PTFE
M6APG4UB Two Ferrule Compression Fitting 6mm Union Brass 316 Stainless Steel
M6APG4UBT Two Ferrule Compression Fitting 6mm Union Brass PTFE
M6APG4US Two Ferrule Compression Fitting 6mm Union Carbon Steel 316 Stainless Steel
M6APG4USS Two Ferrule Compression Fitting 6mm Union 316 Stainless Steel 316 Stainless Steel
M6APG4USST Two Ferrule Compression Fitting 6mm Union 316 Stainless Steel PTFE
M6APG4UST Two Ferrule Compression Fitting 6mm Union Carbon Steel PTFE
M6ZPG4AB Single Ferrule Compression Fitting 6mm 90° Elbow Brass 316 Stainless Steel
M6ZPG4ABT Single Ferrule Compression Fitting 6mm 90° Elbow Brass PTFE
M6ZPG4AS Single Ferrule Compression Fitting 6mm 90° Elbow Carbon Steel 316 Stainless Steel
M6ZPG4ASS Single Ferrule Compression Fitting 6mm 90° Elbow 316 Stainless Steel 316 Stainless Steel
M6ZPG4ASST Single Ferrule Compression Fitting 6mm 90° Elbow 316 Stainless Steel PTFE
M6ZPG4AST Single Ferrule Compression Fitting 6mm 90° Elbow Carbon Steel PTFE
M6ZPG4EB Single Ferrule Compression Fitting 6mm 45° Elbow Brass 316 Stainless Steel
M6ZPG4EBT Single Ferrule Compression Fitting 6mm 45° Elbow Brass PTFE
M6ZPG4ES Single Ferrule Compression Fitting 6mm 45° Elbow Carbon Steel 316 Stainless Steel
M6ZPG4ESS Single Ferrule Compression Fitting 6mm 45° Elbow 316 Stainless Steel 316 Stainless Steel
M6ZPG4ESST Single Ferrule Compression Fitting 6mm 45° Elbow 316 Stainless Steel PTFE
M6ZPG4EST Single Ferrule Compression Fitting 6mm 45° Elbow Carbon Steel PTFE
M6ZPG4LB Single Ferrule Compression Fitting 6mm Straight Brass 316 Stainless Steel
M6ZPG4LBT Single Ferrule Compression Fitting 6mm Straight Brass PTFE
M6ZPG4LS Single Ferrule Compression Fitting 6mm Straight Carbon Steel 316 Stainless Steel
M6ZPG4LSS Single Ferrule Compression Fitting 6mm Straight 316 Stainless Steel 316 Stainless Steel
M6ZPG4LSST Single Ferrule Compression Fitting 6mm Straight 316 Stainless Steel PTFE
M6ZPG4LST Single Ferrule Compression Fitting 6mm Straight Carbon Steel PTFE
M6ZPG4TAB Single Ferrule Compression Fitting 6mm Angle Tee Brass 316 Stainless Steel
M6ZPG4TABT Single Ferrule Compression Fitting 6mm Angle Tee Brass PTFE
M6ZPG4TAS Single Ferrule Compression Fitting 6mm Angle Tee Carbon Steel 316 Stainless Steel
M6ZPG4TASS Single Ferrule Compression Fitting 6mm Angle Tee 316 Stainless Steel 316 Stainless Steel
M6ZPG4TASST Single Ferrule Compression Fitting 6mm Angle Tee 316 Stainless Steel PTFE
M6ZPG4TAST Single Ferrule Compression Fitting 6mm Angle Tee Carbon Steel PTFE
M6ZPG4TLB Single Ferrule Compression Fitting 6mm Inline Tee Brass 316 Stainless Steel
M6ZPG4TLBT Single Ferrule Compression Fitting 6mm Inline Tee Brass PTFE
M6ZPG4TLS Single Ferrule Compression Fitting 6mm Inline Tee Carbon Steel 316 Stainless Steel
M6ZPG4TLSS Single Ferrule Compression Fitting 6mm Inline Tee 316 Stainless Steel 316 Stainless Steel
M6ZPG4TLSST Single Ferrule Compression Fitting 6mm Inline Tee 316 Stainless Steel PTFE
M6ZPG4TLST Single Ferrule Compression Fitting 6mm Inline Tee Carbon Steel PTFE
M6ZPG4UB Single Ferrule Compression Fitting 6mm Union Brass 316 Stainless Steel
M6ZPG4UBT Single Ferrule Compression Fitting 6mm Union Brass PTFE
M6ZPG4US Single Ferrule Compression Fitting 6mm Union Carbon Steel 316 Stainless Steel
M6ZPG4USS Single Ferrule Compression Fitting 6mm Union 316 Stainless Steel 316 Stainless Steel
M6ZPG4USST Single Ferrule Compression Fitting 6mm Union 316 Stainless Steel PTFE
M6ZPG4UST Single Ferrule Compression Fitting 6mm Union Carbon Steel PTFE
M8APG4AB Two Ferrule Compression Fitting 8mm 90° Elbow Brass 316 Stainless Steel
M8APG4ABT Two Ferrule Compression Fitting 8mm 90° Elbow Brass PTFE
M8APG4AS Two Ferrule Compression Fitting 8mm 90° Elbow Carbon Steel 316 Stainless Steel
M8APG4ASS Two Ferrule Compression Fitting 8mm 90° Elbow 316 Stainless Steel 316 Stainless Steel
M8APG4ASST Two Ferrule Compression Fitting 8mm 90° Elbow 316 Stainless Steel PTFE
M8APG4AST Two Ferrule Compression Fitting 8mm 90° Elbow Carbon Steel PTFE
M8APG4EB Two Ferrule Compression Fitting 8mm 45° Elbow Brass 316 Stainless Steel
M8APG4EBT Two Ferrule Compression Fitting 8mm 45° Elbow Brass PTFE
M8APG4ES Two Ferrule Compression Fitting 8mm 45° Elbow Carbon Steel 316 Stainless Steel
M8APG4ESS Two Ferrule Compression Fitting 8mm 45° Elbow 316 Stainless Steel 316 Stainless Steel
M8APG4ESST Two Ferrule Compression Fitting 8mm 45° Elbow 316 Stainless Steel PTFE
M8APG4EST Two Ferrule Compression Fitting 8mm 45° Elbow Carbon Steel PTFE
M8APG4LB Two Ferrule Compression Fitting 8mm Straight Brass 316 Stainless Steel
M8APG4LBT Two Ferrule Compression Fitting 8mm Straight Brass PTFE
M8APG4LS Two Ferrule Compression Fitting 8mm Straight Carbon Steel 316 Stainless Steel
M8APG4LSS Two Ferrule Compression Fitting 8mm Straight 316 Stainless Steel 316 Stainless Steel
M8APG4LSST Two Ferrule Compression Fitting 8mm Straight 316 Stainless Steel PTFE
M8APG4LST Two Ferrule Compression Fitting 8mm Straight Carbon Steel PTFE
M8APG4TAB Two Ferrule Compression Fitting 8mm Angle Tee Brass 316 Stainless Steel
M8APG4TABT Two Ferrule Compression Fitting 8mm Angle Tee Brass PTFE
M8APG4TAS Two Ferrule Compression Fitting 8mm Angle Tee Carbon Steel 316 Stainless Steel
M8APG4TASS Two Ferrule Compression Fitting 8mm Angle Tee 316 Stainless Steel 316 Stainless Steel
M8APG4TASST Two Ferrule Compression Fitting 8mm Angle Tee 316 Stainless Steel PTFE
M8APG4TAST Two Ferrule Compression Fitting 8mm Angle Tee Carbon Steel PTFE
M8APG4TLB Two Ferrule Compression Fitting 8mm Inline Tee Brass 316 Stainless Steel
M8APG4TLBT Two Ferrule Compression Fitting 8mm Inline Tee Brass PTFE
M8APG4TLS Two Ferrule Compression Fitting 8mm Inline Tee Carbon Steel 316 Stainless Steel
M8APG4TLSS Two Ferrule Compression Fitting 8mm Inline Tee 316 Stainless Steel 316 Stainless Steel
M8APG4TLSST Two Ferrule Compression Fitting 8mm Inline Tee 316 Stainless Steel PTFE
M8APG4TLST Two Ferrule Compression Fitting 8mm Inline Tee Carbon Steel PTFE
M8APG4UB Two Ferrule Compression Fitting 8mm Union Brass 316 Stainless Steel
M8APG4UBT Two Ferrule Compression Fitting 8mm Union Brass PTFE
M8APG4US Two Ferrule Compression Fitting 8mm Union Carbon Steel 316 Stainless Steel
M8APG4USS Two Ferrule Compression Fitting 8mm Union 316 Stainless Steel 316 Stainless Steel
M8APG4USST Two Ferrule Compression Fitting 8mm Union 316 Stainless Steel PTFE
M8APG4UST Two Ferrule Compression Fitting 8mm Union Carbon Steel PTFE
M8ZPG4AB Single Ferrule Compression Fitting 8mm 90° Elbow Brass 316 Stainless Steel
M8ZPG4ABT Single Ferrule Compression Fitting 8mm 90° Elbow Brass PTFE
M8ZPG4AS Single Ferrule Compression Fitting 8mm 90° Elbow Carbon Steel 316 Stainless Steel
M8ZPG4ASS Single Ferrule Compression Fitting 8mm 90° Elbow 316 Stainless Steel 316 Stainless Steel
M8ZPG4ASST Single Ferrule Compression Fitting 8mm 90° Elbow 316 Stainless Steel PTFE
M8ZPG4AST Single Ferrule Compression Fitting 8mm 90° Elbow Carbon Steel PTFE
M8ZPG4EB Single Ferrule Compression Fitting 8mm 45° Elbow Brass 316 Stainless Steel
M8ZPG4EBT Single Ferrule Compression Fitting 8mm 45° Elbow Brass PTFE
M8ZPG4ES Single Ferrule Compression Fitting 8mm 45° Elbow Carbon Steel 316 Stainless Steel
M8ZPG4ESS Single Ferrule Compression Fitting 8mm 45° Elbow 316 Stainless Steel 316 Stainless Steel
M8ZPG4ESST Single Ferrule Compression Fitting 8mm 45° Elbow 316 Stainless Steel PTFE
M8ZPG4EST Single Ferrule Compression Fitting 8mm 45° Elbow Carbon Steel PTFE
M8ZPG4LB Single Ferrule Compression Fitting 8mm Straight Brass 316 Stainless Steel
M8ZPG4LBT Single Ferrule Compression Fitting 8mm Straight Brass PTFE
M8ZPG4LS Single Ferrule Compression Fitting 8mm Straight Carbon Steel 316 Stainless Steel
M8ZPG4LSS Single Ferrule Compression Fitting 8mm Straight 316 Stainless Steel 316 Stainless Steel
M8ZPG4LSST Single Ferrule Compression Fitting 8mm Straight 316 Stainless Steel PTFE
M8ZPG4LST Single Ferrule Compression Fitting 8mm Straight Carbon Steel PTFE
M8ZPG4TAB Single Ferrule Compression Fitting 8mm Angle Tee Brass 316 Stainless Steel
M8ZPG4TABT Single Ferrule Compression Fitting 8mm Angle Tee Brass PTFE
M8ZPG4TAS Single Ferrule Compression Fitting 8mm Angle Tee Carbon Steel 316 Stainless Steel
M8ZPG4TASS Single Ferrule Compression Fitting 8mm Angle Tee 316 Stainless Steel 316 Stainless Steel
M8ZPG4TASST Single Ferrule Compression Fitting 8mm Angle Tee 316 Stainless Steel PTFE
M8ZPG4TAST Single Ferrule Compression Fitting 8mm Angle Tee Carbon Steel PTFE
M8ZPG4TLB Single Ferrule Compression Fitting 8mm Inline Tee Brass 316 Stainless Steel
M8ZPG4TLBT Single Ferrule Compression Fitting 8mm Inline Tee Brass PTFE
M8ZPG4TLS Single Ferrule Compression Fitting 8mm Inline Tee Carbon Steel 316 Stainless Steel
M8ZPG4TLSS Single Ferrule Compression Fitting 8mm Inline Tee 316 Stainless Steel 316 Stainless Steel
M8ZPG4TLSST Single Ferrule Compression Fitting 8mm Inline Tee 316 Stainless Steel PTFE
M8ZPG4TLST Single Ferrule Compression Fitting 8mm Inline Tee Carbon Steel PTFE
M8ZPG4UB Single Ferrule Compression Fitting 8mm Union Brass 316 Stainless Steel
M8ZPG4UBT Single Ferrule Compression Fitting 8mm Union Brass PTFE
M8ZPG4US Single Ferrule Compression Fitting 8mm Union Carbon Steel 316 Stainless Steel
M8ZPG4USS Single Ferrule Compression Fitting 8mm Union 316 Stainless Steel 316 Stainless Steel
M8ZPG4USST Single Ferrule Compression Fitting 8mm Union 316 Stainless Steel PTFE
M8ZPG4UST Single Ferrule Compression Fitting 8mm Union Carbon Steel PTFE









信德迈科技(北京)有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址:北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编:100102
电话:010-84282935;84283983
手机:13910962635 ( 微信号)
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真:010-84288762


京ICP备08000876号-6

京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
