Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

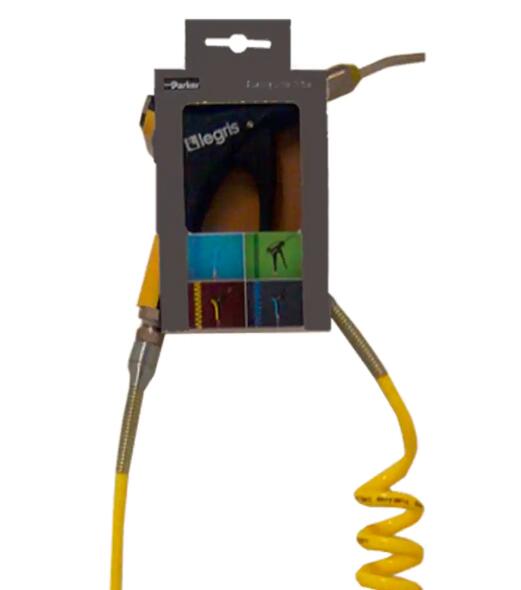

Blowgun Kits

Ready for use, simple and ergonomic, the Parker Legris blowgun kit remains an essential item of equipment for any blowing or spraying operation in the industrial environment.





Ready for use, simple and ergonomic, the Parker Legris blowgun kit remains an essential item of equipment for any blowing or spraying operation in the industrial environment.





Features/Benefits:

- Ready for Use

- Kit contents:
one blowgun
a 4 metre recoil tube
one R1/4 threaded fitting, external diameter 8 mm
- Easy to install and comfortable to use
- Wide range of models and nozzles for optimum flow
- Lower or upper connection
- Labelling and colours can be customised
- Packaging designed to facilitate self-service sales

- Safety & Performance

- Safe operation with the Safety or OSHA models
- Durable, shock-resistant materials
- 100% leak and flow-tested in production
- Date coding to guarantee quality and traceability
- Minimum pressure drop
- Optimisation of your energy consumption with the Energy-Saving model

Markets:

- Factory Automation
- Miscellaneous manufacturing
- Packaging
- Vehicle Assembly Facilities

Applications:

- Manufacturing Workshops
- Cleaning
- Cooling
- Blowing
- Mixing
- Ejection

Technologies:

- Safety blow gun
- Standard nozzle
- Angled nozzle
- Air nozzle
- Air tool kit
- Compressed air nozzle
- Air blow gun

Technical Characteristics:

- Fluids: Compressed air, other fluids: contact us
- Materials: nickel-plated brass, aluminium, technical polymer, recoil polyurethane, silicone free
- Pressure: 0 to 10 bar
- Temperature:
Air: -15°C to +50°C
Dry air: -20°C to +80°C

Regulations:

Compliance for all blowguns:
- DI: 97/23/EC (PED)
- DI: 2002/95/EC (RoHS), 2011/65/EC
- DI: 1907/2006 (REACH)
Protection of design:
All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 22
Compliance for specific blowguns:
- DI: 1910.242 (b) [OSHA]
The static pressure must be less than 30 psi in case the nozzle becomes blocked.
- DI: 1910.95 (b) [OSHA]
The noise level must be less than 90 dBA over 8 hours' exposure.
- DI: 2003/10/EC
Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87dBA.

Product Types:

- Blowgun Kit, Lower Connection, Male BSPT Thread
- Safety Blowgun Kit, Lower Connection, Male BSPT Thread
- Energy Saving Blowgun Kit with Angled Nozzle, Male BSPT Thread
- Blowgun Kit, Lower/Upper Connection with Standard Nozzle, Male BSPT Thread
- Blowgun Kit, Lower Connection with Short Angled Nozzle, Male BSPT Thread
- Blowgun Kit, Lower/Upper Connection with Interchangeable Nozzle, Male BSPT Thread
- Energy Saving Blowgun Kit, Lower Connection, Interchangeable Nozzle, Male BSPT Thread



Technical Specifications

Specifications Met: REACH, ROHS, OSHA
Materials of Construction: Technical polymer, Nickel-plated brass
Valve Type: no valve
Brand: Legris
Fitting Connection Type: Female thread, BSPP
Diameter: Nominal: 2.0 to 2,5 mm
Maximum Operating Temperature: 176 °F, 80 °F, 80 °C
Maximum Operating Pressure: 10 bar
Quantity per Box: 1
Weight: 0,441 to 0,617 kg
Application: Manufacturing Workshops, Cleaning, Blowing, Mixing, Ejection, Cooling, Packaging
Media: Compressed air, Other fluids: contact us



Blowgun Kits 型号

Part Shape Color
0631 00 01 Safety blowgun kit lower connection male YELLOW
0631 00 02 Blowgun kit upper connection standard nozzle male BLUE
0631 00 03 Blowgun kit lower connection standard nozzle male BLUE
0631 00 04 Blowgun kit upper connection short angled nozzle male BLUE
0631 00 05 Blowgun kit lower connection short angled nozzle male BLUE
0631 00 07 Blowgun kit lower connection interchangeable nozzle male BLUE
0631 00 09 Standard lowgun kit lower connection male BLUE
0631 00 23 Energy saving blowgun kit angled nozzle male GREEN
