Dry Break Quick Coupling with Parker Profile for Block/Plate Assembly, Series 200KLEK
Dry break quick coupling system with nominal diameter 3/4/6/9/12/19 for pneumatic and fluid handling applications in sensitive environments up to 15 bar. Available made of stainless steel.
Parker's Coupling Series 200KLEK is a dry break coupling systems for block/plate assembly in sensitive environments, for example in analysis technology, in cooling systems, in transport systems and many applications with aggressive media.
In the case of block assembly, a special sealing system ensures an optimum seal. Extremely low leakage rate and minimum dead space volume. There are absolutely no air pockets when coupling and a barely noticeable film of the medium being channelled on the valve bodies when uncoupling. Series 200KLEK stands out for its low coupling forces. The valve body is protected with collar design.

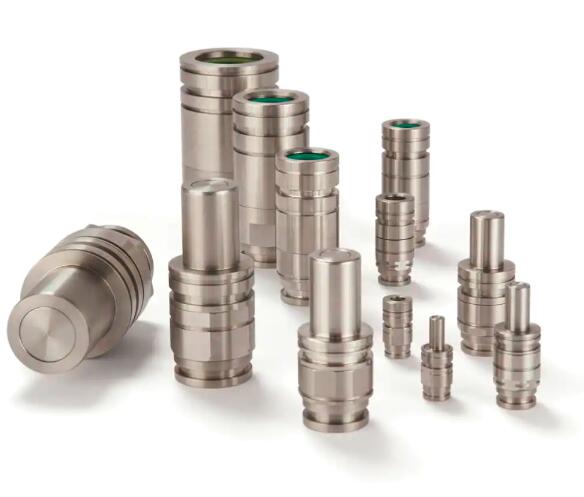

Dry Break Quick Coupling with Parker Profile for Block/Plate Assembly, Series 200KLEK
Markets:
- Machine tooling
- Electronic cooling
Features/Benefits:
- Dry break - no spillage and minimum dead space volume
- No air inclusion when connecting
- Tolerates deviations in axial alignment when installing
Applications:
- Electronic cabinets
- Laser cooling
- Computer cooling
- Lithography machines
Technical Specifications
| Minimum Operating Temperature: |
-15 °C |
| Application: |
Thermal Management |
| Brand: |
Rectus |
| Fitting Connection Type: |
Female Thread |
| Interchange Type: |
Rectus Profile |
| Maximum Operating Pressure: |
210 psi, 15 bar |
| Maximum Operating Temperature: |
392 °F, 200 °C |
| Media: |
Chemical Fluids, Gases, Pneumatic Media, Steam, Water |
| Valve Type: |
Non-Spill / FlatFace |
| Materials of Construction: |
Stainless Steel |
| Valve Included: |
Yes |
| Version: |
Flat-sealing |
| Diameter: |
Nominal: 3 to 19 mm |
| Seal Material: |
FKM |
Dry Break Quick Coupling with Parker Profile for Block/Plate Assembly, Series 200KLEK 型号
| Part |
Type |
Length (mm) |
| 203KLIW08EVXEK |
Coupling |
5,3 |
| 203SLIW08EVXEK |
Plug |
28,75 |
| 204KLIW10EVXEK |
Coupling |
8,4 |
| 204SLIW10EVXEK |
Plug |
42 |
| 206KLIW13EVXEK |
Coupling |
12,5 |
| 206SLIW13EVXEK |
Plug |
51,15 |
| 209KLIW17EVXEK |
Coupling |
17 |
| 209SLIW17EVXEK |
Plug |
57,4 |
| 212KLIW21EVXEK |
Coupling |
20 |
| 212SLIW21EVXEK |
Plug |
69,7 |
| 219KLIW26EVXEK |
Coupling |
30 |
| 219SLIW26EVXEK |
Plug |
82,4 |
|
