Flareless and Bite Type Fittings
Ermeto DIN Non Adjustable high pressure tube fittings
The main function of Ermeto DIN non adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings is available in steel with Cr(VI)-free surfaces and in stainless steel.
The main function of Ermeto DIN non adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of Ermeto DIN non adjustable high pressure tube fittings, types WE-NPT, TE-M up to LE-R is available in steel with Cr(VI)-free surfaces and in a stainless steel version. Depending on the specific application, these fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).

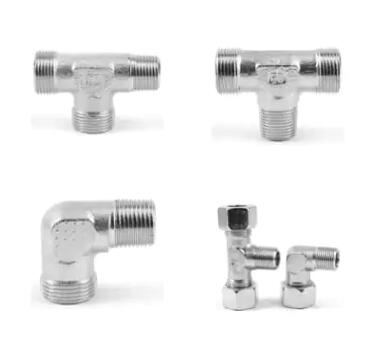

Ermeto DIN Non Adjustable high pressure tube fittings
Markets:
- Automotive
- Defence
- Energy
- Environment
- Industrial
- Infrastructure
- Machine Tools
- Materials Handling
- Mobile
- Oil and Gas
- Power Generation
- Process
- Transportation
- Water
Applications:
- Suitable for general hydraulic applications.
Features/ benefits:
- High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fittings.
- Stainless steel surface: Ermeto DIN non adjustable high pressure tube fittings, stainless steel version, have a high corrosion resistance to aggressive media and environmental influences, also a higher temperature resistance, than steel. These features extend the range of applications.
- High pressure: Non-adjustable fittings have pressure ratings of up to 630 bar, so that the fittings can be used in a wide range of applications.
Technical Specifications
| Connection Size: |
M 10x1.0 to M48x2.0; 1/8-27 NPT to 1 1/2-11.5 NPT; R 1/8 tap. To R 1/2 tap.; G 3/4 A to G 1 1/2 A |
| Connection 1 Tube Outside Diameter: |
04 to 42 mm |
| Connection 2 Tube Outside Diameter: |
04 to 42 mm |
| Connection 1 Size: |
EO 24° cone end |
| Connection 2 Size: |
Male NPT thread (SAE J476), Male metric taper thread (DIN 3852-1, type C), Male metric thread - metal sealing edge (ISO 9974), Male short BSP taper thread (DIN 3852-2, type C), Male BSPP thread - metal sealing edge (ISO 1179), EO 24° cone end |
| Product Series: |
Very light, Light, Heavy |
| Connection 3 Size: |
na, Male short metric taper thread (DIN 3852-1, type C), Male short BSP taper thread (DIN 3852-2, type C), Male BSPP thread - metal sealing edge (ISO 1179), Male metric thread - metal sealing edge (ISO 9974) |
| Shape: |
Male stud elbow, Male stud branch tee, Male stud run tee |
| Optional Accessories: |
na, Pre-assembled with nut and EO-PSR cutting ring, Pre-assembled with EO-2 functional nut, Pre-assembled with nut and EO-DPR cutting ring |
| Maximum Operating Pressure: |
10-40 MPa, 100-400 bar, 1450-5802 psi |
| Tube Outside Diameter: |
6-42 mm |
| Maximum Operating Temperature: |
+250 Steel, +400 Stainless Steel °C, +482 Steel, +752 Stainless Steel °F |
| Minimum Operating Temperature: |
-40 (Steel); -60 (Stainless Steel) °C, -40 Steel, -76 Stainless Steel °F |
| Application: |
Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation |
| Connection Type: |
Bite Type, Soft Seal Bite Type |
| Specifications Met: |
DIN ISO 8434 |
| Materials of Construction: |
Steel zinc plated (CrVI-free), Stainless steel |
Ermeto DIN Non Adjustable high pressure tube fittings型号
Part Series Connection 1 Style Connection 2 Style Connection 3 Style Connection 1 Tube O.D. (mm) Shape Fitting Material Connection 2 Tube O.D. (mm) Connection Size Pre-Installed Optional Accessories
LE04LLM71 Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 4 Male stud run tee Stainless steel 4 M 08x1.0 tap. Pre-assembled with nut and EO-DPR cutting ring
LE04LLM71X Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 4 Male stud run tee Stainless steel 4 M 08x1.0 tap. na
LE04LLMCF Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 4 Male stud run tee Steel, Chromium-6 Free 4 M 08x1.0 tap. Pre-assembled with nut and EO-PSR cutting ring
LE04LLMCFX Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 4 Male stud run tee Steel, Chromium-6 Free 4 M 08x1.0 tap. na
LE04LLR71 Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 4 Male stud run tee Stainless steel 4 R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
LE04LLR71X Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 4 Male stud run tee Stainless steel 4 R 1/8 tap. na
LE04LLRCF Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 4 Male stud run tee Steel, Chromium-6 Free 4 R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
LE04LLRCFX Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 4 Male stud run tee Steel, Chromium-6 Free 4 R 1/8 tap. na
LE04ZLLM71 Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 4 Male stud run tee Stainless steel 4 M 08x1.0 tap. Pre-assembled with EO-2 functional nut
LE04ZLLMCF Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 4 Male stud run tee Steel, Chromium-6 Free 4 M 08x1.0 tap. Pre-assembled with EO-2 functional nut
LE04ZLLR71 Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 4 Male stud run tee Stainless steel 4 R 1/8 tap. Pre-assembled with EO-2 functional nut
LE04ZLLRCF Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 4 Male stud run tee Steel, Chromium-6 Free 4 R 1/8 tap. Pre-assembled with EO-2 functional nut
LE06LLM71 Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Stainless steel 6 M 10x1.0 tap. Pre-assembled with nut and EO-DPR cutting ring
LE06LLM71X Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Stainless steel 6 M 10x1.0 tap. na
LE06LLMCF Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 M 10x1.0 tap. Pre-assembled with nut and EO-PSR cutting ring
LE06LLMCFX Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 M 10x1.0 tap. na
LE06LLR71 Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Stainless steel 6 R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
LE06LLR71X Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Stainless steel 6 R 1/8 tap. na
LE06LLRCF Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
LE06LLRCFX Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 R 1/8 tap. na
LE06LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Stainless steel 6 M 10x1.0 tap. Pre-assembled with nut and EO-DPR cutting ring
LE06LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Stainless steel 6 M 10x1.0 tap. na
LE06LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 M 10x1.0 tap. Pre-assembled with nut and EO-PSR cutting ring
LE06LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 M 10x1.0 tap. na
LE06LR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Stainless steel 6 R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
LE06LR71X Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Stainless steel 6 R 1/8 tap. na
LE06LRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
LE06LRCFX Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 R 1/8 tap. na
LE06SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Stainless steel 6 M 12x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
LE06SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Stainless steel 6 M 12x1.5 tap. na
LE06SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 M 12x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
LE06SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 M 12x1.5 tap. na
LE06SR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Stainless steel 6 R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
LE06SR71X Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Stainless steel 6 R 1/4 tap. na
LE06SRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
LE06SRCFX Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 R 1/4 tap. na
LE06ZLLM71 Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Stainless steel 6 M 10x1.0 tap. Pre-assembled with EO-2 functional nut
LE06ZLLMCF Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 M 10x1.0 tap. Pre-assembled with EO-2 functional nut
LE06ZLLR71 Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Stainless steel 6 R 1/8 tap. Pre-assembled with EO-2 functional nut
LE06ZLLRCF Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 R 1/8 tap. Pre-assembled with EO-2 functional nut
LE06ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Stainless steel 6 M 10x1.0 tap. Pre-assembled with EO-2 functional nut
LE06ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 M 10x1.0 tap. Pre-assembled with EO-2 functional nut
LE06ZLR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Stainless steel 6 R 1/8 tap. Pre-assembled with EO-2 functional nut
LE06ZLRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 R 1/8 tap. Pre-assembled with EO-2 functional nut
LE06ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Stainless steel 6 M 12x1.5 tap. Pre-assembled with EO-2 functional nut
LE06ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 M 12x1.5 tap. Pre-assembled with EO-2 functional nut
LE06ZSR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Stainless steel 6 R 1/4 tap. Pre-assembled with EO-2 functional nut
LE06ZSRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud run tee Steel, Chromium-6 Free 6 R 1/4 tap. Pre-assembled with EO-2 functional nut
LE08LLM71 Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Stainless steel 8 M 10x1.0 tap. Pre-assembled with nut and EO-DPR cutting ring
LE08LLM71X Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Stainless steel 8 M 10x1.0 tap. na
LE08LLMCF Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 M 10x1.0 tap. Pre-assembled with nut and EO-PSR cutting ring
LE08LLMCFX Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 M 10x1.0 tap. na
LE08LLR71 Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Stainless steel 8 R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
LE08LLR71X Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Stainless steel 8 R 1/8 tap. na
LE08LLRCF Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
LE08LLRCFX Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 R 1/8 tap. na
LE08LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Stainless steel 8 M 12x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
LE08LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Stainless steel 8 M 12x1.5 tap. na
LE08LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 M 12x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
LE08LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 M 12x1.5 tap. na
LE08LR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Stainless steel 8 R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
LE08LR71X Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Stainless steel 8 R 1/4 tap. na
LE08LRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
LE08LRCFX Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 R 1/4 tap. na
LE08SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Stainless steel 8 M 14x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
LE08SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Stainless steel 8 M 14x1.5 tap. na
LE08SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 M 14x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
LE08SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 M 14x1.5 tap. na
LE08SR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Stainless steel 8 R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
LE08SR71X Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Stainless steel 8 R 1/4 tap. na
LE08SRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
LE08SRCFX Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 R 1/4 tap. na
LE08ZLLM71 Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Stainless steel 8 M 10x1.0 tap. Pre-assembled with EO-2 functional nut
LE08ZLLMCF Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 M 10x1.0 tap. Pre-assembled with EO-2 functional nut
LE08ZLLR71 Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Stainless steel 8 R 1/8 tap. Pre-assembled with EO-2 functional nut
LE08ZLLRCF Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 R 1/8 tap. Pre-assembled with EO-2 functional nut
LE08ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Stainless steel 8 M 12x1.5 tap. Pre-assembled with EO-2 functional nut
LE08ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 M 12x1.5 tap. Pre-assembled with EO-2 functional nut
LE08ZLR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Stainless steel 8 R 1/4 tap. Pre-assembled with EO-2 functional nut
LE08ZLRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 R 1/4 tap. Pre-assembled with EO-2 functional nut
LE08ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Stainless steel 8 M 14x1.5 tap. Pre-assembled with EO-2 functional nut
LE08ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 M 14x1.5 tap. Pre-assembled with EO-2 functional nut
LE08ZSR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Stainless steel 8 R 1/4 tap. Pre-assembled with EO-2 functional nut
LE08ZSRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud run tee Steel, Chromium-6 Free 8 R 1/4 tap. Pre-assembled with EO-2 functional nut
LE10KRCFX Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud run tee Steel, Chromium-6 Free 10 R 1/4 tap. na
LE10LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud run tee Stainless steel 10 M 14x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
LE10LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud run tee Stainless steel 10 M 14x1.5 tap. na
LE10LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud run tee Steel, Chromium-6 Free 10 M 14x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
LE10LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud run tee Steel, Chromium-6 Free 10 M 14x1.5 tap. na
LE10LR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud run tee Stainless steel 10 R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
LE10LR71X Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud run tee Stainless steel 10 R 1/4 tap. na
LE10LRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud run tee Steel, Chromium-6 Free 10 R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
LE10SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud run tee Stainless steel 10 M 16x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
LE10SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud run tee Stainless steel 10 M 16x1.5 tap. na
LE10SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud run tee Steel, Chromium-6 Free 10 M 16x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
LE10SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud run tee Steel, Chromium-6 Free 10 M 16x1.5 tap. na
LE10SR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud run tee Stainless steel 10 R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
LE10SR71X Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud run tee Stainless steel 10 R 3/8 tap. na
LE10SRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud run tee Steel, Chromium-6 Free 10 R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
LE10SRCFX Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud run tee Steel, Chromium-6 Free 10 R 3/8 tap. na
LE10ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud run tee Stainless steel 10 M 14x1.5 tap. Pre-assembled with EO-2 functional nut
LE10ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud run tee Steel, Chromium-6 Free 10 M 14x1.5 tap. Pre-assembled with EO-2 functional nut
LE10ZLR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud run tee Stainless steel 10 R 1/4 tap. Pre-assembled with EO-2 functional nut
LE10ZLRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud run tee Steel, Chromium-6 Free 10 R 1/4 tap. Pre-assembled with EO-2 functional nut
LE10ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud run tee Stainless steel 10 M 16x1.5 tap. Pre-assembled with EO-2 functional nut
LE10ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud run tee Steel, Chromium-6 Free 10 M 16x1.5 tap. Pre-assembled with EO-2 functional nut
LE10ZSR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud run tee Stainless steel 10 R 3/8 tap. Pre-assembled with EO-2 functional nut
LE10ZSRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud run tee Steel, Chromium-6 Free 10 R 3/8 tap. Pre-assembled with EO-2 functional nut
LE12LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud run tee Stainless steel 12 M 16x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
LE12LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud run tee Stainless steel 12 M 16x1.5 tap. na
LE12LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud run tee Steel, Chromium-6 Free 12 M 16x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
LE12LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud run tee Steel, Chromium-6 Free 12 M 16x1.5 tap. na
LE12LR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud run tee Stainless steel 12 R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
LE12LR71X Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud run tee Stainless steel 12 R 3/8 tap. na
LE12LRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud run tee Steel, Chromium-6 Free 12 R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
LE12LRCFX Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud run tee Steel, Chromium-6 Free 12 R 3/8 tap. na
LE12SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud run tee Stainless steel 12 M 18x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
LE12SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud run tee Stainless steel 12 M 18x1.5 tap. na
LE12SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud run tee Steel, Chromium-6 Free 12 M 18x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
LE12SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud run tee Steel, Chromium-6 Free 12 M 18x1.5 tap. na
LE12SR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud run tee Stainless steel 12 R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
LE12SR71X Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud run tee Stainless steel 12 R 3/8 tap. na
LE12SRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud run tee Steel, Chromium-6 Free 12 R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
LE12SRCFX Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud run tee Steel, Chromium-6 Free 12 R 3/8 tap. na
LE12ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud run tee Stainless steel 12 M 16x1.5 tap. Pre-assembled with EO-2 functional nut
LE12ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud run tee Steel, Chromium-6 Free 12 M 16x1.5 tap. Pre-assembled with EO-2 functional nut
LE12ZLR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud run tee Stainless steel 12 R 3/8 tap. Pre-assembled with EO-2 functional nut
LE12ZLRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud run tee Steel, Chromium-6 Free 12 R 3/8 tap. Pre-assembled with EO-2 functional nut
LE12ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud run tee Stainless steel 12 M 18x1.5 tap. Pre-assembled with EO-2 functional nut
LE12ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud run tee Steel, Chromium-6 Free 12 M 18x1.5 tap. Pre-assembled with EO-2 functional nut
LE12ZSR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud run tee Stainless steel 12 R 3/8 tap. Pre-assembled with EO-2 functional nut
LE12ZSRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud run tee Steel, Chromium-6 Free 12 R 3/8 tap. Pre-assembled with EO-2 functional nut
LE14SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 14 Male stud run tee Stainless steel 14 M 20x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
LE14SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 14 Male stud run tee Stainless steel 14 M 20x1.5 tap. na
LE14SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 14 Male stud run tee Steel, Chromium-6 Free 14 M 20x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
LE14SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 14 Male stud run tee Steel, Chromium-6 Free 14 M 20x1.5 tap. na
LE14SR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 14 Male stud run tee Stainless steel 14 R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
LE14SR71X Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 14 Male stud run tee Stainless steel 14 R 1/2 tap. na
LE14SRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 14 Male stud run tee Steel, Chromium-6 Free 14 R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
LE14SRCFX Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 14 Male stud run tee Steel, Chromium-6 Free 14 R 1/2 tap. na
LE14ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 14 Male stud run tee Stainless steel 14 M 20x1.5 tap. Pre-assembled with EO-2 functional nut
LE14ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 14 Male stud run tee Steel, Chromium-6 Free 14 M 20x1.5 tap. Pre-assembled with EO-2 functional nut
LE14ZSR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 14 Male stud run tee Stainless steel 14 R 1/2 tap. Pre-assembled with EO-2 functional nut
LE14ZSRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 14 Male stud run tee Steel, Chromium-6 Free 14 R 1/2 tap. Pre-assembled with EO-2 functional nut
LE15LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 15 Male stud run tee Stainless steel 15 M 18x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
LE15LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 15 Male stud run tee Stainless steel 15 M 18x1.5 tap. na
LE15LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 15 Male stud run tee Steel, Chromium-6 Free 15 M 18x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
LE15LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 15 Male stud run tee Steel, Chromium-6 Free 15 M 18x1.5 tap. na
LE15LR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 15 Male stud run tee Stainless steel 15 R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
LE15LR71X Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 15 Male stud run tee Stainless steel 15 R 1/2 tap. na
LE15LRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 15 Male stud run tee Steel, Chromium-6 Free 15 R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
LE15LRCFX Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 15 Male stud run tee Steel, Chromium-6 Free 15 R 1/2 tap. na
LE15ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 15 Male stud run tee Stainless steel 15 M 18x1.5 tap. Pre-assembled with EO-2 functional nut
LE15ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 15 Male stud run tee Steel, Chromium-6 Free 15 M 18x1.5 tap. Pre-assembled with EO-2 functional nut
LE15ZLR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 15 Male stud run tee Stainless steel 15 R 1/2 tap. Pre-assembled with EO-2 functional nut
LE15ZLRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 15 Male stud run tee Steel, Chromium-6 Free 15 R 1/2 tap. Pre-assembled with EO-2 functional nut
LE16SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 16 Male stud run tee Stainless steel 16 M 22x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
LE16SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 16 Male stud run tee Stainless steel 16 M 22x1.5 tap. na
LE16SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 16 Male stud run tee Steel, Chromium-6 Free 16 M 22x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
LE16SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 16 Male stud run tee Steel, Chromium-6 Free 16 M 22x1.5 tap. na
LE16SR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 16 Male stud run tee Stainless steel 16 R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
LE16SR71X Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 16 Male stud run tee Stainless steel 16 R 1/2 tap. na
LE16SRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 16 Male stud run tee Steel, Chromium-6 Free 16 R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
LE16SRCFX Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 16 Male stud run tee Steel, Chromium-6 Free 16 R 1/2 tap. na
LE16ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 16 Male stud run tee Stainless steel 16 M 22x1.5 tap. Pre-assembled with EO-2 functional nut
LE16ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 16 Male stud run tee Steel, Chromium-6 Free 16 M 22x1.5 tap. Pre-assembled with EO-2 functional nut
LE16ZSR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 16 Male stud run tee Stainless steel 16 R 1/2 tap. Pre-assembled with EO-2 functional nut
LE16ZSRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 16 Male stud run tee Steel, Chromium-6 Free 16 R 1/2 tap. Pre-assembled with EO-2 functional nut
LE18LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 18 Male stud run tee Stainless steel 18 M 22x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
LE18LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 18 Male stud run tee Stainless steel 18 M 22x1.5 tap. na
LE18LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 18 Male stud run tee Steel, Chromium-6 Free 18 M 22x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
LE18LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 18 Male stud run tee Steel, Chromium-6 Free 18 M 22x1.5 tap. na
LE18LR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 18 Male stud run tee Stainless steel 18 R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
LE18LR71X Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 18 Male stud run tee Stainless steel 18 R 1/2 tap. na
LE18LRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 18 Male stud run tee Steel, Chromium-6 Free 18 R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
LE18LRCFX Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 18 Male stud run tee Steel, Chromium-6 Free 18 R 1/2 tap. na
LE18ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 18 Male stud run tee Stainless steel 18 M 22x1.5 tap. Pre-assembled with EO-2 functional nut
LE18ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 18 Male stud run tee Steel, Chromium-6 Free 18 M 22x1.5 tap. Pre-assembled with EO-2 functional nut
LE18ZLR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 18 Male stud run tee Stainless steel 18 R 1/2 tap. Pre-assembled with EO-2 functional nut
LE18ZLRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 18 Male stud run tee Steel, Chromium-6 Free 18 R 1/2 tap. Pre-assembled with EO-2 functional nut
LE20SM71 Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 20 Male stud run tee Stainless steel 20 M 27x2.0 Pre-assembled with nut and EO-DPR cutting ring
LE20SM71X Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 20 Male stud run tee Stainless steel 20 M 27x2.0 na
LE20SMCF Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 20 Male stud run tee Steel, Chromium-6 Free 20 M 27x2.0 Pre-assembled with nut and EO-PSR cutting ring
LE20SMCFX Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 20 Male stud run tee Steel, Chromium-6 Free 20 M 27x2.0 na
LE20SR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 20 Male stud run tee Stainless steel 20 G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
LE20SR71X Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 20 Male stud run tee Stainless steel 20 G 3/4 A na
LE20SRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 20 Male stud run tee Steel, Chromium-6 Free 20 G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
LE20SRCFX Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 20 Male stud run tee Steel, Chromium-6 Free 20 G 3/4 A na
LE20ZSM71 Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 20 Male stud run tee Stainless steel 20 M 27x2.0 Pre-assembled with EO-2 functional nut
LE20ZSMCF Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 20 Male stud run tee Steel, Chromium-6 Free 20 M 27x2.0 Pre-assembled with EO-2 functional nut
LE20ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 20 Male stud run tee Stainless steel 20 G 3/4 A Pre-assembled with EO-2 functional nut
LE20ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 20 Male stud run tee Steel, Chromium-6 Free 20 G 3/4 A Pre-assembled with EO-2 functional nut
LE22LM71 Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 22 Male stud run tee Stainless steel 22 M 26x1.5 Pre-assembled with nut and EO-DPR cutting ring
LE22LM71X Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 22 Male stud run tee Stainless steel 22 M 26x1.5 na
LE22LMCF Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 22 Male stud run tee Steel, Chromium-6 Free 22 M 26x1.5 Pre-assembled with nut and EO-PSR cutting ring
LE22LMCFX Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 22 Male stud run tee Steel, Chromium-6 Free 22 M 26x1.5 na
LE22LR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 22 Male stud run tee Stainless steel 22 G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
LE22LR71X Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 22 Male stud run tee Stainless steel 22 G 3/4 A na
LE22LRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 22 Male stud run tee Steel, Chromium-6 Free 22 G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
LE22LRCFX Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 22 Male stud run tee Steel, Chromium-6 Free 22 G 3/4 A na
LE22ZLM71 Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 22 Male stud run tee Stainless steel 22 M 26x1.5 Pre-assembled with EO-2 functional nut
LE22ZLMCF Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 22 Male stud run tee Steel, Chromium-6 Free 22 M 26x1.5 Pre-assembled with EO-2 functional nut
LE22ZLR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 22 Male stud run tee Stainless steel 22 G 3/4 A Pre-assembled with EO-2 functional nut
LE22ZLRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 22 Male stud run tee Steel, Chromium-6 Free 22 G 3/4 A Pre-assembled with EO-2 functional nut
LE25SM71 Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 25 Male stud run tee Stainless steel 25 M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
LE25SM71X Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 25 Male stud run tee Stainless steel 25 M 33x2.0 na
LE25SMCF Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 25 Male stud run tee Steel, Chromium-6 Free 25 M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
LE25SMCFX Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 25 Male stud run tee Steel, Chromium-6 Free 25 M 33x2.0 na
LE25SR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 25 Male stud run tee Stainless steel 25 G 1 A Pre-assembled with nut and EO-DPR cutting ring
LE25SR71X Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 25 Male stud run tee Stainless steel 25 G 1 A na
LE25SRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 25 Male stud run tee Steel, Chromium-6 Free 25 G 1 A Pre-assembled with nut and EO-PSR cutting ring
LE25SRCFX Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 25 Male stud run tee Steel, Chromium-6 Free 25 G 1 A na
LE25ZSM71 Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 25 Male stud run tee Stainless steel 25 M 33x2.0 Pre-assembled with EO-2 functional nut
LE25ZSMCF Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 25 Male stud run tee Steel, Chromium-6 Free 25 M 33x2.0 Pre-assembled with EO-2 functional nut
LE25ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 25 Male stud run tee Stainless steel 25 G 1 A Pre-assembled with EO-2 functional nut
LE25ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 25 Male stud run tee Steel, Chromium-6 Free 25 G 1 A Pre-assembled with EO-2 functional nut
LE28LM71 Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 28 Male stud run tee Stainless steel 28 M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
LE28LM71X Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 28 Male stud run tee Stainless steel 28 M 33x2.0 na
LE28LMCF Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 28 Male stud run tee Steel, Chromium-6 Free 28 M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
LE28LMCFX Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 28 Male stud run tee Steel, Chromium-6 Free 28 M 33x2.0 na
LE28LR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 28 Male stud run tee Stainless steel 28 G 1 A Pre-assembled with nut and EO-DPR cutting ring
LE28LR71X Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 28 Male stud run tee Stainless steel 28 G 1 A na
LE28LRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 28 Male stud run tee Steel, Chromium-6 Free 28 G 1 A Pre-assembled with nut and EO-PSR cutting ring
LE28LRCFX Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 28 Male stud run tee Steel, Chromium-6 Free 28 G 1 A na
LE28ZLM71 Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 28 Male stud run tee Stainless steel 28 M 33x2.0 Pre-assembled with EO-2 functional nut
LE28ZLMCF Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 28 Male stud run tee Steel, Chromium-6 Free 28 M 33x2.0 Pre-assembled with EO-2 functional nut
LE28ZLR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 28 Male stud run tee Stainless steel 28 G 1 A Pre-assembled with EO-2 functional nut
LE28ZLRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 28 Male stud run tee Steel, Chromium-6 Free 28 G 1 A Pre-assembled with EO-2 functional nut
LE30SM71 Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 30 Male stud run tee Stainless steel 30 M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
LE30SM71X Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 30 Male stud run tee Stainless steel 30 M 42x2.0 na
LE30SMCF Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 30 Male stud run tee Steel, Chromium-6 Free 30 M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
LE30SMCFX Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 30 Male stud run tee Steel, Chromium-6 Free 30 M 42x2.0 na
LE30SR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 30 Male stud run tee Stainless steel 30 G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
LE30SR71X Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 30 Male stud run tee Stainless steel 30 G 1 1/4 A na
LE30SRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 30 Male stud run tee Steel, Chromium-6 Free 30 G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
LE30SRCFX Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 30 Male stud run tee Steel, Chromium-6 Free 30 G 1 1/4 A na
LE30ZSM71 Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 30 Male stud run tee Stainless steel 30 M 42x2.0 Pre-assembled with EO-2 functional nut
LE30ZSMCF Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 30 Male stud run tee Steel, Chromium-6 Free 30 M 42x2.0 Pre-assembled with EO-2 functional nut
LE30ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 30 Male stud run tee Stainless steel 30 G 1 1/4 A Pre-assembled with EO-2 functional nut
LE30ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 30 Male stud run tee Steel, Chromium-6 Free 30 G 1 1/4 A Pre-assembled with EO-2 functional nut
LE35LM71 Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 35 Male stud run tee Stainless steel 35 M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
LE35LM71X Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 35 Male stud run tee Stainless steel 35 M 42x2.0 na
LE35LMCF Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 35 Male stud run tee Steel, Chromium-6 Free 35 M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
LE35LMCFX Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 35 Male stud run tee Steel, Chromium-6 Free 35 M 42x2.0 na
LE35LR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 35 Male stud run tee Stainless steel 35 G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
LE35LR71X Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 35 Male stud run tee Stainless steel 35 G 1 1/4 A na
LE35LRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 35 Male stud run tee Steel, Chromium-6 Free 35 G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
LE35LRCFX Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 35 Male stud run tee Steel, Chromium-6 Free 35 G 1 1/4 A na
LE35ZLM71 Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 35 Male stud run tee Stainless steel 35 M 42x2.0 Pre-assembled with EO-2 functional nut
LE35ZLMCF Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 35 Male stud run tee Steel, Chromium-6 Free 35 M 42x2.0 Pre-assembled with EO-2 functional nut
LE35ZLR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 35 Male stud run tee Stainless steel 35 G 1 1/4 A Pre-assembled with EO-2 functional nut
LE35ZLRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 35 Male stud run tee Steel, Chromium-6 Free 35 G 1 1/4 A Pre-assembled with EO-2 functional nut
LE38SM71 Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 38 Male stud run tee Stainless steel 38 M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
LE38SM71X Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 38 Male stud run tee Stainless steel 38 M 48x2.0 na
LE38SMCF Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 38 Male stud run tee Steel, Chromium-6 Free 38 M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
LE38SMCFX Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 38 Male stud run tee Steel, Chromium-6 Free 38 M 48x2.0 na
LE38SR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 38 Male stud run tee Stainless steel 38 G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
LE38SR71X Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 38 Male stud run tee Stainless steel 38 G 1 1/2 A na
LE38SRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 38 Male stud run tee Steel, Chromium-6 Free 38 G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
LE38SRCFX Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 38 Male stud run tee Steel, Chromium-6 Free 38 G 1 1/2 A na
LE38ZSM71 Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 38 Male stud run tee Stainless steel 38 M 48x2.0 Pre-assembled with EO-2 functional nut
LE38ZSMCF Heavy 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 38 Male stud run tee Steel, Chromium-6 Free 38 M 48x2.0 Pre-assembled with EO-2 functional nut
LE38ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 38 Male stud run tee Stainless steel 38 G 1 1/2 A Pre-assembled with EO-2 functional nut
LE38ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 38 Male stud run tee Steel, Chromium-6 Free 38 G 1 1/2 A Pre-assembled with EO-2 functional nut
LE42LM71 Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 42 Male stud run tee Stainless steel 42 M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
LE42LM71X Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 42 Male stud run tee Stainless steel 42 M 48x2.0 na
LE42LMCF Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 42 Male stud run tee Steel, Chromium-6 Free 42 M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
LE42LMCFX Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 42 Male stud run tee Steel, Chromium-6 Free 42 M 48x2.0 na
LE42LR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 42 Male stud run tee Stainless steel 42 G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
LE42LR71X Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 42 Male stud run tee Stainless steel 42 G 1 1/2 A na
LE42LRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 42 Male stud run tee Steel, Chromium-6 Free 42 G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
LE42LRCFX Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 42 Male stud run tee Steel, Chromium-6 Free 42 G 1 1/2 A na
LE42ZLM71 Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 42 Male stud run tee Stainless steel 42 M 48x2.0 Pre-assembled with EO-2 functional nut
LE42ZLMCF Light 24° cone end 24° cone end Male metric thread - metal sealing edge (ISO 9974) 42 Male stud run tee Steel, Chromium-6 Free 42 M 48x2.0 Pre-assembled with EO-2 functional nut
LE42ZLR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 42 Male stud run tee Stainless steel 42 G 1 1/2 A Pre-assembled with EO-2 functional nut
LE42ZLRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 42 Male stud run tee Steel, Chromium-6 Free 42 G 1 1/2 A Pre-assembled with EO-2 functional nut
TE04LLM71 Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 4 Male stud branch tee Stainless steel 4 M 08x1.0 tap. Pre-assembled with nut and EO-DPR cutting ring
TE04LLM71X Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 4 Male stud branch tee Stainless steel 4 M 08x1.0 tap. na
TE04LLMCF Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 4 Male stud branch tee Steel, Chromium-6 Free 4 M 08x1.0 tap. Pre-assembled with nut and EO-PSR cutting ring
TE04LLMCFX Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 4 Male stud branch tee Steel, Chromium-6 Free 4 M 08x1.0 tap. na
TE04LLR71 Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 4 Male stud branch tee Stainless steel 4 R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
TE04LLR71X Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 4 Male stud branch tee Stainless steel 4 R 1/8 tap. na
TE04LLRCF Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 4 Male stud branch tee Steel, Chromium-6 Free 4 R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
TE04LLRCFX Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 4 Male stud branch tee Steel, Chromium-6 Free 4 R 1/8 tap. na
TE04ZLLM71 Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 4 Male stud branch tee Stainless steel 4 M 08x1.0 tap. Pre-assembled with EO-2 functional nut
TE04ZLLMCF Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 4 Male stud branch tee Steel, Chromium-6 Free 4 M 08x1.0 tap. Pre-assembled with EO-2 functional nut
TE04ZLLR71 Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 4 Male stud branch tee Stainless steel 4 R 1/8 tap. Pre-assembled with EO-2 functional nut
TE04ZLLRCF Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 4 Male stud branch tee Steel, Chromium-6 Free 4 R 1/8 tap. Pre-assembled with EO-2 functional nut
TE06LLM71 Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Stainless steel 6 M 10x1.0 tap. Pre-assembled with nut and EO-DPR cutting ring
TE06LLM71X Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Stainless steel 6 M 10x1.0 tap. na
TE06LLMCF Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 M 10x1.0 tap. Pre-assembled with nut and EO-PSR cutting ring
TE06LLMCFX Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 M 10x1.0 tap. na
TE06LLR71 Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Stainless steel 6 R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
TE06LLR71X Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Stainless steel 6 R 1/8 tap. na
TE06LLRCF Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
TE06LLRCFX Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 R 1/8 tap. na
TE06LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Stainless steel 6 M 10x1.0 tap. Pre-assembled with nut and EO-DPR cutting ring
TE06LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Stainless steel 6 M 10x1.0 tap. na
TE06LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 M 10x1.0 tap. Pre-assembled with nut and EO-PSR cutting ring
TE06LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 M 10x1.0 tap. na
TE06LR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Stainless steel 6 R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
TE06LR71X Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Stainless steel 6 R 1/8 tap. na
TE06LRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
TE06LRCFX Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 R 1/8 tap. na
TE06SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Stainless steel 6 M 12x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
TE06SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Stainless steel 6 M 12x1.5 tap. na
TE06SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 M 12x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
TE06SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 M 12x1.5 tap. na
TE06SR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Stainless steel 6 R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
TE06SR71X Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Stainless steel 6 R 1/4 tap. na
TE06SRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
TE06SRCFX Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 R 1/4 tap. na
TE06ZLLM71 Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Stainless steel 6 M 10x1.0 tap. Pre-assembled with EO-2 functional nut
TE06ZLLMCF Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 M 10x1.0 tap. Pre-assembled with EO-2 functional nut
TE06ZLLR71 Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Stainless steel 6 R 1/8 tap. Pre-assembled with EO-2 functional nut
TE06ZLLRCF Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 R 1/8 tap. Pre-assembled with EO-2 functional nut
TE06ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Stainless steel 6 M 10x1.0 tap. Pre-assembled with EO-2 functional nut
TE06ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 M 10x1.0 tap. Pre-assembled with EO-2 functional nut
TE06ZLR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Stainless steel 6 R 1/8 tap. Pre-assembled with EO-2 functional nut
TE06ZLRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 R 1/8 tap. Pre-assembled with EO-2 functional nut
TE06ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Stainless steel 6 M 12x1.5 tap. Pre-assembled with EO-2 functional nut
TE06ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 M 12x1.5 tap. Pre-assembled with EO-2 functional nut
TE06ZSR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Stainless steel 6 R 1/4 tap. Pre-assembled with EO-2 functional nut
TE06ZSRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 6 Male stud branch tee Steel, Chromium-6 Free 6 R 1/4 tap. Pre-assembled with EO-2 functional nut
TE08LLM71 Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Stainless steel 8 M 10x1.0 tap. Pre-assembled with nut and EO-DPR cutting ring
TE08LLM71X Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Stainless steel 8 M 10x1.0 tap. na
TE08LLMCF Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 M 10x1.0 tap. Pre-assembled with nut and EO-PSR cutting ring
TE08LLMCFX Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 M 10x1.0 tap. na
TE08LLR71 Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Stainless steel 8 R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
TE08LLR71X Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Stainless steel 8 R 1/8 tap. na
TE08LLRCF Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
TE08LLRCFX Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 R 1/8 tap. na
TE08LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Stainless steel 8 M 12x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
TE08LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Stainless steel 8 M 12x1.5 tap. na
TE08LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 M 12x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
TE08LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 M 12x1.5 tap. na
TE08LR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Stainless steel 8 R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
TE08LR71X Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Stainless steel 8 R 1/4 tap. na
TE08LRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
TE08LRCFX Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 R 1/4 tap. na
TE08SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Stainless steel 8 M 14x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
TE08SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Stainless steel 8 M 14x1.5 tap. na
TE08SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 M 14x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
TE08SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 M 14x1.5 tap. na
TE08SR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Stainless steel 8 R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
TE08SR71X Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Stainless steel 8 R 1/4 tap. na
TE08SRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
TE08SRCFX Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 R 1/4 tap. na
TE08ZLLM71 Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Stainless steel 8 M 10x1.0 tap. Pre-assembled with EO-2 functional nut
TE08ZLLMCF Very light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 M 10x1.0 tap. Pre-assembled with EO-2 functional nut
TE08ZLLR71 Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Stainless steel 8 R 1/8 tap. Pre-assembled with EO-2 functional nut
TE08ZLLRCF Very light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 R 1/8 tap. Pre-assembled with EO-2 functional nut
TE08ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Stainless steel 8 M 12x1.5 tap. Pre-assembled with EO-2 functional nut
TE08ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 M 12x1.5 tap. Pre-assembled with EO-2 functional nut
TE08ZLR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Stainless steel 8 R 1/4 tap. Pre-assembled with EO-2 functional nut
TE08ZLRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 R 1/4 tap. Pre-assembled with EO-2 functional nut
TE08ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Stainless steel 8 M 14x1.5 tap. Pre-assembled with EO-2 functional nut
TE08ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 M 14x1.5 tap. Pre-assembled with EO-2 functional nut
TE08ZSR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Stainless steel 8 R 1/4 tap. Pre-assembled with EO-2 functional nut
TE08ZSRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 8 Male stud branch tee Steel, Chromium-6 Free 8 R 1/4 tap. Pre-assembled with EO-2 functional nut
TE10LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud branch tee Stainless steel 10 M 14x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
TE10LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud branch tee Stainless steel 10 M 14x1.5 tap. na
TE10LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud branch tee Steel, Chromium-6 Free 10 M 14x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
TE10LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud branch tee Steel, Chromium-6 Free 10 M 14x1.5 tap. na
TE10LR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud branch tee Stainless steel 10 R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
TE10LR71X Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud branch tee Stainless steel 10 R 1/4 tap. na
TE10LRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud branch tee Steel, Chromium-6 Free 10 R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
TE10LRCFX Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud branch tee Steel, Chromium-6 Free 10 R 1/4 tap. na
TE10SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud branch tee Stainless steel 10 M 16x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
TE10SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud branch tee Stainless steel 10 M 16x1.5 tap. na
TE10SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud branch tee Steel, Chromium-6 Free 10 M 16x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
TE10SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud branch tee Steel, Chromium-6 Free 10 M 16x1.5 tap. na
TE10SR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud branch tee Stainless steel 10 R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
TE10SR71X Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud branch tee Stainless steel 10 R 3/8 tap. na
TE10SRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud branch tee Steel, Chromium-6 Free 10 R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
TE10SRCFX Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud branch tee Steel, Chromium-6 Free 10 R 3/8 tap. na
TE10ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud branch tee Stainless steel 10 M 14x1.5 tap. Pre-assembled with EO-2 functional nut
TE10ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud branch tee Steel, Chromium-6 Free 10 M 14x1.5 tap. Pre-assembled with EO-2 functional nut
TE10ZLR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud branch tee Stainless steel 10 R 1/4 tap. Pre-assembled with EO-2 functional nut
TE10ZLRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud branch tee Steel, Chromium-6 Free 10 R 1/4 tap. Pre-assembled with EO-2 functional nut
TE10ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud branch tee Stainless steel 10 M 16x1.5 tap. Pre-assembled with EO-2 functional nut
TE10ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 10 Male stud branch tee Steel, Chromium-6 Free 10 M 16x1.5 tap. Pre-assembled with EO-2 functional nut
TE10ZSR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud branch tee Stainless steel 10 R 3/8 tap. Pre-assembled with EO-2 functional nut
TE10ZSRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 10 Male stud branch tee Steel, Chromium-6 Free 10 R 3/8 tap. Pre-assembled with EO-2 functional nut
TE12LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud branch tee Stainless steel 12 M 16x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
TE12LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud branch tee Stainless steel 12 M 16x1.5 tap. na
TE12LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud branch tee Steel, Chromium-6 Free 12 M 16x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
TE12LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud branch tee Steel, Chromium-6 Free 12 M 16x1.5 tap. na
TE12LR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud branch tee Stainless steel 12 R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
TE12LR71X Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud branch tee Stainless steel 12 R 3/8 tap. na
TE12LRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud branch tee Steel, Chromium-6 Free 12 R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
TE12LRCFX Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud branch tee Steel, Chromium-6 Free 12 R 3/8 tap. na
TE12SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud branch tee Stainless steel 12 M 18x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
TE12SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud branch tee Stainless steel 12 M 18x1.5 tap. na
TE12SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud branch tee Steel, Chromium-6 Free 12 M 18x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
TE12SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud branch tee Steel, Chromium-6 Free 12 M 18x1.5 tap. na
TE12SR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud branch tee Stainless steel 12 R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
TE12SR71X Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud branch tee Stainless steel 12 R 3/8 tap. na
TE12SRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud branch tee Steel, Chromium-6 Free 12 R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
TE12SRCFX Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud branch tee Steel, Chromium-6 Free 12 R 3/8 tap. na
TE12ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud branch tee Stainless steel 12 M 16x1.5 tap. Pre-assembled with EO-2 functional nut
TE12ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud branch tee Steel, Chromium-6 Free 12 M 16x1.5 tap. Pre-assembled with EO-2 functional nut
TE12ZLR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud branch tee Stainless steel 12 R 3/8 tap. Pre-assembled with EO-2 functional nut
TE12ZLRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud branch tee Steel, Chromium-6 Free 12 R 3/8 tap. Pre-assembled with EO-2 functional nut
TE12ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud branch tee Stainless steel 12 M 18x1.5 tap. Pre-assembled with EO-2 functional nut
TE12ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 12 Male stud branch tee Steel, Chromium-6 Free 12 M 18x1.5 tap. Pre-assembled with EO-2 functional nut
TE12ZSR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud branch tee Stainless steel 12 R 3/8 tap. Pre-assembled with EO-2 functional nut
TE12ZSRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 12 Male stud branch tee Steel, Chromium-6 Free 12 R 3/8 tap. Pre-assembled with EO-2 functional nut
TE14SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 14 Male stud branch tee Stainless steel 14 M 20x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
TE14SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 14 Male stud branch tee Stainless steel 14 M 20x1.5 tap. na
TE14SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 14 Male stud branch tee Steel, Chromium-6 Free 14 M 20x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
TE14SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 14 Male stud branch tee Steel, Chromium-6 Free 14 M 20x1.5 tap. na
TE14SR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 14 Male stud branch tee Stainless steel 14 R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
TE14SR71X Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 14 Male stud branch tee Stainless steel 14 R 1/2 tap. na
TE14SRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 14 Male stud branch tee Steel, Chromium-6 Free 14 R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
TE14SRCFX Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 14 Male stud branch tee Steel, Chromium-6 Free 14 R 1/2 tap. na
TE14ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 14 Male stud branch tee Stainless steel 14 M 20x1.5 tap. Pre-assembled with EO-2 functional nut
TE14ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 14 Male stud branch tee Steel, Chromium-6 Free 14 M 20x1.5 tap. Pre-assembled with EO-2 functional nut
TE14ZSR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 14 Male stud branch tee Stainless steel 14 R 1/2 tap. Pre-assembled with EO-2 functional nut
TE14ZSRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 14 Male stud branch tee Steel, Chromium-6 Free 14 R 1/2 tap. Pre-assembled with EO-2 functional nut
TE15LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 15 Male stud branch tee Stainless steel 15 M 18x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
TE15LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 15 Male stud branch tee Stainless steel 15 M 18x1.5 tap. na
TE15LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 15 Male stud branch tee Steel, Chromium-6 Free 15 M 18x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
TE15LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 15 Male stud branch tee Steel, Chromium-6 Free 15 M 18x1.5 tap. na
TE15LR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 15 Male stud branch tee Stainless steel 15 R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
TE15LR71X Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 15 Male stud branch tee Stainless steel 15 R 1/2 tap. na
TE15LRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 15 Male stud branch tee Steel, Chromium-6 Free 15 R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
TE15LRCFX Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 15 Male stud branch tee Steel, Chromium-6 Free 15 R 1/2 tap. na
TE15ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 15 Male stud branch tee Stainless steel 15 M 18x1.5 tap. Pre-assembled with EO-2 functional nut
TE15ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 15 Male stud branch tee Steel, Chromium-6 Free 15 M 18x1.5 tap. Pre-assembled with EO-2 functional nut
TE15ZLR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 15 Male stud branch tee Stainless steel 15 R 1/2 tap. Pre-assembled with EO-2 functional nut
TE15ZLRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 15 Male stud branch tee Steel, Chromium-6 Free 15 R 1/2 tap. Pre-assembled with EO-2 functional nut
TE16SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 16 Male stud branch tee Stainless steel 16 M 22x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
TE16SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 16 Male stud branch tee Stainless steel 16 M 22x1.5 tap. na
TE16SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 16 Male stud branch tee Steel, Chromium-6 Free 16 M 22x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
TE16SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 16 Male stud branch tee Steel, Chromium-6 Free 16 M 22x1.5 tap. na
TE16SR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 16 Male stud branch tee Stainless steel 16 R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
TE16SR71X Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 16 Male stud branch tee Stainless steel 16 R 1/2 tap. na
TE16SRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 16 Male stud branch tee Steel, Chromium-6 Free 16 R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
TE16SRCFX Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 16 Male stud branch tee Steel, Chromium-6 Free 16 R 1/2 tap. na
TE16ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 16 Male stud branch tee Stainless steel 16 M 22x1.5 tap. Pre-assembled with EO-2 functional nut
TE16ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 16 Male stud branch tee Steel, Chromium-6 Free 16 M 22x1.5 tap. Pre-assembled with EO-2 functional nut
TE16ZSR71 Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 16 Male stud branch tee Stainless steel 16 R 1/2 tap. Pre-assembled with EO-2 functional nut
TE16ZSRCF Heavy 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 16 Male stud branch tee Steel, Chromium-6 Free 16 R 1/2 tap. Pre-assembled with EO-2 functional nut
TE18LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 18 Male stud branch tee Stainless steel 18 M 22x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
TE18LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 18 Male stud branch tee Stainless steel 18 M 22x1.5 tap. na
TE18LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 18 Male stud branch tee Steel, Chromium-6 Free 18 M 22x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
TE18LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 18 Male stud branch tee Steel, Chromium-6 Free 18 M 22x1.5 tap. na
TE18LR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 18 Male stud branch tee Stainless steel 18 R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
TE18LR71X Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 18 Male stud branch tee Stainless steel 18 R 1/2 tap. na
TE18LRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 18 Male stud branch tee Steel, Chromium-6 Free 18 R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
TE18LRCFX Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 18 Male stud branch tee Steel, Chromium-6 Free 18 R 1/2 tap. na
TE18ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 18 Male stud branch tee Stainless steel 18 M 22x1.5 tap. Pre-assembled with EO-2 functional nut
TE18ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 18 Male stud branch tee Steel, Chromium-6 Free 18 M 22x1.5 tap. Pre-assembled with EO-2 functional nut
TE18ZLR71 Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 18 Male stud branch tee Stainless steel 18 R 1/2 tap. Pre-assembled with EO-2 functional nut
TE18ZLRCF Light 24° cone end 24° cone end Male short BSP taper thread (DIN 3852-2, type C) 18 Male stud branch tee Steel, Chromium-6 Free 18 R 1/2 tap. Pre-assembled with EO-2 functional nut
TE20SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 20 Male stud branch tee Stainless steel 20 M 27x2.0 Pre-assembled with nut and EO-DPR cutting ring
TE20SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 20 Male stud branch tee Stainless steel 20 M 27x2.0 na
TE20SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 20 Male stud branch tee Steel, Chromium-6 Free 20 M 27x2.0 Pre-assembled with nut and EO-PSR cutting ring
TE20SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 20 Male stud branch tee Steel, Chromium-6 Free 20 M 27x2.0 na
TE20SR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 20 Male stud branch tee Stainless steel 20 G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
TE20SR71X Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 20 Male stud branch tee Stainless steel 20 G 3/4 A na
TE20SRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 20 Male stud branch tee Steel, Chromium-6 Free 20 G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
TE20SRCFX Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 20 Male stud branch tee Steel, Chromium-6 Free 20 G 3/4 A na
TE20ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 20 Male stud branch tee Stainless steel 20 M 27x2.0 Pre-assembled with EO-2 functional nut
TE20ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 20 Male stud branch tee Steel, Chromium-6 Free 20 M 27x2.0 Pre-assembled with EO-2 functional nut
TE20ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 20 Male stud branch tee Stainless steel 20 G 3/4 A Pre-assembled with EO-2 functional nut
TE20ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 20 Male stud branch tee Steel, Chromium-6 Free 20 G 3/4 A Pre-assembled with EO-2 functional nut
TE22LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 22 Male stud branch tee Stainless steel 22 M 26x1.5 Pre-assembled with nut and EO-DPR cutting ring
TE22LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 22 Male stud branch tee Stainless steel 22 M 26x1.5 na
TE22LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 22 Male stud branch tee Steel, Chromium-6 Free 22 M 26x1.5 Pre-assembled with nut and EO-PSR cutting ring
TE22LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 22 Male stud branch tee Steel, Chromium-6 Free 22 M 26x1.5 na
TE22LR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 22 Male stud branch tee Stainless steel 22 G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
TE22LR71X Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 22 Male stud branch tee Stainless steel 22 G 3/4 A na
TE22LRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 22 Male stud branch tee Steel, Chromium-6 Free 22 G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
TE22LRCFX Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 22 Male stud branch tee Steel, Chromium-6 Free 22 G 3/4 A na
TE22ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 22 Male stud branch tee Stainless steel 22 M 26x1.5 Pre-assembled with EO-2 functional nut
TE22ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 22 Male stud branch tee Steel, Chromium-6 Free 22 M 26x1.5 Pre-assembled with EO-2 functional nut
TE22ZLR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 22 Male stud branch tee Stainless steel 22 G 3/4 A Pre-assembled with EO-2 functional nut
TE22ZLRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 22 Male stud branch tee Steel, Chromium-6 Free 22 G 3/4 A Pre-assembled with EO-2 functional nut
TE25SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 25 Male stud branch tee Stainless steel 25 M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
TE25SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 25 Male stud branch tee Stainless steel 25 M 33x2.0 na
TE25SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 25 Male stud branch tee Steel, Chromium-6 Free 25 M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
TE25SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 25 Male stud branch tee Steel, Chromium-6 Free 25 M 33x2.0 na
TE25SR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 25 Male stud branch tee Stainless steel 25 G 1 A Pre-assembled with nut and EO-DPR cutting ring
TE25SR71X Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 25 Male stud branch tee Stainless steel 25 G 1 A na
TE25SRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 25 Male stud branch tee Steel, Chromium-6 Free 25 G 1 A Pre-assembled with nut and EO-PSR cutting ring
TE25SRCFX Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 25 Male stud branch tee Steel, Chromium-6 Free 25 G 1 A na
TE25ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 25 Male stud branch tee Stainless steel 25 M 33x2.0 Pre-assembled with EO-2 functional nut
TE25ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 25 Male stud branch tee Steel, Chromium-6 Free 25 M 33x2.0 Pre-assembled with EO-2 functional nut
TE25ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 25 Male stud branch tee Stainless steel 25 G 1 A Pre-assembled with EO-2 functional nut
TE25ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 25 Male stud branch tee Steel, Chromium-6 Free 25 G 1 A Pre-assembled with EO-2 functional nut
TE28LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 28 Male stud branch tee Stainless steel 28 M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
TE28LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 28 Male stud branch tee Stainless steel 28 M 33x2.0 na
TE28LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 28 Male stud branch tee Steel, Chromium-6 Free 28 M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
TE28LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 28 Male stud branch tee Steel, Chromium-6 Free 28 M 33x2.0 na
TE28LR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 28 Male stud branch tee Stainless steel 28 G 1 A Pre-assembled with nut and EO-DPR cutting ring
TE28LR71X Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 28 Male stud branch tee Stainless steel 28 G 1 A na
TE28LRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 28 Male stud branch tee Steel, Chromium-6 Free 28 G 1 A Pre-assembled with nut and EO-PSR cutting ring
TE28LRCFX Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 28 Male stud branch tee Steel, Chromium-6 Free 28 G 1 A na
TE28ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 28 Male stud branch tee Stainless steel 28 M 33x2.0 Pre-assembled with EO-2 functional nut
TE28ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 28 Male stud branch tee Steel, Chromium-6 Free 28 M 33x2.0 Pre-assembled with EO-2 functional nut
TE28ZLR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 28 Male stud branch tee Stainless steel 28 G 1 A Pre-assembled with EO-2 functional nut
TE28ZLRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 28 Male stud branch tee Steel, Chromium-6 Free 28 G 1 A Pre-assembled with EO-2 functional nut
TE30SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 30 Male stud branch tee Stainless steel 30 M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
TE30SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 30 Male stud branch tee Stainless steel 30 M 42x2.0 na
TE30SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 30 Male stud branch tee Steel, Chromium-6 Free 30 M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
TE30SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 30 Male stud branch tee Steel, Chromium-6 Free 30 M 42x2.0 na
TE30SR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 30 Male stud branch tee Stainless steel 30 G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TE30SR71X Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 30 Male stud branch tee Stainless steel 30 G 1 1/4 A na
TE30SRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 30 Male stud branch tee Steel, Chromium-6 Free 30 G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TE30SRCFX Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 30 Male stud branch tee Steel, Chromium-6 Free 30 G 1 1/4 A na
TE30ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 30 Male stud branch tee Stainless steel 30 M 42x2.0 Pre-assembled with EO-2 functional nut
TE30ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 30 Male stud branch tee Steel, Chromium-6 Free 30 M 42x2.0 Pre-assembled with EO-2 functional nut
TE30ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 30 Male stud branch tee Stainless steel 30 G 1 1/4 A Pre-assembled with EO-2 functional nut
TE30ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 30 Male stud branch tee Steel, Chromium-6 Free 30 G 1 1/4 A Pre-assembled with EO-2 functional nut
TE35LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 35 Male stud branch tee Stainless steel 35 M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
TE35LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 35 Male stud branch tee Stainless steel 35 M 42x2.0 na
TE35LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 35 Male stud branch tee Steel, Chromium-6 Free 35 M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
TE35LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 35 Male stud branch tee Steel, Chromium-6 Free 35 M 42x2.0 na
TE35LR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 35 Male stud branch tee Stainless steel 35 G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
TE35LR71X Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 35 Male stud branch tee Stainless steel 35 G 1 1/4 A na
TE35LRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 35 Male stud branch tee Steel, Chromium-6 Free 35 G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
TE35LRCFX Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 35 Male stud branch tee Steel, Chromium-6 Free 35 G 1 1/4 A na
TE35ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 35 Male stud branch tee Stainless steel 35 M 42x2.0 Pre-assembled with EO-2 functional nut
TE35ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 35 Male stud branch tee Steel, Chromium-6 Free 35 M 42x2.0 Pre-assembled with EO-2 functional nut
TE35ZLR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 35 Male stud branch tee Stainless steel 35 G 1 1/4 A Pre-assembled with EO-2 functional nut
TE35ZLRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 35 Male stud branch tee Steel, Chromium-6 Free 35 G 1 1/4 A Pre-assembled with EO-2 functional nut
TE38SM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 38 Male stud branch tee Stainless steel 38 M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
TE38SM71X Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 38 Male stud branch tee Stainless steel 38 M 48x2.0 na
TE38SMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 38 Male stud branch tee Steel, Chromium-6 Free 38 M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
TE38SMCFX Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 38 Male stud branch tee Steel, Chromium-6 Free 38 M 48x2.0 na
TE38SR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 38 Male stud branch tee Stainless steel 38 G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TE38SR71X Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 38 Male stud branch tee Stainless steel 38 G 1 1/2 A na
TE38SRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 38 Male stud branch tee Steel, Chromium-6 Free 38 G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TE38SRCFX Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 38 Male stud branch tee Steel, Chromium-6 Free 38 G 1 1/2 A na
TE38ZSM71 Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 38 Male stud branch tee Stainless steel 38 M 48x2.0 Pre-assembled with EO-2 functional nut
TE38ZSMCF Heavy 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 38 Male stud branch tee Steel, Chromium-6 Free 38 M 48x2.0 Pre-assembled with EO-2 functional nut
TE38ZSR71 Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 38 Male stud branch tee Stainless steel 38 G 1 1/2 A Pre-assembled with EO-2 functional nut
TE38ZSRCF Heavy 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 38 Male stud branch tee Steel, Chromium-6 Free 38 G 1 1/2 A Pre-assembled with EO-2 functional nut
TE42LM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 42 Male stud branch tee Stainless steel 42 M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
TE42LM71X Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 42 Male stud branch tee Stainless steel 42 M 48x2.0 na
TE42LMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 42 Male stud branch tee Steel, Chromium-6 Free 42 M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
TE42LMCFX Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 42 Male stud branch tee Steel, Chromium-6 Free 42 M 48x2.0 na
TE42LR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 42 Male stud branch tee Stainless steel 42 G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
TE42LR71X Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 42 Male stud branch tee Stainless steel 42 G 1 1/2 A na
TE42LRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 42 Male stud branch tee Steel, Chromium-6 Free 42 G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
TE42LRCFX Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 42 Male stud branch tee Steel, Chromium-6 Free 42 G 1 1/2 A na
TE42ZLM71 Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 42 Male stud branch tee Stainless steel 42 M 48x2.0 Pre-assembled with EO-2 functional nut
TE42ZLMCF Light 24° cone end 24° cone end Male short metric taper thread (DIN 3852-1, type C) 42 Male stud branch tee Steel, Chromium-6 Free 42 M 48x2.0 Pre-assembled with EO-2 functional nut
TE42ZLR71 Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 42 Male stud branch tee Stainless steel 42 G 1 1/2 A Pre-assembled with EO-2 functional nut
TE42ZLRCF Light 24° cone end 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) 42 Male stud branch tee Steel, Chromium-6 Free 42 G 1 1/2 A Pre-assembled with EO-2 functional nut
WE04LL1/8NPT71 Very light 24° cone end Male NPT thread (SAE J476) na 4 Male stud elbow Stainless steel na 1/8-27 NPT Pre-assembled with nut and EO-DPR cutting ring
WE04LL1/8NPT71X Very light 24° cone end Male NPT thread (SAE J476) na 4 Male stud elbow Stainless steel na 1/8-27 NPT na
WE04LL1/8NPTCF Very light 24° cone end Male NPT thread (SAE J476) na 4 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT Pre-assembled with nut and EO-PSR cutting ring
WE04LL1/8NPTCFX Very light 24° cone end Male NPT thread (SAE J476) na 4 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT na
WE04LLM71 Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 4 Male stud elbow Stainless steel na M 08x1.0 tap. Pre-assembled with nut and EO-DPR cutting ring
WE04LLM71X Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 4 Male stud elbow Stainless steel na M 08x1.0 tap. na
WE04LLMCF Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 4 Male stud elbow Steel, Chromium-6 Free na M 08x1.0 tap. Pre-assembled with nut and EO-PSR cutting ring
WE04LLMCFX Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 4 Male stud elbow Steel, Chromium-6 Free na M 08x1.0 tap. na
WE04LLR71 Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 4 Male stud elbow Stainless steel na R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
WE04LLR71X Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 4 Male stud elbow Stainless steel na R 1/8 tap. na
WE04LLRCF Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 4 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
WE04LLRCFX Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 4 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. na
WE04ZLL1/8NPT71 Very light 24° cone end Male NPT thread (SAE J476) na 4 Male stud elbow Stainless steel na 1/8-27 NPT Pre-assembled with EO-2 functional nut
WE04ZLL1/8NPTCF Very light 24° cone end Male NPT thread (SAE J476) na 4 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT Pre-assembled with EO-2 functional nut
WE04ZLLM71 Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 4 Male stud elbow Stainless steel na M 08x1.0 tap. Pre-assembled with EO-2 functional nut
WE04ZLLMCF Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 4 Male stud elbow Steel, Chromium-6 Free na M 08x1.0 tap. Pre-assembled with EO-2 functional nut
WE04ZLLR71 Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 4 Male stud elbow Stainless steel na R 1/8 tap. Pre-assembled with EO-2 functional nut
WE04ZLLRCF Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 4 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. Pre-assembled with EO-2 functional nut
WE06L1/4NPT71 Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE06L1/4NPT71X Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 1/4-18 NPT na
WE06L1/4NPTCF Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE06L1/4NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT na
WE06L1/8NPT71 Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 1/8-27 NPT Pre-assembled with nut and EO-DPR cutting ring
WE06L1/8NPT71X Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 1/8-27 NPT na
WE06L1/8NPTCF Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT Pre-assembled with nut and EO-PSR cutting ring
WE06L1/8NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT na
WE06L3/8NPT71 Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 3/8-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE06L3/8NPT71X Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 3/8-18 NPT na
WE06L3/8NPTCF Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE06L3/8NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT na
WE06LL1/8NPT71 Very light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 1/8-27 NPT Pre-assembled with nut and EO-DPR cutting ring
WE06LL1/8NPT71X Very light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 1/8-27 NPT na
WE06LL1/8NPTCF Very light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT Pre-assembled with nut and EO-PSR cutting ring
WE06LL1/8NPTCFX Very light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT na
WE06LLM71 Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Stainless steel na M 10x1.0 tap. Pre-assembled with nut and EO-DPR cutting ring
WE06LLM71X Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Stainless steel na M 10x1.0 tap. na
WE06LLMCF Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Steel, Chromium-6 Free na M 10x1.0 tap. Pre-assembled with nut and EO-PSR cutting ring
WE06LLMCFX Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Steel, Chromium-6 Free na M 10x1.0 tap. na
WE06LLR71 Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
WE06LLR71X Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 1/8 tap. na
WE06LLRCF Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
WE06LLRCFX Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. na
WE06LM71 Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Stainless steel na M 10x1.0 tap. Pre-assembled with nut and EO-DPR cutting ring
WE06LM71X Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Stainless steel na M 10x1.0 tap. na
WE06LMCF Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Steel, Chromium-6 Free na M 10x1.0 tap. Pre-assembled with nut and EO-PSR cutting ring
WE06LMCFX Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Steel, Chromium-6 Free na M 10x1.0 tap. na
WE06LR1/471 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
WE06LR1/471X Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 1/4 tap. na
WE06LR1/4CF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
WE06LR1/4CFX Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. na
WE06LR71 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
WE06LR71X Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 1/8 tap. na
WE06LRCF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
WE06LRCFX Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. na
WE06S1/4NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE06S1/4NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 1/4-18 NPT na
WE06S1/4NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE06S1/4NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT na
WE06SM71 Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Stainless steel na M 12x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
WE06SM71X Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Stainless steel na M 12x1.5 tap. na
WE06SMCF Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Steel, Chromium-6 Free na M 12x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
WE06SMCFX Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Steel, Chromium-6 Free na M 12x1.5 tap. na
WE06SR3/871 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
WE06SR3/871X Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 3/8 tap. na
WE06SR3/8CF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
WE06SR3/8CFX Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. na
WE06SR71 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
WE06SR71X Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 1/4 tap. na
WE06SRCF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
WE06SRCFX Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. na
WE06ZL1/4NPT71 Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE06ZL1/4NPTCF Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE06ZL1/8NPT71 Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 1/8-27 NPT Pre-assembled with EO-2 functional nut
WE06ZL1/8NPTCF Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT Pre-assembled with EO-2 functional nut
WE06ZL3/8NPT71 Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 3/8-18 NPT Pre-assembled with EO-2 functional nut
WE06ZL3/8NPTCF Light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT Pre-assembled with EO-2 functional nut
WE06ZLL1/8NPT71 Very light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 1/8-27 NPT Pre-assembled with EO-2 functional nut
WE06ZLL1/8NPTCF Very light 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT Pre-assembled with EO-2 functional nut
WE06ZLLM71 Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Stainless steel na M 10x1.0 tap. Pre-assembled with EO-2 functional nut
WE06ZLLMCF Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Steel, Chromium-6 Free na M 10x1.0 tap. Pre-assembled with EO-2 functional nut
WE06ZLLR71 Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 1/8 tap. Pre-assembled with EO-2 functional nut
WE06ZLLRCF Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. Pre-assembled with EO-2 functional nut
WE06ZLM71 Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Stainless steel na M 10x1.0 tap. Pre-assembled with EO-2 functional nut
WE06ZLMCF Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Steel, Chromium-6 Free na M 10x1.0 tap. Pre-assembled with EO-2 functional nut
WE06ZLR1/471 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE06ZLR1/4CF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE06ZLR71 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 1/8 tap. Pre-assembled with EO-2 functional nut
WE06ZLRCF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. Pre-assembled with EO-2 functional nut
WE06ZS1/4NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE06ZS1/4NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 6 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE06ZSM71 Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Stainless steel na M 12x1.5 tap. Pre-assembled with EO-2 functional nut
WE06ZSMCF Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 6 Male stud elbow Steel, Chromium-6 Free na M 12x1.5 tap. Pre-assembled with EO-2 functional nut
WE06ZSR3/871 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE06ZSR3/8CF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE06ZSR71 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE06ZSRCF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 6 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE08L1/4NPT71 Light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE08L1/4NPT71X Light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/4-18 NPT na
WE08L1/4NPTCF Light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE08L1/4NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT na
WE08L1/8NPT71 Light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/8-27 NPT Pre-assembled with nut and EO-DPR cutting ring
WE08L1/8NPT71X Light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/8-27 NPT na
WE08L1/8NPTCF Light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT Pre-assembled with nut and EO-PSR cutting ring
WE08L1/8NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT na
WE08LL1/8NPT71 Very light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/8-27 NPT Pre-assembled with nut and EO-DPR cutting ring
WE08LL1/8NPT71X Very light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/8-27 NPT na
WE08LL1/8NPTCF Very light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT Pre-assembled with nut and EO-PSR cutting ring
WE08LL1/8NPTCFX Very light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT na
WE08LLM71 Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Stainless steel na M 10x1.0 tap. Pre-assembled with nut and EO-DPR cutting ring
WE08LLM71X Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Stainless steel na M 10x1.0 tap. na
WE08LLMCF Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Steel, Chromium-6 Free na M 10x1.0 tap. Pre-assembled with nut and EO-PSR cutting ring
WE08LLMCFX Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Steel, Chromium-6 Free na M 10x1.0 tap. na
WE08LLR71 Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
WE08LLR71X Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 1/8 tap. na
WE08LLRCF Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
WE08LLRCFX Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. na
WE08LM71 Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Stainless steel na M 12x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
WE08LM71X Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Stainless steel na M 12x1.5 tap. na
WE08LMCF Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Steel, Chromium-6 Free na M 12x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
WE08LMCFX Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Steel, Chromium-6 Free na M 12x1.5 tap. na
WE08LR1/871 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 1/8 tap. Pre-assembled with nut and EO-DPR cutting ring
WE08LR1/871X Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 1/8 tap. na
WE08LR1/8CF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. Pre-assembled with nut and EO-PSR cutting ring
WE08LR1/8CFX Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. na
WE08LR3/871 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
WE08LR3/871X Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 3/8 tap. na
WE08LR3/8CF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
WE08LR3/8CFX Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. na
WE08LR71 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
WE08LR71X Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 1/4 tap. na
WE08LRCF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
WE08LRCFX Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. na
WE08S1/2NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with nut and EO-DPR cutting ring
WE08S1/2NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/2-14 NPT na
WE08S1/2NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with nut and EO-PSR cutting ring
WE08S1/2NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT na
WE08S1/4NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE08S1/4NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/4-18 NPT na
WE08S1/4NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE08S1/4NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT na
WE08S3/8NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 3/8-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE08S3/8NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 3/8-18 NPT na
WE08S3/8NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE08S3/8NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT na
WE08SM71 Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Stainless steel na M 14x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
WE08SM71X Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Stainless steel na M 14x1.5 tap. na
WE08SMCF Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Steel, Chromium-6 Free na M 14x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
WE08SMCFX Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Steel, Chromium-6 Free na M 14x1.5 tap. na
WE08SR3/871 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
WE08SR3/871X Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 3/8 tap. na
WE08SR3/8CF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
WE08SR3/8CFX Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. na
WE08SR71 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
WE08SR71X Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 1/4 tap. na
WE08SRCF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
WE08SRCFX Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. na
WE08ZL1/4NPT71 Light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE08ZL1/4NPTCF Light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE08ZL1/8NPT71 Light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/8-27 NPT Pre-assembled with EO-2 functional nut
WE08ZL1/8NPTCF Light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT Pre-assembled with EO-2 functional nut
WE08ZLL1/8NPT71 Very light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/8-27 NPT Pre-assembled with EO-2 functional nut
WE08ZLL1/8NPTCF Very light 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/8-27 NPT Pre-assembled with EO-2 functional nut
WE08ZLLM71 Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Stainless steel na M 10x1.0 tap. Pre-assembled with EO-2 functional nut
WE08ZLLMCF Very light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Steel, Chromium-6 Free na M 10x1.0 tap. Pre-assembled with EO-2 functional nut
WE08ZLLR71 Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 1/8 tap. Pre-assembled with EO-2 functional nut
WE08ZLLRCF Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. Pre-assembled with EO-2 functional nut
WE08ZLM71 Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Stainless steel na M 12x1.5 tap. Pre-assembled with EO-2 functional nut
WE08ZLMCF Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Steel, Chromium-6 Free na M 12x1.5 tap. Pre-assembled with EO-2 functional nut
WE08ZLR1/871 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 1/8 tap. Pre-assembled with EO-2 functional nut
WE08ZLR1/8CF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 1/8 tap. Pre-assembled with EO-2 functional nut
WE08ZLR3/871 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE08ZLR3/8CF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE08ZLR71 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE08ZLRCF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE08ZS1/2NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE08ZS1/2NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE08ZS1/4NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE08ZS1/4NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE08ZS3/8NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Stainless steel na 3/8-18 NPT Pre-assembled with EO-2 functional nut
WE08ZS3/8NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 8 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT Pre-assembled with EO-2 functional nut
WE08ZSM71 Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Stainless steel na M 14x1.5 tap. Pre-assembled with EO-2 functional nut
WE08ZSMCF Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 8 Male stud elbow Steel, Chromium-6 Free na M 14x1.5 tap. Pre-assembled with EO-2 functional nut
WE08ZSR3/871 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE08ZSR3/8CF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE08ZSR71 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE08ZSRCF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 8 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE10L1/4NPT71 Light 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE10L1/4NPT71X Light 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Stainless steel na 1/4-18 NPT na
WE10L1/4NPTCF Light 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE10L1/4NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT na
WE10L3/8NPT71 Light 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Stainless steel na 3/8-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE10L3/8NPT71X Light 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Stainless steel na 3/8-18 NPT na
WE10L3/8NPTCF Light 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE10L3/8NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT na
WE10LLR71 Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
WE10LLR71X Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 1/4 tap. na
WE10LLRCF Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
WE10LLRCFX Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. na
WE10LM71 Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 10 Male stud elbow Stainless steel na M 14x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
WE10LM71X Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 10 Male stud elbow Stainless steel na M 14x1.5 tap. na
WE10LMCF Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 10 Male stud elbow Steel, Chromium-6 Free na M 14x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
WE10LMCFX Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 10 Male stud elbow Steel, Chromium-6 Free na M 14x1.5 tap. na
WE10LR3/871 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
WE10LR3/871X Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 3/8 tap. na
WE10LR3/8CF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
WE10LR3/8CFX Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. na
WE10LR71 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
WE10LR71X Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 1/4 tap. na
WE10LRCF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
WE10LRCFX Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. na
WE10S1/4NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE10S1/4NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Stainless steel na 1/4-18 NPT na
WE10S1/4NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE10S1/4NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT na
WE10S3/8NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Stainless steel na 3/8-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE10S3/8NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Stainless steel na 3/8-18 NPT na
WE10S3/8NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE10S3/8NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT na
WE10SM71 Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 10 Male stud elbow Stainless steel na M 16x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
WE10SM71X Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 10 Male stud elbow Stainless steel na M 16x1.5 tap. na
WE10SMCF Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 10 Male stud elbow Steel, Chromium-6 Free na M 16x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
WE10SMCFX Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 10 Male stud elbow Steel, Chromium-6 Free na M 16x1.5 tap. na
WE10SR1/271 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
WE10SR1/271X Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 1/2 tap. na
WE10SR1/2CF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
WE10SR1/2CFX Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. na
WE10SR1/471 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
WE10SR1/471X Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 1/4 tap. na
WE10SR1/4CF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
WE10SR1/4CFX Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. na
WE10SR71 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
WE10SR71X Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 3/8 tap. na
WE10SRCF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
WE10SRCFX Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. na
WE10ZL1/4NPT71 Light 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE10ZL1/4NPTCF Light 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE10ZL3/8NPT71 Light 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Stainless steel na 3/8-18 NPT Pre-assembled with EO-2 functional nut
WE10ZL3/8NPTCF Light 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT Pre-assembled with EO-2 functional nut
WE10ZLLR71 Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE10ZLLRCF Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE10ZLM71 Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 10 Male stud elbow Stainless steel na M 14x1.5 tap. Pre-assembled with EO-2 functional nut
WE10ZLMCF Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 10 Male stud elbow Steel, Chromium-6 Free na M 14x1.5 tap. Pre-assembled with EO-2 functional nut
WE10ZLR3/871 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE10ZLR3/8CF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE10ZLR71 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE10ZLRCF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE10ZS1/4NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE10ZS1/4NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE10ZS3/8NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Stainless steel na 3/8-18 NPT Pre-assembled with EO-2 functional nut
WE10ZS3/8NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 10 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT Pre-assembled with EO-2 functional nut
WE10ZSM71 Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 10 Male stud elbow Stainless steel na M 16x1.5 tap. Pre-assembled with EO-2 functional nut
WE10ZSMCF Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 10 Male stud elbow Steel, Chromium-6 Free na M 16x1.5 tap. Pre-assembled with EO-2 functional nut
WE10ZSR1/271 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE10ZSR1/2CF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE10ZSR1/471 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE10ZSR1/4CF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE10ZSR71 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE10ZSRCF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 10 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE12L1/2NPT71 Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with nut and EO-DPR cutting ring
WE12L1/2NPT71X Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 1/2-14 NPT na
WE12L1/2NPTCF Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with nut and EO-PSR cutting ring
WE12L1/2NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT na
WE12L1/4NPT71 Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE12L1/4NPT71X Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 1/4-18 NPT na
WE12L1/4NPTCF Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE12L1/4NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT na
WE12L3/8NPT71 Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 3/8-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE12L3/8NPT71X Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 3/8-18 NPT na
WE12L3/8NPTCF Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE12L3/8NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT na
WE12LLR71 Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
WE12LLR71X Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 1/4 tap. na
WE12LLRCF Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
WE12LLRCFX Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. na
WE12LM71 Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 12 Male stud elbow Stainless steel na M 16x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
WE12LM71X Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 12 Male stud elbow Stainless steel na M 16x1.5 tap. na
WE12LMCF Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 12 Male stud elbow Steel, Chromium-6 Free na M 16x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
WE12LMCFX Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 12 Male stud elbow Steel, Chromium-6 Free na M 16x1.5 tap. na
WE12LR1/271 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
WE12LR1/271X Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 1/2 tap. na
WE12LR1/2CF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
WE12LR1/2CFX Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. na
WE12LR1/471 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with nut and EO-DPR cutting ring
WE12LR1/471X Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 1/4 tap. na
WE12LR1/4CF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with nut and EO-PSR cutting ring
WE12LR1/4CFX Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. na
WE12LR71 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
WE12LR71X Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 3/8 tap. na
WE12LRCF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
WE12LRCFX Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. na
WE12S1/2NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with nut and EO-DPR cutting ring
WE12S1/2NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 1/2-14 NPT na
WE12S1/2NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with nut and EO-PSR cutting ring
WE12S1/2NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT na
WE12S1/4NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE12S1/4NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 1/4-18 NPT na
WE12S1/4NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE12S1/4NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT na
WE12S3/8NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 3/8-18 NPT Pre-assembled with nut and EO-DPR cutting ring
WE12S3/8NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 3/8-18 NPT na
WE12S3/8NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT Pre-assembled with nut and EO-PSR cutting ring
WE12S3/8NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT na
WE12SM71 Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 12 Male stud elbow Stainless steel na M 18x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
WE12SM71X Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 12 Male stud elbow Stainless steel na M 18x1.5 tap. na
WE12SMCF Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 12 Male stud elbow Steel, Chromium-6 Free na M 18x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
WE12SMCFX Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 12 Male stud elbow Steel, Chromium-6 Free na M 18x1.5 tap. na
WE12SR1/271 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
WE12SR1/271X Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 1/2 tap. na
WE12SR1/2CF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
WE12SR1/2CFX Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. na
WE12SR71 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with nut and EO-DPR cutting ring
WE12SR71X Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 3/8 tap. na
WE12SRCF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with nut and EO-PSR cutting ring
WE12SRCFX Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. na
WE12ZL1/2NPT71 Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE12ZL1/2NPTCF Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE12ZL1/4NPT71 Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE12ZL1/4NPTCF Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE12ZL3/8NPT71 Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 3/8-18 NPT Pre-assembled with EO-2 functional nut
WE12ZL3/8NPTCF Light 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT Pre-assembled with EO-2 functional nut
WE12ZLLR71 Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE12ZLLRCF Very light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE12ZLM71 Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 12 Male stud elbow Stainless steel na M 16x1.5 tap. Pre-assembled with EO-2 functional nut
WE12ZLMCF Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 12 Male stud elbow Steel, Chromium-6 Free na M 16x1.5 tap. Pre-assembled with EO-2 functional nut
WE12ZLR1/271 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE12ZLR1/2CF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE12ZLR1/471 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE12ZLR1/4CF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 1/4 tap. Pre-assembled with EO-2 functional nut
WE12ZLR71 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE12ZLRCF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE12ZS1/2NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE12ZS1/2NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE12ZS1/4NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE12ZS1/4NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 1/4-18 NPT Pre-assembled with EO-2 functional nut
WE12ZS3/8NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Stainless steel na 3/8-18 NPT Pre-assembled with EO-2 functional nut
WE12ZS3/8NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 12 Male stud elbow Steel, Chromium-6 Free na 3/8-18 NPT Pre-assembled with EO-2 functional nut
WE12ZSM71 Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 12 Male stud elbow Stainless steel na M 18x1.5 tap. Pre-assembled with EO-2 functional nut
WE12ZSMCF Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 12 Male stud elbow Steel, Chromium-6 Free na M 18x1.5 tap. Pre-assembled with EO-2 functional nut
WE12ZSR1/271 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE12ZSR1/2CF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE12ZSR71 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Stainless steel na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE12ZSRCF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 12 Male stud elbow Steel, Chromium-6 Free na R 3/8 tap. Pre-assembled with EO-2 functional nut
WE14S1/2NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 14 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with nut and EO-DPR cutting ring
WE14S1/2NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 14 Male stud elbow Stainless steel na 1/2-14 NPT na
WE14S1/2NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 14 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with nut and EO-PSR cutting ring
WE14S1/2NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 14 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT na
WE14SM71 Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 14 Male stud elbow Stainless steel na M 20x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
WE14SM71X Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 14 Male stud elbow Stainless steel na M 20x1.5 tap. na
WE14SMCF Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 14 Male stud elbow Steel, Chromium-6 Free na M 20x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
WE14SMCFX Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 14 Male stud elbow Steel, Chromium-6 Free na M 20x1.5 tap. na
WE14SR71 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 14 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
WE14SR71X Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 14 Male stud elbow Stainless steel na R 1/2 tap. na
WE14SRCF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 14 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
WE14SRCFX Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 14 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. na
WE14ZS1/2NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 14 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE14ZS1/2NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 14 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE14ZSM71 Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 14 Male stud elbow Stainless steel na M 20x1.5 tap. Pre-assembled with EO-2 functional nut
WE14ZSMCF Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 14 Male stud elbow Steel, Chromium-6 Free na M 20x1.5 tap. Pre-assembled with EO-2 functional nut
WE14ZSR71 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 14 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE14ZSRCF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 14 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE15L1/2NPT71 Light 24° cone end Male NPT thread (SAE J476) na 15 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with nut and EO-DPR cutting ring
WE15L1/2NPT71X Light 24° cone end Male NPT thread (SAE J476) na 15 Male stud elbow Stainless steel na 1/2-14 NPT na
WE15L1/2NPTCF Light 24° cone end Male NPT thread (SAE J476) na 15 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with nut and EO-PSR cutting ring
WE15L1/2NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 15 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT na
WE15LM71 Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 15 Male stud elbow Stainless steel na M 18x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
WE15LM71X Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 15 Male stud elbow Stainless steel na M 18x1.5 tap. na
WE15LMCF Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 15 Male stud elbow Steel, Chromium-6 Free na M 18x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
WE15LMCFX Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 15 Male stud elbow Steel, Chromium-6 Free na M 18x1.5 tap. na
WE15LR71 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 15 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
WE15LR71X Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 15 Male stud elbow Stainless steel na R 1/2 tap. na
WE15LRCF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 15 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
WE15LRCFX Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 15 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. na
WE15ZL1/2NPT71 Light 24° cone end Male NPT thread (SAE J476) na 15 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE15ZL1/2NPTCF Light 24° cone end Male NPT thread (SAE J476) na 15 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE15ZLM71 Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 15 Male stud elbow Stainless steel na M 18x1.5 tap. Pre-assembled with EO-2 functional nut
WE15ZLMCF Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 15 Male stud elbow Steel, Chromium-6 Free na M 18x1.5 tap. Pre-assembled with EO-2 functional nut
WE15ZLR71 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 15 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE15ZLRCF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 15 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE16S1/2NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 16 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with nut and EO-DPR cutting ring
WE16S1/2NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 16 Male stud elbow Stainless steel na 1/2-14 NPT na
WE16S1/2NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 16 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with nut and EO-PSR cutting ring
WE16S1/2NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 16 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT na
WE16SM71 Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 16 Male stud elbow Stainless steel na M 22x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
WE16SM71X Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 16 Male stud elbow Stainless steel na M 22x1.5 tap. na
WE16SMCF Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 16 Male stud elbow Steel, Chromium-6 Free na M 22x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
WE16SMCFX Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 16 Male stud elbow Steel, Chromium-6 Free na M 22x1.5 tap. na
WE16SR71 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 16 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
WE16SR71X Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 16 Male stud elbow Stainless steel na R 1/2 tap. na
WE16SRCF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 16 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
WE16SRCFX Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 16 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. na
WE16ZS1/2NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 16 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE16ZS1/2NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 16 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE16ZSM71 Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 16 Male stud elbow Stainless steel na M 22x1.5 tap. Pre-assembled with EO-2 functional nut
WE16ZSMCF Heavy 24° cone end Male metric taper thread (DIN 3852-1, type C) na 16 Male stud elbow Steel, Chromium-6 Free na M 22x1.5 tap. Pre-assembled with EO-2 functional nut
WE16ZSR71 Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 16 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE16ZSRCF Heavy 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 16 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE18L1/2NPT71 Light 24° cone end Male NPT thread (SAE J476) na 18 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with nut and EO-DPR cutting ring
WE18L1/2NPT71X Light 24° cone end Male NPT thread (SAE J476) na 18 Male stud elbow Stainless steel na 1/2-14 NPT na
WE18L1/2NPTCF Light 24° cone end Male NPT thread (SAE J476) na 18 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with nut and EO-PSR cutting ring
WE18L1/2NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 18 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT na
WE18LM71 Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 18 Male stud elbow Stainless steel na M 22x1.5 tap. Pre-assembled with nut and EO-DPR cutting ring
WE18LM71X Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 18 Male stud elbow Stainless steel na M 22x1.5 tap. na
WE18LMCF Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 18 Male stud elbow Steel, Chromium-6 Free na M 22x1.5 tap. Pre-assembled with nut and EO-PSR cutting ring
WE18LMCFX Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 18 Male stud elbow Steel, Chromium-6 Free na M 22x1.5 tap. na
WE18LR71 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 18 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with nut and EO-DPR cutting ring
WE18LR71X Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 18 Male stud elbow Stainless steel na R 1/2 tap. na
WE18LRCF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 18 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with nut and EO-PSR cutting ring
WE18LRCFX Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 18 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. na
WE18ZL1/2NPT71 Light 24° cone end Male NPT thread (SAE J476) na 18 Male stud elbow Stainless steel na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE18ZL1/2NPTCF Light 24° cone end Male NPT thread (SAE J476) na 18 Male stud elbow Steel, Chromium-6 Free na 1/2-14 NPT Pre-assembled with EO-2 functional nut
WE18ZLM71 Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 18 Male stud elbow Stainless steel na M 22x1.5 tap. Pre-assembled with EO-2 functional nut
WE18ZLMCF Light 24° cone end Male metric taper thread (DIN 3852-1, type C) na 18 Male stud elbow Steel, Chromium-6 Free na M 22x1.5 tap. Pre-assembled with EO-2 functional nut
WE18ZLR71 Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 18 Male stud elbow Stainless steel na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE18ZLRCF Light 24° cone end Male short BSP taper thread (DIN 3852-2, type C) na 18 Male stud elbow Steel, Chromium-6 Free na R 1/2 tap. Pre-assembled with EO-2 functional nut
WE20S3/4NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 20 Male stud elbow Stainless steel na 3/4-14 NPT Pre-assembled with nut and EO-DPR cutting ring
WE20S3/4NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 20 Male stud elbow Stainless steel na 3/4-14 NPT na
WE20S3/4NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 20 Male stud elbow Steel, Chromium-6 Free na 3/4-14 NPT Pre-assembled with nut and EO-PSR cutting ring
WE20S3/4NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 20 Male stud elbow Steel, Chromium-6 Free na 3/4-14 NPT na
WE20SM71 Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 20 Male stud elbow Stainless steel na M 27x2.0 Pre-assembled with nut and EO-DPR cutting ring
WE20SM71X Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 20 Male stud elbow Stainless steel na M 27x2.0 na
WE20SMCF Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 20 Male stud elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with nut and EO-PSR cutting ring
WE20SMCFX Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 20 Male stud elbow Steel, Chromium-6 Free na M 27x2.0 na
WE20SR71 Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 20 Male stud elbow Stainless steel na G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
WE20SR71X Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 20 Male stud elbow Stainless steel na G 3/4 A na
WE20SRCF Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 20 Male stud elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
WE20SRCFX Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 20 Male stud elbow Steel, Chromium-6 Free na G 3/4 A na
WE20ZS3/4NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 20 Male stud elbow Stainless steel na 3/4-14 NPT Pre-assembled with EO-2 functional nut
WE20ZS3/4NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 20 Male stud elbow Steel, Chromium-6 Free na 3/4-14 NPT Pre-assembled with EO-2 functional nut
WE20ZSM71 Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 20 Male stud elbow Stainless steel na M 27x2.0 Pre-assembled with EO-2 functional nut
WE20ZSMCF Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 20 Male stud elbow Steel, Chromium-6 Free na M 27x2.0 Pre-assembled with EO-2 functional nut
WE20ZSR71 Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 20 Male stud elbow Stainless steel na G 3/4 A Pre-assembled with EO-2 functional nut
WE20ZSRCF Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 20 Male stud elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
WE22L3/4NPT71 Light 24° cone end Male NPT thread (SAE J476) na 22 Male stud elbow Stainless steel na 3/4-14 NPT Pre-assembled with nut and EO-DPR cutting ring
WE22L3/4NPT71X Light 24° cone end Male NPT thread (SAE J476) na 22 Male stud elbow Stainless steel na 3/4-14 NPT na
WE22L3/4NPTCF Light 24° cone end Male NPT thread (SAE J476) na 22 Male stud elbow Steel, Chromium-6 Free na 3/4-14 NPT Pre-assembled with nut and EO-PSR cutting ring
WE22L3/4NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 22 Male stud elbow Steel, Chromium-6 Free na 3/4-14 NPT na
WE22LM71 Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 22 Male stud elbow Stainless steel na M 26x1.5 Pre-assembled with nut and EO-DPR cutting ring
WE22LM71X Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 22 Male stud elbow Stainless steel na M 26x1.5 na
WE22LMCF Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 22 Male stud elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with nut and EO-PSR cutting ring
WE22LMCFX Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 22 Male stud elbow Steel, Chromium-6 Free na M 26x1.5 na
WE22LR71 Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 22 Male stud elbow Stainless steel na G 3/4 A Pre-assembled with nut and EO-DPR cutting ring
WE22LR71X Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 22 Male stud elbow Stainless steel na G 3/4 A na
WE22LRCF Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 22 Male stud elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with nut and EO-PSR cutting ring
WE22LRCFX Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 22 Male stud elbow Steel, Chromium-6 Free na G 3/4 A na
WE22ZL3/4NPT71 Light 24° cone end Male NPT thread (SAE J476) na 22 Male stud elbow Stainless steel na 3/4-14 NPT Pre-assembled with EO-2 functional nut
WE22ZL3/4NPTCF Light 24° cone end Male NPT thread (SAE J476) na 22 Male stud elbow Steel, Chromium-6 Free na 3/4-14 NPT Pre-assembled with EO-2 functional nut
WE22ZLM71 Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 22 Male stud elbow Stainless steel na M 26x1.5 Pre-assembled with EO-2 functional nut
WE22ZLMCF Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 22 Male stud elbow Steel, Chromium-6 Free na M 26x1.5 Pre-assembled with EO-2 functional nut
WE22ZLR71 Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 22 Male stud elbow Stainless steel na G 3/4 A Pre-assembled with EO-2 functional nut
WE22ZLRCF Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 22 Male stud elbow Steel, Chromium-6 Free na G 3/4 A Pre-assembled with EO-2 functional nut
WE25S1NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 25 Male stud elbow Stainless steel na 1-11.5 NPT Pre-assembled with nut and EO-DPR cutting ring
WE25S1NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 25 Male stud elbow Stainless steel na 1-11.5 NPT na
WE25S1NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 25 Male stud elbow Steel, Chromium-6 Free na 1-11.5 NPT Pre-assembled with nut and EO-PSR cutting ring
WE25S1NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 25 Male stud elbow Steel, Chromium-6 Free na 1-11.5 NPT na
WE25SM71 Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 25 Male stud elbow Stainless steel na M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
WE25SM71X Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 25 Male stud elbow Stainless steel na M 33x2.0 na
WE25SMCF Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 25 Male stud elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
WE25SMCFX Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 25 Male stud elbow Steel, Chromium-6 Free na M 33x2.0 na
WE25SR71 Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 25 Male stud elbow Stainless steel na G 1 A Pre-assembled with nut and EO-DPR cutting ring
WE25SR71X Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 25 Male stud elbow Stainless steel na G 1 A na
WE25SRCF Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 25 Male stud elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
WE25SRCFX Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 25 Male stud elbow Steel, Chromium-6 Free na G 1 A na
WE25ZS1NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 25 Male stud elbow Stainless steel na 1-11.5 NPT Pre-assembled with EO-2 functional nut
WE25ZS1NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 25 Male stud elbow Steel, Chromium-6 Free na 1-11.5 NPT Pre-assembled with EO-2 functional nut
WE25ZSM71 Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 25 Male stud elbow Stainless steel na M 33x2.0 Pre-assembled with EO-2 functional nut
WE25ZSMCF Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 25 Male stud elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
WE25ZSR71 Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 25 Male stud elbow Stainless steel na G 1 A Pre-assembled with EO-2 functional nut
WE25ZSRCF Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 25 Male stud elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
WE28L1NPT71 Light 24° cone end Male NPT thread (SAE J476) na 28 Male stud elbow Stainless steel na 1-11.5 NPT Pre-assembled with nut and EO-DPR cutting ring
WE28L1NPT71X Light 24° cone end Male NPT thread (SAE J476) na 28 Male stud elbow Stainless steel na 1-11.5 NPT na
WE28L1NPTCF Light 24° cone end Male NPT thread (SAE J476) na 28 Male stud elbow Steel, Chromium-6 Free na 1-11.5 NPT Pre-assembled with nut and EO-PSR cutting ring
WE28L1NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 28 Male stud elbow Steel, Chromium-6 Free na 1-11.5 NPT na
WE28LM71 Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 28 Male stud elbow Stainless steel na M 33x2.0 Pre-assembled with nut and EO-DPR cutting ring
WE28LM71X Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 28 Male stud elbow Stainless steel na M 33x2.0 na
WE28LMCF Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 28 Male stud elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with nut and EO-PSR cutting ring
WE28LMCFX Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 28 Male stud elbow Steel, Chromium-6 Free na M 33x2.0 na
WE28LR71 Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 28 Male stud elbow Stainless steel na G 1 A Pre-assembled with nut and EO-DPR cutting ring
WE28LR71X Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 28 Male stud elbow Stainless steel na G 1 A na
WE28LRCF Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 28 Male stud elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with nut and EO-PSR cutting ring
WE28LRCFX Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 28 Male stud elbow Steel, Chromium-6 Free na G 1 A na
WE28ZL1NPT71 Light 24° cone end Male NPT thread (SAE J476) na 28 Male stud elbow Stainless steel na 1-11.5 NPT Pre-assembled with EO-2 functional nut
WE28ZL1NPTCF Light 24° cone end Male NPT thread (SAE J476) na 28 Male stud elbow Steel, Chromium-6 Free na 1-11.5 NPT Pre-assembled with EO-2 functional nut
WE28ZLM71 Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 28 Male stud elbow Stainless steel na M 33x2.0 Pre-assembled with EO-2 functional nut
WE28ZLMCF Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 28 Male stud elbow Steel, Chromium-6 Free na M 33x2.0 Pre-assembled with EO-2 functional nut
WE28ZLR71 Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 28 Male stud elbow Stainless steel na G 1 A Pre-assembled with EO-2 functional nut
WE28ZLRCF Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 28 Male stud elbow Steel, Chromium-6 Free na G 1 A Pre-assembled with EO-2 functional nut
WE30S11/4NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 30 Male stud elbow Stainless steel na 1 1/4-11.5 NPT Pre-assembled with nut and EO-DPR cutting ring
WE30S11/4NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 30 Male stud elbow Stainless steel na 1 1/4-11.5 NPT na
WE30S11/4NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 30 Male stud elbow Steel, Chromium-6 Free na 1 1/4-11.5 NPT Pre-assembled with nut and EO-PSR cutting ring
WE30S11/4NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 30 Male stud elbow Steel, Chromium-6 Free na 1 1/4-11.5 NPT na
WE30SM71 Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 30 Male stud elbow Stainless steel na M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
WE30SM71X Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 30 Male stud elbow Stainless steel na M 42x2.0 na
WE30SMCF Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 30 Male stud elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
WE30SMCFX Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 30 Male stud elbow Steel, Chromium-6 Free na M 42x2.0 na
WE30SR71 Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 30 Male stud elbow Stainless steel na G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WE30SR71X Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 30 Male stud elbow Stainless steel na G 1 1/4 A na
WE30SRCF Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 30 Male stud elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WE30SRCFX Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 30 Male stud elbow Steel, Chromium-6 Free na G 1 1/4 A na
WE30ZS11/4NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 30 Male stud elbow Stainless steel na 1 1/4-11.5 NPT Pre-assembled with EO-2 functional nut
WE30ZS11/4NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 30 Male stud elbow Steel, Chromium-6 Free na 1 1/4-11.5 NPT Pre-assembled with EO-2 functional nut
WE30ZSM71 Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 30 Male stud elbow Stainless steel na M 42x2.0 Pre-assembled with EO-2 functional nut
WE30ZSMCF Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 30 Male stud elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with EO-2 functional nut
WE30ZSR71 Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 30 Male stud elbow Stainless steel na G 1 1/4 A Pre-assembled with EO-2 functional nut
WE30ZSRCF Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 30 Male stud elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with EO-2 functional nut
WE35L11/4NPT71 Light 24° cone end Male NPT thread (SAE J476) na 35 Male stud elbow Stainless steel na 1 1/4-11.5 NPT Pre-assembled with nut and EO-DPR cutting ring
WE35L11/4NPT71X Light 24° cone end Male NPT thread (SAE J476) na 35 Male stud elbow Stainless steel na 1 1/4-11.5 NPT na
WE35L11/4NPTCF Light 24° cone end Male NPT thread (SAE J476) na 35 Male stud elbow Steel, Chromium-6 Free na 1 1/4-11.5 NPT Pre-assembled with nut and EO-PSR cutting ring
WE35L11/4NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 35 Male stud elbow Steel, Chromium-6 Free na 1 1/4-11.5 NPT na
WE35LM71 Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 35 Male stud elbow Stainless steel na M 42x2.0 Pre-assembled with nut and EO-DPR cutting ring
WE35LM71X Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 35 Male stud elbow Stainless steel na M 42x2.0 na
WE35LMCF Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 35 Male stud elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with nut and EO-PSR cutting ring
WE35LMCFX Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 35 Male stud elbow Steel, Chromium-6 Free na M 42x2.0 na
WE35LR71 Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 35 Male stud elbow Stainless steel na G 1 1/4 A Pre-assembled with nut and EO-DPR cutting ring
WE35LR71X Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 35 Male stud elbow Stainless steel na G 1 1/4 A na
WE35LRCF Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 35 Male stud elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with nut and EO-PSR cutting ring
WE35LRCFX Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 35 Male stud elbow Steel, Chromium-6 Free na G 1 1/4 A na
WE35ZL11/4NPT71 Light 24° cone end Male NPT thread (SAE J476) na 35 Male stud elbow Stainless steel na 1 1/4-11.5 NPT Pre-assembled with EO-2 functional nut
WE35ZL11/4NPTCF Light 24° cone end Male NPT thread (SAE J476) na 35 Male stud elbow Steel, Chromium-6 Free na 1 1/4-11.5 NPT Pre-assembled with EO-2 functional nut
WE35ZLM71 Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 35 Male stud elbow Stainless steel na M 42x2.0 Pre-assembled with EO-2 functional nut
WE35ZLMCF Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 35 Male stud elbow Steel, Chromium-6 Free na M 42x2.0 Pre-assembled with EO-2 functional nut
WE35ZLR71 Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 35 Male stud elbow Stainless steel na G 1 1/4 A Pre-assembled with EO-2 functional nut
WE35ZLRCF Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 35 Male stud elbow Steel, Chromium-6 Free na G 1 1/4 A Pre-assembled with EO-2 functional nut
WE38S11/2NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 38 Male stud elbow Stainless steel na 1 1/2-11.5 NPT Pre-assembled with nut and EO-DPR cutting ring
WE38S11/2NPT71X Heavy 24° cone end Male NPT thread (SAE J476) na 38 Male stud elbow Stainless steel na 1 1/2-11.5 NPT na
WE38S11/2NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 38 Male stud elbow Steel, Chromium-6 Free na 1 1/2-11.5 NPT Pre-assembled with nut and EO-PSR cutting ring
WE38S11/2NPTCFX Heavy 24° cone end Male NPT thread (SAE J476) na 38 Male stud elbow Steel, Chromium-6 Free na 1 1/2-11.5 NPT na
WE38SM71 Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 38 Male stud elbow Stainless steel na M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
WE38SM71X Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 38 Male stud elbow Stainless steel na M 48x2.0 na
WE38SMCF Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 38 Male stud elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
WE38SMCFX Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 38 Male stud elbow Steel, Chromium-6 Free na M 48x2.0 na
WE38SR71 Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 38 Male stud elbow Stainless steel na G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WE38SR71X Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 38 Male stud elbow Stainless steel na G 1 1/2 A na
WE38SRCF Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 38 Male stud elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WE38SRCFX Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 38 Male stud elbow Steel, Chromium-6 Free na G 1 1/2 A na
WE38ZS11/2NPT71 Heavy 24° cone end Male NPT thread (SAE J476) na 38 Male stud elbow Stainless steel na 1 1/2-11.5 NPT Pre-assembled with EO-2 functional nut
WE38ZS11/2NPTCF Heavy 24° cone end Male NPT thread (SAE J476) na 38 Male stud elbow Steel, Chromium-6 Free na 1 1/2-11.5 NPT Pre-assembled with EO-2 functional nut
WE38ZSM71 Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 38 Male stud elbow Stainless steel na M 48x2.0 Pre-assembled with EO-2 functional nut
WE38ZSMCF Heavy 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 38 Male stud elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with EO-2 functional nut
WE38ZSR71 Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 38 Male stud elbow Stainless steel na G 1 1/2 A Pre-assembled with EO-2 functional nut
WE38ZSRCF Heavy 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 38 Male stud elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with EO-2 functional nut
WE42L11/2NPT71 Light 24° cone end Male NPT thread (SAE J476) na 42 Male stud elbow Stainless steel na 1 1/2-11.5 NPT Pre-assembled with nut and EO-DPR cutting ring
WE42L11/2NPT71X Light 24° cone end Male NPT thread (SAE J476) na 42 Male stud elbow Stainless steel na 1 1/2-11.5 NPT na
WE42L11/2NPTCF Light 24° cone end Male NPT thread (SAE J476) na 42 Male stud elbow Steel, Chromium-6 Free na 1 1/2-11.5 NPT Pre-assembled with nut and EO-PSR cutting ring
WE42L11/2NPTCFX Light 24° cone end Male NPT thread (SAE J476) na 42 Male stud elbow Steel, Chromium-6 Free na 1 1/2-11.5 NPT na
WE42LM71 Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 42 Male stud elbow Stainless steel na M 48x2.0 Pre-assembled with nut and EO-DPR cutting ring
WE42LM71X Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 42 Male stud elbow Stainless steel na M 48x2.0 na
WE42LMCF Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 42 Male stud elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with nut and EO-PSR cutting ring
WE42LMCFX Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 42 Male stud elbow Steel, Chromium-6 Free na M 48x2.0 na
WE42LR71 Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 42 Male stud elbow Stainless steel na G 1 1/2 A Pre-assembled with nut and EO-DPR cutting ring
WE42LR71X Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 42 Male stud elbow Stainless steel na G 1 1/2 A na
WE42LRCF Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 42 Male stud elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with nut and EO-PSR cutting ring
WE42LRCFX Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 42 Male stud elbow Steel, Chromium-6 Free na G 1 1/2 A na
WE42ZL11/2NPT71 Light 24° cone end Male NPT thread (SAE J476) na 42 Male stud elbow Stainless steel na 1 1/2-11.5 NPT Pre-assembled with EO-2 functional nut
WE42ZL11/2NPTCF Light 24° cone end Male NPT thread (SAE J476) na 42 Male stud elbow Steel, Chromium-6 Free na 1 1/2-11.5 NPT Pre-assembled with EO-2 functional nut
WE42ZLM71 Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 42 Male stud elbow Stainless steel na M 48x2.0 Pre-assembled with EO-2 functional nut
WE42ZLMCF Light 24° cone end Male metric thread - metal sealing edge (ISO 9974) na 42 Male stud elbow Steel, Chromium-6 Free na M 48x2.0 Pre-assembled with EO-2 functional nut
WE42ZLR71 Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 42 Male stud elbow Stainless steel na G 1 1/2 A Pre-assembled with EO-2 functional nut
WE42ZLRCF Light 24° cone end Male BSPP thread - metal sealing edge (ISO 1179) na 42 Male stud elbow Steel, Chromium-6 Free na G 1 1/2 A Pre-assembled with EO-2 functional nut
|
