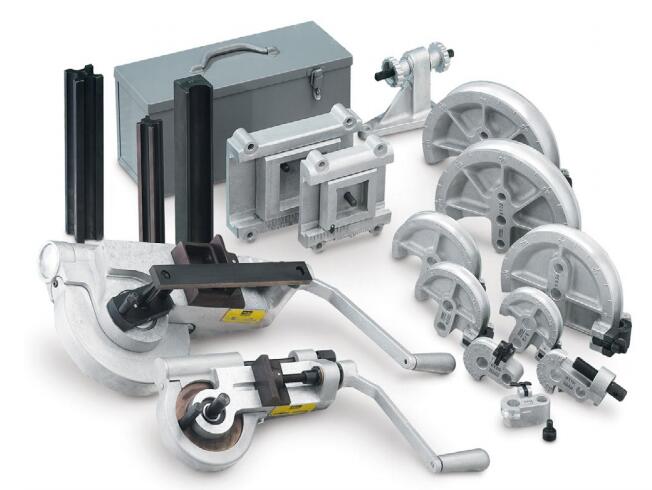

Exactol Model 412 Crank-Operated Bender
Parker's portable Exactol Model 412 Crank-Operated Bender will bend tube from size 4 (1/4”) through size 12 (3/4”) and 6mm through 20mm.
Parker's Exactol? Model 412 Crank-Operated Bender will bend tube from size 4 (1/4”) through size 12 (3/4”) and 6mm through 20mm. This portable bender can be held in a vise or bench mounted using a bench mounting adapter. Exactol benders are designed with a worm-gear drive with a 60 to 1 gear ratio to allow accurate bending with minimum effort.
Features/Benefits:
- Will bend aluminum, copper, annealed steel and annealed stainless steel without kinks or wrinkles.
- Small, large and close bend radius blocks are available to meet any bending requirement.
- The easy crank operation permits continuous production without excessive operator fatigue, and it is good for use in tube fabrication shops, in the field, or in factory maintenance departments.
Applications:
- Bending metal tube for industrial applications
Technical Characteristics:
- Requires a slide block and radius block matching the tube O.D. to be bent.
- If mandrels are used, the 412 bender must be bench mounted.
- There is a kit option available which includes the slide block and radius blocks for tube O.D. sizes 1/4” to 3/4”.
Technical Specifications
| Size: |
1/4 to 3/4 inch, 6 - 20 mm |
| Product Type: |
Bender |
| Tube Material: |
copper, aluminum, steel, and stainless steel |
| Tube Outside Diameter: |
1/4 to 3/4 inch, 6 to 20 mm |
| Includes: |
412 bender, carrying case, slide blocks and radius blocks for tube O.D. sizes 1/4" to 3/4" |
Exactol Model 412 Crank-Operated Bender 型号
| Part |
Options |
| 412 Kit |
Kit |
| 560569 |
Basic Unit |
|
