Parker Fittings接头
Tube Fabrication Equipment

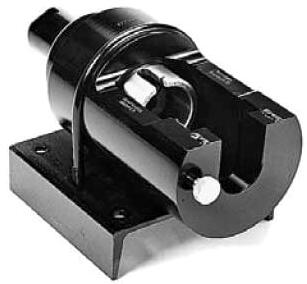

Hydra-Tool Hydraulic Flaring and Pre-Setting Tool

Parker's Hydra-Tool is an efficient, dependable hydraulic machine for flaring and pre-setting steel and stainless steel tube.





Parker's Hydra-Tool is an efficient, dependable hydraulic machine for flaring and pre-setting steel and stainless steel tube. The hydraulic push of the Hydra-Tool requires little physical strength by the operator and produces uniform flares and pre-sets.

Markets:
- Construction
- Military Ground Systems
- Aerial Lift
- Agriculture
- Material Handling
- Military Marine
- Machine Tool
- Transportation
- Alternative Energy
- Off-Shore/Oil & Gas

Features/Benefits:
- Flaring: A gauge can be provided to enable the operator to determine the pressure required to adequately flare any given material and wall thickness.
- Pre-setting: The positive stop body die design for pre-setting eliminates the need for predetermined relief valve settings, pressure gauges or chart reading, and allows for uniform assemblies to be made.
- Portable bench or cart mounted machine.
- Flares steel and stainless steel tube from ?” up to 2” O.D. with wall thicknesses as great as .134”, and 6mm up to 50mm O.D.
- Pre-sets steel and stainless steel tube from ?” up to 2” O.D., and 6mm to 28mm.

Applications:
- Flaring steel and stainless steel tube for 37° or 45° flare connections and pre-setting Parker ferrules onto steel and stainless steel tube, both for industrial and mobile hydraulic applications

Technical Characteristics:
- An electric or hand hydraulic pump is required to run this machine, and is sold separately.
- Flaring die sets and other tooling are available in nonstandard sizes upon request from the factory.
- There is a kit option available, which includes Hydra-Tool basic unit, gauge adapter, Hydra-Tool connector, lubricant, “T” adapter, carrying case, hose assembly, operation manual and video. The pump is sold separately.



Hydra-Tool Hydraulic Flaring and Pre-Setting Tool



Technical Specifications

Size: 1/4 to 2 inch, 6 - 50 mm
Product Type: Flaring Tool, Pre-setting Tool
Tube Material: Steel, stainless steel, and copper
Flare Tube Size Range: 1/4 to 2 inch, 6 to 50 mm
Ferrule Pre-Setting Tube Size Range: 1/4 to 2 inch, 6 to 42 mm
Includes: Hydra-tool basic unit, gauge adapter, Hydra-Tool connector, lubricant, "T" adapter, carrying case, hose assembly, operation manual and video



Hydra-Tool Hydraulic Flaring and Pre-Setting Tool 型号

Part Options
710400B Basic Unit
720370B-3 Kit
