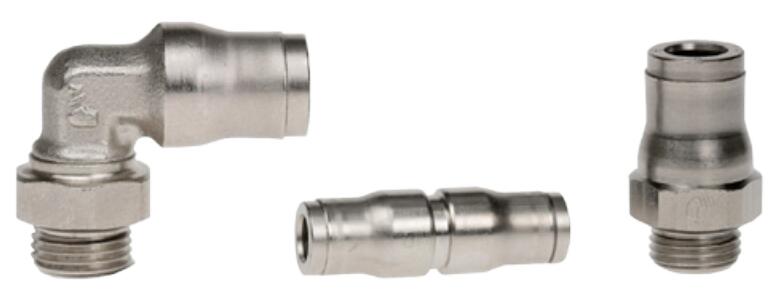

LF 3600 Chemical Nickel-Plated Brass Push-In Fittings

In order to meet your technical and environment requirements, Parker Legris designed this range of metal fittings, offering robustness, reliability and resistance to industrial fluids for the most demanding environments.

In order to meet your technical and environment requirements, Parker Legris designed this range of metal fittings, offering robustness, reliability and resistance to industrial fluids for the most demanding environments.

LF 3600 Chemical Nickel-Plated Brass Push-In Fittings

PRODUCT ADVANTAGES:

> High Performance
- Resistant up to +150°C at 30 bar
- Excellent mechanical performance
- Long threads to resist shock and vibration
- Excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating
- Full flow, minimal pressure drop

> Versatility
- Materials conform to FDA standards
- Spring collet gripping system suitable for both metal(grooved) and polymer tubing
- Excellent resistance to high pressure and vacuum
- Excellent chemical compatibility
- More than 250 part numbers
- One ?tting for numerous applications: stock optimisation
- Manual connection and disconnection
- Compact and ergonomic

> Reliability
- High performance brass for increased lifespan
- 100% leak-tested in production
- Date coding to guarantee quality and traceability

PRODUCT TYPES:
- Stud Fittings
- Stud Standpipe
- Cartridge
- Stud Elbow
- Extended Stud Elbow
- Compact Elbow
- Stud Branch Tee
- Stud Run Tee
- Single Banjo
- Tube-To-Tube Fittings
- Equal Tube-To-Tube Connector
- Equal Elbow
- Equal Tee
- Bulkhead Connector Fittings
- Equal Bulkhead Connector
- Bulkhead Connector
- Equal Bulkhead Elbow
- Plug-In Reducer
- Plug-In Adaptor
- Plug-In Increaser
- Plug-In Barb Connector
- Stem Connector
- Blanking Plug
- Disconnection Tool
- Release Button Covers

APPLICATIONS:
- Food Process
- Coffee Machines
- In-Plant Automotive
- Medical Equipment
- Printing
- Misting
- Welding Robots

TECHNICAL CHARACTERISTICS:
- Fluids: Compressed Air, Grease, Lubricant, Water
- Materials: Chemical nickel-plated brass, FKM
- Pressure: Vacuum to 30 bar
- Temperature: -20°C to +150°C
- ? metric: 4-14 mm

REGULATIONS:
>Industrial
- ISO 14743: pneumatic transmissions, push-in ?ttings for thermoplastic tubing
- DI: 97/23/EC (PED)
- DI : 2002/95/EC (RoHS), 2011/65/EC
- RG: 1907/2006 (REACH)
- DI: 94/9/EC (ATEX )
- UL94 V-0: please consult us
>Food
- RG: 21CFR (FDA)
- RG: 1935/2004/EC (minimum ? ow 0.02 l/h)
- USDA NSF H1: grease
- ASTM B733-04: autocatalytic (electroless) nickel-phosphorus coatings

Technologies:
- Stud Fittings
- Tube-to-Tube Fittings
- Bulkhead Connectors
- Push-In Fittings
- Nickel-Plated Brass Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors
- Swivel Fittings

Technical Specifications

LF 3600 Chemical Nickel-Plated Brass Push-In Fittings 型号

Part Product Type Shape Body Material O-Ring Material Color Connection 1 Thread Style Connection 1 Thread Size (metric) Connection 2 Tube O.D. (inch) Connection 2 Tube O.D. (mm) Connection 3 Tube O.D. (mm) Connection 4 Tube O.D. (inch) Connection 4 Tube O.D. (mm)
3601 04 10 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3601 04 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 4 na na na
3601 04 19 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3601 04 20 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na UNF 10-32 5/32 na na na na
3601 04 52 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M6x1 na 4 na na na
3601 04 56 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M8x1 na 4 na na na
3601 06 10 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3601 06 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3601 06 19 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 6 na na na
3601 06 60 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M10x1 na 6 na na na
3601 08 10 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3601 08 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3601 08 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 8 na na na
3601 10 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 10 na na na
3601 10 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3601 10 21 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 10 na na na
3601 12 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 12 na na na
3601 12 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3601 12 21 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 12 na na na
3601 14 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 14 na na na
3601 14 21 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 14 na na na
3601 56 20 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na UNF 10-32 1/4 na na na na
3602 04 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 4 na na na
3602 06 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 6 na na na
3602 08 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 8 na na na
3602 10 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 10 na na na
3602 12 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 12 na na na
3602 14 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 14 na na na
3602 56 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na 1/4 na na na na
3602 60 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na 3/8 na na na na
3602 62 00 Tube-to-Tube Fittings Elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na 1/2 na na na na
3603 04 10 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 4 na na na
3603 04 11 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/8 5/32 na na na na
3603 06 10 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 6 na na na
3603 06 13 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 6 na na na
3603 08 10 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 8 na na na
3603 08 13 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 8 na na na
3603 10 13 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 10 na na na
3603 10 17 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 10 na na na
3603 12 17 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 12 na na na
3603 14 21 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 14 na na na
3603 56 14 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/4 1/4 na na na na
3603 60 22 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/2 3/8 na na na na
3603 62 18 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT3/8 1/2 na na na na
3603 62 22 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/2 1/2 na na na na
3604 04 00 Tube-to-Tube Fittings Tee tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 4 na na na
3604 06 00 Tube-to-Tube Fittings Tee tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 6 na na na
3604 08 00 Tube-to-Tube Fittings Tee tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 8 na na na
3604 10 00 Tube-to-Tube Fittings Tee tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 10 na na na
3604 12 00 Tube-to-Tube Fittings Tee tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 12 na na na
3604 14 00 Tube-to-Tube Fittings Tee tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 14 na na na
3606 04 00 Tube-to-Tube Fittings Tube / tube connector FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 4 na na na
3606 06 00 Tube-to-Tube Fittings Tube / tube connector FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 6 na na na
3606 08 00 Tube-to-Tube Fittings Tube / tube connector FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 8 na na na
3606 10 00 Tube-to-Tube Fittings Tube / tube connector FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 10 na na na
3606 12 00 Tube-to-Tube Fittings Tube / tube connector FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 12 na na na
3606 14 00 Tube-to-Tube Fittings Tube / tube connector FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 14 na na na
3608 04 10 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 4 na na na
3608 04 11 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/8 5/32 na na na na
3608 06 10 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 6 na na na
3608 06 13 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 6 na na na
3608 08 10 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 8 na na na
3608 08 13 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 8 na na na
3608 10 13 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 10 na na na
3608 10 17 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 10 na na na
3608 12 17 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 12 na na na
3608 14 21 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 14 na na na
3608 62 18 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT3/8 1/2 na na na na
3609 04 10 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 4 na na na
3609 04 11 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/8 5/32 na na na na
3609 04 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 4 na na na
3609 04 14 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/4 5/32 na na na na
3609 06 10 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 6 na na na
3609 06 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 6 na na na
3609 08 10 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 8 na na na
3609 08 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 8 na na na
3609 08 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 8 na na na
3609 10 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 10 na na na
3609 10 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 10 na na na
3609 12 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 12 na na na
3609 12 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 12 na na na
3609 12 21 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 12 na na na
3609 14 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 14 na na na
3609 14 21 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 14 na na na
3609 56 11 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/8 1/4 na na na na
3609 56 14 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/4 1/4 na na na na
3609 56 18 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT3/8 1/4 na na na na
3609 60 14 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/4 3/8 na na na na
3609 60 18 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT3/8 3/8 na na na na
3609 60 22 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/2 3/8 na na na na
3609 62 18 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT3/8 1/2 na na na na
3609 62 22 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/2 1/2 na na na na
3610 06 00 Accessories Release button covers ANODIZED ALUMINIUM na NATURAL na na na 6 na na na
3610 06 04 Accessories Release button covers ANODIZED ALUMINIUM na BLUE na na na 6 na na na
3610 08 00 Accessories Release button covers ANODIZED ALUMINIUM na NATURAL na na na 8 na na na
3610 08 04 Accessories Release button covers ANODIZED ALUMINIUM na BLUE na na na 8 na na na
3610 10 04 Accessories Release button covers ANODIZED ALUMINIUM na BLUE na na na 10 na na na
3610 12 00 Accessories Release button covers ANODIZED ALUMINIUM na NATURAL na na na 12 na na na
3610 12 04 Accessories Release button covers ANODIZED ALUMINIUM na BLUE na na na 12 na na na
3610 14 00 Accessories Release button covers ANODIZED ALUMINIUM na NATURAL na na na 14 na na na
3610 14 04 Accessories Release button covers ANODIZED ALUMINIUM na BLUE na na na 14 na na na
3614 04 10 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3614 04 13 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 4 na na na
3614 04 19 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3614 06 10 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3614 06 13 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3614 08 10 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3614 08 13 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3614 10 17 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3614 12 17 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3614 12 21 Stud Fittings Female stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 12 na na na
3616 04 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 4 na na na
3616 06 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 6 na na na
3616 08 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 8 na na na
3616 10 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 10 na na na
3616 12 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 12 na na na
3616 14 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 14 na na na
3616 56 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na 1/4 na na na na
3616 60 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na 3/8 na na na na
3616 62 00 Bulkhead Connector Fittings Bulkhead connector tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na 1/2 na na na na
3618 04 10 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3618 04 19 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3618 06 10 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3618 06 13 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3618 06 19 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 6 na na na
3618 08 10 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3618 08 13 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3618 10 17 Stud Fittings Male stud single banjo thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3620 04 00 Plug-In Accessories Double male stem connector FDA CHEMICAL NICKEL PLATED BRASS na na na na na 4 na na na
3620 06 00 Plug-In Accessories Double male stem connector FDA CHEMICAL NICKEL PLATED BRASS na na na na na 6 na na na
3620 08 00 Plug-In Accessories Double male stem connector FDA CHEMICAL NICKEL PLATED BRASS na na na na na 8 na na na
3620 10 00 Plug-In Accessories Double male stem connector FDA CHEMICAL NICKEL PLATED BRASS na na na na na 10 na na na
3620 12 00 Plug-In Accessories Double male stem connector FDA CHEMICAL NICKEL PLATED BRASS na na na na na 12 na na na
3620 14 00 Plug-In Accessories Double male stem connector FDA CHEMICAL NICKEL PLATED BRASS na na na na na 14 na na na
3621 04 10 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/8 na 4 na na na
3621 06 10 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/8 na 6 na na na
3621 06 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/4 na 6 na na na
3621 08 10 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/8 na 8 na na na
3621 08 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/4 na 8 na na na
3621 10 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/4 na 10 na na na
3621 10 17 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R3/8 na 10 na na na
3621 12 17 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R3/8 na 12 na na na
3621 12 21 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/2 na 12 na na na
3621 14 21 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS na na BSPT R1/2 na 14 na na na
3622 04 05 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 4 na 5
3622 04 53 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 4 na 3,2
3622 06 05 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 6 na 5
3622 08 08 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 8 na 8
3622 08 56 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 8 na 6,3
3622 10 08 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 10 na 8
3622 10 56 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 10 na 6,3
3622 12 08 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 12 na 8
3622 12 10 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 12 na 10
3622 12 62 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 12 na 12,5
3622 14 14 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 14 na 14
3622 14 62 Plug-In Accessories Barbed connector with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na na 14 na 12,5
3626 04 00 Accessories Blanking plug with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na 4 na na na
3626 06 00 Accessories Blanking plug with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na 6 na na na
3626 08 00 Accessories Blanking plug with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na 8 na na na
3626 10 00 Accessories Blanking plug with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na 10 na na na
3626 12 00 Accessories Blanking plug with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na 12 na na na
3626 14 00 Accessories Blanking plug with tailpiece FDA CHEMICAL NICKEL PLATED BRASS na na na na na 14 na na na
3629 04 10 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 4 na na na
3629 06 10 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 6 na na na
3629 06 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 6 na na na
3629 08 10 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 8 na na na
3629 08 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 8 na na na
3629 10 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 10 na na na
3631 04 10 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3631 04 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 4 na na na
3631 04 19 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3631 06 10 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3631 06 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3631 08 10 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3631 08 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3631 08 17 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 8 na na na
3631 10 13 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 10 na na na
3631 10 17 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3631 10 21 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 10 na na na
3631 12 17 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3631 12 21 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 12 na na na
3631 14 21 Stud Fittings Male standpipe stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 14 na na na
3636 04 10 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3636 06 10 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3636 06 13 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3636 08 10 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3636 08 13 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3636 10 17 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3636 12 17 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3636 12 21 Bulkhead Connector Fittings Bulkhead connector female FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 12 na na na
3639 04 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 4 na na na
3639 06 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 6 na na na
3639 08 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 8 na na na
3639 10 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 10 na na na
3639 12 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 12 na na na
3639 14 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube / tube FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na 14 na na na
3666 04 06 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 4 na 6
3666 04 08 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 4 na 8
3666 06 08 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 6 na 8
3666 06 10 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 6 na 10
3666 08 10 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 8 na 10
3666 08 12 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 8 na 12
3666 10 12 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 10 na 12
3666 12 14 Plug-In Accessories Reducer with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 12 na 14
3667 06 56 Plug-In Accessories Adaptor metric / imperial with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 6 1/4 na
3667 10 60 Plug-In Accessories Adaptor metric / imperial with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 10 3/8 na
3667 12 62 Plug-In Accessories Adaptor metric / imperial with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 12 1/2 na
3668 06 04 Plug-In Accessories Increase with tailpiece FDA CHEMICAL NICKEL PLATED BRASS FKM na na na na na 6 na 4
3669 04 10 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3669 04 19 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3669 06 10 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3669 06 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3669 08 10 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3669 08 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3669 10 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 10 na na na
3669 10 17 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3669 12 13 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 12 na na na
3669 12 17 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3669 14 21 Stud Fittings Male stud extented elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 14 na na na
3675 04 10 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 4 na na na
3675 04 11 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/8 5/32 na na na na
3675 04 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 4 na na na
3675 04 14 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/4 5/32 na na na na
3675 06 10 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 6 na na na
3675 06 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 6 na na na
3675 08 10 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/8 na 8 na na na
3675 08 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 8 na na na
3675 08 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 8 na na na
3675 10 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 10 na na na
3675 10 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 10 na na na
3675 10 21 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 10 na na na
3675 12 13 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/4 na 12 na na na
3675 12 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 12 na na na
3675 12 21 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 12 na na na
3675 14 17 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R3/8 na 14 na na na
3675 14 21 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPT R1/2 na 14 na na na
3675 56 18 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT3/8 1/4 na na na na
3675 60 22 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/2 3/8 na na na na
3675 62 22 Stud Fittings Male stud fitting thread FDA CHEMICAL NICKEL PLATED BRASS FKM na NPT NPT1/2 1/2 na na na na
3681 04 19 Stud Fittings Male stud fitting thread with internal hexagon FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3693 04 10 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3693 04 19 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3693 04 20 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na UNF 10-32 5/32 na na na na
3693 06 10 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3693 06 13 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3693 08 10 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3693 08 13 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3693 10 13 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 10 na na na
3693 12 17 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3693 14 21 Stud Fittings Male stud run tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 14 na na na
3698 04 10 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3698 04 19 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3698 06 10 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3698 06 13 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3698 08 10 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3698 08 13 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3698 10 13 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 10 na na na
3698 12 17 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3698 14 21 Stud Fittings Male stud branch tee adjustable thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 14 na na na
3699 04 10 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 4 na na na
3699 04 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 4 na na na
3699 04 19 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M5x0,8 na 4 na na na
3699 04 20 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na UNF 10-32 5/32 na na na na
3699 04 52 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M6x1 na 4 na na na
3699 04 56 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M8x1 na 4 na na na
3699 06 10 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 6 na na na
3699 06 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 6 na na na
3699 06 60 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na Metric M10x1 na 6 na na na
3699 08 10 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/8 na 8 na na na
3699 08 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 8 na na na
3699 08 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 8 na na na
3699 10 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 10 na na na
3699 10 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 10 na na na
3699 12 13 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/4 na 12 na na na
3699 12 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 12 na na na
3699 12 21 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 12 na na na
3699 14 17 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G3/8 na 14 na na na
3699 14 21 Stud Fittings Male stud elbow adjustable 90° thread FDA CHEMICAL NICKEL PLATED BRASS FKM na BSPP G1/2 na 14 na na na
