Parflange ECO 25 Flaring and Flanging System
Parker's Parflange ECO 25 provides fast, leak-free flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings.
Parker's Parflange? ECO 25 provides fast, leak-free flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings. Using an orbital spindle process, it produces high-quality, consistent flanges and flares with a smooth mating surface in less than 45 seconds. Parflange technology creates a competitive advantage for our customers through fast, consistent, and reliable leak-free connections which result in reduced costs and additional revenue.

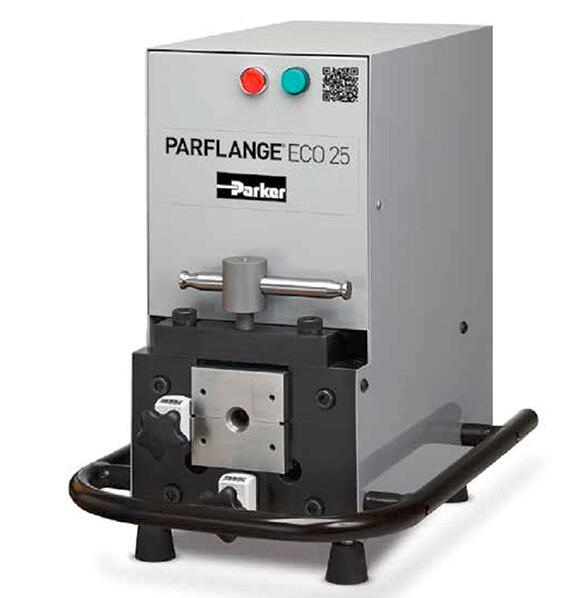

Parflange ECO 25 Flaring and Flanging System
Features/Benefits:
- Produces a high-quality flange with smooth mating surface (up to 1 ?” OD), eliminating the need for expensive, time-consuming brazing of the sleeve to the tube end.
- Dies have the flanging (90°) surface on one side and the flaring (37°) surface on the other, allowing the die to both flange and flare the same size tubing.
- Adjustable tube wall stop allows one die to work for all wall thicknesses of that size tube in both steel and stainless steel.
- Portable bench or cart mounted machine.
- Flanges and flares steel and stainless steel tube from ?” up to 1 ?” OD.
- Also flanges stainless steel coiled tube sizes common in CNG applications.
Applications:
- Flanging and flaring steel and stainless steel tube for O-ring Face Seal (ORFS) and 37° flare connections in industrial and mobile applications.
Technical Characteristics:
- Available in 100-volt single-phase.
- Dimensions are 21” x 15” x 21” and weighs 202 lbs.
- Used with hand hydraulic pump, which is sold separately or part of the ECO 25 Kit.
- There is a kit option available which includes the basic unit, hand hydraulic pump, hose assembly, pressure gauge, hydraulic pump adapter, hydraulic pump tee, pressure gauge adapter, hose conversion adapters (6 G6L-S & 6-6 G6L-S), lubrication fluid and operation manual. Pins and dies are purchased separately.
Technical Specifications
|
| Size: |
1/4 to 1-1/2 inch, 6 - 38 mm |
| Product Type: |
Flaring Tool, Flanging Tool |
| Tube Material: |
Steel and Stainless Steel |
| Input Voltage: |
110V/20A single-phase V |
| Flange Tube Size Range: |
Steel Tube: ?? x .028 through 1 ? x .134 and Stainless Steel Tube: ?? x .028 through 1 1/2? X .120 inch |
| Flare Tube Size Range: |
Steel and Stainless Steel Tube: ?? x .020 through 1 ? x .120 inch |
| Throughput: |
50 per day |
| Power Supply Voltage: |
Requires an External Hand Pump (sold separately), or included in the kit |
| Includes: |
Basic unit, hand hydraulic pump, hose assembly, pressure gauge, hydraulic pump adapter, hydraulic pump tee, pressure gauge adapter, hose conversion adapters (6 G6L-S & 6-6 G6L-S), lubrication fluid and operation manual |
Parflange ECO 25 Flaring and Flanging System 型号
| Part |
Options |
| ECO 25 |
Basic Unit |
| ECO 25 Kit |
Kit |
|
