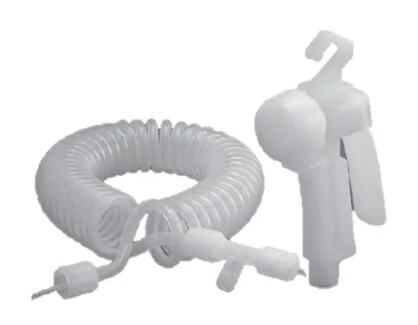

PFA Nitrogen Gun (1/4 or 3/8 inch) – SG-1 Series
The SG-1 Series PFA Nitrogen Gun is designed for ultra-high purity semiconductor manufacturing applications. Available with FNPT or Parflare connections. Additional options include a 0.2 or 0.5 micron filter and coiled hose assembly (up to 80 psig).
The PFA Nitrogen Gun is suitable for use in ultra-high purity (UHP) semiconductor applications. It utilizes a molded PFA body with precision-machined sealing areas. These materials, coupled with PFA interior surfaces and a one-piece machined modified PTFE diaphragm and poppet, afford the SG-1 Series nitrogen gun with high leak integrity and exceptional corrosion resistance for performance in applications where cleanliness is critical.
The SG-1 Series features a wiper seat, which creates a reliable diaphragm to body seal and provides positive through flow shut-off. Its unique design eliminates the need for elastomer seals, while providing excellent flexibility and long life. It is available with 1/4 inch FNPT or 3/8 inch Parflare connections. The connections reduce assembly and installation time, while ensuring minimal particle generation for contamination-free operation.
Additional options include a 0.2 or 0.5 micron filter and a coiled hose assembly.
PFA Nitrogen Gun (1/4 or 3/8 inch) – SG-1 Series
Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial
Features/Benefits:
- PFA interior surfaces and a one-piece machined modified PTFE diaphragm/poppet provide high flexural life and exceptional corrosion resistance
- Unique design eliminates the need for elastomer seals
- Fully functional from 0 to 80 psig
- Standard features are an integral needle valve for flow control and panel nuts for mounting
- Wiper seat creates a reliable diaphragm to body seal and provides positive through flow shut-off
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +200° F (-17°C to +93° C)
Applications:
- Corrosive and/or specialty chemicals, acids, bases, and slurries
- Semiconductor Tools
- CMP/Slurry Systems
Technical Specifications
| Fitting Type: |
Flare |
| Body Material: |
PFA, PVDF, Modified PTFE (optional HDFE filter element) |
| Screw Material: |
PET |
| Spring Material: |
Stainless Steel |
| Pressure Rating: |
0 psig (0 bar) to 80 psig (5.5 bar) |
| Maximum Ambient Temperature: |
66 °C, 150 °F |
| Minimum Ambient Temperature: |
-17 °C, 0 °F |
| Maximum Fluid Temperature: |
93 °C, 200 °F |
| Minimum Fluid Temperature: |
-17 °C, 0 °F |
PFA Nitrogen Gun (1/4 or 3/8 inch) – SG-1 Series 型号
| Part |
Port Connection |
| SG-1-03 |
1/4" FNPT |
| SG-1-04 |
3/8" Parflare |
|
