Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

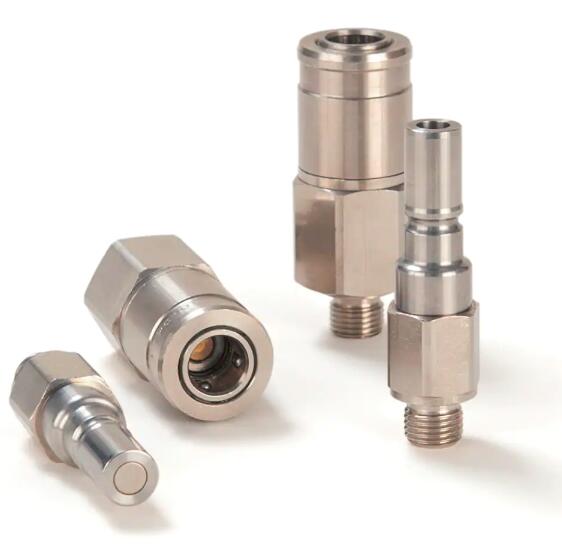

Push-Pull Dry Break Quick Connect Coupling, Series RNS

Dry break quick coupling system with nominal diameter 6 for thermal management applications up to 60 bar. Available made of brass/stainless steel.





Parker's Push-Pull Quick Connect Coupling Series RNS are rigid couplings with flat face valves. They can be mounted on rigid manifolds or tubing and assure connection/disconnection without spillage. Base material is brass and stainless steel. Connection guiding system and compensation of misalignment during connection on rack systems (when both are mounted on rigid devices).





Markets:
- Power generation and conversion
- Electronic cooling

Features/Benefits:
- Dry break connection/disconnection
- Specific design for cooling applications
- Push-Pull connection with break away function

Applications:
- Cooling of electronic components
- Water and coolant lines



Technical Specifications

Minimum Operating Temperature: -30 °C
Diameter: 6 nom
Application: Thermal Management
Brand: Parker
Fitting Connection Type: Male Thread
Interchange Type: Parker Profile
Maximum Operating Pressure: 870.24 psi, 60 bar
Maximum Operating Temperature: 212 °F, 100 °C
Media: Gases, Pneumatic Media, Water
Valve Type: Non-Spill / FlatFace
Valve Included: Yes
Version: Flat-sealing
Connection Type: Male Thread - BSPP
Connection Thread Size: 1/4 inch
Length: 66,3 up to 69,6 mm
Hex Size: 21, 30 mm
Outside Diameter: 28 mm
Materials of Construction: Brass/Stainless Steel
Seal Material: NBR



Push-Pull Dry Break Quick Connect Coupling, Series RNS 型号

Part Type
RNS-251-4MBO Coupling
RNS-252-4MBO Plug
