Parker Fittings接头
Pneumatic Fittings

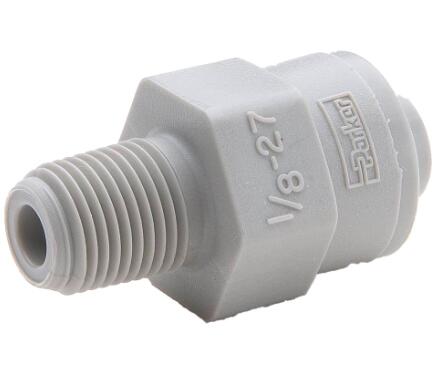

Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal

Parker's TrueSeal push-in tube fittings are manufactured from FDA compliant materials and are NSF-51 listed for contact with food. Gray acetal fittings meet NSF-61 requirements for potable water.





Parker's TrueSeal thermoplastic push fit fittings are lightweight, field attachable and quickly connect to tubing without the use of tools. TrueSeal is a robust push-to-connect fitting ideal for water treatment and harsh chemical environments. Available in Acetal, Polypropylene and Kynar, TrueSeal fittings offer FDA and NSF 51 compliance; NSF 61 compliance in gray Acetal. TrueSeal in Acetal and Polypropylene has an EPDM seal, Kynar has a fluorocarbon seal. The gripping ring in TrueSeal is available with either a stainless-steel bite edge or an engineered thermoplastic bite edge.



Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal



Use with Parker Parflex Division tubing:

- Polyethylene
- Polypropylene
- Nylon
- Vinyl
- Fluoropolymer
- Polyurethane
- Kynar

Markets:
- Food
- Potable water
- Chemical
- Filtration
- Beverage

Features and Benefits:
- Gripping teeth available in stainless steel or with and engineered thermoplastic bite edge
- Acetal, Polypropylene and Kynar body material
- Engineered O-ring increases seal compression on tube
- EPDM seal in Acetal and Polypropylene, fluorocarbon in Kynar material
- FDA Compliant
- All fittings are NSF-51 listed
- Gray Acetal fittings are NSF-61
- 1/4" - 1/2" tube size
- NPT threads
- Push button release
- Use with Polyethylene, Polypropylene, Nylon, Vinyl, Fluoropolymer, Polyurethane, Kynar

Applications:
- Air
- Water
- Reverse Osmosis
- Beer & wine
- Dispensing systems

Custom configurations and sizes are available upon request. Contact us for additional information.


Technical Specifications

Connection Type: Push-to-Connect, Tube Stem, Thread, Pipe, Flare and Barb
Materials of Construction: Plastic
Shape: Various
Minimum Operating Temperature: -20 to 0 °F, -29 to -18 °C
Maximum Operating Temperature: 180 to 275 °F, 85 to 135 °C
Maximum Operating Pressure: 150 to 300 psi, 10 to 20 bar
Tube Material: Polyethylene, Polypropylene, Nylon, Vinyl, Fluoropolymer, Polyurethane
Media: Air, Water, Soft Drinks, Beer, Wine, Dyes
Application: Filtration, Food Process, Dispensing, Medical, Water Purification
O-Ring Material: EPDM, Fluorocarbon
Specifications Met: FDA, NSF-51, NSF-61 (Acetal only)



Push-to-Connect all plastic FDA compliant fitting, Parker TrueSeal 型号

Part Shape Style Body Material Connection 1 Tube O.D. (inch) Connection 1 Tube Stem O.D. (inch) Connection 1 Style Connection 2 Tube O.D. (inch) Connection 2 Thread Size (inch) Connection 2 Tube Stem O.D. (inch) Connection 2 Tube I.D. (inch) Connection 2 Style
A4BU4-MG Bulkhead Tube to Tube Acetal 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
A4CAP-MG Cap Tube Acetal 1/4 na Push-to-Connect na na na na na
A4CU4-MG Cross Tube to Tube Acetal 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
A4EU4-MG 90° Elbow Tube to Tube Acetal 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
A4FA7-MG Faucet Adapter Tube to Female Pipe Acetal 1/4 na Push-to-Connect na 7/16-24 na na Straight Thread
A4FC2-MG Connector Tube to Female Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Female Pipe
A4FC4-MG Connector Tube to Female Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Female Pipe
A4FE4-MG 90° Elbow Tube to Female Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Female Pipe
A4FF4-MG Connector Tube to Female Flare Acetal 1/4 na Push-to-Connect na 1/4 na na Female Flare
A4MC2-MG Connector Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Male Pipe
A4MC4-MG Connector Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Male Pipe
A4MC6-MG Connector Tube to Pipe Acetal 1/4 na Push-to-Connect na 3/8 na na Male Pipe
A4ME2-MG 90° Elbow Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Male Pipe
A4ME4-MG 90° Elbow Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Male Pipe
A4ME6-MG 90° Elbow Tube to Pipe Acetal 1/4 na Push-to-Connect na 3/8 na na Male Pipe
A4MES2-MG 90° Swivel Elbow Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Male Pipe
A4MES4-MG 90° Swivel Elbow Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Male Pipe
A4MES6-MG 90° Swivel Elbow Tube to Pipe Acetal 1/4 na Push-to-Connect na 3/8 na na Male Pipe
A4MRS2-MG Run Tee Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Male Pipe
A4MRS4-MG Run Tee Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Male Pipe
A4MTS2-MG Branch Tee Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Male Pipe
A4MTS4-MG Branch Tee Tube to Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Male Pipe
A4RD5-MG Tube Reducer Tube to Tube Stem Acetal 1/4 na Push-to-Connect na na 5/16 na Tube Stem
A4RD6-MG Tube Reducer Tube to Tube Stem Acetal 1/4 na Push-to-Connect na na 3/8 na Tube Stem
A4TCB4 Connector Tube to Barb Acetal na 1/4 Tube Stem na na na 1/4 Barb
A4TEB4 90° Elbow Tube to Barb Acetal na 1/4 Tube Stem na na na 1/4 Barb
A4TEU4-MG 90° Elbow Tube to Tube Stem Acetal 1/4 na Push-to-Connect na na 1/4 na Tube Stem
A4TEU6-MG 90° Elbow Tube to Tube Stem Acetal 1/4 na Push-to-Connect na na 3/8 na Tube Stem
A4TMC2 Connector Tube Stem to Pipe Acetal 1/4 na Push-to-Connect na 1/8 na na Male Pipe
A4TMC4 Connector Tube Stem to Pipe Acetal 1/4 na Push-to-Connect na 1/4 na na Male Pipe
A4TPL Plug Tube Stem Acetal 1/4 na Push-to-Connect na na na na na
A4TU4-MG Tee Tube to Tube Acetal 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
A4UC4-MG Union Tube to Tube Acetal 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
A5BU5-MG Bulkhead Tube to Tube Acetal 5/16 na Push-to-Connect 5/16 na na na Push-to-Connect
A5EU4-MG 90° Elbow Tube to Tube Acetal 5/16 na Push-to-Connect 1/4 na na na Push-to-Connect
A5EU5-MG 90° Elbow Tube to Tube Acetal 5/16 na Push-to-Connect 5/16 na na na Push-to-Connect
A5FA7-MG Faucet Adapter Tube to Female Pipe Acetal 5/16 na Push-to-Connect na 7/16-24 na na Straight Thread
A5FC4-MG Connector Tube to Female Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Female Pipe
A5FC6-MG Connector Tube to Female Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Female Pipe
A5MC2-MG Connector Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/8 na na Male Pipe
A5MC4-MG Connector Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Male Pipe
A5MC6-MG Connector Tube to Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Male Pipe
A5ME4-MG 90° Elbow Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Male Pipe
A5ME6-MG 90° Elbow Tube to Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Male Pipe
A5MES2-MG 90° Swivel Elbow Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/8 na na Male Pipe
A5MES4-MG 90° Swivel Elbow Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Male Pipe
A5MES6-MG 90° Swivel Elbow Tube to Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Male Pipe
A5MRS2-MG Run Tee Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/8 na na Male Pipe
A5MRS4-MG Run Tee Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Male Pipe
A5MRS6-MG Run Tee Tube to Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Male Pipe
A5MTS2-MG Branch Tee Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/8 na na Male Pipe
A5MTS4-MG Branch Tee Tube to Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Male Pipe
A5MTS6-MG Branch Tee Tube to Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Male Pipe
A5RD6-MG Tube Reducer Tube to Tube Stem Acetal 5/16 na Push-to-Connect na na 3/8 na Tube Stem
A5RD8-MG Tube Reducer Tube to Tube Stem Acetal 5/16 na Push-to-Connect na na 1/2 na Tube Stem
A5TEU5-MG 90° Elbow Tube to Tube Stem Acetal 5/16 na Push-to-Connect na na 5/16 na Tube Stem
A5TMC2 Connector Tube Stem to Pipe Acetal 5/16 na Push-to-Connect na 1/8 na na Male Pipe
A5TMC4 Connector Tube Stem to Pipe Acetal 5/16 na Push-to-Connect na 1/4 na na Male Pipe
A5TMC6 Connector Tube Stem to Pipe Acetal 5/16 na Push-to-Connect na 3/8 na na Male Pipe
A5TU5-MG Tee Tube to Tube Acetal 5/16 na Push-to-Connect 5/16 na na na Push-to-Connect
A5UC4-MG Union Tube to Tube Acetal 5/16 na Push-to-Connect 1/4 na na na Push-to-Connect
A5UC5-MG Union Tube to Tube Acetal 5/16 na Push-to-Connect 5/16 na na na Push-to-Connect
A5WY5-MG Y Union Tube to Tube Acetal 5/16 na Push-to-Connect 5/16 na na na Push-to-Connect
A6BU4-MG Bulkhead Tube to Tube Acetal 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
A6BU6-MG Bulkhead Tube to Tube Acetal 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
A6CAP-MG Cap Tube Acetal 3/8 na Push-to-Connect na na na na na
A6CU6-MG Cross Tube to Tube Acetal 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
A6EU4-MG 90° Elbow Tube to Tube Acetal 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
A6EU5-MG 90° Elbow Tube to Tube Acetal 3/8 na Push-to-Connect 5/16 na na na Push-to-Connect
A6EU6-MG 90° Elbow Tube to Tube Acetal 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
A6FA7-MG Faucet Adapter Tube to Female Pipe Acetal 3/8 na Push-to-Connect na 7/16-24 na na Straight Thread
A6FC4-MG Connector Tube to Female Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Female Pipe
A6FC6-MG Connector Tube to Female Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Female Pipe
A6FC8-MG Connector Tube to Female Pipe Acetal 3/8 na Push-to-Connect na 1/2 na na Female Pipe
A6FE4-MG 90° Elbow Tube to Female Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Female Pipe
A6FE6-MG 90° Elbow Tube to Female Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Female Pipe
A6FF4-MG Connector Tube to Female Flare Acetal 3/8 na Push-to-Connect na 1/4 na na Female Flare
A6FF6-MG Connector Tube to Female Flare Acetal 3/8 na Push-to-Connect na 3/8 na na Female Flare
A6MC2-MG Connector Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/8 na na Male Pipe
A6MC4-MG Connector Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Male Pipe
A6MC6-MG Connector Tube to Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Male Pipe
A6MC8-MG Connector Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/2 na na Male Pipe
A6ME4-MG 90° Elbow Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Male Pipe
A6ME6-MG 90° Elbow Tube to Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Male Pipe
A6MES2-MG 90° Swivel Elbow Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/8 na na Male Pipe
A6MES4-MG 90° Swivel Elbow Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Male Pipe
A6MES6-MG 90° Swivel Elbow Tube to Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Male Pipe
A6MRS4-MG Run Tee Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Male Pipe
A6MRS6-MG Run Tee Tube to Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Male Pipe
A6MTS2-MG Branch Tee Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/8 na na Male Pipe
A6MTS4-MG Branch Tee Tube to Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Male Pipe
A6MTS6-MG Branch Tee Tube to Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Male Pipe
A6RD8-MG Tube Reducer Tube to Tube Stem Acetal 3/8 na Push-to-Connect na na 1/2 na Tube Stem
A6ST9-MG Connector Tube to Straight Thread Acetal 3/8 na Push-to-Connect na 9/16-18 na na Straight Thread
A6TCB4 Connector Tube to Barb Acetal na 3/8 Tube Stem na na na 1/4 Barb
A6TCB6 Connector Tube to Barb Acetal na 3/8 Tube Stem na na na 3/8 Barb
A6TEB4 90° Elbow Tube to Barb Acetal na 3/8 Tube Stem na na na 1/4 Barb
A6TEB6 90° Elbow Tube to Barb Acetal na 3/8 Tube Stem na na na 3/8 Barb
A6TEU4-MG 90° Elbow Tube to Tube Stem Acetal 3/8 na Push-to-Connect na na 1/4 na Tube Stem
A6TEU6-MG 90° Elbow Tube to Tube Stem Acetal 3/8 na Push-to-Connect na na 3/8 na Tube Stem
A6TMC4 Connector Tube Stem to Pipe Acetal 3/8 na Push-to-Connect na 1/4 na na Male Pipe
A6TMC6 Connector Tube Stem to Pipe Acetal 3/8 na Push-to-Connect na 3/8 na na Male Pipe
A6TMC8 Connector Tube Stem to Pipe Acetal 3/8 na Push-to-Connect na 1/2 na na Male Pipe
A6TPL Plug Tube Stem Acetal 3/8 na Push-to-Connect na na na na na
A6TU4-MG Tee Tube to Tube Acetal 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
A6TU6-MG Tee Tube to Tube Acetal 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
A6UC4-MG Union Tube to Tube Acetal 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
A6UC5-MG Union Tube to Tube Acetal 3/8 na Push-to-Connect 5/16 na na na Push-to-Connect
A6UC6-MG Union Tube to Tube Acetal 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
A6WY4-MG Y Union Tube to Tube Acetal 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
A6WY5-MG Y Union Tube to Tube Acetal 3/8 na Push-to-Connect 5/16 na na na Push-to-Connect
A6WY6-MG Y Union Tube to Tube Acetal 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
A8BU8-MG Bulkhead Tube to Tube Acetal 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
A8EU6-MG 90° Elbow Tube to Tube Acetal 1/2 na Push-to-Connect 3/8 na na na Push-to-Connect
A8EU8-MG 90° Elbow Tube to Tube Acetal 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
A8FC6-MG Connector Tube to Female Pipe Acetal 1/2 na Push-to-Connect na 3/8 na na Female Pipe
A8FC8-MG Connector Tube to Female Pipe Acetal 1/2 na Push-to-Connect na 1/2 na na Female Pipe
A8MC6-MG Connector Tube to Pipe Acetal 1/2 na Push-to-Connect na 3/8 na na Male Pipe
A8MC8-MG Connector Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/2 na na Male Pipe
A8MES4-MG 90° Swivel Elbow Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/4 na na Male Pipe
A8MES6-MG 90° Swivel Elbow Tube to Pipe Acetal 1/2 na Push-to-Connect na 3/8 na na Male Pipe
A8MES8-MG 90° Swivel Elbow Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/2 na na Male Pipe
A8MRS4-MG Run Tee Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/4 na na Male Pipe
A8MRS6-MG Run Tee Tube to Pipe Acetal 1/2 na Push-to-Connect na 3/8 na na Male Pipe
A8MRS8-MG Run Tee Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/2 na na Male Pipe
A8MTS4-MG Branch Tee Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/4 na na Male Pipe
A8MTS6-MG Branch Tee Tube to Pipe Acetal 1/2 na Push-to-Connect na 3/8 na na Male Pipe
A8MTS8-MG Branch Tee Tube to Pipe Acetal 1/2 na Push-to-Connect na 1/2 na na Male Pipe
A8TCB6 Connector Tube to Barb Acetal na 1/2 Tube Stem na na na 3/8 Barb
A8TCB8 Connector Tube to Barb Acetal na 1/2 Tube Stem na na na 1/2 Barb
A8TEB8 90° Elbow Tube to Barb Acetal na 1/2 Tube Stem na na na 1/2 Barb
A8TEU8-MG 90° Elbow Tube to Tube Stem Acetal 1/2 na Push-to-Connect na na 1/2 na Tube Stem
A8TMC4 Connector Tube Stem to Pipe Acetal 1/2 na Push-to-Connect na 1/4 na na Male Pipe
A8TMC6 Connector Tube Stem to Pipe Acetal 1/2 na Push-to-Connect na 3/8 na na Male Pipe
A8TMC8 Connector Tube Stem to Pipe Acetal 1/2 na Push-to-Connect na 1/2 na na Male Pipe
A8TPL Plug Tube Stem Acetal 1/2 na Push-to-Connect na na na na na
A8TU8-MG Tee Tube to Tube Acetal 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
A8UC5-MG Union Tube to Tube Acetal 1/2 na Push-to-Connect 5/16 na na na Push-to-Connect
A8UC6-MG Union Tube to Tube Acetal 1/2 na Push-to-Connect 3/8 na na na Push-to-Connect
A8UC8-MG Union Tube to Tube Acetal 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
AW6TAF7-MG Faucet Adapter Tube Stem to Pipe Acetal na 3/8 Tube Stem na 7/16-24 na na Straight Thread
AW6TAF8-MG Faucet Adapter Tube Stem to Pipe Acetal na 3/8 Tube Stem na 1/2-14 na na Straight Thread
AW6TAF9-MG Faucet Adapter Tube Stem to Pipe Acetal na 3/8 Tube Stem na 9/16-24 na na Straight Thread
AW6TFA7-MG Faucet Adapter Tube Stem to Female Pipe Acetal na 3/8 Tube Stem na 7/16-24 na na Straight Thread
AW6TFA8-MG Faucet Adapter Tube Stem to Female Pipe Acetal na 3/8 Tube Stem na 1/2-14 na na Straight Thread
AW6TFA9-MG Faucet Adapter Tube Stem to Female Pipe Acetal na 3/8 Tube Stem na 9/16-24 na na Straight Thread
F4BU4 Bulkhead Tube to Tube Kynar? 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
F4CAP Cap Tube Kynar? 1/4 na Push-to-Connect na na na na na
F4EU4 90° Elbow Tube to Tube Kynar? 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
F4FA7 Faucet Adapter Tube to Female Pipe Kynar? 1/4 na Push-to-Connect na 7/16-24 na na Straight Thread
F4FC2 Connector Tube to Female Pipe Kynar? 1/4 na Push-to-Connect na 1/8 na na Female Pipe
F4FC4 Connector Tube to Female Pipe Kynar? 1/4 na Push-to-Connect na 1/4 na na Female Pipe
F4FF4 Connector Tube to Female Flare Kynar? 1/4 na Push-to-Connect na 1/4 na na Female Flare
F4MC2 Connector Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/8 na na Male Pipe
F4MC4 Connector Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/4 na na Male Pipe
F4MC6 Connector Tube to Pipe Kynar? 1/4 na Push-to-Connect na 3/8 na na Male Pipe
F4ME2 90° Elbow Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/8 na na Male Pipe
F4ME4 90° Elbow Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/4 na na Male Pipe
F4ME6 90° Elbow Tube to Pipe Kynar? 1/4 na Push-to-Connect na 3/8 na na Male Pipe
F4MES2 90° Swivel Elbow Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/8 na na Male Pipe
F4MES4 90° Swivel Elbow Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/4 na na Male Pipe
F4MES6 90° Swivel Elbow Tube to Pipe Kynar? 1/4 na Push-to-Connect na 3/8 na na Male Pipe
F4MRS2 Run Tee Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/8 na na Male Pipe
F4MRS4 Run Tee Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/4 na na Male Pipe
F4MTS2 Branch Tee Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/8 na na Male Pipe
F4MTS4 Branch Tee Tube to Pipe Kynar? 1/4 na Push-to-Connect na 1/4 na na Male Pipe
F4TCB4 Connector Tube to Barb Kynar? na 1/4 Tube Stem na na na 1/4 Barb
F4TEB4 90° Elbow Tube to Barb Kynar? na 1/4 Tube Stem na na na 1/4 Barb
F4TEU4 90° Elbow Tube to Tube Stem Kynar? 1/4 na Push-to-Connect na na 1/4 na Barb
F4TEU6 90° Elbow Tube to Tube Stem Kynar? 1/4 na Push-to-Connect na na 3/8 na Tube Stem
F4TMC2 Connector Tube Stem to Pipe Kynar? na 1/4 Tube Stem na 1/8 na na Male Pipe
F4TMC4 Connector Tube Stem to Pipe Kynar? na 1/4 Tube Stem na 1/4 na na Male Pipe
F4TPL Plug Tube Stem Kynar? na 1/4 Tube Stem na na na na na
F4TU4 Tee Tube to Tube Kynar? 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
F4UC4 Union Tube to Tube Kynar? 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
F6BU6 Bulkhead Tube to Tube Kynar? 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
F6EU4 90° Elbow Tube to Tube Kynar? 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
F6EU6 90° Elbow Tube to Tube Kynar? 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
F6FA7 Faucet Adapter Tube to Female Pipe Kynar? 3/8 na Push-to-Connect na 7/16-24 na na Straight Thread
F6FC4 Connector Tube to Female Pipe Kynar? 3/8 na Push-to-Connect na 1/4 na na Female Pipe
F6FC6 Connector Tube to Female Pipe Kynar? 3/8 na Push-to-Connect na 3/8 na na Female Pipe
F6FF4 Connector Tube to Female Flare Kynar? 3/8 na Push-to-Connect na 1/4 na na Female Flare
F6FF6 Connector Tube to Female Flare Kynar? 3/8 na Push-to-Connect na 3/8 na na Female Flare
F6MC2 Connector Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/8 na na Male Pipe
F6MC4 Connector Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/4 na na Male Pipe
F6MC6 Connector Tube to Pipe Kynar? 3/8 na Push-to-Connect na 3/8 na na Male Pipe
F6MC8 Connector Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/2 na na Male Pipe
F6ME4 90° Elbow Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/4 na na Male Pipe
F6ME6 90° Elbow Tube to Pipe Kynar? 3/8 na Push-to-Connect na 3/8 na na Male Pipe
F6MES2 90° Swivel Elbow Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/8 na na Male Pipe
F6MES4 90° Swivel Elbow Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/4 na na Male Pipe
F6MES6 90° Swivel Elbow Tube to Pipe Kynar? 3/8 na Push-to-Connect na 3/8 na na Male Pipe
F6MRS4 Run Tee Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/4 na na Male Pipe
F6MRS6 Run Tee Tube to Pipe Kynar? 3/8 na Push-to-Connect na 3/8 na na Male Pipe
F6MTS2 Branch Tee Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/8 na na Male Pipe
F6MTS4 Branch Tee Tube to Pipe Kynar? 3/8 na Push-to-Connect na 1/4 na na Male Pipe
F6MTS6 Branch Tee Tube to Pipe Kynar? 3/8 na Push-to-Connect na 3/8 na na Male Pipe
F6ST9 Connector Tube to Pipe Kynar? 3/8 na Push-to-Connect na 9/16-18 na na Straight Thread
F6TCB4 Connector Tube to Barb Kynar? na 3/8 Tube Stem na na na 1/4 Barb
F6TCB6 Connector Tube to Barb Kynar? na 3/8 Tube Stem na na na 3/8 Barb
F6TEB6 90° Elbow Tube to Barb Kynar? na 3/8 Tube Stem na na na 3/8 Barb
F6TEU4 90° Elbow Tube to Tube Stem Kynar? 3/8 na Push-to-Connect na na 1/4 na Tube Stem
F6TEU6 90° Elbow Tube to Tube Stem Kynar? 3/8 na Push-to-Connect na na 3/8 na Tube Stem
F6TMC4 Connector Tube Stem to Pipe Kynar? na 3/8 Tube Stem na 1/4 na na Male Pipe
F6TMC6 Connector Tube Stem to Pipe Kynar? na 3/8 Tube Stem na 3/8 na na Male Pipe
F6TPL Plug Tube Stem Kynar? na 3/8 Tube Stem na na na na na
F6TU4 Tee Tube to Tube Kynar? 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
F6TU6 Tee Tube to Tube Kynar? 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
F6UC4 Union Tube to Tube Kynar? 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
F6UC6 Union Tube to Tube Kynar? 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
PP4BU4 Bulkhead Tube to Tube White Polypropylene 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
PP4CAP Cap Tube White Polypropylene 1/4 na Push-to-Connect na na na na na
PP4EU4 90° Elbow Tube to Tube White Polypropylene 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
PP4FA7 Faucet Adapter Tube to Female Pipe White Polypropylene 1/4 na Push-to-Connect na 7/16-24 na na Straight Thread
PP4FC2 Connector Tube to Female Pipe White Polypropylene 1/4 na Push-to-Connect na 1/8 na na Female Pipe
PP4FC4 Connector Tube to Female Pipe White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Female Pipe
PP4FF4 Connector Tube to Female Flare White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Female Flare
PP4MC2 Connector Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PP4MC4 Connector Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PP4MC6 Connector Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 3/8 na na Male Pipe
PP4ME2 90° Elbow Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PP4ME4 90° Elbow Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PP4ME6 90° Elbow Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 3/8 na na Male Pipe
PP4MES2 90° Swivel Elbow Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PP4MES4 90° Swivel Elbow Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PP4MES6 90° Swivel Elbow Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 3/8 na na Male Pipe
PP4MRS2 Run Tee Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PP4MRS4 Run Tee Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PP4MTS2 Branch Tee Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PP4MTS4 Branch Tee Tube to Pipe White Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PP4RD5 Tube Reducer Tube to Tube Stem White Polypropylene 1/4 na Push-to-Connect na na 5/16 na Tube Stem
PP4RD6 Tube Reducer Tube to Tube Stem White Polypropylene 1/4 na Push-to-Connect na na 3/8 na Tube Stem
PP4TCB4 Connector Tube to Barb White Polypropylene na 1/4 Tube Stem na na na 1/4 Barb
PP4TEB4 90° Elbow Tube to Barb White Polypropylene na 1/4 Tube Stem na na na 1/4 Barb
PP4TEU4 90° Elbow Tube to Tube Stem White Polypropylene 1/4 na Push-to-Connect na na 1/4 na Tube Stem
PP4TMC2 Connector Tube Stem to Pipe White Polypropylene na 1/4 Tube Stem na 1/8 na na Male Pipe
PP4TMC4 Connector Tube Stem to Pipe White Polypropylene na 1/4 Tube Stem na 1/4 na na Male Pipe
PP4TPL Plug Tube Stem White Polypropylene na 1/4 Tube Stem na na na na na
PP4TU4 Tee Tube to Tube White Polypropylene 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
PP4UC4 Union Tube to Tube White Polypropylene 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
PP6BU4 Bulkhead Tube to Tube White Polypropylene 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
PP6BU6 Bulkhead Tube to Tube White Polypropylene 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
PP6CAP Cap Tube White Polypropylene 3/8 na Push-to-Connect na na na na na
PP6EU4 90° Elbow Tube to Tube White Polypropylene 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
PP6EU4-MG 90° elbow metal gripper Polypropylene 3/8 3/8 Push-to-Connect 1/4 na 1/4 na Push-to-Connect
PP6EU6 90° Elbow Tube to Tube White Polypropylene 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
PP6FA7 Faucet Adapter Tube to Female Pipe White Polypropylene 3/8 na Push-to-Connect na 7/16-24 na na Straight Thread
PP6FC4 Connector Tube to Female Pipe White Polypropylene 3/8 na Push-to-Connect na 1/4 na na Female Pipe
PP6FC6 Connector Tube to Female Pipe White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Female Pipe
PP6FF6 Connector Tube to Female Flare White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Female Pipe
PP6MC4 Connector Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 1/4 na na Male Pipe
PP6MC6 Connector Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PP6MC6-MG Male Connector metal gripper Polypropylene 3/8 3/8 Push-to-Connect 3/8 na 3/8 na Push-to-Connect
PP6ME4 90° Elbow Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 1/4 na na Male Pipe
PP6ME6 90° Elbow Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PP6MES4 90° Swivel Elbow Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 1/4 na na Male Pipe
PP6MES6 90° Swivel Elbow Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PP6MRS4 Run Tee Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 1/4 na na Male Pipe
PP6MRS6 Run Tee Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PP6MTS4 Branch Tee Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 1/4 na na Male Pipe
PP6MTS6 Branch Tee Tube to Pipe White Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PP6TCB6 Connector Tube to Barb White Polypropylene na 3/8 Tube Stem na na na 3/8 Barb
PP6TEB6 90° Elbow Tube to Barb White Polypropylene na 3/8 Tube Stem na na na 3/8 Barb
PP6TEU6 90° Elbow Tube to Tube Stem White Polypropylene na 3/8 Tube Stem na na 3/8 na Tube Stem
PP6TMC4 Connector Tube Stem to Pipe White Polypropylene na 3/8 Tube Stem na 1/4 na na Male Pipe
PP6TMC6 Connector Tube Stem to Pipe White Polypropylene na 3/8 Tube Stem na 3/8 na na Male Pipe
PP6TPL Plug Tube Stem White Polypropylene na 3/8 Tube Stem na na na na na
PP6TU4 Tee Tube to Tube White Polypropylene 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
PP6TU6 Tee Tube to Tube White Polypropylene 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
PP6UC4 Union Tube to Tube White Polypropylene 3/8 na Push-to-Connect 1/4 na na na Push-to-Connect
PP6UC6 Union Tube to Tube White Polypropylene 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
PP8EU8 90° Elbow Tube to Tube White Polypropylene 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
PP8FC6 Connector Tube to Female Pipe White Polypropylene 1/2 na Push-to-Connect na 3/8 na na Female Pipe
PP8FC8 Connector Tube to Female Pipe White Polypropylene 1/2 na Push-to-Connect na 1/2 na na Female Pipe
PP8MC6 Connector Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 3/8 na na Male Pipe
PP8MC8 Connector Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 1/2 na na Male Pipe
PP8MES6 90° Swivel Elbow Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 3/8 na na Male Pipe
PP8MES8 90° Swivel Elbow Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 1/2 na na Male Pipe
PP8MRS6 Run Tee Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 3/8 na na Male Pipe
PP8MRS8 Run Tee Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 1/2 na na Male Pipe
PP8MTS6 Branch Tee Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 3/8 na na Male Pipe
PP8MTS8 Branch Tee Tube to Pipe White Polypropylene 1/2 na Push-to-Connect na 1/2 na na Male Pipe
PP8TEU8 90° Elbow Tube to Tube Stem White Polypropylene 1/2 na Push-to-Connect na na 1/2 na Tube Stem
PP8TMC6 Connector Tube Stem to Pipe White Polypropylene na 1/2 Tube Stem na 3/8 na na Male Pipe
PP8TMC8 Connector Tube Stem to Pipe White Polypropylene na 1/2 Tube Stem na 1/2 na na Male Pipe
PP8TPL Plug Tube Stem White Polypropylene na 1/2 Tube Stem na na na na na
PP8TU8 Tee Tube to Tube White Polypropylene 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
PP8UC6 Union Tube to Tube White Polypropylene 1/2 na Push-to-Connect 3/8 na na na Push-to-Connect
PP8UC8 Union Tube to Tube White Polypropylene 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
PPB4EU4-MG 90° Elbow Tube to Tube Black Polypropylene 1/4 na Push-to-Connect 1/4 na na na Push-to-Connect
PPB4FC2-MG Connector Tube to Female Pipe Black Polypropylene 1/4 na Push-to-Connect na 1/8 na na Female Pipe
PPB4FC4-MG Connector Tube to Female Pipe Black Polypropylene 1/4 na Push-to-Connect na 1/4 na na Female Pipe
PPB4MC2-MG Connector Tube to Pipe Black Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PPB4MC4-MG Connector Tube to Pipe Black Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PPB4MC6-MG Connector Tube to Pipe Black Polypropylene 1/4 na Push-to-Connect na 3/8 na na Male Pipe
PPB4ME2-MG 90° Elbow Tube to Pipe Black Polypropylene 1/4 na Push-to-Connect na 1/8 na na Male Pipe
PPB4ME4-MG 90° Elbow Tube to Pipe Black Polypropylene 1/4 na Push-to-Connect na 1/4 na na Male Pipe
PPB4ME6-MG 90° Elbow Tube to Pipe Black Polypropylene 1/4 na Push-to-Connect na 3/8 na na Male Pipe
PPB4TEU4-MG 90° Elbow Tube to Tube Stem Black Polypropylene 1/4 na Push-to-Connect na na 1/4 na Tube Stem
PPB4TMC2 Connector Tube Stem to Pipe Black Polypropylene na 1/4 Tube Stem na 1/8 na na Male Pipe
PPB4TMC4 Connector Tube Stem to Pipe Black Polypropylene na 1/4 Tube Stem na 1/4 na na Male Pipe
PPB6EU6-MG 90° Elbow Tube to Tube Black Polypropylene 3/8 na Push-to-Connect 3/8 na na na Push-to-Connect
PPB6FC4-MG Connector Tube to Female Pipe Black Polypropylene 3/8 na Push-to-Connect na 1/4 na na Female Pipe
PPB6FC6-MG Connector Tube to Female Pipe Black Polypropylene 3/8 na Push-to-Connect na 3/8 na na Female Pipe
PPB6MC4-MG Connector Tube to Pipe Black Polypropylene 3/8 na Push-to-Connect na 1/4 na na Male Pipe
PPB6MC6-MG Connector Tube to Pipe Black Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PPB6ME6-MG 90° Elbow Tube to Pipe Black Polypropylene 3/8 na Push-to-Connect na 3/8 na na Male Pipe
PPB6TEU6 90° Elbow Tube to Tube Stem Black Polypropylene na 3/8 Tube Stem na na 3/8 na Tube Stem
PPB6TMC4 Connector Tube Stem to Pipe Black Polypropylene na 3/8 Tube Stem na 1/4 na na Male Pipe
PPB6TMC6 Connector Tube Stem to Pipe Black Polypropylene na 3/8 Tube Stem na 3/8 na na Male Pipe
PPB8EU6-MG 90° Elbow Tube to Tube Black Polypropylene 1/2 na Push-to-Connect 3/8 na na na Push-to-Connect
PPB8EU8-MG 90° Elbow Tube to Tube Black Polypropylene 1/2 na Push-to-Connect 1/2 na na na Push-to-Connect
PPB8MC6-MG Connector Tube to Pipe Black Polypropylene 1/2 na Push-to-Connect na 3/8 na na Male Pipe
PPB8MC8-MG Connector Tube to Pipe Black Polypropylene 1/2 na Push-to-Connect na 1/2 na na Male Pipe
PPB8TEU8-MG 90° Elbow Tube to Tube Stem Black Polypropylene 1/2 na Push-to-Connect na na 1/2 na Tube Stem







信德迈科技(北京)有限公司 - CNMEC Technology
美国DMK Engineering Solutions公司

地址:北京市朝阳区望京街10号望京SOHO-T1-C座2115室
邮编:100102
电话:010-84282935;84283983
手机:13910962635 ( 微信号)
Web: www.increaseinc.cn
Email: sales@cnmec.com
传真:010-84288762


京ICP备08000876号-6

京公网安备 11010502021283
Since 2000 Strong Distribution & Powerful Partnerships
