Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

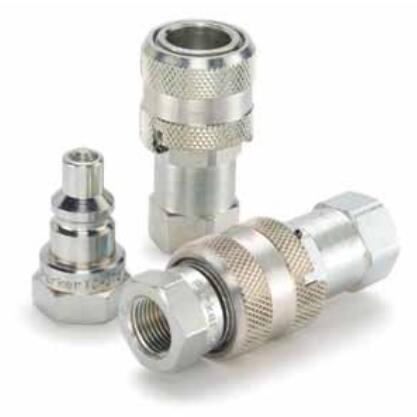

High Pressure, Steel Quick Couplings with Sleeve Lock, Female NPSF Ports (hydraulic) 10,000 psi - TC Series Nipples

Parker's high pressure quick couplers and nipples are ideal for use with hydraulic equipment where high pressure fluid lines require fast and easy connection and disconnection.

TC Series Nipples (hydraulic) up to 10,000 psi connect with TC Series Couplers.
Parker's TC Series are double shut-off, high pressure quick couplings designed for applications with hydraulic and mechanical shock. Couplers have a sleeve lock function to guard against accidental disconnection. Couplers and nipples are available in 3/8" size with a pressure rating of 10,000 psi.

High Pressure, Steel Quick Couplings with Sleeve Lock, Female NPSF Ports (hydraulic) 10,000 psi - TC Series Nipples

Technical Characteristics:
- Size: 3/8”
- Material: Steel
- Port Ends: Female NPSF
- Seal: Fluorocarbon

Markets:
- Railway
- Construction
- Building relocation
- Structure lifting

Features/Benefits:
- Sleeve lock guards against accidental disconnection
- Positive valve stop prevents flow checking for reliable performance under hydraulic shock
- Durable Fluorocarbon seals

Applications:
- Any application with hydraulic and mechanical shock
- Hydraulic jacking and house moving equipment
- Construction equipment
- Railway maintenance

Technical Specifications

High Pressure, Steel Quick Couplings with Sleeve Lock, Female NPSF Ports (hydraulic) 10,000 psi - TC Series Nipples 型号
