Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings

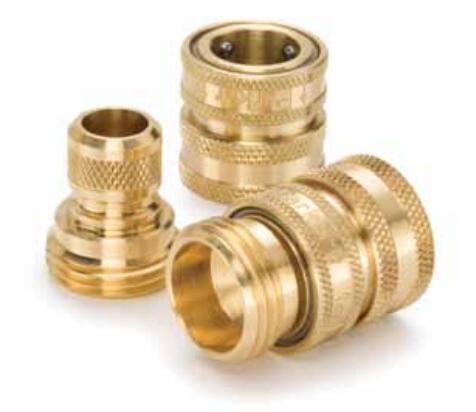

Garden Hose, Brass Quick Couplings (water) up to 200 psi - 1163 Series Couplers

Parker's high flow, brass garden hose quick couplers and nipples are ideal for applications where water hoses require fast and easy connection and disconnection.





1163 Series Couplers (water) up to 200 psi, connect with 1163 Series Nipples. Parker's 1163 Series are brass, high flow quick couplings for applications where water hoses are frequently connected and disconnected. These unvalved water service couplings have standard garden hose threads. Couplers and nipples are available in 3/4" size with a pressure rating of 200 psi.



Garden Hose, Brass Quick Couplings (water) up to 200 psi - 1163 Series Couplers



Technical Characteristics:
- Size: 3/4”
- Materials: Brass and stainless steel
- Port Ends: Female NH (standard garden hose thread)
- Coupler seal is Nitrile

Markets:
- Agriculture
- Turf and lawn care
- Landscaping
- Residential and commercial construction
- Industrial cleaning

Features/Benefits:
- Standard garden hose threads are compatible with commercial and residential grade water hoses, outdoor faucets and hose attachments
- Brass material is corrosion resistant and durable
- Knurling on the coupler sleeve provides a gripping surface for easy operation when hands are wet or gloved

Applications:
- Garden hoses and attachments
- Wash down systems
- Mobile water tank lines
- Water hose reels



Technical Specifications

Maximum Operating Pressure: 200 psi, 14 bar
Valve Type: No Valve, Unvalved
Brand: Parker
Fitting Connection Type: Garden Hose Thread
Materials of Construction: Brass
Maximum Operating Temperature: 121 °C, 250 °F
Vacuum Pressure Rating: No
Body Size: 3/4 inch
Flow Rate: 28 Gal/min
Media: Hydraulic
Coupling Half: Coupler
Minimum Operating Temperature: -40 °F
Seal Material: Nitrile
Application: Water hose connection
Sleeve Type: Manual
Lock Type: Locking balls



Garden Hose, Brass Quick Couplings (water) up to 200 psi - 1163 Series Couplers 型号

Part Thread Style Connection Thread Size (inch) Connection Type
1163-60 Female 3/4 - 11 1/2 NH
