Parker Quick Couplings
Connect Under Pressure With Threaded Actuation, 1/2” Pioneer Quick Couplings, ISO 5675, 2500 psi - 5000 Series Couplers
Parker's connect under pressure quick couplers with threaded actuation are an economic solution for connecting fluid lines while under pressure. They require the use of tools to open the connected coupling valves.

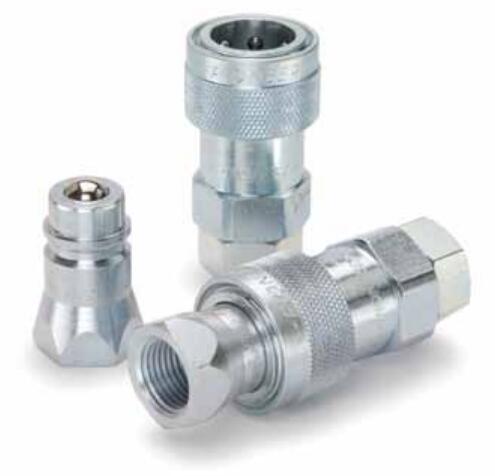

5000 Series Coupler (hydraulic) 2500 psi, connects with 8010 Series Nipples (ISO 5675 Pioneer universal male tips).
Parker's 5000 Series is a manual, threaded actuation coupler that can be connected under pressure with the use of tools. When the coupler and nipple are connected, the valves remain closed until the threaded union on the back of the coupler body is tightened. With the valves open, the sleeve is locked in position. Unscrewing the threaded union allows the valves to close and the coupler sleeve can then be retracted to release the nipple.
These economical steel couplers are available in 1/2" size for pressures up to 2500 psi.
Connect Under Pressure With Threaded Actuation, 1/2” Pioneer Quick Couplings, ISO 5675, 2500 psi - 5000 Series Couplers
Technical Characteristics:
- Size: 1/2”
- Material: Steel
- Port Ends: Female NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
- Agriculture
- Hydraulic equipment
Features/Benefits:
- Globally connects with Pioneer male tips (8010 Series) or any other nipples conforming to ISO 5675
- Economical coupler to manually connect fluid lines under pressure with the use of tools
Applications:
- Agricultural equipment and attachments
- Lubrication systems
- Hydraulic tools
Technical Specifications
| Maximum Operating Pressure: |
2500 psi, 172 bar |
| Application: |
Hydraulic, connect under pressure, Hydraulic connect under pressure |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread |
| Interchange Type: |
ISO 5675 |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Body Size: |
1/2 inch |
| Flow Rate: |
12 Gal/min |
| Seal Material: |
Nitrile |
| Media: |
Hydraulic |
| Coupling Half: |
Coupler |
| Minimum Operating Temperature: |
-40 °F |
| Valve Type: |
Ball |
| Sleeve Type: |
Manual |
| Lock Type: |
Locking balls |
| Thread Size: |
Female |
| Connection Type: |
NPTF |
| Specifications Met: |
ISO 5675 |
| Plating Type: |
Zinc with clear trivalent chromate |
Connect Under Pressure With Threaded Actuation, 1/2” Pioneer Quick Couplings, ISO 5675, 2500 psi - 5000 Series Couplers 型号
| Part |
Connection Thread Size (inch) |
| 5050-4 |
1/2 - 14 |
|
