Parker 快速接头和附件
Parker Quick Couplings and Accessories

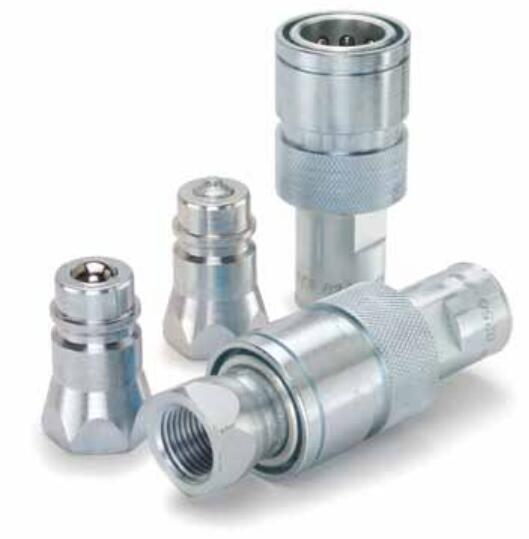

Parker Quick Couplings
1/2” Connect Under Pressure Quick Couplings, Breakaway Sleeve, Push Connect, Pioneer ISO 5675, 3000 psi - 8200 Series Couplers

Parker's connect under pressure, bracket / bulkhead mount agricultural quick couplers and nipples are the farmers choice where fluid lines require fast and easy connection and disconnection.





8200 Series Couplers (hydraulic) 3000 psi, connect with 8010 Series Nipples (ISO 5675, Pioneer male tips). Ball or poppet valve options.

Parker's 8200 Series are double shut-off, quick couplings that can connect under system pressure on the coupler side and residual pressure on the nipple side. The unique valve design allows connection while either or both the coupler and nipple are under pressure. Valves in both sides remain closed, opening only when system pressure has been relieved on the coupler body and then reapplied. This pressure sequence may be done with either an open center or a closed center hydraulic system that has a control valve.

Couplers have push to connect operation when the coupler is clamp or bracket / bulkhead mounted and are ideal for use in applications where a breakaway feature is desirable. Couplers are compatible with 5001-4 and 5006-4 breakaway clamps.



1/2” Connect Under Pressure Quick Couplings, Breakaway Sleeve, Push Connect, Pioneer ISO 5675, 3000 psi - 8200 Series Couplers



Technical Characteristics:
- Size: 1/2”
- Material: Steel
- Port Ends: Female ORB, Female NPSF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:
- Agriculture

Features/Benefits:
- Connect under system pressure on the coupler side and residual pressure on the nipple side
- One handed push to connect operation
- Push - pull breakaway sleeve allows coupler to disconnect in the case of an implement breakaway
- Clamp / bracket / bulkhead mountable
- Poppet or ball valve option
- Critical parts are hardened for durability
- Globally connects with Pioneer universal male tips (nipples) complying to ISO 5675

Applications:
- Tractors
- Harvesters
- Implements
- Mid-sized agricultural equipment
- Agricultural attachments requiring breakaway



Technical Specifications

Maximum Operating Pressure: 3000 psi, 207 bar
Brand: Parker
Fitting Connection Type: Female Thread
Interchange Type: ISO 5675
Materials of Construction: Steel
Maximum Operating Temperature: 121 °C, 3000 °F
Vacuum Pressure Rating: No
Body Size: 1/2 inch
Flow Rate: 12 Gal/min
Seal Material: Nitrile
Media: Hydraulic
Specifications Met: ISO 5675
Coupling Half: Coupler
Minimum Operating Temperature: -40 °F
Valve Type: Connect under pressure poppet
Sleeve Type: Push-pull breakaway
Lock Type: Locking Balls
Thread Size: 1/2 inch
Connection Type: 12
Plating Type: 12
Application: 12



1/2” Connect Under Pressure Quick Couplings, Breakaway Sleeve, Push Connect, Pioneer ISO 5675, 3000 psi - 8200 Series Couplers 型号

Part Connection Thread Size (inch)
8200 Series Couplers_SKU_1 1/2 - 14
8200 Series Couplers_SKU_2 3/4 - 16
8200 Series Couplers_SKU_3 7/8 - 14
8200 Series Couplers_SKU_4 18x1,5
8200 Series Couplers_SKU_5 26x1,5
8200 Series Couplers_SKU_6 30x2
8200 Series Couplers_SKU_7 14 x 1,5
8200 Series Couplers_SKU_8
8250-15 3/4 - 16
8250-16 7/8 - 14
8250-4 1/2 - 14
