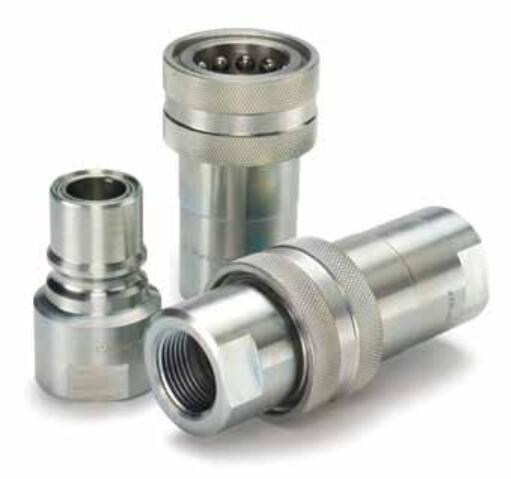

High Pressure, High Flow, 1” and 1-1/2” Size Steel Quick Couplings (hydraulic) 5000 psi - HP Series Nipples
Parker's high pressure quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.
HP Series Nipples (hydraulic) 5000 psi connect with HP Series Couplers.
Parker's HP Series are double shut-off quick couplings with manual sleeves and poppet valves. Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges. End fitting configurations include female pipe and straight thread ORB.
High Pressure, High Flow, 1” and 1-1/2” Size Steel Quick Couplings (hydraulic) 5000 psi - HP Series Nipples
Technical Characteristics:
- Sizes: 1” and 1-1/2””
- Material: Steel
- Port Ends: Female NPSF, Female ORB, Female NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
- Industrial
- Construction
- Mobile Equipment
Features/Benefits:
- Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges
- High flow with minimal pressure drop
Applications:
- Industrial hydraulic lines
- Construction mobile equipment
Technical Specifications
| Body Size: |
1, 1 1/2 inch, 1 | 1 1/2 inch |
| Maximum Operating Pressure: |
5000 psi, 345 bar |
| Application: |
Hydraulic, general purpose |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread |
| Materials of Construction: |
Steel |
| Maximum Operating Temperature: |
121 °C, 250 °F |
| Vacuum Pressure Rating: |
No |
| Flow Rate: |
Up to 100 Gal/min |
| Seal Material: |
Nitrile |
| Media: |
Hydraulic |
| Coupling Half: |
Nipple |
| Minimum Operating Temperature: |
-40 °F |
| Valve Type: |
Poppet |
| Thread Size: |
Female |
| Connection Type: |
NPSF | ORB | NPTF |
| Plating Type: |
Zinc with clear trivalent chromate |
High Pressure, High Flow, 1” and 1-1/2” Size Steel Quick Couplings (hydraulic) 5000 psi - HP Series Nipples 型号
| Part |
Connection Thread Size (inch) |
| HP-1002-16FO |
1 5/16 - 12 |
| HP-1002-16FP |
1 - 11 1/2 |
| HP-1502-24FO |
1 7/8 - 12 |
| HP-1502-24FP |
1 1/2 - 11 1/2 |
|
