Parker 快速接头和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings
ISO 4414 Venting, Air Hose Quick Coupling (pneumatic) European High Flow & Industrial Interchange - Tool-Mate Series Couplers

Parker's pressure venting pneumatic, air quick couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

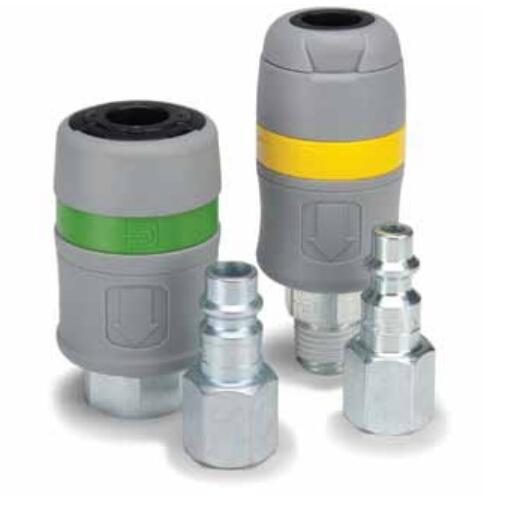

Tool-Mate Series pressure venting couplers (pneumatic, air) up to 300 psi, are available in two connection styles to accept either Industrial Interchange Nipples or RF Series (European High Flow profile) Nipples. The connection style is visually indicated by a colored band on the sleeve. Yellow designates Industrial Interchange and green designates European High Flow.
Parker's Tool-Mate Couplers are pressure venting, non-marring, push-to-connect, and single shut off. Exhaust style couplers allow safe disconnection at zero pressure to avoid dangerous hose whip. Tool-Mate PBS and PES part numbers meet ISO 4414 requirements for a controlled pressure release system.



ISO 4414 Venting, Air Hose Quick Coupling (pneumatic) European High Flow & Industrial Interchange - Tool-Mate Series Couplers



Technical Characteristics:
- Sizes: 1/4”, 3/8", 1/2”
- Materials: Polyamide material with galvanized steel port ends
- Port Ends: Female NPTF, Male NPTF
- Seal Options: Nitrile

Markets:
- Industrial
- Construction
- Automotive service and repair
- Factory automation

Features/Benefits:
- Vents trapped air pressure prior to disconnection, eliminating the risk of hose whip
- Meets ISO 4414 requirements for a controlled pressure release system
- Easy push to connect operation
- Lightweight non-marring body helps to prevent damage to surface finishes and painted coatings during assembly operations
- Two step disconnection prevents accidental uncoupling
- Yellow band visually indicates Industrial Interchange connection style. Connects with Parker's Industrial Interchange Nipples and others manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B).
- Green band visually indicates European High Flow connection style. Connects with Parker's RF Series Nipples and other high flow profile nipples.

Applications:
- Air compressors
- Pneumatic air tools and hoses
- Drop-down air lines
- Blow guns



Technical Specifications

Body Size: 1/4, 3/8, 1/2 inch
Maximum Operating Pressure: 300 psi, 20 bar
Maximum Operating Temperature: 71 °C, 160 °F
Materials of Construction: Polyamide
Application: Pneumatic, venting, Pneumatic
Valve Type: High Flow Air, Tubular
Brand: Parker
Vacuum Pressure Rating: No
Fitting Connection Type: Female Thread, Male Thread
Interchange Type: ISO 6150 B, Rectus Profile
Media: Compressed air
Coupling Half: Coupler
Minimum Operating Temperature: 0 °F
Seal Material: Nitrile
Plating Type: Galvanized steel port ends
Specifications Met: ISO 4414 controlled pressure release
Special Option: Exhaust - venting
Sleeve Type: Push to connect
Lock Type: Polyacetate locking fingers



ISO 4414 Venting, Air Hose Quick Coupling (pneumatic) European High Flow & Industrial Interchange - Tool-Mate Series Couplers 型号

Part Interface Option Body Size (inch) Thread Style Connection Thread Size (inch) Connection Type
PBS-251-4FP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 1/4 Female 1/4 - 18 NPTF
PBS-251-4MP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 1/4 Male 1/4 - 18 NPTF
PBS-251-6FP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 1/4 Female 3/8 - 18 NPTF
PBS-251-6MP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 1/4 Male 3/8 - 18 NPTF
PBS-371-6FP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 3/8 Female 3/8 - 18 NPTF
PBS-371-6MP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 3/8 Male 3/8 - 18 NPTF
PBS-371-8FP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 3/8 Female 1/2 - 14 NPTF
PBS-371-8MP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 3/8 Male 1/2 - 14 NPTF
PBS-501-12FP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 1/2 Female 3/4 - 14 NPTF
PBS-501-6FP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 1/2 Female 3/8 - 18 NPTF
PBS-501-8FP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 1/2 Female 1/2 - 14 NPTF
PBS-501-8MP Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) 1/2 Male 1/2 - 14 NPTF
PES-251-4MP Connects with RF style nipples 1/4 Male 1/4 - 18 NPTF
PES-251-6FP Connects with RF style nipples 1/4 Female 3/8 - 18 NPTF
