Parker Quick Couplings

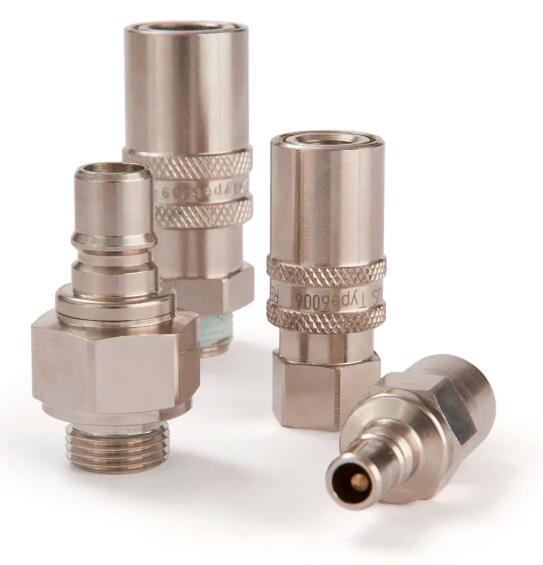

Quick Coupling with Frenchmatic I Profile, Series 6006/6009/6012/6016
Quick coupling system with nominal diameter 6/9/12/16 for tempering and cooling applications up to 20 bar. Coupling system with Frenchmatic I profile. Available made of brass/steel.
Parker's Quick Coupling Series 6006/6009/6012/6016 was constructed with valves as an alternative to the French profiles. All four nominal diameters in our Frenchmatic I range are available as single shut-off and double shut-off version.
The locking balls guarantee an optimum hold by the insert connection even with forces acting from the side. The Series 6006/6009/6012/6016 stands out for its optimum flow rate with absolute minimal flow resistance.
Quick Coupling with Frenchmatic I Profile, Series 6006/6009/6012/6016
Markets:
- Industrial
Features/Benefits:
- Optimum flow rate with absolute minimal flow resistance
Applications:
- Mold cooling
- Cooling and tempering lines
Technical Specifications
| Minimum Operating Temperature: |
-15 °C |
| Length: |
30 to 112,5 mm |
| Application: |
Mold |
| Brand: |
Rectus |
| Diameter: |
Nominal: 6 to 16 mm |
| Fitting Connection Type: |
Female Thread, Male Thread, Hose Barb |
| Interchange Type: |
French Profile |
| Maximum Operating Pressure: |
290.08 psi, 20 bar |
| Maximum Operating Temperature: |
392 °F, 200 °C |
| Media: |
Water |
| Valve Type: |
Poppet |
| Hex Size: |
8 to 34 mm |
| Outside Diameter: |
9,4 to 32 mm |
| Materials of Construction: |
Brass, Steel |
| Seal Material: |
FKM |
Quick Coupling with Frenchmatic I Profile, Series 6006/6009/6012/6016 型号
| Part |
Diameter Nominal (DN) |
Type |
Valving |
Connection Type |
Connection Thread Size (inch) |
Hose I.D. |
| 6006KBAW13MVN |
6 |
Coupling |
with |
Male Thread |
1/4 |
na |
| 6006KBIW13MVN |
6 |
Coupling |
with |
Female Thread |
1/4 |
na |
| 6006KBTF08MVN |
6 |
Coupling |
with |
Hose Barb |
na |
8 |
| 6006KBTR08MVN |
6 |
Coupling |
with |
Hose Barb 90° |
na |
8 |
| 6006SBAO10MVN |
6 |
Plug |
with |
Male Thread with additional Seal |
1/8 |
na |
| 6006SBIW10MVN |
6 |
Plug |
with |
Female Thread |
1/8 |
na |
| 6006SFAK10MXN |
6 |
Plug |
without |
Male Thread with Internal Hexagon |
1/8 |
na |
| 6006SFIW13MXN |
6 |
Plug |
without |
Female Thread |
1/4 |
na |
| 6009KBAW17MVN |
9 |
Coupling |
with |
Male Thread |
3/8 |
na |
| 6009KBIW17MVN |
9 |
Coupling |
with |
Female Thread |
3/8 |
na |
| 6009KBTF12MVN |
9 |
Coupling |
with |
Hose Barb |
na |
12 |
| 6009KBTR10MVN |
9 |
Coupling |
with |
Hose Barb 90° |
na |
10 |
| 6009KBTR12MVN |
9 |
Coupling |
with |
Hose Barb 90° |
na |
12 |
| 6009SBAO13MVN |
9 |
Plug |
with |
Male Thread with additional Seal |
1/4 |
na |
| 6009SBAO17MVN |
9 |
Plug |
with |
Male Thread with additional Seal |
3/8 |
na |
| 6009SBAO21MVN |
9 |
Plug |
with |
Male Thread with additional Seal |
1/2 |
na |
| 6009SBAW21MVN |
9 |
Plug |
with |
Male Thread |
1/2 |
na |
| 6009SBIW13MVN |
9 |
Plug |
with |
Female Thread |
1/4 |
na |
| 6009SBIW17MVN |
9 |
Plug |
with |
Female Thread |
3/8 |
na |
| 6009SFAK13MXN |
9 |
Plug |
without |
Male Thread with Internal Hexagon |
1/4 |
na |
| 6009SFAK17MXN |
9 |
Plug |
without |
Male Thread with Internal Hexagon |
3/8 |
na |
| 6009SFAW21MXN |
9 |
Plug |
without |
Male Thread |
1/2 |
na |
| 6009SFIW17MXN |
9 |
Plug |
without |
Female Thread |
3/8 |
na |
| 6012KBAW21MVN |
12 |
Coupling |
with |
Male Thread |
1/2 |
na |
| 6012KBIW21MVN |
12 |
Coupling |
with |
Female Thread |
1/2 |
na |
| 6012KBTF16MVN |
12 |
Coupling |
with |
Hose Barb |
na |
16 |
| 6012SBAO17MVN |
12 |
Plug |
with |
Male Thread with additional Seal |
3/8 |
na |
| 6012SBAO21MVN |
12 |
Plug |
with |
Male Thread with additional Seal |
1/2 |
na |
| 6012SBAO26MVN |
12 |
Plug |
with |
Male Thread with additional Seal |
3/4 |
na |
| 6012SBAW26MVN |
12 |
Plug |
with |
Male Thread |
3/4 |
na |
| 6012SFAK17MXN |
12 |
Plug |
without |
Male Thread with Internal Hexagon |
3/8 |
na |
| 6012SFAK21MXN |
12 |
Plug |
without |
Male Thread |
1/2 |
na |
| 6012SFAW26MXN |
12 |
Plug |
without |
Male Thread |
3/4 |
na |
| 6012SFIW21MXN |
12 |
Plug |
without |
Female Thread |
1/2 |
na |
| 6016KBAW26MVN |
16 |
Coupling |
with |
Male Thread |
3/4 |
na |
| 6016KBIW26MVN |
16 |
Coupling |
with |
Female Thread |
3/4 |
na |
| 6016KBTF19MVN |
16 |
Coupling |
with |
Hose Barb |
na |
19 |
| 6016SBAO26SVZ |
16 |
Plug |
with |
Male Thread with additional Seal |
3/4 |
na |
| 6016SBAO33SVZ |
16 |
Plug |
with |
Male Thread with additional Seal |
1 |
na |
| 6016SBAW33SVZ |
16 |
Plug |
with |
Male Thread |
1 |
na |
| 6016SBIW26SVZ |
16 |
Plug |
with |
Female Thread |
3/4 |
na |
| 6016SFAK26SXZ |
16 |
Plug |
without |
Male Thread |
3/4 |
na |
| 6016SFIW26SXZ |
16 |
Plug |
without |
Female Thread |
3/4 |
na |
|
