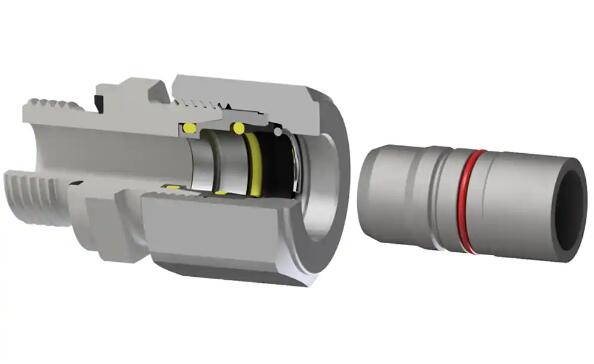

UPTC Universal Push to Connect

The main function of UPTC is to connect quick different numbers of tubes or hoses without tools.

UPTC is an innovative Parker plug-in solution for tubular and/or rigid tube connections, UPTC provides a simple and secure means of permanently connecting both components together. With the DIN version, it can be combined with all 24° fitting connections compliant with ISO 8434-1.

The main function of UPTC is to connect quick different numbers of tubes or hoses without tools in assembly line productions.

Markets:
- Truck and Bus
- Transportation
- Energy
- Agriculture
- Machine Tools

Applications:
- The UPTC plug-in system is suitable for general hydraulic applications according to
- Steering hydraulic lines, cab tilt hydraulic lines, Fuel hydraulic lines, Clutch hydraulic lines, Cooling hydraulic lines, Lubrication Systems, Machinery motion hydraulic lines.

Features/Benefits:
-High corrosion resistance: The Cr(VI)-free surface treatment gives an average corrosion resistance of more than 500 hours to white rust. This attribute extends the life cycle of the fittings.
- The Tool-free Push-to-Connect system is for tubes and hose application
- The Push-to-Connect system requires a very low insertion force
- Due to the special connector shape there is absolute no leakage under tough applications like hard vibrations or movement
- UPTC Plug-in connection contains a form-closed and soft-sealed connection, free of clearance and thereby wear-free
- The UPTC Plug-connection is very simple detachable at the adjacent fitting within a standard spanner (even simple detachable after a long utilisation period under hard environmental conditions)
- UPTC Push-to-Connect system fulfilled successful 1500h of a special accelerate RIG Vibration Test called Dust-Box-Text ("Arizona Road Dust")
- High pressure: UPTC has pressure ratings of up to 400 bar (L series). These features increase the range of applications.

Technical Specifications

UPTC Universal Push to Connect 型号
