Face Seal Fittings

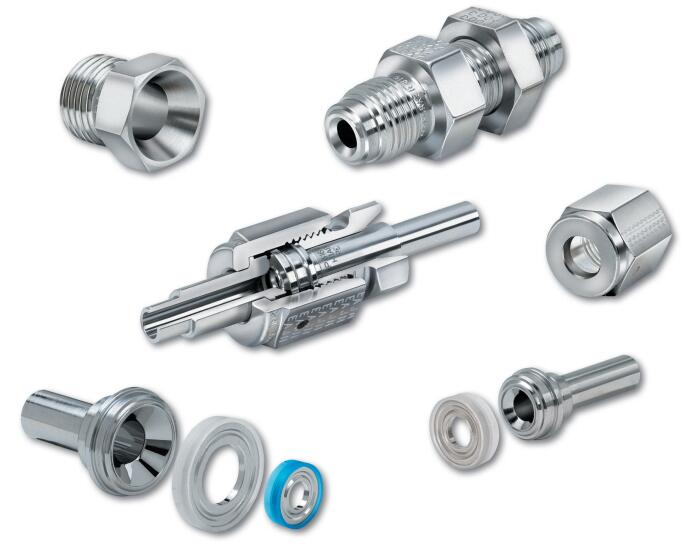

UHP Metal Gasket Face Seal Fitting (sizes up to 1 inch) – VacuSeal

VacuSeal Face Seal Fittings are designed for ultra-high purity gas distribution systems. The fittings offer excellent reliability and leak integrity and are ideal for use in semiconductor manufacturing applications where cleanliness is critical.

VacuSeal Metal Gasket Face Seal Fittings provide extremely high leak integrity, making them suitable for use in critical applications where ultra-high purity conditions are required, such as semiconductor tool hook-ups, valve manifold boxes (VMBs), and gas distribution systems. The fittings feature a mating gasket and toroid design, creating a metal-to-metal seal and affording leak-free service from vacuum up to 9000 psig.

VacuSeal fittings range from 1/8 to 1 inch in size and come available in a variety of body and gland configurations. They are fabricated in a Class 100 cleanroom from Veriflo's proprietary Vericlean? low sulfur, 316L stainless steel. The standard 5 Ra, electropolished wetted surface finish reduces entrapment areas while offering exceptional corrosion resistance. Glands are available in high-purity nickel and Hastelloy C-22 to ensure performance and reliability in extremely corrosive applications.

UHP Metal Gasket Face Seal Fitting (sizes up to 1 inch) – VacuSeal

VacuSeal fittings are designed to work with flat and Verfilo's TorqTite? self-aligning face seal gaskets, which require no tools for installation and eliminate component loosening due to thermocycling and vibration. TorqTite? also ensures sealing, even on damaged toroids and allows for the application of extremely high torque without risk of damage to the sealing surface. This, coupled with the VacuSeal? fittings' ultra-high purity materials of construction, minimizes particle generation and ensures leak integrity in wafer manufacturing operations where cleanliness is of the utmost importance.

All VacuSeal fittings are Helium leak tested to ensure performance and reliability in demanding UHP applications.

Markets:
- Semiconductor
- Tool Fab
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Applications:
- Corrosive and specialty gases
- Semiconductor Fab Gas Distribution Systems
- Semiconductor Tools
- Tool Hook-ups
- Gas Cabinets
- Valve Manifold Boxes (VMB)

Features/Benefits:
- Two leak test ports for easy leak testing
- Leak rate: ≤1 x 10-9 STD scc/sec He
- 5 Ra internal electropolish surface finish
- Female nuts are silver-plated with an enhanced plating process for aggressive chemical processes used in cleaning, electropolishing and passivation
- Non-rotational female nut prevents transmission of torque during make-up and therefore minimizes twist of componentry, which causes stress concentration
- Anti-galling female nut ensures consistent makeup without plating or lubrication.
- Patented TorqTite? gasket initially contacts on the inner taper, radially forcing out any entrapped contaminants
- Heat code on gland provides raw material traceability
- No axial clearance is needed to remove components from a system
- Smooth transition into the internal diameter minimizes entrapment areas


Hastelloy C-22 is a registered trademark of Haynes International, Inc.

Technical Specifications

UHP Metal Gasket Face Seal Fitting (sizes up to 1 inch) – VacuSeal型号

Part Product Type Configuration Body Material Connection Size (inch) Connection Style Connection 2 Size (inch) Connection 2 Size (mm) Connection 2 Style Connection 3 Size (inch) Connection 3 Style Connection 4 Size (inch) Connection 4 Style Overall Length Options
1-1 V1W-SSR VacuSeal? Glands Socket Weld 316L VAR 1/16" VacuSeal? Metal Gasket 1/16" NA Socket Weld NA NA NA NA NA NA
1-1 V1W-SSR-PE VacuSeal? Glands Socket Weld 316L VAR 1/16" VacuSeal? Metal Gasket 1/16" NA Socket Weld NA NA NA NA NA Electropolish
1-1 V1W-SSV VacuSeal? Glands Socket Weld 316L VIM/VAR 1/16" VacuSeal? Metal Gasket 1/16" NA Socket Weld NA NA NA NA NA NA
1-1 V1W-SSV-PE VacuSeal? Glands Socket Weld 316L VIM/VAR 1/16" VacuSeal? Metal Gasket 1/16" NA Socket Weld NA NA NA NA NA Electropolish
12 BV-SS Metal Nuts, Caps and Plugs Female Nut 316 SS 3/4" NA NA NA NA NA NA NA NA NA NA
12 BVI-SS Metal Nuts, Caps and Plugs Male Nut 316 SS 3/4" NA NA NA NA NA NA NA NA NA NA
12 FNV-SS Metal Nuts, Caps and Plugs Cap 316 SS 3/4" NA NA NA NA NA NA NA NA NA NA
12 KV-SS Metal Gasket Bodies Union Cross 316 SS 3/4" Male VacuSeal? (Metal Gasket) 3/4" NA Male VacuSeal? (Metal Gasket) 3/4" Male VacuSeal? (Metal Gasket) 3/4" Male VacuSeal? (Metal Gasket) 3.84" NA
12 KV-SS-PE Metal Gasket Bodies Union Cross 316 SS 3/4" Male VacuSeal? (Metal Gasket) 3/4" NA Male VacuSeal? (Metal Gasket) 3/4" Male VacuSeal? (Metal Gasket) 3/4" Male VacuSeal? (Metal Gasket) 3.84" Electropolish
12 PNV-SS Metal Nuts, Caps and Plugs Plug 316 SS 3/4" NA NA NA NA NA NA NA NA NA NA
12 VG-K Metal Gaskets Non-Retained Flat Style Kel-F? 3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat
12 VG-K-BL Metal Gaskets Non-Retained Flat Style Kel-F? 3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
12 VG-N Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat
12 VG-N-BL Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
12 VG-SS Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat
12 VG-SS-BL Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
12 VG-T Metal Gaskets Non-Retained Flat Style Teflon? 3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat
12 VG-T-BL Metal Gaskets Non-Retained Flat Style Teflon? 3/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
12 VHC-SS Metal Gasket Bodies Coupling 316 SS 3/4" Female VacuSeal? Thread 3/4" NA Female VacuSeal? Thread NA NA NA NA 1.68" NA
12-12 EV-SS Metal Gasket Bodies Union Elbow 316 SS 3/4" Male VacuSeal? (Metal Gasket) 3/4" NA Male VacuSeal? (Metal Gasket) NA NA NA NA NA NA
12-12 EV-SS-PE Metal Gasket Bodies Union Elbow 316 SS 3/4" Male VacuSeal? (Metal Gasket) 3/4" NA Male VacuSeal? (Metal Gasket) NA NA NA NA NA Electropolish
12-12 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 3/4" Male VacuSeal? Metal Gasket 3/4" NA Male NPT NA NA NA NA 2.19" NA
12-12 GV-SS Metal Gasket Bodies Female NPT Connector 316 SS 3/4" Male VacuSeal? Metal Gasket 3/4" NA Female NPT NA NA NA NA 2.36" NA
12-12 HV-SS Metal Gasket Bodies Double Male Union 316 SS 3/4" Male VacuSeal? (Metal Gasket) 3/4" NA Male VacuSeal? (Metal Gasket) NA NA NA NA 2.44" NA
12-12 V1T3-SSR 2.00 .109 VacuSeal? Glands Male Weld 316L VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Tube Butt Weld NA NA NA NA NA NA
12-12 V1T3-SSR 2.00 .109-PE VacuSeal? Glands Male Weld 316L VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Tube Butt Weld NA NA NA NA NA Electropolish
12-12 V1T3-SSR 2.03 VacuSeal? Glands Long Tube Butt Weld 316L VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Long Tube Butt Weld NA NA NA NA 2.03" NA
12-12 V1T3-SSR 2.03-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Long Tube Butt Weld NA NA NA NA 2.03" Electropolish
12-12 V1T3-SSV 2.00 .109 VacuSeal? Glands Male Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Tube Butt Weld NA NA NA NA NA NA
12-12 V1T3-SSV 2.00 .109-PE VacuSeal? Glands Male Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Tube Butt Weld NA NA NA NA NA Electropolish
12-12 V1T3-SSV 2.03 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Long Tube Butt Weld NA NA NA NA 2.03" NA
12-12 V1T3-SSV 2.03-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Long Tube Butt Weld NA NA NA NA 2.03" Electropolish
12-12 V1W-SSR VacuSeal? Glands Socket Weld 316L VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Socket Weld NA NA NA NA NA NA
12-12 V1W-SSR-BL VacuSeal? Glands Blind Gland 316L VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Blind Tube Butt Weld NA NA NA NA NA NA
12-12 V1W-SSR-BL-PE VacuSeal? Glands Blind Gland 316L VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish
12-12 V1W-SSR-PE VacuSeal? Glands Socket Weld 316L VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Socket Weld NA NA NA NA NA Electropolish
12-12 V1W-SSV VacuSeal? Glands Socket Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Socket Weld NA NA NA NA NA NA
12-12 V1W-SSV-BL VacuSeal? Glands Blind Gland 316L VIM/VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Blind Tube Butt Weld NA NA NA NA NA NA
12-12 V1W-SSV-BL-PE VacuSeal? Glands Blind Gland 316L VIM/VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish
12-12 V1W-SSV-PE VacuSeal? Glands Socket Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Socket Weld NA NA NA NA NA Electropolish
12-12 V1Y3-SSR 2.07 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA
12-12 V1Y3-SSR 2.07-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
12-12 V1Y3-SSV 2.07 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA
12-12 V1Y3-SSV 2.07-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket 3/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
12-12-12 JV-SS Metal Gasket Bodies Union Tee 316 SS 3/4" Male VacuSeal? (Metal Gasket) 3/4" NA Male VacuSeal? (Metal Gasket) 3/4" Male VacuSeal? (Metal Gasket) NA NA 3.84" NA
12-12-12 JV-SS-PE Metal Gasket Bodies Union Tee 316 SS 3/4" Male VacuSeal? (Metal Gasket) 3/4" NA Male VacuSeal? (Metal Gasket) 3/4" Male VacuSeal? (Metal Gasket) NA NA 3.84" Electropolish
12-18M V1T3-SSR 1.22 VacuSeal? Glands Short Tube Butt Weld 316L VAR 3/4" VacuSeal? Metal Gasket NA 18 Short Tube Butt Weld NA NA NA NA 1.22" NA
12-18M V1T3-SSR 1.22-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 3/4" VacuSeal? Metal Gasket NA 18 Short Tube Butt Weld NA NA NA NA 1.22" Electropolish
12-18M V1T3-SSR 2.03 VacuSeal? Glands Long Tube Butt Weld 316L VAR 3/4" VacuSeal? Metal Gasket NA 18 Long Tube Butt Weld NA NA NA NA 2.03" NA
12-18M V1T3-SSR 2.03-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 3/4" VacuSeal? Metal Gasket NA 18 Long Tube Butt Weld NA NA NA NA 2.03" Electropolish
12-18M V1T3-SSV 1.22 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket NA 18 Short Tube Butt Weld NA NA NA NA 1.22" NA
12-18M V1T3-SSV 1.22-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket NA 18 Short Tube Butt Weld NA NA NA NA 1.22" Electropolish
12-18M V1T3-SSV 2.03 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket NA 18 Long Tube Butt Weld NA NA NA NA 2.03" NA
12-18M V1T3-SSV 2.03-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket NA 18 Long Tube Butt Weld NA NA NA NA 2.03" Electropolish
12-18M V1Y3-SSR 2.07 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 3/4" VacuSeal? Metal Gasket NA 18 Long Automatic Tube Butt Weld NA NA NA NA NA NA
12-18M V1Y3-SSR 2.07-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 3/4" VacuSeal? Metal Gasket NA 18 Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
12-18M V1Y3-SSV 2.07 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket NA 18 Long Automatic Tube Butt Weld NA NA NA NA NA NA
12-18M V1Y3-SSV 2.07-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 3/4" VacuSeal? Metal Gasket NA 18 Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
16 BV-SS Metal Nuts, Caps and Plugs Female Nut 316 SS 1" NA NA NA NA NA NA NA NA NA NA
16 BVI-SS Metal Nuts, Caps and Plugs Male Nut 316 SS 1" NA NA NA NA NA NA NA NA NA NA
16 FNV-SS Metal Nuts, Caps and Plugs Cap 316 SS 1" NA NA NA NA NA NA NA NA NA NA
16 KV-SS Metal Gasket Bodies Union Cross 316 SS 1" Male VacuSeal? (Metal Gasket) 1" NA Male VacuSeal? (Metal Gasket) 1" Male VacuSeal? (Metal Gasket) 1" Male VacuSeal? (Metal Gasket) 4.00" NA
16 KV-SS-PE Metal Gasket Bodies Union Cross 316 SS 1" Male VacuSeal? (Metal Gasket) 1" NA Male VacuSeal? (Metal Gasket) 1" Male VacuSeal? (Metal Gasket) 1" Male VacuSeal? (Metal Gasket) 4.00" Electropolish
16 PNV-SS Metal Nuts, Caps and Plugs Plug 316 SS 1" NA NA NA NA NA NA NA NA NA NA
16 VG-K Metal Gaskets Non-Retained Flat Style Kel-F? 1" NA NA NA NA NA NA NA NA NA Non-Retained Flat
16 VG-K-BL Metal Gaskets Non-Retained Flat Style Kel-F? 1" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
16 VG-N Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1" NA NA NA NA NA NA NA NA NA Non-Retained Flat
16 VG-N-BL Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
16 VG-SS Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1" NA NA NA NA NA NA NA NA NA Non-Retained Flat
16 VG-SS-BL Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
16 VG-T Metal Gaskets Non-Retained Flat Style Teflon? 1" NA NA NA NA NA NA NA NA NA Non-Retained Flat
16 VG-T-BL Metal Gaskets Non-Retained Flat Style Teflon? 1" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
16 VHC-SS Metal Gasket Bodies Coupling 316 SS 1" Female VacuSeal? Thread 1" NA Female VacuSeal? Thread NA NA NA NA 2.04" NA
16-16 EV-SS Metal Gasket Bodies Union Elbow 316 SS 1" Male VacuSeal? (Metal Gasket) 1" NA Male VacuSeal? (Metal Gasket) NA NA NA NA NA NA
16-16 EV-SS-PE Metal Gasket Bodies Union Elbow 316 SS 1" Male VacuSeal? (Metal Gasket) 1" NA Male VacuSeal? (Metal Gasket) NA NA NA NA NA Electropolish
16-16 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1" Male VacuSeal? Metal Gasket 1" NA Male NPT NA NA NA NA 2.47" NA
16-16 GV-SS Metal Gasket Bodies Female NPT Connector 316 SS 1" Male VacuSeal? Metal Gasket 1" NA Female NPT NA NA NA NA 2.51" NA
16-16 HV-SS Metal Gasket Bodies Double Male Union 316 SS 1" Male VacuSeal? (Metal Gasket) 1" NA Male VacuSeal? (Metal Gasket) NA NA NA NA 2.59" NA
16-16 V1T3-SSR 2.22 .120 VacuSeal? Glands Male Weld 316L VAR 1" VacuSeal? Metal Gasket 1" NA Tube Butt Weld NA NA NA NA NA NA
16-16 V1T3-SSR 2.22 .120-PE VacuSeal? Glands Male Weld 316L VAR 1" VacuSeal? Metal Gasket 1" NA Tube Butt Weld NA NA NA NA NA Electropolish
16-16 V1T3-SSR 2.32 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1" VacuSeal? Metal Gasket 1" NA Long Tube Butt Weld NA NA NA NA 2.32" NA
16-16 V1T3-SSR 2.32-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1" VacuSeal? Metal Gasket 1" NA Long Tube Butt Weld NA NA NA NA 2.32" Electropolish
16-16 V1T3-SSV 2.22 .120 VacuSeal? Glands Male Weld 316L VIM/VAR 1" VacuSeal? Metal Gasket 1" NA Tube Butt Weld NA NA NA NA NA NA
16-16 V1T3-SSV 2.22 .120-PE VacuSeal? Glands Male Weld 316L VIM/VAR 1" VacuSeal? Metal Gasket 1" NA Tube Butt Weld NA NA NA NA NA Electropolish
16-16 V1T3-SSV 2.32 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1" VacuSeal? Metal Gasket 1" NA Long Tube Butt Weld NA NA NA NA 2.32" NA
16-16 V1T3-SSV 2.32-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1" VacuSeal? Metal Gasket 1" NA Long Tube Butt Weld NA NA NA NA 2.32" Electropolish
16-16 V1W-SSR VacuSeal? Glands Socket Weld 316L VAR 1" VacuSeal? Metal Gasket 1" NA Socket Weld NA NA NA NA NA NA
16-16 V1W-SSR-BL VacuSeal? Glands Blind Gland 316L VAR 1" VacuSeal? Metal Gasket 1" NA Blind Tube Butt Weld NA NA NA NA NA NA
16-16 V1W-SSR-BL-PE VacuSeal? Glands Blind Gland 316L VAR 1" VacuSeal? Metal Gasket 1" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish
16-16 V1W-SSR-PE VacuSeal? Glands Socket Weld 316L VAR 1" VacuSeal? Metal Gasket 1" NA Socket Weld NA NA NA NA NA Electropolish
16-16 V1W-SSV VacuSeal? Glands Socket Weld 316L VIM/VAR 1" VacuSeal? Metal Gasket 1" NA Socket Weld NA NA NA NA NA NA
16-16 V1W-SSV-BL VacuSeal? Glands Blind Gland 316L VIM/VAR 1" VacuSeal? Metal Gasket 1" NA Blind Tube Butt Weld NA NA NA NA NA NA
16-16 V1W-SSV-BL-PE VacuSeal? Glands Blind Gland 316L VIM/VAR 1" VacuSeal? Metal Gasket 1" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish
16-16 V1W-SSV-PE VacuSeal? Glands Socket Weld 316L VIM/VAR 1" VacuSeal? Metal Gasket 1" NA Socket Weld NA NA NA NA NA Electropolish
16-16 V1Y3-SSR 2.57 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1" VacuSeal? Metal Gasket 1" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA
16-16 V1Y3-SSR 2.57-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1" VacuSeal? Metal Gasket 1" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
16-16 V1Y3-SSV 2.57 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1" VacuSeal? Metal Gasket 1" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA
16-16 V1Y3-SSV 2.57-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1" VacuSeal? Metal Gasket 1" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
16-16-16 JV-SS Metal Gasket Bodies Union Tee 316 SS 1" Male VacuSeal? (Metal Gasket) 1" NA Male VacuSeal? (Metal Gasket) 1" Male VacuSeal? (Metal Gasket) NA NA 4.00" NA
16-16-16 JV-SS-PE Metal Gasket Bodies Union Tee 316 SS 1/8" Male VacuSeal? (Metal Gasket) 1/8" NA Male VacuSeal? (Metal Gasket) 1/8" Male VacuSeal? (Metal Gasket) NA NA 4.00" Electropolish
2 BV-SS Metal Nuts, Caps and Plugs Female Nut 316 SS 1/8" NA NA NA NA NA NA NA NA NA NA
2 BVI-SS Metal Nuts, Caps and Plugs Male Nut 316 SS 1/8" NA NA NA NA NA NA NA NA NA NA
2 KV-SS Metal Gasket Bodies Union Cross 316 SS 1/8" Male VacuSeal? (Metal Gasket) 1/8" NA Male VacuSeal? (Metal Gasket) 1/8" Male VacuSeal? (Metal Gasket) 1/8" Male VacuSeal? (Metal Gasket) 1.78" NA
2 KV-SS-PE Metal Gasket Bodies Union Cross 316 SS 1/8" Male VacuSeal? (Metal Gasket) 1/8" NA Male VacuSeal? (Metal Gasket) 1/8" Male VacuSeal? (Metal Gasket) 1/8" Male VacuSeal? (Metal Gasket) 1.78" Electropolish
2 PNV-SS Metal Nuts, Caps and Plugs Plug 316 SS 1/8" NA NA NA NA NA NA NA NA NA NA
2 VG-K Metal Gaskets Non-Retained Flat Style Kel-F? 1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat
2 VG-K-BL Metal Gaskets Non-Retained Flat Style Kel-F? 1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
2 VG-N Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat
2 VG-N-BL Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
2 VG-SS Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat
2 VG-SS-BL Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
2 VG-T Metal Gaskets Non-Retained Flat Style Teflon? 1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat
2 VG-T-BL Metal Gaskets Non-Retained Flat Style Teflon? 1/8" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
2 VHC-SS Metal Gasket Bodies Coupling 316 SS 1/8" Female VacuSeal? Thread 1/8" NA Female VacuSeal? Thread NA NA NA NA 0.66" NA
2-1 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1/8" Male VacuSeal? Metal Gasket 1/16" NA Male NPT NA NA NA NA 1.07" NA
2-2 Cv-SS Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/8" Male VacuSeal? (Metal Gasket) 1/8" NA Male NPT NA NA NA NA NA NA
2-2 Cv-SS-PE Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/8" Male VacuSeal? (Metal Gasket) 1/8" NA Male NPT NA NA NA NA NA Electropolish
2-2 EV-SS Metal Gasket Bodies Union Elbow 316 SS 1/8" Male VacuSeal? (Metal Gasket) 1/8" NA Male VacuSeal? (Metal Gasket) NA NA NA NA NA NA
2-2 EV-SS-PE Metal Gasket Bodies Union Elbow 316 SS 1/8" Male VacuSeal? (Metal Gasket) 1/8" NA Male VacuSeal? (Metal Gasket) NA NA NA NA NA Electropolish
2-2 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1/8" Male VacuSeal? Metal Gasket 1/8" NA Male NPT NA NA NA NA 1.07" NA
2-2 HV-SS Metal Gasket Bodies Double Male Union 316 SS 1/8" Male VacuSeal? (Metal Gasket) 1/8" NA Male VacuSeal? (Metal Gasket) NA NA NA NA 1.13" NA
2-2 V1HBF-SS Welded Assembly Male NPT Connector 316 SS 1/8" VacuSeal? (Metal Gaskets) 1/8" NA Male NPT NA NA NA NA NA NA
2-2 V1HBF-SS-PE Welded Assembly Male NPT Connector 316 SS 1/8" VacuSeal? (Metal Gaskets) 1/8" NA Male NPT NA NA NA NA NA Electropolish
2-2 V1HBF-SSR Welded Assembly Male NPT Connector 316L VAR 1/8" VacuSeal? (Metal Gaskets) 1/8" NA Male NPT NA NA NA NA NA NA
2-2 V1HBF-SSR-PE Welded Assembly Male NPT Connector 316L VAR 1/8" VacuSeal? (Metal Gaskets) 1/8" NA Male NPT NA NA NA NA NA Electropolish
2-2 V1HBF-SSV Welded Assembly Male NPT Connector 316L VIM/VAR 1/8" VacuSeal? (Metal Gaskets) 1/8" NA Male NPT NA NA NA NA NA NA
2-2 V1HBF-SSV-PE Welded Assembly Male NPT Connector 316L VIM/VAR 1/8" VacuSeal? (Metal Gaskets) 1/8" NA Male NPT NA NA NA NA NA Electropolish
2-2 V1T3-SSR .70 0.35 VacuSeal? Glands Male Weld 316L VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA NA
2-2 V1T3-SSR .70 0.35 -PE VacuSeal? Glands Male Weld 316L VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA Electropolish
2-2 V1T3-SSR 1.08 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Short Tube Butt Weld NA NA NA NA 1.08" NA
2-2 V1T3-SSR 1.08-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Short Tube Butt Weld NA NA NA NA 1.08" Electropolish
2-2 V1T3-SSR 1.42 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Long Tube Butt Weld NA NA NA NA 1.42" NA
2-2 V1T3-SSR 1.42-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Long Tube Butt Weld NA NA NA NA 1.42" Electropolish
2-2 V1T3-SSV .70 0.35 VacuSeal? Glands Male Weld 316L VIM/VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA NA
2-2 V1T3-SSV .70 0.35 -PE VacuSeal? Glands Male Weld 316L VIM/VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA Electropolish
2-2 V1T3-SSV 1.08 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Short Tube Butt Weld NA NA NA NA 1.08" NA
2-2 V1T3-SSV 1.08-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Short Tube Butt Weld NA NA NA NA 1.08" Electropolish
2-2 V1T3-SSV 1.42 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Long Tube Butt Weld NA NA NA NA 1.42" NA
2-2 V1T3-SSV 1.42-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Long Tube Butt Weld NA NA NA NA 1.42" Electropolish
2-2 V1W-SSR .70 VacuSeal? Glands Socket Weld 316L VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Socket Weld NA NA NA NA NA NA
2-2 V1W-SSR .70-PE VacuSeal? Glands Socket Weld 316L VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Socket Weld NA NA NA NA NA Electropolish
2-2 V1W-SSR-BL VacuSeal? Glands Blind Gland 316L VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Blind Tube Butt Weld NA NA NA NA NA NA
2-2 V1W-SSR-BL-PE VacuSeal? Glands Blind Gland 316L VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish
2-2 V1W-SSV .70 VacuSeal? Glands Socket Weld 316L VIM/VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Socket Weld NA NA NA NA NA NA
2-2 V1W-SSV .70-PE VacuSeal? Glands Socket Weld 316L VIM/VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Socket Weld NA NA NA NA NA Electropolish
2-2 V1W-SSV-BL VacuSeal? Glands Blind Gland 316L VIM/VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Blind Tube Butt Weld NA NA NA NA NA NA
2-2 V1W-SSV-BL-PE VacuSeal? Glands Blind Gland 316L VIM/VAR 1/8" VacuSeal? Metal Gasket 1/8" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish
2-2 VHLZ-SS Metal Gasket Bodies Compression Tube Fitting Connector 316 SS 1/8" Male VacuSeal? (Metal Gasket) 1/8" NA A-Lok? Compression Tube Fitting NA NA NA NA 1.53" NA
2-2-2 JV-SS Metal Gasket Bodies Union Tee 316 SS 1/8" Male VacuSeal? (Metal Gasket) 1/8" NA Male VacuSeal? (Metal Gasket) 1/8" Male VacuSeal? (Metal Gasket) NA NA 1.78" NA
2-2-2 JV-SS-PE Metal Gasket Bodies Union Tee 316 SS 1/8" Male VacuSeal? (Metal Gasket) 1/8" NA Male VacuSeal? (Metal Gasket) 1/8" Male VacuSeal? (Metal Gasket) NA NA 1.78" Electropolish
4 BV-SS Metal Nuts, Caps and Plugs Female Nut 316 SS 1/4" NA NA NA NA NA NA NA NA NA NA
4 BVH-SS Metal Nuts, Caps and Plugs Female Nut (Hi-Flo) 316 SS 3/8" NA NA NA NA NA NA NA NA NA NA
4 BVHI-SS Metal Nuts, Caps and Plugs Male Nut (Hi-Flo) 316 SS 3/8" NA NA NA NA NA NA NA NA NA NA
4 BVI .54-SS Metal Nuts, Caps and Plugs Short Male Nut 316 SS 1/4" NA NA NA NA NA NA NA NA 0.54 NA
4 BVI .65-SS Metal Nuts, Caps and Plugs Short Male Nut 316 SS 1/4" NA NA NA NA NA NA NA NA 0.65 NA
4 BVI-SS Metal Nuts, Caps and Plugs Male Nut 316 SS 1/4" NA NA NA NA NA NA NA NA NA NA
4 FNV-SS Metal Nuts, Caps and Plugs Cap 316 SS 1/4" NA NA NA NA NA NA NA NA NA NA
4 FNV-SS-L Metal Nuts, Caps and Plugs Cap With Lanyard 316 SS 1/4" NA NA NA NA NA NA NA NA NA Lanyard
4 GVG-K Metal Gaskets Non-Retained Grooved Style Kel-F? 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style
4 GVG-K-BL Metal Gaskets Non-Retained Grooved Style Kel-F? 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)
4 GVG-N Metal Gaskets Non-Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style
4 GVG-N-BL Metal Gaskets Non-Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)
4 GVG-SS Metal Gaskets Non-Retained Grooved Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style
4 GVG-SS-BL Metal Gaskets Non-Retained Grooved Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)
4 GVG-T Metal Gaskets Non-Retained Grooved Style Teflon? 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style
4 GVG-T-BL Metal Gaskets Non-Retained Grooved Style Teflon? 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)
4 GVGR-K Metal Gaskets Retained Grooved Style Kel-F? 1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style
4 GVGR-K-BL Metal Gaskets Retained Grooved Style Kel-F? 1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)
4 GVGR-N Metal Gaskets Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style
4 GVGR-N-BL Metal Gaskets Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)
4 GVGR-SS Metal Gaskets Retained Grooved Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style
4 GVGR-SS-BL Metal Gaskets Retained Grooved Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)
4 GVGR-T Metal Gaskets Retained Grooved Style Teflon? 1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style
4 GVGR-T-BL Metal Gaskets Retained Grooved Style Teflon? 1/4" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)
4 KV-SS Metal Gasket Bodies Union Cross 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Male VacuSeal? (Metal Gasket) 1/4" Male VacuSeal? (Metal Gasket) 1/4" Male VacuSeal? (Metal Gasket) 2.25" NA
4 KV-SS-PE Metal Gasket Bodies Union Cross 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Male VacuSeal? (Metal Gasket) 1/4" Male VacuSeal? (Metal Gasket) 1/4" Male VacuSeal? (Metal Gasket) 2.25" Electropolish
4 PNV-SS Metal Nuts, Caps and Plugs Plug 316 SS 1/4" NA NA NA NA NA NA NA NA NA NA
4 PNV-SS-L Metal Nuts, Caps and Plugs Plug With Lanyard 316 SS 1/4" NA NA NA NA NA NA NA NA NA Lanyard
4 VG-K Metal Gaskets Non-Retained Flat Style Kel-F? 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat
4 VG-K-BL Metal Gaskets Non-Retained Flat Style Kel-F? 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
4 VG-N Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat
4 VG-N-BL Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
4 VG-SS Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat
4 VG-SS-BL Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
4 VG-T Metal Gaskets Non-Retained Flat Style Teflon? 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat
4 VG-T-BL Metal Gaskets Non-Retained Flat Style Teflon? 1/4" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
4 VGR-K Metal Gaskets Retained Flat Style Kel-F? 1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style
4 VGR-K-BL Metal Gaskets Retained Flat Style Kel-F? 1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)
4 VGR-N Metal Gaskets Retained Flat Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style
4 VGR-N-BL Metal Gaskets Retained Flat Style NICKEL (ELECTROPOLISHED) 1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)
4 VGR-SS Metal Gaskets Retained Flat Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style
4 VGR-SS-BL Metal Gaskets Retained Flat Style Stainless Steel (Silver Plated) 1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)
4 VGR-T Metal Gaskets Retained Flat Style Teflon? 1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style
4 VGR-T-BL Metal Gaskets Retained Flat Style Teflon? 1/4" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)
4 VHC-SS Metal Gasket Bodies Coupling 316 SS 1/4" Female VacuSeal? Thread 1/4" NA Female VacuSeal? Thread NA NA NA NA 1.19" NA
4-2 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1/4" Male VacuSeal? Metal Gasket 1/8" NA Male NPT NA NA NA NA 1.28" NA
4-2 GV-SS Metal Gasket Bodies Female NPT Connector 316 SS 1/4" Male VacuSeal? Metal Gasket 1/8" NA Female NPT NA NA NA NA 1.41" NA
4-2 HV-SS Metal Gasket Bodies Double Male Reducing Union 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/8" NA Male VacuSeal? (Metal Gasket) NA NA NA NA 1.37" NA
4-2 HV7-SS Metal Gasket Bodies Double Female Reducing Union 316 SS 1/4" Female VacuSeal? (Metal Gasket) 1/8" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 0.36" NA
4-2 V1T3-SSR 1.31 .035 VacuSeal? Glands Male Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA NA
4-2 V1T3-SSR 1.31 .035-PE VacuSeal? Glands Male Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA Electropolish
4-2 V1T3-SSV 1.31 .035 VacuSeal? Glands Male Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA NA
4-2 V1T3-SSV 1.31 .035-PE VacuSeal? Glands Male Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/8" NA Tube Butt Weld NA NA NA NA NA Electropolish
4-2 V1W-SSR 1.31 VacuSeal? Glands Reducing Socket Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/8" NA Reducing Socket Weld NA NA NA NA NA NA
4-2 V1W-SSR 1.31-PE VacuSeal? Glands Reducing Socket Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/8" NA Reducing Socket Weld NA NA NA NA NA Electropolish
4-2 V1W-SSV 1.31 VacuSeal? Glands Reducing Socket Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/8" NA Reducing Socket Weld NA NA NA NA NA NA
4-2 V1W-SSV 1.31-PE VacuSeal? Glands Reducing Socket Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/8" NA Reducing Socket Weld NA NA NA NA NA Electropolish
4-2 V7HV-SS Metal Gasket Bodies Reducing Adapter 316 SS 1/4" Female VacuSeal? (Metal Gasket) 1/8" NA Male VacuSeal? (Metal Gasket) NA NA NA NA 1.19" NA
4-2 VHV7-SS Metal Gasket Bodies Reducing Bushing 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/8" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.06" NA
4-4 Cv-SS Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Male NPT NA NA NA NA NA NA
4-4 Cv-SS-PE Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Male NPT NA NA NA NA NA Electropolish
4-4 EV-SS Metal Gasket Bodies Union Elbow 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Male VacuSeal? (Metal Gasket) NA NA NA NA NA NA
4-4 EV-SS-PE Metal Gasket Bodies Union Elbow 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Male VacuSeal? (Metal Gasket) NA NA NA NA NA Electropolish
4-4 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1/4" Male VacuSeal? Metal Gasket 1/4" NA Male NPT NA NA NA NA 1.49" NA
4-4 GV-SS Metal Gasket Bodies Female NPT Connector 316 SS 1/4" Male VacuSeal? Metal Gasket 1/4" NA Female NPT NA NA NA NA 1.44" NA
4-4 HV-SS Metal Gasket Bodies Double Male Union 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Male VacuSeal? (Metal Gasket) NA NA NA NA 1.53" NA
4-4 T3H2BV-SSR 1.95 Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VAR 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 1.95" Non-Electropolished
4-4 T3H2BV-SSR 1.95 - PE Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VAR 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 1.95" Electropolished
4-4 T3H2BV-SSR 2.36 Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VAR 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 2.36" Non-Electropolished
4-4 T3H2BV-SSR 2.36 - PE Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VAR 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 2.36" Electropolished
4-4 T3H2BV-SSV 1.95 Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VIM/VAR 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 1.95" Non-Electropolished
4-4 T3H2BV-SSV 1.95 - PE Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VIM/VAR 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 1.95" Electropolished
4-4 T3H2BV-SSV 2.36 Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VIM/VAR 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 2.36" Non-Electropolished
4-4 T3H2BV-SSV 2.36 - PE Metal Gasket Bodies Tube Butt Weld Bulkhead Connector 316L VIM/VAR 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Tube Butt Weld NA NA NA NA 2.36" Electropolished
4-4 V1HBF-SS Welded Assembly Male NPT Connector 316 SS 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Male NPT NA NA NA NA NA NA
4-4 V1HBF-SS-PE Welded Assembly Male NPT Connector 316 SS 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Male NPT NA NA NA NA NA Electropolish
4-4 V1HBF-SSR Welded Assembly Male NPT Connector 316L VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Male NPT NA NA NA NA NA NA
4-4 V1HBF-SSR-PE Welded Assembly Male NPT Connector 316L VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Male NPT NA NA NA NA NA Electropolish
4-4 V1HBF-SSV Welded Assembly Male NPT Connector 316L VIM/VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Male NPT NA NA NA NA NA NA
4-4 V1HBF-SSV-PE Welded Assembly Male NPT Connector 316L VIM/VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Male NPT NA NA NA NA NA Electropolish
4-4 V1HBG-SS Welded Assembly Female NPT Connector 316 SS 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female NPT NA NA NA NA NA NA
4-4 V1HBG-SS-PE Welded Assembly Female NPT Connector 316 SS 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female NPT NA NA NA NA NA Electropolish
4-4 V1HBG-SSR Welded Assembly Female NPT Connector 316L VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female NPT NA NA NA NA NA NA
4-4 V1HBG-SSR-PE Welded Assembly Female NPT Connector 316L VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female NPT NA NA NA NA NA Electropolish
4-4 V1HBG-SSV Welded Assembly Female NPT Connector 316L VIM/VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female NPT NA NA NA NA NA NA
4-4 V1HBG-SSV-PE Welded Assembly Female NPT Connector 316L VIM/VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female NPT NA NA NA NA NA Electropolish
4-4 V1HBV1-SS Welded Assembly Rotating Female Union 316 SS 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.35" NA
4-4 V1HBV1-SS - PE Welded Assembly Rotating Female Union 316 SS 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.35" Electropolish
4-4 V1HBV1-SS 1.70 Welded Assembly Rotating Female Union 316 SS 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.70" NA
4-4 V1HBV1-SS 1.70 - PE Welded Assembly Rotating Female Union 316 SS 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.70" Electropolish
4-4 V1HBV1-SSR Welded Assembly Rotating Female Union 316L VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.35" NA
4-4 V1HBV1-SSR 1.70 Welded Assembly Rotating Female Union 316L VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.70" NA
4-4 V1HBV1-SSR 1.70-PE Welded Assembly Rotating Female Union 316L VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.70" Electropolish
4-4 V1HBV1-SSR-PE Welded Assembly Rotating Female Union 316L VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.35" Electropolish
4-4 V1HBV1-SSV Welded Assembly Rotating Female Union 316L VIM/VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.35" NA
4-4 V1HBV1-SSV 1.70 Welded Assembly Rotating Female Union 316L VIM/VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.70" NA
4-4 V1HBV1-SSV 1.70-PE Welded Assembly Rotating Female Union 316L VIM/VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.70" Electropolish
4-4 V1HBV1-SSV-PE Welded Assembly Rotating Female Union 316L VIM/VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.35" Electropolish
4-4 V1HLZ-SS Welded Assembly A-LOK Tube Fitting 316 SS 1/4" VacuSeal? (Metal Gaskets) 1/4" NA A-LOK? Tube Fitting NA NA NA NA NA NA
4-4 V1HLZ-SS-PE Welded Assembly A-LOK Tube Fitting 316 SS 1/4" VacuSeal? (Metal Gaskets) 1/4" NA A-LOK? Tube Fitting NA NA NA NA NA Electropolish
4-4 V1HLZ-SSR Welded Assembly A-LOK Tube Fitting 316L VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA A-LOK? Tube Fitting NA NA NA NA NA NA
4-4 V1HLZ-SSR-PE Welded Assembly A-LOK Tube Fitting 316L VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA A-LOK? Tube Fitting NA NA NA NA NA Electropolish
4-4 V1HLZ-SSV Welded Assembly A-LOK Tube Fitting 316L VIM/VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA A-LOK? Tube Fitting NA NA NA NA NA NA
4-4 V1HLZ-SSV-PE Welded Assembly A-LOK Tube Fitting 316L VIM/VAR 1/4" VacuSeal? (Metal Gaskets) 1/4" NA A-LOK? Tube Fitting NA NA NA NA NA Electropolish
4-4 V1M-SSR .60 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .60" NA
4-4 V1M-SSR .60-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .60" Electropolish
4-4 V1M-SSR 1.20 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.20" NA
4-4 V1M-SSR 1.20-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.20" Electropolish
4-4 V1M-SSV .60 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .60" NA
4-4 V1M-SSV .60-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .60" Electropolish
4-4 V1M-SSV 1.20 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.20" NA
4-4 V1M-SSV 1.20-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.20" Electropolish
4-4 V1T3-SSR VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.31" NA
4-4 V1T3-SSR 1.10 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.10" NA
4-4 V1T3-SSR 1.10-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.10" Electropolish
4-4 V1T3-SSR 1.31 .065 VacuSeal? Glands Male Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA NA
4-4 V1T3-SSR 1.31 .065-PE VacuSeal? Glands Male Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA Electropolish
4-4 V1T3-SSR 1.70 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.70" NA
4-4 V1T3-SSR 1.70-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.70" Electropolish
4-4 V1T3-SSR-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.31" Electropolish
4-4 V1T3-SSV VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.31" NA
4-4 V1T3-SSV 1.10 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.10" NA
4-4 V1T3-SSV 1.10-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.10" Electropolish
4-4 V1T3-SSV 1.31 .065 VacuSeal? Glands Male Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA NA
4-4 V1T3-SSV 1.31 .065-PE VacuSeal? Glands Male Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA Electropolish
4-4 V1T3-SSV 1.70 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.70" NA
4-4 V1T3-SSV 1.70-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.70" Electropolish
4-4 V1T3-SSV-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.31" Electropolish
4-4 V1TU-SS VacuSeal? Glands Tube Adapter 316 SS 1/4" VacuSeal? Metal Gasket 1/4" NA A-Lok? Tube Adapter NA NA NA NA NA NA
4-4 V1TU-SS-PE VacuSeal? Glands Tube Adapter 316 SS 1/4" VacuSeal? Metal Gasket 1/4" NA A-Lok? Tube Adapter NA NA NA NA NA Electropolish
4-4 V1TU-SSR VacuSeal? Glands Tube Adapter 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA A-Lok? Tube Adapter NA NA NA NA NA NA
4-4 V1TU-SSR-PE VacuSeal? Glands Tube Adapter 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA A-Lok? Tube Adapter NA NA NA NA NA Electropolish
4-4 V1TU-SSV VacuSeal? Glands Tube Adapter 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA A-Lok? Tube Adapter NA NA NA NA NA NA
4-4 V1TU-SSV-PE VacuSeal? Glands Tube Adapter 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA A-Lok? Tube Adapter NA NA NA NA NA Electropolish
4-4 V1TW-SSR .72 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .72" NA
4-4 V1TW-SSR .72-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .72" Electropolish
4-4 V1TW-SSR 1.32 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.32" NA
4-4 V1TW-SSR 1.32-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.32" Electropolish
4-4 V1TW-SSV .72 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .72" NA
4-4 V1TW-SSV .72-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA .72" Electropolish
4-4 V1TW-SSV 1.32 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.32" NA
4-4 V1TW-SSV 1.32-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.32" Electropolish
4-4 V1W-SSR VacuSeal? Glands Socket Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Socket Weld NA NA NA NA NA NA
4-4 V1W-SSR .50 VacuSeal? Glands Short Socket Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .50" NA
4-4 V1W-SSR .50-PE VacuSeal? Glands Short Socket Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .50" Electropolish
4-4 V1W-SSR .75 VacuSeal? Glands Short Socket Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .75" NA
4-4 V1W-SSR .75-PE VacuSeal? Glands Short Socket Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .75" Electropolish
4-4 V1W-SSR-BL VacuSeal? Glands Blind Gland 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Blind Tube Butt Weld NA NA NA NA NA NA
4-4 V1W-SSR-BL-PE VacuSeal? Glands Blind Gland 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish
4-4 V1W-SSR-PE VacuSeal? Glands Socket Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Socket Weld NA NA NA NA NA Electropolish
4-4 V1W-SSV VacuSeal? Glands Socket Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Socket Weld NA NA NA NA NA NA
4-4 V1W-SSV .50 VacuSeal? Glands Short Socket Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .50" NA
4-4 V1W-SSV .50-PE VacuSeal? Glands Short Socket Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .50" Electropolish
4-4 V1W-SSV .75 VacuSeal? Glands Short Socket Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .75" NA
4-4 V1W-SSV .75-PE VacuSeal? Glands Short Socket Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Socket Weld NA NA NA NA .75" Electropolish
4-4 V1W-SSV-BL VacuSeal? Glands Blind Gland 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Blind Tube Butt Weld NA NA NA NA NA NA
4-4 V1W-SSV-BL-PE VacuSeal? Glands Blind Gland 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish
4-4 V1W-SSV-PE VacuSeal? Glands Socket Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Socket Weld NA NA NA NA NA Electropolish
4-4 V1Y3-SSR 1.12 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Automatic Tube Butt Weld NA NA NA NA NA NA
4-4 V1Y3-SSR 1.12-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
4-4 V1Y3-SSR 1.72 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA
4-4 V1Y3-SSR 1.72-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
4-4 V1Y3-SSV 1.12 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Automatic Tube Butt Weld NA NA NA NA NA NA
4-4 V1Y3-SSV 1.12-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
4-4 V1Y3-SSV 1.72 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA
4-4 V1Y3-SSV 1.72-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
4-4 VH2BF-SS Metal Gasket Bodies Male NPT Bulkhead Connector 316 SS 1/4" Male VacuSeal? Metal Gasket 1/4" NA Male NPT Bulkhead NA NA NA NA 2.21" NA
4-4 VH2LZ-SS Metal Gasket Bodies Compression Tube Fitting Bulkhead Connector 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA A-Lok? Compression Tube Fitting Bulkhead NA NA NA NA 2.25" NA
4-4 VH2LZ-SS 1.88 Metal Gasket Bodies Compression Tube Fitting Bulkhead Connector 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA A-Lok? Compression Tube Fitting Bulkhead NA NA NA NA 1.88" NA
4-4 WBV-SS 1.82 Metal Gasket Bodies Bulkhead Union 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Male VacuSeal? (Metal Gasket) Bulkhead NA NA NA NA 1.82" NA
4-4 WBV-SS 2.23 Metal Gasket Bodies Bulkhead Union 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Male VacuSeal? (Metal Gasket) Bulkhead NA NA NA NA 2.23" NA
4-4-4 JV-SS Metal Gasket Bodies Union Tee 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Male VacuSeal? (Metal Gasket) 1/4" Male VacuSeal? (Metal Gasket) NA NA 2.25" NA
4-4-4 JV-SS-PE Metal Gasket Bodies Union Tee 316 SS 1/4" Male VacuSeal? (Metal Gasket) 1/4" NA Male VacuSeal? (Metal Gasket) 1/4" Male VacuSeal? (Metal Gasket) NA NA 2.25" Electropolish
4-4VHLZ-SS Metal Gasket Bodies Compression Tube Fitting Connector 316 SS 1/4" Male VacuSeal? Metal Gasket 1/4" NA A-Lok? Compression Tube Fitting NA NA NA NA 1.62" NA
4-6 V1HLZ-SS Welded Assembly A-LOK Tube Fitting 316 SS 1/4" VacuSeal? (Metal Gaskets) 3/8" NA A-LOK? Tube Fitting NA NA NA NA NA NA
4-6 V1HLZ-SS-PE Welded Assembly A-LOK Tube Fitting 316 SS 1/4" VacuSeal? (Metal Gaskets) 3/8" NA A-LOK? Tube Fitting NA NA NA NA NA Electropolish
4-6 V1HLZ-SSR Welded Assembly A-LOK Tube Fitting 316L VAR 1/4" VacuSeal? (Metal Gaskets) 3/8" NA A-LOK? Tube Fitting NA NA NA NA NA NA
4-6 V1HLZ-SSR-PE Welded Assembly A-LOK Tube Fitting 316L VAR 1/4" VacuSeal? (Metal Gaskets) 3/8" NA A-LOK? Tube Fitting NA NA NA NA NA Electropolish
4-6 V1HLZ-SSV Welded Assembly A-LOK Tube Fitting 316L VIM/VAR 1/4" VacuSeal? (Metal Gaskets) 3/8" NA A-LOK? Tube Fitting NA NA NA NA NA NA
4-6 V1HLZ-SSV-PE Welded Assembly A-LOK Tube Fitting 316L VIM/VAR 1/4" VacuSeal? (Metal Gaskets) 3/8" NA A-LOK? Tube Fitting NA NA NA NA NA Electropolish
4-6 VH1T3-SSR VacuSeal? Glands Hi-Flo Products 316L VAR 1/4" Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.19" NA
4-6 VH1T3-SSR .60 VacuSeal? Glands Hi-Flo Products 316L VAR 1/4" Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA .60" NA
4-6 VH1T3-SSR .60-PE VacuSeal? Glands Hi-Flo Products 316L VAR 1/4" Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA .60" Electropolish
4-6 VH1T3-SSR 1.31 VacuSeal? Glands Hi-Flo Products 316L VAR 1/4" Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.31" NA
4-6 VH1T3-SSR 1.31-PE VacuSeal? Glands Hi-Flo Products 316L VAR 1/4" Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.31" Electropolish
4-6 VH1T3-SSR-PE VacuSeal? Glands Hi-Flo Products 316L VAR 1/4" Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.19" Electropolish
4-6 VH1T3-SSV VacuSeal? Glands Hi-Flo Products 316L VIM/VAR 1/4" Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.19" NA
4-6 VH1T3-SSV .60 VacuSeal? Glands Hi-Flo Products 316L VIM/VAR 1/4" Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA .60" NA
4-6 VH1T3-SSV .60-PE VacuSeal? Glands Hi-Flo Products 316L VIM/VAR 1/4" Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA .60" Electropolish
4-6 VH1T3-SSV 1.31 VacuSeal? Glands Hi-Flo Products 316L VIM/VAR 1/4" Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.31" NA
4-6 VH1T3-SSV 1.31-PE VacuSeal? Glands Hi-Flo Products 316L VIM/VAR 1/4" Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.31" Electropolish
4-6 VH1T3-SSV-PE VacuSeal? Glands Hi-Flo Products 316L VIM/VAR 1/4" Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA 1.19" Electropolish
4-6 VHOA-SS Metal Gasket Bodies Straight Thread O-ring 316 SS 1/4" Male VacuSeal? Metal Gasket 9/16-18 NA Male O-ring SAE/MS Straight Thread NA NA NA NA 1.33" NA
4-6 VHT3-SSR 1.68 Metal Gasket Hi-Flo Bodies Tube Butt Weld 316L VAR 1/4" Male Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA NA
4-6 VHT3-SSR 1.68 - EP Metal Gasket Hi-Flo Bodies Tube Butt Weld 316L VAR 1/4" Male Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA Electropolish
4-6 VHT3-SSV 1.68 Metal Gasket Hi-Flo Bodies Tube Butt Weld 316L VIM/VAR 1/4" Male Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA NA
4-6 VHT3-SSV 1.68 - EP Metal Gasket Hi-Flo Bodies Tube Butt Weld 316L VIM/VAR 1/4" Male Hi-Flo VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA Electropolish
4-6 VHY3-SSR 1.71 Metal Gasket Hi-Flo Bodies Automatic Tube Weld 316L VAR 1/4" Male Hi-Flo VacuSeal? Metal Gasket 3/8" NA Automatic Tube Butt Weld NA NA NA NA NA NA
4-6 VHY3-SSR 1.71 - EP Metal Gasket Hi-Flo Bodies Automatic Tube Weld 316L VAR 1/4" Male Hi-Flo VacuSeal? Metal Gasket 3/8" NA Automatic Tube Butt Weld NA NA NA NA NA Electropolish
4-6 VHY3-SSV 1.71 Metal Gasket Hi-Flo Bodies Automatic Tube Weld 316L VIM/VAR 1/4" Male Hi-Flo VacuSeal? Metal Gasket 3/8" NA Automatic Tube Butt Weld NA NA NA NA NA NA
4-6 VHY3-SSV 1.71 - EP Metal Gasket Hi-Flo Bodies Automatic Tube Weld 316L VIM/VAR 1/4" Male Hi-Flo VacuSeal? Metal Gasket 3/8" NA Automatic Tube Butt Weld NA NA NA NA NA Electropolish
4-6M V1T3-SSR 1.16 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 6 Short Tube Butt Weld NA NA NA NA 1.16" NA
4-6M V1T3-SSR 1.16-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 6 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish
4-6M V1T3-SSR 1.70 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 6 Long Tube Butt Weld NA NA NA NA 1.70" NA
4-6M V1T3-SSR 1.70-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 6 Long Tube Butt Weld NA NA NA NA 1.70" Electropolish
4-6M V1T3-SSV 1.16 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 6 Short Tube Butt Weld NA NA NA NA 1.16" NA
4-6M V1T3-SSV 1.16-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 6 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish
4-6M V1T3-SSV 1.70 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 6 Long Tube Butt Weld NA NA NA NA 1.70" NA
4-6M V1T3-SSV 1.70-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 6 Long Tube Butt Weld NA NA NA NA 1.70" Electropolish
4-6M V1Y3-SSR 1.18 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 6 Short Automatic Tube Butt Weld NA NA NA NA NA NA
4-6M V1Y3-SSR 1.18-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 6 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
4-6M V1Y3-SSR 1.72 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 6 Long Automatic Tube Butt Weld NA NA NA NA NA NA
4-6M V1Y3-SSR 1.72-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 6 Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
4-6M V1Y3-SSV 1.18 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 6 Short Automatic Tube Butt Weld NA NA NA NA NA NA
4-6M V1Y3-SSV 1.18-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 6 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
4-6M V1Y3-SSV 1.72 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 6 Long Automatic Tube Butt Weld NA NA NA NA NA NA
4-6M V1Y3-SSV 1.72-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 6 Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
4-8M V1T3-SSR 1.16 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 8 Short Tube Butt Weld NA NA NA NA 1.16" NA
4-8M V1T3-SSR 1.16-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 8 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish
4-8M V1T3-SSR 1.70 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 8 Long Tube Butt Weld NA NA NA NA 1.70" NA
4-8M V1T3-SSR 1.70-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 8 Long Tube Butt Weld NA NA NA NA 1.70" Electropolish
4-8M V1T3-SSV 1.16 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 8 Short Tube Butt Weld NA NA NA NA 1.16" NA
4-8M V1T3-SSV 1.16-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 8 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish
4-8M V1T3-SSV 1.70 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 8 Long Tube Butt Weld NA NA NA NA 1.70" NA
4-8M V1T3-SSV 1.70-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 8 Long Tube Butt Weld NA NA NA NA 1.70" Electropolish
4-8M V1Y3-SSR 1.19 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 8 Short Automatic Tube Butt Weld NA NA NA NA NA NA
4-8M V1Y3-SSR 1.19-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 1/4" VacuSeal? Metal Gasket NA 8 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
4-8M V1Y3-SSV 1.19 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 8 Short Automatic Tube Butt Weld NA NA NA NA NA NA
4-8M V1Y3-SSV 1.19-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/4" VacuSeal? Metal Gasket NA 8 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
6-4 T3H2BV-SSR 2.36 Metal Gasket Hi-Flo Bodies Bulkhead Connector 316L VAR 1/4" Male Hi-Flo VacuSeal? Bulkhead (Metal Gasket) 3/8" NA Tube Butt Weld NA NA NA NA NA NA
6-4 T3H2BV-SSR 2.36 - EP Metal Gasket Hi-Flo Bodies Bulkhead Connector 316L VAR 1/4" Male Hi-Flo VacuSeal? Bulkhead (Metal Gasket) 3/8" NA Tube Butt Weld NA NA NA NA NA Electropolish
6-4 T3H2BV-SSV 2.36 Metal Gasket Hi-Flo Bodies Bulkhead Connector 316L VIM/VAR 1/4" Male Hi-Flo VacuSeal? Bulkhead (Metal Gasket) 3/8" NA Tube Butt Weld NA NA NA NA NA NA
6-4 T3H2BV-SSV 2.36 - EP Metal Gasket Hi-Flo Bodies Bulkhead Connector 316L VIM/VAR 1/4" Male Hi-Flo VacuSeal? Bulkhead (Metal Gasket) 3/8" NA Tube Butt Weld NA NA NA NA NA Electropolish
8 BV-SS Metal Nuts, Caps and Plugs Female Nut 316 SS 1/2" NA NA NA NA NA NA NA NA NA NA
8 BVI-SS Metal Nuts, Caps and Plugs Male Nut 316 SS 1/2" NA NA NA NA NA NA NA NA NA NA
8 FNV-SS Metal Nuts, Caps and Plugs Cap 316 SS 1/2" NA NA NA NA NA NA NA NA NA NA
8 FNV-SS-L Metal Nuts, Caps and Plugs Cap With Lanyard 316 SS 1/2" NA NA NA NA NA NA NA NA NA Lanyard
8 GVG-K Metal Gaskets Non-Retained Grooved Style Kel-F? 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style
8 GVG-K-BL Metal Gaskets Non-Retained Grooved Style Kel-F? 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)
8 GVG-N Metal Gaskets Non-Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style
8 GVG-N-BL Metal Gaskets Non-Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)
8 GVG-SS Metal Gaskets Non-Retained Grooved Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style
8 GVG-SS-BL Metal Gaskets Non-Retained Grooved Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)
8 GVG-T Metal Gaskets Non-Retained Grooved Style Teflon? 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style
8 GVG-T-BL Metal Gaskets Non-Retained Grooved Style Teflon? 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Grooved Style, Blind (Undrilled)
8 GVGR-K Metal Gaskets Retained Grooved Style Kel-F? 1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style
8 GVGR-K-BL Metal Gaskets Retained Grooved Style Kel-F? 1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)
8 GVGR-N Metal Gaskets Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style
8 GVGR-N-BL Metal Gaskets Retained Grooved Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)
8 GVGR-SS Metal Gaskets Retained Grooved Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style
8 GVGR-SS-BL Metal Gaskets Retained Grooved Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)
8 GVGR-T Metal Gaskets Retained Grooved Style Teflon? 1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style
8 GVGR-T-BL Metal Gaskets Retained Grooved Style Teflon? 1/2" NA NA NA NA NA NA NA NA NA Retained Grooved Style, Blind (Undrilled)
8 PNV-SS Metal Nuts, Caps and Plugs Plug 316 SS 1/2" NA NA NA NA NA NA NA NA NA NA
8 PNV-SS-L Metal Nuts, Caps and Plugs Plug With Lanyard 316 SS 1/2" NA NA NA NA NA NA NA NA NA Lanyard
8 VG-K Metal Gaskets Non-Retained Flat Style Kel-F? 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat
8 VG-K-BL Metal Gaskets Non-Retained Flat Style Kel-F? 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
8 VG-N Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat
8 VG-N-BL Metal Gaskets Non-Retained Flat Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
8 VG-SS Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat
8 VG-SS-BL Metal Gaskets Non-Retained Flat Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
8 VG-T Metal Gaskets Non-Retained Flat Style Teflon? 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat
8 VG-T-BL Metal Gaskets Non-Retained Flat Style Teflon? 1/2" NA NA NA NA NA NA NA NA NA Non-Retained Flat, Blind (Undrilled)
8 VGR-K Metal Gaskets Retained Flat Style Kel-F? 1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style
8 VGR-K-BL Metal Gaskets Retained Flat Style Kel-F? 1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)
8 VGR-N Metal Gaskets Retained Flat Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style
8 VGR-N-BL Metal Gaskets Retained Flat Style NICKEL (ELECTROPOLISHED) 1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)
8 VGR-SS Metal Gaskets Retained Flat Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style
8 VGR-SS-BL Metal Gaskets Retained Flat Style Stainless Steel (Silver Plated) 1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)
8 VGR-T Metal Gaskets Retained Flat Style Teflon? 1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style
8 VGR-T-BL Metal Gaskets Retained Flat Style Teflon? 1/2" NA NA NA NA NA NA NA NA NA Retained Flat Style, Blind (Undrilled)
8 VHC-SS Metal Gasket Bodies Coupling 316 SS 1/2" Female VacuSeal? Thread 1/2" NA Female VacuSeal? Thread NA NA NA NA 1.31" NA
8-10 VHOA-SS Metal Gasket Bodies Straight Thread O-ring 316 SS 1/2" Male VacuSeal? Metal Gasket 7/8-14 NA Male O-ring SAE/MS Straight Thread NA NA NA NA 1.66" NA
8-10M V1T3-SSR 1.16 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 10 Short Tube Butt Weld NA NA NA NA 1.16" NA
8-10M V1T3-SSR 1.16-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 10 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish
8-10M V1T3-SSR 1.79 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 10 Long Tube Butt Weld NA NA NA NA 1.79" NA
8-10M V1T3-SSR 1.79-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 10 Long Tube Butt Weld NA NA NA NA 1.79" Electropolish
8-10M V1T3-SSV 1.16 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 10 Short Tube Butt Weld NA NA NA NA 1.16" NA
8-10M V1T3-SSV 1.16-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 10 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish
8-10M V1T3-SSV 1.79 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 10 Long Tube Butt Weld NA NA NA NA 1.79" NA
8-10M V1T3-SSV 1.79-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 10 Long Tube Butt Weld NA NA NA NA 1.79" Electropolish
8-10M V1Y3-SSR 1.22 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 10 Short Automatic Tube Butt Weld NA NA NA NA NA NA
8-10M V1Y3-SSR 1.22-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 10 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-10M V1Y3-SSV 1.22 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 10 Short Automatic Tube Butt Weld NA NA NA NA NA NA
8-10M V1Y3-SSV 1.22-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 10 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-12M V1T3-SSR 1.16 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 12 Short Tube Butt Weld NA NA NA NA 1.16" NA
8-12M V1T3-SSR 1.16-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 12 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish
8-12M V1T3-SSR 1.79 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 12 Long Tube Butt Weld NA NA NA NA 1.79" NA
8-12M V1T3-SSR 1.79-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 12 Long Tube Butt Weld NA NA NA NA 1.79" Electropolish
8-12M V1T3-SSV 1.16 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 12 Short Tube Butt Weld NA NA NA NA 1.16" NA
8-12M V1T3-SSV 1.16-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 12 Short Tube Butt Weld NA NA NA NA 1.16" Electropolish
8-12M V1T3-SSV 1.79 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 12 Long Tube Butt Weld NA NA NA NA 1.79" NA
8-12M V1T3-SSV 1.79-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 12 Long Tube Butt Weld NA NA NA NA 1.79" Electropolish
8-12M V1Y3-SSR 1.20 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 12 Short Automatic Tube Butt Weld NA NA NA NA NA NA
8-12M V1Y3-SSR 1.20-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 12 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-12M V1Y3-SSR 1.83 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 12 Long Automatic Tube Butt Weld NA NA NA NA NA NA
8-12M V1Y3-SSR 1.83-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket NA 12 Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-12M V1Y3-SSV 1.20 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 12 Short Automatic Tube Butt Weld NA NA NA NA NA NA
8-12M V1Y3-SSV 1.20-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 12 Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-12M V1Y3-SSV 1.83 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 12 Long Automatic Tube Butt Weld NA NA NA NA NA NA
8-12M V1Y3-SSV 1.83-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket NA 12 Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-4 HV-SS Metal Gasket Bodies Double Male Reducing Union 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/4" NA Male VacuSeal? (Metal Gasket) NA NA NA NA 1.71" NA
8-4 HV7-SS Metal Gasket Bodies Double Female Reducing Union 316 SS 1/2" Female VacuSeal? (Metal Gasket) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 0.35" NA
8-4 V1T3-SSR 1.12 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.12" NA
8-4 V1T3-SSR 1.12-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.12" Electropolish
8-4 V1T3-SSR 1.79 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.79" NA
8-4 V1T3-SSR 1.79-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.79" Electropolish
8-4 V1T3-SSR D970351 VacuSeal? Glands Male Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA NA
8-4 V1T3-SSR D970351-PE VacuSeal? Glands Male Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA Electropolish
8-4 V1T3-SSV 1.12 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.12" NA
8-4 V1T3-SSV 1.12-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Short Tube Butt Weld NA NA NA NA 1.12" Electropolish
8-4 V1T3-SSV 1.79 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.79" NA
8-4 V1T3-SSV 1.79-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Long Tube Butt Weld NA NA NA NA 1.79" Electropolish
8-4 V1T3-SSV D970351 VacuSeal? Glands Male Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA NA
8-4 V1T3-SSV D970351-PE VacuSeal? Glands Male Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Tube Butt Weld NA NA NA NA NA Electropolish
8-4 V1W-SSR VacuSeal? Glands Reducing Socket Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Reducing Socket Weld NA NA NA NA NA NA
8-4 V1W-SSR-PE VacuSeal? Glands Reducing Socket Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Reducing Socket Weld NA NA NA NA NA Electropolish
8-4 V1W-SSV VacuSeal? Glands Reducing Socket Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Reducing Socket Weld NA NA NA NA NA NA
8-4 V1W-SSV-PE VacuSeal? Glands Reducing Socket Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Reducing Socket Weld NA NA NA NA NA Electropolish
8-4 V1Y3-SSR 1.82 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA
8-4 V1Y3-SSR 1.82-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-4 V1Y3-SSV 1.82 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA
8-4 V1Y3-SSV 1.82-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/4" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-4 V7HV-SS Metal Gasket Bodies Reducing Adapter 316 SS 1/2" Female VacuSeal? (Metal Gasket) 1/4" NA Male VacuSeal? (Metal Gasket) NA NA NA NA 1.41" NA
8-4 VH2BF-SS Metal Gasket Bodies Male NPT Bulkhead Connector 316 SS 1/2" Male VacuSeal? Metal Gasket 1/4" NA Male NPT Bulkhead NA NA NA NA 2.34" NA
8-4 VHV7-SS Metal Gasket Bodies Reducing Bushing 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/4" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.41" NA
8-6 Cv-SS Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/2" Male VacuSeal? (Metal Gasket) 3/8" NA Male NPT NA NA NA NA NA NA
8-6 Cv-SS-PE Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/2" Male VacuSeal? (Metal Gasket) 3/8" NA Male NPT NA NA NA NA NA Electropolish
8-6 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1/2" Male VacuSeal? Metal Gasket 3/8" NA Male NPT NA NA NA NA 1.62" NA
8-6 GV-SS Metal Gasket Bodies Female NPT Connector 316 SS 1/2" Male VacuSeal? Metal Gasket 3/8" NA Female NPT NA NA NA NA 1.62" NA
8-6 V1HBF-SS Welded Assembly Male NPT Connector 316 SS 1/2" VacuSeal? (Metal Gaskets) 3/8" NA Male NPT NA NA NA NA NA NA
8-6 V1HBF-SS-PE Welded Assembly Male NPT Connector 316 SS 1/2" VacuSeal? (Metal Gaskets) 3/8" NA Male NPT NA NA NA NA NA Electropolish
8-6 V1HBF-SSR Welded Assembly Male NPT Connector 316L VAR 1/2" VacuSeal? (Metal Gaskets) 3/8" NA Male NPT NA NA NA NA NA NA
8-6 V1HBF-SSR-PE Welded Assembly Male NPT Connector 316L VAR 1/2" VacuSeal? (Metal Gaskets) 3/8" NA Male NPT NA NA NA NA NA Electropolish
8-6 V1HBF-SSV Welded Assembly Male NPT Connector 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 3/8" NA Male NPT NA NA NA NA NA NA
8-6 V1HBF-SSV-PE Welded Assembly Male NPT Connector 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 3/8" NA Male NPT NA NA NA NA NA Electropolish
8-6 V1HBG-SS Welded Assembly Female NPT Connector 316 SS 1/2" VacuSeal? (Metal Gaskets) 3/8" NA Female NPT NA NA NA NA NA NA
8-6 V1HBG-SS-PE Welded Assembly Female NPT Connector 316 SS 1/2" VacuSeal? (Metal Gaskets) 3/8" NA Female NPT NA NA NA NA NA Electropolish
8-6 V1HBG-SSR Welded Assembly Female NPT Connector 316L VAR 1/2" VacuSeal? (Metal Gaskets) 3/8" NA Female NPT NA NA NA NA NA NA
8-6 V1HBG-SSR-PE Welded Assembly Female NPT Connector 316L VAR 1/2" VacuSeal? (Metal Gaskets) 3/8" NA Female NPT NA NA NA NA NA Electropolish
8-6 V1HBG-SSV Welded Assembly Female NPT Connector 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 3/8" NA Female NPT NA NA NA NA NA NA
8-6 V1HBG-SSV-PE Welded Assembly Female NPT Connector 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 3/8" NA Female NPT NA NA NA NA NA Electropolish
8-6 V1M-SSR .62 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA .62" NA
8-6 V1M-SSR .62-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA .62" Electropolish
8-6 V1M-SSR 1.29 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.29" NA
8-6 V1M-SSR 1.29-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.29" Electropolish
8-6 V1M-SSV .62 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA .62" NA
8-6 V1M-SSV .62-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA .62" Electropolish
8-6 V1M-SSV 1.29 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.29" NA
8-6 V1M-SSV 1.29-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.29" Electropolish
8-6 V1T3-SSR 1.12 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA 1.12" NA
8-6 V1T3-SSR 1.12-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA 1.12" Electropolish
8-6 V1T3-SSR 1.50 .049 VacuSeal? Glands Male Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA NA
8-6 V1T3-SSR 1.50 .049-PE VacuSeal? Glands Male Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA Electropolish
8-6 V1T3-SSR 1.79 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.79" NA
8-6 V1T3-SSR 1.79-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.79" Electropolish
8-6 V1T3-SSV 1.12 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA 1.12" NA
8-6 V1T3-SSV 1.12-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Short Tube Butt Weld NA NA NA NA 1.12" Electropolish
8-6 V1T3-SSV 1.50 .049 VacuSeal? Glands Male Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA NA
8-6 V1T3-SSV 1.50 .049-PE VacuSeal? Glands Male Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Tube Butt Weld NA NA NA NA NA Electropolish
8-6 V1T3-SSV 1.79 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.79" NA
8-6 V1T3-SSV 1.79-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Long Tube Butt Weld NA NA NA NA 1.79" Electropolish
8-6 V1TU-SS VacuSeal? Glands Tube Adapter 316 SS 1/2" VacuSeal? Metal Gasket 3/8" NA A-Lok? Tube Adapter NA NA NA NA NA NA
8-6 V1TU-SS-PE VacuSeal? Glands Tube Adapter 316 SS 1/2" VacuSeal? Metal Gasket 3/8" NA A-Lok? Tube Adapter NA NA NA NA NA Electropolish
8-6 V1TU-SSR VacuSeal? Glands Tube Adapter 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA A-Lok? Tube Adapter NA NA NA NA NA NA
8-6 V1TU-SSR-PE VacuSeal? Glands Tube Adapter 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA A-Lok? Tube Adapter NA NA NA NA NA Electropolish
8-6 V1TU-SSV VacuSeal? Glands Tube Adapter 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA A-Lok? Tube Adapter NA NA NA NA NA NA
8-6 V1TU-SSV-PE VacuSeal? Glands Tube Adapter 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA A-Lok? Tube Adapter NA NA NA NA NA Electropolish
8-6 V1W-SSR VacuSeal? Glands Socket Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Socket Weld NA NA NA NA NA NA
8-6 V1W-SSR-PE VacuSeal? Glands Socket Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Socket Weld NA NA NA NA NA Electropolish
8-6 V1W-SSV VacuSeal? Glands Socket Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Socket Weld NA NA NA NA NA NA
8-6 V1W-SSV-PE VacuSeal? Glands Socket Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Socket Weld NA NA NA NA NA Electropolish
8-6 V1Y3-SSR 1.15 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 3/8" VacuSeal? Metal Gasket 3/8" NA Short Automatic Tube Butt Weld NA NA NA NA NA NA
8-6 V1Y3-SSR 1.15-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 3/8" VacuSeal? Metal Gasket 3/8" NA Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-6 V1Y3-SSR 1.82 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA
8-6 V1Y3-SSR 1.82-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-6 V1Y3-SSV 1.15 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 3/8" VacuSeal? Metal Gasket 3/8" NA Short Automatic Tube Butt Weld NA NA NA NA NA NA
8-6 V1Y3-SSV 1.15-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 3/8" VacuSeal? Metal Gasket 3/8" NA Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-6 V1Y3-SSV 1.82 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA
8-6 V1Y3-SSV 1.82-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 3/8" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-6 VH2LZ-SS Metal Gasket Bodies Compression Tube Fitting Bulkhead Connector 316 SS 1/2" Male VacuSeal? (Metal Gasket) 3/8" NA A-Lok? Compression Tube Fitting Bulkhead NA NA NA NA 2.54" NA
8-6 VHLZ-SS Metal Gasket Bodies Compression Tube Fitting Connector 316 SS 1/2" Male VacuSeal? Metal Gasket 3/8" NA A-Lok? Compression Tube Fitting NA NA NA NA 1.84" NA
8-6 VHOA-SS Metal Gasket Bodies Straight Thread O-ring 316 SS 1/2" Male VacuSeal? Metal Gasket 9/16-18 NA Male O-ring SAE/MS Straight Thread NA NA NA NA 1.48" NA
8-8 Cv-SS Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/2" NA Male NPT NA NA NA NA NA NA
8-8 Cv-SS-PE Metal Gasket Bodies VacuSeal to Male NPT 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/2" NA Male NPT NA NA NA NA NA Electropolish
8-8 EV-SS Metal Gasket Bodies Union Elbow 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/2" NA Male VacuSeal? (Metal Gasket) NA NA NA NA NA NA
8-8 EV-SS-PE Metal Gasket Bodies Union Elbow 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/2" NA Male VacuSeal? (Metal Gasket) NA NA NA NA NA Electropolish
8-8 FV-SS Metal Gasket Bodies Male NPT Connector 316 SS 1/2" Male VacuSeal? Metal Gasket 1/2" NA Male NPT NA NA NA NA 1.81" NA
8-8 GV-SS Metal Gasket Bodies Female NPT Connector 316 SS 1/2" Male VacuSeal? Metal Gasket 1/2" NA Female NPT NA NA NA NA 1.91" NA
8-8 HV-SS Metal Gasket Bodies Double Male Union 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/2" NA Male VacuSeal? (Metal Gasket) NA NA NA NA 1.84" NA
8-8 V1HBF-SS Welded Assembly Male NPT Connector 316 SS 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Male NPT NA NA NA NA NA NA
8-8 V1HBF-SS-PE Welded Assembly Male NPT Connector 316 SS 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Male NPT NA NA NA NA NA Electropolish
8-8 V1HBF-SSR Welded Assembly Male NPT Connector 316L VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Male NPT NA NA NA NA NA NA
8-8 V1HBF-SSR-PE Welded Assembly Male NPT Connector 316L VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Male NPT NA NA NA NA NA Electropolish
8-8 V1HBF-SSV Welded Assembly Male NPT Connector 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Male NPT NA NA NA NA NA NA
8-8 V1HBF-SSV-PE Welded Assembly Male NPT Connector 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Male NPT NA NA NA NA NA Electropolish
8-8 V1HBG-SS Welded Assembly Female NPT Connector 316 SS 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female NPT NA NA NA NA NA NA
8-8 V1HBG-SS-PE Welded Assembly Female NPT Connector 316 SS 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female NPT NA NA NA NA NA Electropolish
8-8 V1HBG-SSR Welded Assembly Female NPT Connector 316L VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female NPT NA NA NA NA NA NA
8-8 V1HBG-SSR-PE Welded Assembly Female NPT Connector 316L VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female NPT NA NA NA NA NA Electropolish
8-8 V1HBG-SSV Welded Assembly Female NPT Connector 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female NPT NA NA NA NA NA NA
8-8 V1HBG-SSV-PE Welded Assembly Female NPT Connector 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female NPT NA NA NA NA NA Electropolish
8-8 V1HBV1-SS Welded Assembly Rotating Female Union 316 SS 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.25" NA
8-8 V1HBV1-SS -PE Welded Assembly Rotating Female Union 316 SS 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.25" Electropolish
8-8 V1HBV1-SS 1.84 Welded Assembly Rotating Female Union 316 SS 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.84" NA
8-8 V1HBV1-SS 1.84 - PE Welded Assembly Rotating Female Union 316 SS 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.84" Electropolish
8-8 V1HBV1-SSR Welded Assembly Rotating Female Union 316L VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.25" NA
8-8 V1HBV1-SSR 1.84 Welded Assembly Rotating Female Union 316L VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.84" NA
8-8 V1HBV1-SSR 1.84-PE Welded Assembly Rotating Female Union 316L VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.84" Electropolish
8-8 V1HBV1-SSR-PE Welded Assembly Rotating Female Union 316L VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.25" Electropolish
8-8 V1HBV1-SSV Welded Assembly Rotating Female Union 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.25" NA
8-8 V1HBV1-SSV 1.84 Welded Assembly Rotating Female Union 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.84" NA
8-8 V1HBV1-SSV 1.84-PE Welded Assembly Rotating Female Union 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.84" Electropolish
8-8 V1HBV1-SSV-PE Welded Assembly Rotating Female Union 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA Female VacuSeal? (Metal Gasket) NA NA NA NA 1.25" Electropolish
8-8 V1HLZ-SS Welded Assembly A-LOK Tube Fitting 316 SS 1/2" VacuSeal? (Metal Gaskets) 1/2" NA A-LOK? Tube Fitting NA NA NA NA NA NA
8-8 V1HLZ-SS-PE Welded Assembly A-LOK Tube Fitting 316 SS 1/2" VacuSeal? (Metal Gaskets) 1/2" NA A-LOK? Tube Fitting NA NA NA NA NA Electropolish
8-8 V1HLZ-SSR Welded Assembly A-LOK Tube Fitting 316L VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA A-LOK? Tube Fitting NA NA NA NA NA NA
8-8 V1HLZ-SSR-PE Welded Assembly A-LOK Tube Fitting 316L VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA A-LOK? Tube Fitting NA NA NA NA NA Electropolish
8-8 V1HLZ-SSV Welded Assembly A-LOK Tube Fitting 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA A-LOK? Tube Fitting NA NA NA NA NA NA
8-8 V1HLZ-SSV-PE Welded Assembly A-LOK Tube Fitting 316L VIM/VAR 1/2" VacuSeal? (Metal Gaskets) 1/2" NA A-LOK? Tube Fitting NA NA NA NA NA Electropolish
8-8 V1M-SSR .62 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .62" NA
8-8 V1M-SSR .62-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .62" Electropolish
8-8 V1M-SSR 1.29 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.29" NA
8-8 V1M-SSR 1.29-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.29" Electropolish
8-8 V1M-SSV .62 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .62" NA
8-8 V1M-SSV .62-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .62" Electropolish
8-8 V1M-SSV 1.29 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.29" NA
8-8 V1M-SSV 1.29-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.29" Electropolish
8-8 V1T3-SSR VacuSeal? Glands Male Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Tube Butt Weld NA NA NA NA NA NA
8-8 V1T3-SSR 1.12 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA 1.12" NA
8-8 V1T3-SSR 1.12-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA 1.12" Electropolish
8-8 V1T3-SSR 1.79 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.79" NA
8-8 V1T3-SSR 1.79-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.79" Electropolish
8-8 V1T3-SSR-PE VacuSeal? Glands Male Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Tube Butt Weld NA NA NA NA NA Electropolish
8-8 V1T3-SSV VacuSeal? Glands Male Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Tube Butt Weld NA NA NA NA NA NA
8-8 V1T3-SSV 1.12 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA 1.12" NA
8-8 V1T3-SSV 1.12-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA 1.12" Electropolish
8-8 V1T3-SSV 1.79 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.79" NA
8-8 V1T3-SSV 1.79-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.79" Electropolish
8-8 V1T3-SSV-PE VacuSeal? Glands Male Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Tube Butt Weld NA NA NA NA NA Electropolish
8-8 V1TU-SS VacuSeal? Glands Tube Adapter 316 SS 1/2" VacuSeal? Metal Gasket 1/2" NA A-Lok? Tube Adapter NA NA NA NA NA NA
8-8 V1TU-SS-PE VacuSeal? Glands Tube Adapter 316 SS 1/2" VacuSeal? Metal Gasket 1/2" NA A-Lok? Tube Adapter NA NA NA NA NA Electropolish
8-8 V1TU-SSR VacuSeal? Glands Tube Adapter 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA A-Lok? Tube Adapter NA NA NA NA NA NA
8-8 V1TU-SSR-PE VacuSeal? Glands Tube Adapter 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA A-Lok? Tube Adapter NA NA NA NA NA Electropolish
8-8 V1TU-SSV VacuSeal? Glands Tube Adapter 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA A-Lok? Tube Adapter NA NA NA NA NA NA
8-8 V1TU-SSV-PE VacuSeal? Glands Tube Adapter 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA A-Lok? Tube Adapter NA NA NA NA NA Electropolish
8-8 V1TW-SSR .74 VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .74" NA
8-8 V1TW-SSR .74-PE VacuSeal? Glands Short Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .74" Electropolish
8-8 V1TW-SSR 1.41 VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.41" NA
8-8 V1TW-SSR 1.41-PE VacuSeal? Glands Long Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.41" Electropolish
8-8 V1TW-SSV .74 VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .74" NA
8-8 V1TW-SSV .74-PE VacuSeal? Glands Short Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Tube Butt Weld NA NA NA NA .74" Electropolish
8-8 V1TW-SSV 1.41 VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.41" NA
8-8 V1TW-SSV 1.41-PE VacuSeal? Glands Long Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Tube Butt Weld NA NA NA NA 1.41" Electropolish
8-8 V1W-SSR VacuSeal? Glands Socket Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Socket Weld NA NA NA NA NA NA
8-8 V1W-SSR-BL VacuSeal? Glands Blind Gland 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Blind Tube Butt Weld NA NA NA NA NA NA
8-8 V1W-SSR-BL-PE VacuSeal? Glands Blind Gland 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish
8-8 V1W-SSR-PE VacuSeal? Glands Socket Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Socket Weld NA NA NA NA NA Electropolish
8-8 V1W-SSV VacuSeal? Glands Socket Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Socket Weld NA NA NA NA NA NA
8-8 V1W-SSV-BL VacuSeal? Glands Blind Gland 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Blind Tube Butt Weld NA NA NA NA NA NA
8-8 V1W-SSV-BL-PE VacuSeal? Glands Blind Gland 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Blind Tube Butt Weld NA NA NA NA NA Electropolish
8-8 V1W-SSV-PE VacuSeal? Glands Socket Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Socket Weld NA NA NA NA NA Electropolish
8-8 V1Y3-SSR 1.16 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Automatic Tube Butt Weld NA NA NA NA NA NA
8-8 V1Y3-SSR 1.16-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-8 V1Y3-SSR 1.83 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA
8-8 V1Y3-SSR 1.83-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-8 V1Y3-SSV 1.16 VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Automatic Tube Butt Weld NA NA NA NA NA NA
8-8 V1Y3-SSV 1.16-PE VacuSeal? Glands Short Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Short Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-8 V1Y3-SSV 1.83 VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Automatic Tube Butt Weld NA NA NA NA NA NA
8-8 V1Y3-SSV 1.83-PE VacuSeal? Glands Long Automatic Tube Butt Weld 316L VIM/VAR 1/2" VacuSeal? Metal Gasket 1/2" NA Long Automatic Tube Butt Weld NA NA NA NA NA Electropolish
8-8 VH2LZ-SS Metal Gasket Bodies Compression Tube Fitting Bulkhead Connector 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/2" NA A-Lok? Compression Tube Fitting Bulkhead NA NA NA NA 2.74" NA
8-8 VHLZ-SS Metal Gasket Bodies Compression Tube Fitting Connector 316 SS 1/2" Male VacuSeal? Metal Gasket 1/2" NA A-Lok? Compression Tube Fitting NA NA NA NA 1.95" NA
8-8 WBV-SS 2.14 Metal Gasket Bodies Bulkhead Union 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/2" NA Male VacuSeal? (Metal Gasket) Bulkhead NA NA NA NA 2.14" NA
8-8 WBV-SS 2.57 Metal Gasket Bodies Bulkhead Union 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/2" NA Male VacuSeal? (Metal Gasket) Bulkhead NA NA NA NA 2.57" NA
8-8-8 JV-SS Metal Gasket Bodies Union Tee 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/2" NA Male VacuSeal? (Metal Gasket) 1/2" Male VacuSeal? (Metal Gasket) NA NA 2.62" NA
8-8-8 JV-SS-PE Metal Gasket Bodies Union Tee 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/2" NA Male VacuSeal? (Metal Gasket) 1/2" Male VacuSeal? (Metal Gasket) NA NA 2.62" Electropolish
8-KV-SS Metal Gasket Bodies Union Cross 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/2" NA Male VacuSeal? (Metal Gasket) 1/2" Male VacuSeal? (Metal Gasket) 1/2" Male VacuSeal? (Metal Gasket) 2.90" NA
8-KV-SS-PE Metal Gasket Bodies Union Cross 316 SS 1/2" Male VacuSeal? (Metal Gasket) 1/2" NA Male VacuSeal? (Metal Gasket) 1/2" Male VacuSeal? (Metal Gasket) 1/2" Male VacuSeal? (Metal Gasket) 2.90" Electropolish
MEM-442RVFVF Welded Modules Elbow Modules 316L VAR 1/4" VacuSeal? Female (Metal Gasket) 1/4" NA VacuSeal? Female (Metal Gasket) NA NA NA NA NA NA
MEM-442RVFVF-PE Welded Modules Elbow Modules 316L VAR 1/4" VacuSeal? Female (Metal Gasket) 1/4" NA VacuSeal? Female (Metal Gasket) NA NA NA NA NA Electropolish
MEM-442RVMSVF Welded Modules Elbow Modules 316L VAR 1/4" VacuSeal? Male Swivel (Metal Gasket) 1/4" NA VacuSeal? Female (Metal Gasket) NA NA NA NA NA NA
MEM-442RVMSVF-PE Welded Modules Elbow Modules 316L VAR 1/4" VacuSeal? Male Swivel (Metal Gasket) 1/4" NA VacuSeal? Female (Metal Gasket) NA NA NA NA NA Electropolish
MEM-442RVMSVMS Welded Modules Elbow Modules 316L VAR 1/4" VacuSeal? Male Swivel (Metal Gasket) 1/4" NA VacuSeal? Male (Metal Gasket) NA NA NA NA NA NA
MEM-442RVMSVMS-PE Welded Modules Elbow Modules 316L VAR 1/4" VacuSeal? Male Swivel (Metal Gasket) 1/4" NA VacuSeal? Male (Metal Gasket) NA NA NA NA NA Electropolish
MEM-882RVFVF Welded Modules Elbow Modules 316L VAR 1/2" VacuSeal? Female (Metal Gasket) 1/2" NA VacuSeal? Female (Metal Gasket) NA NA NA NA NA NA
MEM-882RVFVF-PE Welded Modules Elbow Modules 316L VAR 1/2" VacuSeal? Female (Metal Gasket) 1/2" NA VacuSeal? Female (Metal Gasket) NA NA NA NA NA Electropolish
MJM-4442VFVFVF Welded Modules Tee Modules 316L VAR 1/4" VacuSeal? Female (Metal Gasket) 1/4" NA VacuSeal? Female (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) NA NA NA NA
MJM-4442VFVFVF-PE Welded Modules Tee Modules 316L VAR 1/4" VacuSeal? Female (Metal Gasket) 1/4" NA VacuSeal? Female (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) NA NA NA Electropolish
MJM-4442VFVFVMS Welded Modules Tee Modules 316L VAR 1/4" VacuSeal? Female (Metal Gasket) 1/4" NA VacuSeal? Male Swivel (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) NA NA NA NA
MJM-4442VFVFVMS-PE Welded Modules Tee Modules 316L VAR 1/4" VacuSeal? Female (Metal Gasket) 1/4" NA VacuSeal? Male Swivel (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) NA NA NA Electropolish
MJM-4442VFVMSVMS Welded Modules Tee Modules 316L VAR 1/4" VacuSeal? Female (Metal Gasket) 1/4" NA VacuSeal? Male Swivel (Metal Gasket) 1/4" VacuSeal? Male Swivel (Metal Gasket) NA NA NA NA
MJM-4442VFVMSVMS-PE Welded Modules Tee Modules 316L VAR 1/4" VacuSeal? Female (Metal Gasket) 1/4" NA VacuSeal? Male Swivel (Metal Gasket) 1/4" VacuSeal? Male Swivel (Metal Gasket) NA NA NA Electropolish
MJM-4442VMSVMSVMS Welded Modules Tee Modules 316L VAR 1/4" VacuSeal? Male Swivel (Metal Gasket) 1/4" NA VacuSeal? Male Swivel (Metal Gasket) 1/4" VacuSeal? Male Swivel (Metal Gasket) NA NA NA NA
MJM-4442VMSVMSVMS-PE Welded Modules Tee Modules 316L VAR 1/4" VacuSeal? Male Swivel (Metal Gasket) 1/4" NA VacuSeal? Male Swivel (Metal Gasket) 1/4" VacuSeal? Male Swivel (Metal Gasket) NA NA NA Electropolish
MJM8842VFVMSVF Welded Modules Tee Modules 316L VAR 1/2" VacuSeal? Male Swivel (Metal Gasket) 1/2" NA VacuSeal? Female (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) NA NA NA NA
MJM8842VFVMSVF-PE Welded Modules Tee Modules 316L VAR 1/2" VacuSeal? Male Swivel (Metal Gasket) 1/2" NA VacuSeal? Female (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) NA NA NA Electropolish
MKM-44442VFVFVFVF Welded Modules Cross Modules 316L VAR 1/4" VacuSeal? Female (Metal Gasket) 1/4" NA VacuSeal? Female (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) NA NA
MKM-44442VFVFVFVF-PE Welded Modules Cross Modules 316L VAR 1/4" VacuSeal? Female (Metal Gasket) 1/4" NA VacuSeal? Female (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) NA Electropolish
MKM-44442VMSVFVFVF Welded Modules Cross Modules 316L VAR 1/4" VacuSeal? Male Swivel (Metal Gasket) 1/4" NA VacuSeal? Female (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) NA NA
MKM-44442VMSVFVFVF-PE Welded Modules Cross Modules 316L VAR 1/4" VacuSeal? Male Swivel (Metal Gasket) 1/4" NA VacuSeal? Female (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) 1/4" VacuSeal? Female (Metal Gasket) NA Electropolish
