Barksdale UPA6高压传感器UPA6 High-Pressure Transducer
Electronic High-Pressure Transducer UPA6 Industrial Pressure Transmitter for very high Pressure
超高压传感器 - 量程范围 0…2500和0…6000bar

Barksdale UPA6是一种高压传感器，由Barksdale制造。量程范围 0…2500 0…6000bar的额定压力范围。具有0.5%的fs线性误差精度。UPA6产品适用于 水喷射火炬、液压回路、化工、石化 等行业。Barksdale UPA6 is a high-pressure transducer, manufactured by Barksdale. This contains nominal pressure ranges from 0...2500 0...6000bar. It has 0.5 % FS linearity error accuracy. This product is applicable in water jet torching, hydraulic circuits and chemical and petrochemical industry.

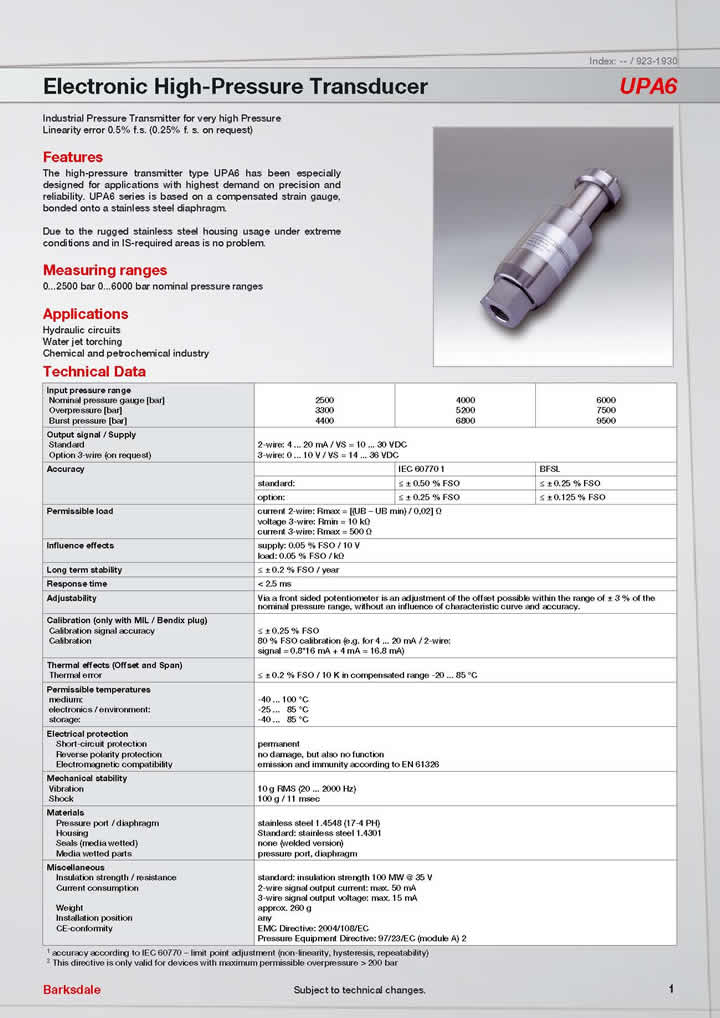

Barksdale UPA6 High-Pressure Transducer pdf catalog free download
技术选型资料下载

量程范围

0 ... 2500 bar ， 0... 6000 bar nominal pressure ranges

- 超高压工业压力变送器Industrial Pressure Transmitter for very high pressure
- 线性误差0.5%f.s.（根据要求0.25%f.s.）Linearity error 0.5% f.s. (0.25% f.s. on request)
- 基于补偿应变计，连接到不锈钢隔膜 Based on a compensated strain gauge, bonded onto a stainless steel diaphragm

产品应用Applications:

- 液压回路 Hydraulic circuits
- 高压水射流 Water jet torching
- 化学和石化工业 Chemical and petrochemical industry

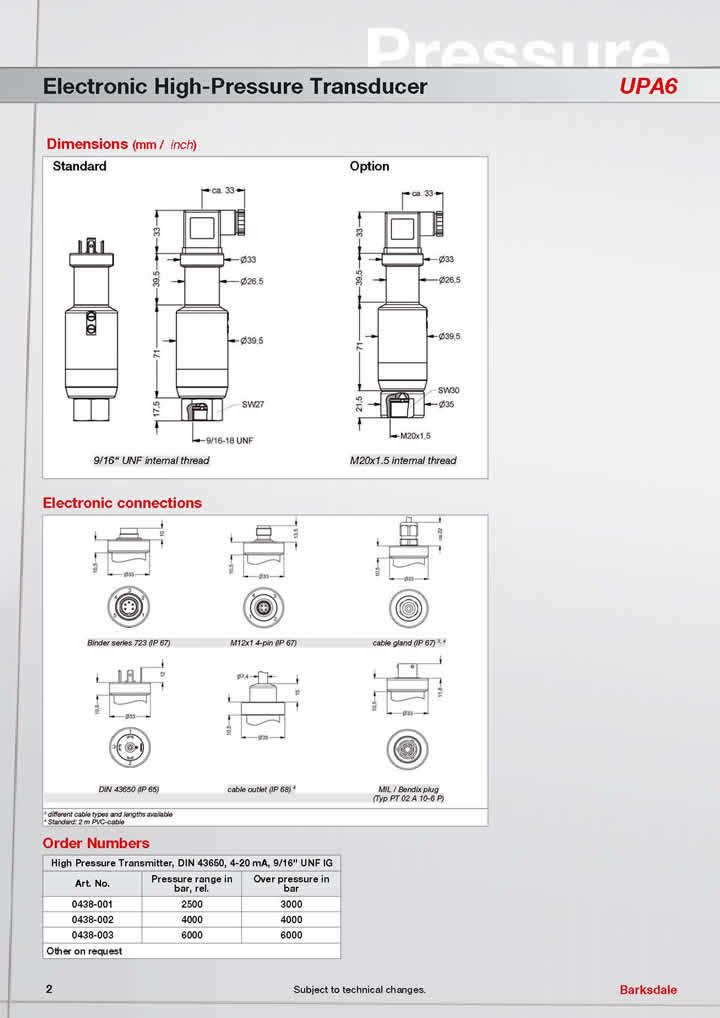

Ordering guide
