Gardner Denver drilling pumps钻井泵及泥浆泵

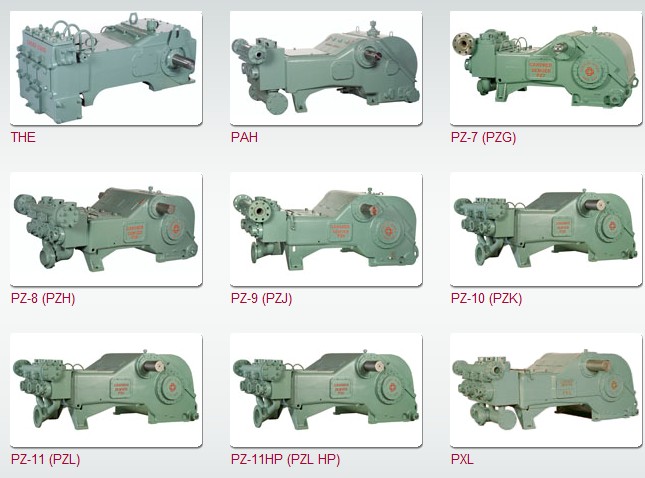

Single-Acting Trilex Mud Pumps （ 275 to 2000 HP ）
Gardner Denver drilling pumps are constructed of nodular iron which incorporates high strength and improved frame stiffness with lower stress levels,at approximately25%less weight than mud pumps constructed with welded steel fabrications.Fluid cylinders are individually autofrettaged,forged,heat treated alloy steel for improved life.This smaller and lighter triplex design was originally developed for offshore drilling applications.These design features reduce handling and set-up costs ,reduces maintenance costs and improves accessibility of expendable parts,while generating long-life and economical maintenance.These pumps will economically perform the following services:drilling,workover,cementing,acidizing,pipeline applicationans and slurry applications* For these applications consult the factory for ratings.
Gardner Denver drilling，Production,well service and industrial pumps
Gardner Denver drilling pumps
Gardner Denver FX Double-Acting Duplex Mud Pumps
Air,Steam or Gas Operated Gardner Denver pumps
Gardner Denver iplex and Quintuplex Plunger Pumps
Gardner-Denver ge Triplex and Quintuplex Plunger Pumps
Oil line,mining and industrial service Gardner Denver FX Duplex pumps
Gardner Denver Well Servicing pumps
Gardner Denver Intermittent Duty Triplex Pumps Intermittent Duty Well Stimulation Pumps
PZ-2400 OFFSHORE DRILLING PUMP
钻探泵
这些发动机都通过质量鉴定和疲劳测试，用于高压液体及泥浆作业。
名称：三缸泥浆泵（TRIPLEX MUD PUMPS）
功率范围：215 t到000 HP (160到1490 kW)
名称：二缸泥浆泵（DUPLEX MUD PUMPS）
功率范围：16到102 HP (12 到76 kW)
名称：二缸蒸汽泵（DUPLEX STEAM PUMPS）
承受的最大压力为3580 PSI
Pump Mode(In) |
Horsepower (BHP) |
Stroke
(PSI) |
Piston
Size(in) |
Piston Load
(ibs) |
Rate (GPM) |
Pressure(PSI) Ranges |
PAH |
275 |
8 |
3-5 |
22,030 |
128 357 |
1122-3118 |
PZ-7(PZG) |
550 |
7 |
4-7 |
64,400 |
166 507 |
1673-5000 |
PZ-8(PZH) |
750 |
8 |
4-7 |
76,800 |
189 580 |
1996-5000 |

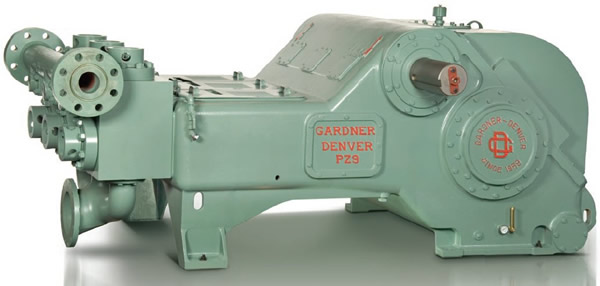

PZ-9(PZJ) |
1000 |
9 |
4-7 |
101,550 |
242 585 |
2639-5000 |
PZ-10(PZK) |
1350 |
10 |
5.5-7 |
139,500 |
355 575 |
3624-5000 |
PZ-11(PZL) |
1600 |
11 |
5.5-7 |
150,300 |
390 632 |
3905-5000 |
PZ-11(PZL) |
1600 |
11 |
5-6.5 |
147,262 |
323 545 |
4527-7500 |
PX-11(PXL) |
2000 |
11 |
5-7 |
186,875 |
323 632 |
4880-7500 |
| Pump Model |
Horsepower |
Stroke |
Piston Sizes (in) |
Piston Load |
Rate (GPM) |
Pressure Ranges (PSI) |
(BHP) |
(in) |
(min) |
(max) |
(lbs) |
(min) |
(max) |
(min) |
(max) |
| THE |
215 |
5 |
4 |
5.5 |
37,000 |
41 |
462 |
720 |
2,944 |
| PAH |
275 |
8 |
3 |
5 |
22,030 |
128 |
357 |
1,122 |
3,118 |
| PZ-7 (PZG) |
550 |
7 |
4 |
7 |
64,400 |
166 |
507 |
1,673 |
5,000 |
PZ-8 (PZH) |
750 |
8 |
4 |
7 |
76,800 |
189 |
580 |
1,996 |
5,000 |
PZ-9 (PZJ) |
1000 |
9 |
4 |
7 |
101,550 |
242 |
585 |
2,639 |
5,000 |
PZ-10 (PZK) |
1,350 |
10 |
5.5 |
7 |
139,500 |
355 |
575 |
3,624 |
5,000 |
PZ-11 (PZL) |
1,600 |
11 |
5.5 |
7 |
150,300 |
390 |
632 |
3,905 |
5,000 |
PZ-11 HP (PZL-HP) |
1,600 |
11 |
5 |
7 |
147,262 |
323 |
632 |
4,527 |
7,500 |
PX-11 (PXL) |
2,000 |
11 |
5 |
7 |
186,875 |
323 |
632 |
4,880 |
7,500 |
| Pump Model |
Horsepower |
Stroke |
Piston Sizes (mm) |
Piston Load |
Rate (m3/h) |
Pressure Ranges (bar) |
(kW) |
(mm) |
(min) |
(max) |
(N) |
(min) |
(max) |
(min) |
(max) |
| THE |
160 |
127 |
102 |
140 |
164,584 |
9 |
105 |
50 |
203 |
| PAH |
205 |
203.2 |
76.2 |
127.0 |
97,994 |
29 |
81 |
77 |
215 |
| PZ-7 (PZG) |
410 |
177.8 |
101.6 |
177.8 |
286,465 |
38 |
115 |
115 |
345 |
PZ-8 (PZH) |
559 |
203.2 |
101.6 |
177.8 |
341,623 |
43 |
132 |
138 |
345 |
PZ-9 (PZJ) |
746 |
228.6 |
101.6 |
177.8 |
451,717 |
55 |
133 |
182 |
345 |
PZ-10 (PZK) |
1,007 |
254.0 |
139.7 |
177.8 |
620,527 |
81 |
131 |
250 |
345 |
PZ-11 (PZL) |
1,193 |
279.4 |
139.7 |
177.8 |
668,568 |
89 |
144 |
269 |
345 |
PZ-11 HP (PZL-HP) |
1,193 |
279.4 |
127.0 |
165.1 |
655,054 |
73 |
124 |
312 |
517 |
PX-11 (PXL) |
1,491 |
279.4 |
127.0 |
177.8 |
831,261 |
73 |
144 |
336 |
517 |
|
