Parker PFA Valves

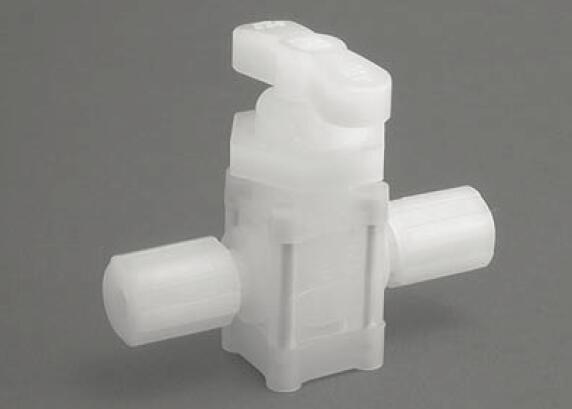

UHP PFA Manual Diaphragm (1/4 inch) 3 Way Valve – MV-10 Series

The MV-10 Series PFA Manual Valve offers high leak integrity and excellent resistance to corrosion. It is available in 3-way configurations and is designed for ultra-high purity (UHP) and aggressive fluid applications (up to 80 psig).





The MV-10 Series is a 1/4 inch manually operated PFA diaphragm valve that is designed for use in ultra-high purity (UHP) and aggressive gas and liquid handling systems, including those seen in semiconductor manufacturing and clean-area applications. The valve is available in 3-way configurations and utilizes a molded PFA body with precision-machined sealing areas for superior leak integrity and chemical resistance.

The MV-10 Series is equipped with a one-piece modified PTFE diaphragm, which provides excellent flexibility and high cycle life for lower replacement costs and less downtime. It also features a Fluoropolymer-coated stainless steel spring, which reduces the effects of corrosive environments and enables compatibility with a wide range of process media. Depending on customer requirements, MV-10 Series valves can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings. The fittings reduce assembly and installation time, while ensuring a leak-tight seal for performance in applications where cleanliness is critical.

The MV-10 Series PFA valve's exacting design controls seat and diaphragm stresses to provide a reliable and maintenance-free service life. Its tongue and groove seal ensures a positive diaphragm to body seal, resulting in minimal particle entrapment and isolation of process media. The valve features a full 1/4 inch orifice with no restrictions for maximum flow at working pressures up to 80 psig. Flow capacities range from 0.20 – 0.62 depending on port size and configuration.

The MV-10 is 1/4 turn operated and has a removable handle for tamper resistance, which eliminates the requirement for a separate lockout device.



UHP PFA Manual Diaphragm (1/4 inch) 3 Way Valve – MV-10 Series



Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- Excellent leak integrity
- Modified PTFE diaphragm and Fluoropolymer-coated stainless steel spring provide high cycle life and exceptional resistance to corrosion
- Pressure rated in both forwards and backwards direction from vacuum to 80 psig
- Available in 3-way configurations
- Can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings
- 1/4 turn operated with removable handle for tamper resistance
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +266° F (-17°C to +130° C)

Applications:
- Corrosive and specialty gases
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMBs)



Technical Specifications

Wetted Material: PFA, Modified PTFE
Non-Wetted Material: PFA, PVDF, 18-8-SS, Viton Seals, PTFE Coated SS Springs
Pressure Rating: 27" HG Vacuum (913 mbar) to 80 psig (5.5 bar) (Forward) (Backward)
Maximum Ambient Temperature: 66 °C, 150 °F
Minimum Ambient Temperature: 17 °C, 0 °F
Maximum Fluid Temperature: 130 °C, 266 °F
Minimum Fluid Temperature: 17 °C, 0 °F
Flow Rate: Cv: 0.60, 0.24, 0.62, 0.20
Flow Coefficient: Kv: 2.8 to 8.8 L/min
Flow Control: 3 Way



UHP PFA Manual Diaphragm (1/4 inch) 3 Way Valve – MV-10 Series 型号

Part Port Connection Type Mounting Option Nut Material
MV-10-1344-00 1/4" FNPT Screw PVDF
MV-10-1344-01 1/4" FNPT Screw/Stud .80 Square PVDF
MV-10-1344-02 1/4" FNPT Screw/Stud ?1.25 Bolt Circle PVDF
MV-10-1344-10 1/4" FNPT PVDF Screw Covers PVDF
MV-10-2334-00 1/4" Pargrip Screw PFA
MV-10-2334-01 1/4" Pargrip Screw/Stud .80 Square PFA
MV-10-2334-02 1/4" Pargrip Screw/Stud ?1.25 Bolt Circle PFA
MV-10-2334-10 1/4" Pargrip PVDF Screw Covers PFA
MV-10-2346-00 3/8" Pargrip Screw PFA
MV-10-2346-01 3/8" Pargrip Screw/Stud .80 Square PFA
MV-10-2346-02 3/8" Pargrip Screw/Stud ?1.25 Bolt Circle PFA
MV-10-2346-10 3/8" Pargrip PVDF Screw Covers PFA
MV-10-6324-00 1/4" Parflare Screw PVDF
MV-10-6324-00-T 1/4" Parflare Screw PFA
MV-10-6324-01 1/4" Parflare Screw/Stud .80 Square PVDF
MV-10-6324-02 1/4" Parflare Screw/Stud ?1.25 Bolt Circle PVDF
MV-10-6324-10 1/4" Parflare PVDF Screw Covers PVDF
MV-10-6324-10-T 1/4" Parflare PVDF Screw Covers PFA
MV-10-6346-00 3/8" Parflare Screw PVDF
MV-10-6346-00-T 3/8" Parflare Screw PFA
MV-10-6346-01 3/8" Parflare Screw/Stud .80 Square PVDF
MV-10-6346-02 3/8" Parflare Screw/Stud ?1.25 Bolt Circle PVDF
MV-10-6346-10 3/8" Parflare PVDF Screw Covers PVDF
