Parker PFA阀
Parker PFA Valves

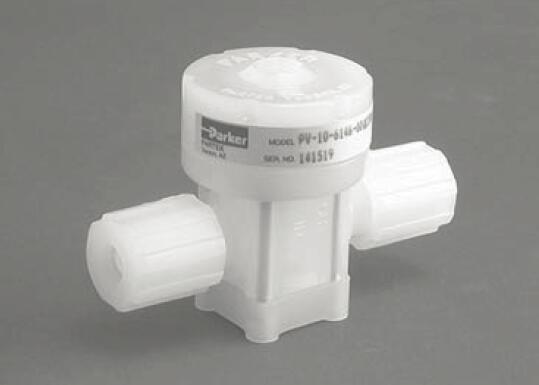

UHP PFA Air-operated Diaphragm (1/4 inch) 3 Way Valve – PV-10 Series

The PV-10 Series PFA Valve offers high leak integrity and excellent resistance to corrosion. It is available in 2-way or 3-way configurations and is designed for ultra-high purity (UHP) and aggressive fluid applications (up to 80 psig).





The PV-10 Series is 1/4 inch air-operated (AOP) PFA diaphragm valve that is designed for use in ultra-high purity (UHP) and aggressive gas and liquid handling systems, including semiconductor manufacturing and clean-area applications. The valves is available in 2-way and 3-way configurations and utilizes a molded PFA body with precision-machined sealing areas for superior leak integrity and chemical resistance.

The PV-10 Series is equipped with a one-piece modified PTFE diaphragm, which provides excellent flexibility and high cycle life for lower replacements costs and less downtime. The valve also features a Fluoropolymer-coated stainless steel spring, which reduces the effects of corrosive environments and enables compatibility with a wide range of process media. Depending on customer requirements, PV-10 Series valves can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings. The fittings reduce assembly and installation time, while ensuring a leak-tight seal for performance in applications where cleanliness is critical.

The PV-10 Series PFA valve's exacting design controls seat and diaphragm stresses to provide a reliable and maintenance-free service life. Its tongue and groove ensures a positive diaphragm to body seal, resulting in minimal particle entrapment and isolation of process media from the actuator. The valve features a full 1/4 inch orifice with no restrictions for maximum flow in a compact package at working pressures up to 80 psig. Flow capacities range from 0.20 – 0.62 depending on port size and configuration.

The actuator in the PV-10 Series works on as little as 20 psi for ease of installation and maintenance.



UHP PFA Air-operated Diaphragm (1/4 inch) 3 Way Valve – PV-10 Series



Markets:
- Semiconductor
- Analytical Laboratory
- Pharmaceutical
- BioPharm
- Aerospace
- Industrial

Features/Benefits:
- Excellent leak integrity
- Modified PTFE diaphragm and Fluoropolymer-coated stainless steel spring provide high cycle life and exceptional resistance to corrosion
- Pressure rated in both forwards and backwards direction from vacuum to 80 psig
- Available in 2-way and 3-way configurations
- Compact actuator design has a 20 - 120 psig AOP actuation pressure
- Can be fitted with a variety of port configurations, including Parflare and Pargrip tube fittings
- Ambient temperature range: 0°F to +150° F (-17°C to +66° C)
- Fluid temperature range: 0°F to +266° F (-17°C to +130° C)

Applications:
- Corrosive and specialty gases
- Semiconductor Tools
- Tool Hook-ups
- Valve Manifold Boxes (VMBs)



Technical Specifications

Wetted Material: PFA, Modified PTFE
Non-Wetted Material: PFA, PVDF, 18-8 SS, Viton Seals, PTFE Coated SS Springs
Actuation Pressure: 20 psig (1.4 bar) to 120 psig (8.3 bar)
Maximum Ambient Temperature: 66 °C, 150 °F
Minimum Ambient Temperature: -17 °C, 0 °F
Maximum Fluid Temperature: 130 °C, 266 °F
Minimum Fluid Temperature: -17 °C, 0 °F
Port 2 Size: 1/4 (FNPT), 1/4 (Pargrip), 3/8 (Pargrip), 1/4 (Parflare), 3/8 (Parflare) inch
Port 3 Size: 1/4 (FNPT), 1/4 (Pargrip), 3/8 (Pargrip), 1/4 (Parflare), 3/8 (Parflare) inch
Flow Rate: Cv: 0.60, 0.24, 0.62, 0.20
Flow Coefficient: Kv: 2.8 to 8.8 L/min
Actuation Type: 3 Way
Pressure Rating: 27" HG vacuum (913 mbar) to 80 psig (5.5 bar) (Back) (Forward)



UHP PFA Air-operated Diaphragm (1/4 inch) 3 Way Valve – PV-10 Series 型号

Part Port Connection 1 (inch) Mounting Option Mounting Nut Material
PV-10-1344-00 1/4" FNPT Screw N/A N/A
PV-10-1344-00-SB 1/4" FNPT Screw PVDF Snap-in Mounting Base N/A
PV-10-1344-01 1/4" FNPT Screw/Stud .80 Square N/A N/A
PV-10-1344-02 1/4" FNPT Screw/Stud ?1.25 Bolt Circle N/A N/A
PV-10-1344-10 1/4" FNPT PVDF Screw Covers N/A N/A
PV-10-2334-00 1/4" Pargrip Screw N/A PFA
PV-10-2334-01 1/4" Pargrip Screw/Stud .80 Square N/A PFA
PV-10-2334-02 1/4" Pargrip Screw/Stud ?1.25 Bolt Circle N/A PFA
PV-10-2334-10 1/4" Pargrip PVDF Screw Covers N/A PFA
PV-10-2346-00 3/8" Pargrip Screw N/A PFA
PV-10-2346-01 3/8" Pargrip Screw/Stud .80 Square N/A PFA
PV-10-2346-02 3/8" Pargrip Screw/Stud ?1.25 Bolt Circle N/A PFA
PV-10-2346-10 3/8" Pargrip PVDF Screw Covers N/A PFA
PV-10-6324-00 1/4" Parflare Screw N/A PVDF
PV-10-6324-00-T 1/4" Parflare Screw N/A PFA
PV-10-6324-01 1/4" Parflare Screw/Stud .80 Square N/A PVDF
PV-10-6324-02 1/4" Parflare Screw/Stud ?1.25 Bolt Circle N/A PVDF
PV-10-6324-10 1/4" Parflare PVDF Screw Covers N/A PVDF
PV-10-6324-10-SB 1/4" Parflare PVDF Screw Covers PVDF Snap-in Mounting Base PVDF
PV-10-6324-10-T 1/4" Parflare PVDF Screw Covers N/A PFA
PV-10-6346-00 3/8" Parflare Screw N/A PVDF
PV-10-6346-00-SB 3/8" Parflare Screw PVDF Snap-in Mounting Base PVDF
PV-10-6346-00-T 3/8" Parflare Screw N/A PFA
PV-10-6346-01 3/8" Parflare Screw/Stud .80 Square N/A PVDF
PV-10-6346-02 3/8" Parflare Screw/Stud ?1.25 Bolt Circle N/A PVDF
PV-10-6346-10 3/8" Parflare PVDF Screw Covers N/A PVDF
PV-10-6346-10-SB 3/8" Parflare PVDF Screw Covers PVDF Snap-in Mounting Base PVDF
