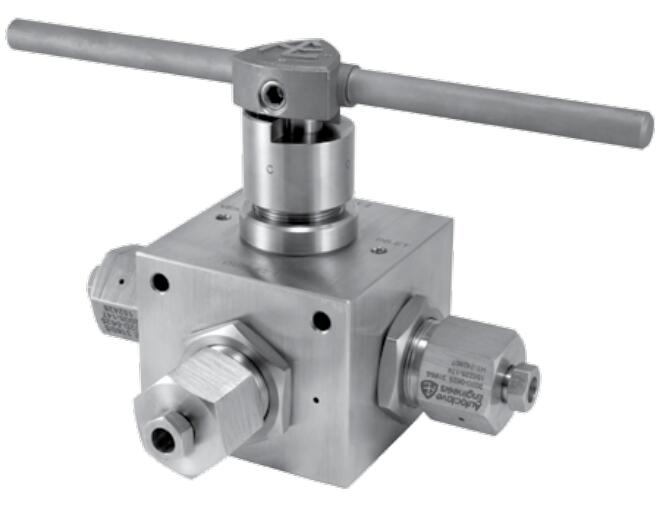

Ball Valves,4 Way 4B Series - 10,000 PSI
Parker Autoclave's 4B Series 4 Way Ball Valve is designed to work in pressures up to 10,000 psi ( 690 bar). A key performance feature is the one-piece trunnion mounted stem that eliminates shear failure found in two piece designs.
Parker Autoclave's 4B Series ball valves have been designed to provide superior quality for maximum performance within a variety of valve styles, sizes, and process connections. Some of the more unique design innovations include an integral one-piece trunnion mounted style ball and stem that eliminates
the shear failure common in two piece designs, re-torqueable seat glands that result in longer seat life, and a low friction stem seal that reduces actuation torque and enhances cycle life. These ball valves can also be modified to incorporate the use of special materials, seals for high temperature applications, subsea models, and valve actuators. When it comes to high-pressure applications, these ball valves
with associated high-pressure components, provide the critical performance demanded by the high pressure market.
Ball Valves,4 Way 4B Series - 10,000 PSI
Markets:
- Oil and Gas
- Petrochemical
- Research
- Chemical
- Power
Features/Benefits:
- One-piece, trunnion mounted style, stem design eliminates shear failure found in two piece designs and reduces the effects of side loading.
- Re-torqueable seat glands for longer seat life.
- Carbon filled PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion.
- Full-port flow path minimizes pressure drop.
- 316 cold worked stainless steel construction.
- Low friction pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torque.
- Quarter turn crossover, and the half turn four way switching models available.
- Viton o-rings for operation from 0°F (-17.8°C) to 400°F (204°C).
- Optional o-rings available for high-temperature applications.
- Optional wetted materials.
- Wide selection of tube and pipe ended fittings are available.
- Electric and pneumatic actuator options.
Applications:
- Test Panels
- High Pressure Skid Panels
- Chemical Injection
- Specialty High Pressure Gas Systems
- Research Systems
Technical Specifications
| Maximum Operating Pressure: |
10,000 psi, 690 barg |
| Maximum Operating Temperature: |
204 °C, 400 °F |
| Minimum Operating Temperature: |
-18 °C, 0 °F |
