Parker Needle Valves

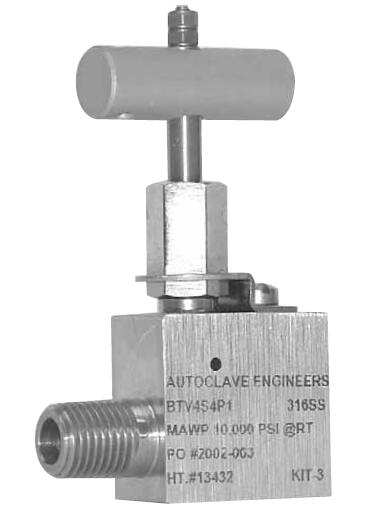

Bottle Valve, BTV Series - 15,000 PSI

Parker Autoclave's BTV Series bottle valve is designed with male NPT threaded inlet connections from 1/8" to 1/2" NPT. These compact, bar stock valves are to be used with sample bottles and cylinders for remote sampling.

Parker Autoclave's BTV Series bottle valves are compact, sampling valves designed for pressures up to 15,000 PSI (1034 BAR). Five different body patterns are provided to meet any sampling application. To provide extended cycle life in harsh conditions, these valves have a non-rotating stem to prevent seat galling.

These bottle valves use the proven Speed Bite connection. This single-ferrule compression sleeve connection delivers fast, easy make-up and reliable bubble-tight performance in liquid or gas service.

Bottle Valve, BTV Series - 15,000 PSI

Markets:
- Oil and Gas
- Petrochemical
- Research


Features/Benefits:
- BTV Series valve design provides male inlet connections from 1/8" to 1/2" NPT.
- Outlet connections in NPT or Low Pressure tube to 1/4".
- Rising stem/bar stock body design.
- Non-rotating stem prevents stem/seat galling.
- Metal-to-metal seating achieves bubble-tight shut- off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Available with Vee stem tips.
- Available in five body patterns.


Applications:
- Sample Cylinders
- Testing Systems
- Remote Sampling

Technical Specifications

Bottle Valve, BTV Series - 15,000 PSI 型号
