Parker Needle Valves
Needle Valve (6,000 PSI) - HYNV Series

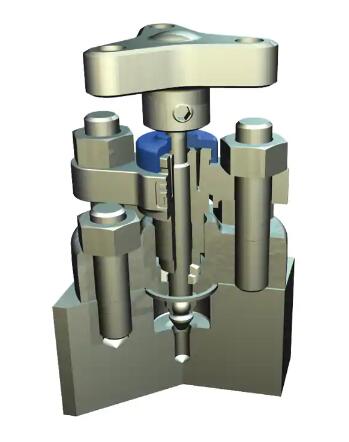

Outside screw and yoke globe pattern needle valves designed for primary isolating applications operating up to 6000 psi (414 bar) with optional 10000 psi (689 bar) rating for small bore instrumentation applications in the oil and gas processing industry
Parker's HYNV series outside screw and yoke needle valves are designed for primary isolating applications operating up to 6000 psi (414 bar) with optional 10000 psi (689 bar) rating. The Parker needle valve is supplied complete with standard graphite gland packing and the self centering non rotational tip gives bubble tight sealing. For gaseous application soft tipped optional seating is available. A wide variety of connector ends are offered for all types of installations including multi-ported root/primary isolate service. NACE compliance and oxygen clean are also available along with an extensive list of materials.
Needle Valve (6,000 PSI) - HYNV Series
Markets:
- Oil and Gas Offshore
- Oil and Gas Onshore
- Petrochemical
- Chemical
- Power Generation
Features/Benefits:
- NACE compliant
- 100% repeatable bubble-tight shut-off
- Heat code traceable
- Firesafe to BS 6755 Part 2 and API 607 standard with graphite packing.
Applications:
- Process to instrument interface
- Pressure & Flow measurement
- Lubrication skids
- Water Treatment
- Chemical injection skids
- Hydraulic systems for wellhead control
- Emergency shut down
- Pumping packages
- Gas booster systems
- Test equipment
Technical Specifications
Inlet Connection Size: |
1/4 NPT, 3/8 NPT, 1/2 NPT, 1/2 NPT , 1/2 pipe, 1/4, 1/2, 6 mm, 12 mm |
Inlet Port Size: |
Female, Male, Socket Weld, Butt Weld, A-LOK, CPI |
Outlet Connection Size: |
1/4 NPT , 3/8 NPT, 1/2 NPT, 3 X 1/2 NPT, 1/2 pipe, 1/4, 1/2, 6 mm, 12 mm |
Outlet Port Type: |
Female, Socket Weld, Butt Weld, A-LOK, CPI |
Materials of Construction: |
Stainless Steel, Monel, Duplex, Super Duplex, Hasteloy, Carbon Steel, 6Mo, Titanium, Incoloy 825, Incoloy 625 |
Additional Options: |
For other options contact factory |
Maximum Operating Pressure: |
414 (345 for Monel) bar, 6,000 (5,000 for Monel) psi |
Flow Coefficient 1: |
0.35 standard Cv |
Minimum Operating Temperature: |
-65 °F, -54 °C |
Maximum Operating Temperature: |
1000 °F, 538 °C |
Seat Material: |
Metal/metal seated |
Packing Material: |
Graphite |
Mounting Option: |
Base mount |
Product Series: |
HYNV |
Needle Valve (6,000 PSI) - HYNV Series 型号
Part |
Inlet Connection |
Inlet Port Connection Type |
Outlet Connection |
Outlet Port Connection Type |
Material |
HYNV6254A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Incoloy 625 |
HYNV6254FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Incoloy 625 |
HYNV6254M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Incoloy 625 |
HYNV6254Z |
1/4 |
CPI |
1/4 |
CPI |
Incoloy 625 |
HYNV6256FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Incoloy 625 |
HYNV6258 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Incoloy 625 |
HYNV6258A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Incoloy 625 |
HYNV6258FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Incoloy 625 |
HYNV6258M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Incoloy 625 |
HYNV6258Z |
1/2 |
CPI |
1/2 |
CPI |
Incoloy 625 |
HYNV625BW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Incoloy 625 |
HYNV625M12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Incoloy 625 |
HYNV625M12Z |
12 mm |
CPI |
12 mm |
CPI |
Incoloy 625 |
HYNV625M6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Incoloy 625 |
HYNV625M6Z |
6 mm |
CPI |
6 mm |
CPI |
Incoloy 625 |
HYNV625SW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Incoloy 625 |
HYNV6MO4A |
1/4 |
A-LOK |
1/4 |
A-LOK |
6Mo |
HYNV6MO4FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
6Mo |
HYNV6MO4M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
6Mo |
HYNV6MO4Z |
1/4 |
CPI |
1/4 |
CPI |
6Mo |
HYNV6MO6FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
6Mo |
HYNV6MO8 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
6Mo |
HYNV6MO8A |
1/2 |
A-LOK |
1/2 |
A-LOK |
6Mo |
HYNV6MO8FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
6Mo |
HYNV6MO8M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
6Mo |
HYNV6MO8Z |
1/2 |
CPI |
1/2 |
CPI |
6Mo |
HYNV6MOBW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
6Mo |
HYNV6MOM12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
6Mo |
HYNV6MOM12Z |
12 mm |
CPI |
12 mm |
CPI |
6Mo |
HYNV6MOM6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
6Mo |
HYNV6MOM6Z |
6 mm |
CPI |
6 mm |
CPI |
6Mo |
HYNV6MOSW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
6Mo |
HYNV8254A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Incoloy 825 |
HYNV8254FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Incoloy 825 |
HYNV8254M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Incoloy 825 |
HYNV8254Z |
1/4 |
CPI |
1/4 |
CPI |
Incoloy 825 |
HYNV8256FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Incoloy 825 |
HYNV8258 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Incoloy 825 |
HYNV8258A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Incoloy 825 |
HYNV8258FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Incoloy 825 |
HYNV8258M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Incoloy 825 |
HYNV8258Z |
1/2 |
CPI |
1/2 |
CPI |
Incoloy 825 |
HYNV825BW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Incoloy 825 |
HYNV825M12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Incoloy 825 |
HYNV825M12Z |
12 mm |
CPI |
12 mm |
CPI |
Incoloy 825 |
HYNV825M6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Incoloy 825 |
HYNV825M6Z |
6 mm |
CPI |
6 mm |
CPI |
Incoloy 825 |
HYNV825SW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Incoloy 825 |
HYNVC4A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Carbon Steel |
HYNVC4FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Carbon Steel |
HYNVC4M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Carbon Steel |
HYNVC4Z |
1/4 |
CPI |
1/4 |
CPI |
Carbon Steel |
HYNVC6FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Carbon Steel |
HYNVC8 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Carbon Steel |
HYNVC8A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Carbon Steel |
HYNVC8FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Carbon Steel |
HYNVC8M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Carbon Steel |
HYNVC8Z |
1/2 |
CPI |
1/2 |
CPI |
Carbon Steel |
HYNVCBW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Carbon Steel |
HYNVCM12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Carbon Steel |
HYNVCM12Z |
12 mm |
CPI |
12 mm |
CPI |
Carbon Steel |
HYNVCM6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Carbon Steel |
HYNVCM6Z |
6 mm |
CPI |
6 mm |
CPI |
Carbon Steel |
HYNVCSW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Carbon Steel |
HYNVD14A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Duplex |
HYNVD14FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Duplex |
HYNVD14M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Duplex |
HYNVD14Z |
1/4 |
CPI |
1/4 |
CPI |
Duplex |
HYNVD16FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Duplex |
HYNVD18 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Duplex |
HYNVD18A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Duplex |
HYNVD18FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Duplex |
HYNVD18M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Duplex |
HYNVD18Z |
1/2 |
CPI |
1/2 |
CPI |
Duplex |
HYNVD1BW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Duplex |
HYNVD1M12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Duplex |
HYNVD1M12Z |
12 mm |
CPI |
12 mm |
CPI |
Duplex |
HYNVD1M6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Duplex |
HYNVD1M6Z |
6 mm |
CPI |
6 mm |
CPI |
Duplex |
HYNVD1SW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Duplex |
HYNVD24A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Super Duplex |
HYNVD24FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Super Duplex |
HYNVD24M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Super Duplex |
HYNVD24Z |
1/4 |
CPI |
1/4 |
CPI |
Super Duplex |
HYNVD26FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Super Duplex |
HYNVD28 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Super Duplex |
HYNVD28A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Super Duplex |
HYNVD28FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Super Duplex |
HYNVD28M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Super Duplex |
HYNVD28Z |
1/2 |
CPI |
1/2 |
CPI |
Super Duplex |
HYNVD2BW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Super Duplex |
HYNVD2M12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Super Duplex |
HYNVD2M12Z |
12 mm |
CPI |
12 mm |
CPI |
Super Duplex |
HYNVD2M6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Super Duplex |
HYNVD2M6Z |
6 mm |
CPI |
6 mm |
CPI |
Super Duplex |
HYNVD2SW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Super Duplex |
HYNVHC4A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Hasteloy |
HYNVHC4FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Hasteloy |
HYNVHC4M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Hasteloy |
HYNVHC4Z |
1/4 |
CPI |
1/4 |
CPI |
Hasteloy |
HYNVHC6FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Hasteloy |
HYNVHC8 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Hasteloy |
HYNVHC8A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Hasteloy |
HYNVHC8FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Hasteloy |
HYNVHC8M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Hasteloy |
HYNVHC8Z |
1/2 |
CPI |
1/2 |
CPI |
Hasteloy |
HYNVHCBW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Hasteloy |
HYNVHCM12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Hasteloy |
HYNVHCM12Z |
12 mm |
CPI |
12 mm |
CPI |
Hasteloy |
HYNVHCM6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Hasteloy |
HYNVHCM6Z |
6 mm |
CPI |
6 mm |
CPI |
Hasteloy |
HYNVHCSW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Hasteloy |
HYNVM4A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Monel |
HYNVM4FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Monel |
HYNVM4M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Monel |
HYNVM4Z |
1/4 |
CPI |
1/4 |
CPI |
Monel |
HYNVM6FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Monel |
HYNVM8 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Monel |
HYNVM8A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Monel |
HYNVM8FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Monel |
HYNVM8M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Monel |
HYNVM8Z |
1/2 |
CPI |
1/2 |
CPI |
Monel |
HYNVMBW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Monel |
HYNVMM12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Monel |
HYNVMM12Z |
12 mm |
CPI |
12 mm |
CPI |
Monel |
HYNVMM6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Monel |
HYNVMM6Z |
6 mm |
CPI |
6 mm |
CPI |
Monel |
HYNVMSW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Monel |
HYNVS4A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Stainless Steel |
HYNVS4FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Stainless Steel |
HYNVS4M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Stainless Steel |
HYNVS4Z |
1/4 |
CPI |
1/4 |
CPI |
Stainless Steel |
HYNVS6FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Stainless Steel |
HYNVS8 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Stainless Steel |
HYNVS8A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Stainless Steel |
HYNVS8FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Stainless Steel |
HYNVS8M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Stainless Steel |
HYNVS8Z |
1/2 |
CPI |
1/2 |
CPI |
Stainless Steel |
HYNVSBW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Stainless Steel |
HYNVSM12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Stainless Steel |
HYNVSM12Z |
12 mm |
CPI |
12 mm |
CPI |
Stainless Steel |
HYNVSM6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Stainless Steel |
HYNVSM6Z |
6 mm |
CPI |
6 mm |
CPI |
Stainless Steel |
HYNVSSW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Stainless Steel |
HYNVT4A |
1/4 |
A-LOK |
1/4 |
A-LOK |
Titanium |
HYNVT4FF |
1/4 NPT |
Female |
1/4 NPT |
Female |
Titanium |
HYNVT4M4F |
1/4 NPT |
Male |
1/4 NPT |
Female |
Titanium |
HYNVT4Z |
1/4 |
CPI |
1/4 |
CPI |
Titanium |
HYNVT6FF |
3/8 NPT |
Female |
3/8 NPT |
Female |
Titanium |
HYNVT8 |
1/2 NPT |
Male |
3 X 1/2 NPT |
Female |
Titanium |
HYNVT8A |
1/2 |
A-LOK |
1/2 |
A-LOK |
Titanium |
HYNVT8FF |
1/2 NPT |
Female |
1/2 NPT |
Female |
Titanium |
HYNVT8M8F |
1/2 NPT |
Male |
1/2 NPT |
Female |
Titanium |
HYNVT8Z |
1/2 |
CPI |
1/2 |
CPI |
Titanium |
HYNVTBW8NB |
1/2 pipe |
Butt Weld |
1/2 pipe |
Butt Weld |
Titanium |
HYNVTM12A |
12 mm |
A-LOK |
12 mm |
A-LOK |
Titanium |
HYNVTM12Z |
12 mm |
CPI |
12 mm |
CPI |
Titanium |
HYNVTM6A |
6 mm |
A-LOK |
6 mm |
A-LOK |
Titanium |
HYNVTM6Z |
6 mm |
CPI |
6 mm |
CPI |
Titanium |
HYNVTSW8NB |
1/2 pipe |
Socket Weld |
1/2 pipe |
Socket Weld |
Titanium |
|
