Parker Ball Valves

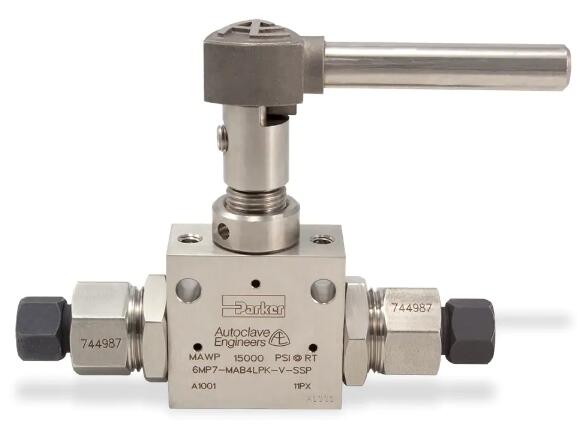

Ball Valve, 15,000 PSI - MAB Series
Parker's MAB Series MPI Ball Valves are available as manual, pneumatic and electrical actuated two-way and three-way valves. They are designed for 1/4 and 1/2 turn media shutoff or switching applications up to 15,000 psi.
Parker's MAB Series MPI Ball Valves provide reliable shut-off or switching functions in a heavy duty, bar stock design. The proven trunnion style ball design and spring loaded seats make the MAB series ideal for severe service applications. The rugged design employs spring-loaded seats for high cycle life and low operating torques at pressures up to 15,000 PSI.
Ball Valve, 15,000 PSI - MAB Series
Markets:
- Chemical
- Oil and Gas
- Refineries
- Power
Features/Benefits:
- Two-way and three-way designs
- Blow-out resistant ball/stem
- Low operating torque
- Manual, electric or pneumatic actuation
- Stainless Steel Handle
- Positive handle stops
- 100% factory tested
- MPI End Connections
- Heat code traceability
Applications:
- Process Control Lines
- Flow Diversion
- High Pressure Mixing Systems
Technical Specifications
| Maximum Operating Pressure: |
12,500 to 15,000 psi |
| Connection 1 Size: |
1/8" to 1", NPT F, MPI Compression Fitting |
| Connection 2 Size: |
1/8" to 1", NPT F, MPI Compression Fitting |
| Connection 3 Thread Size: |
1/8 to 9/16 inch |
| Connection 3 Size: |
N/A, NPT F, MPI Compression Fitting |
| Orifice Size: |
0.250, 0.125, 0.375, 0.312, 0.500, 0.750, 0.531, 0.688, 0.188, 0.328 inch |
| Valve Configuration: |
Two Way, Three Way |
| Seat Material: |
PEEK |
| Valve Type: |
N/A, Diverter, Selector |
| Seal Material: |
Fluorocarbon Rubber, Highly Fluorinated Fluorocarbon Rubber, Nitrile Rubber, Ethylene Propylene Rubber |
| Body Material: |
316 Stainless Steel |
| Options: |
N/A |
Ball Valve, 15,000 PSI - MAB Series 型号
| Part |
Maximum Working Pressure (psi) |
Connection 1 Size |
Connection 2 Size |
Connection 3 Thread Size (inch) |
Connection 1 Style |
Connection 2 Style |
Connection 3 Style |
Orifice Size |
Valve Configuration Type |
Seat Material |
Valve Type |
Seal Material |
Body Material |
Options |
| 12F-MAB12LPK-BN-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
N/A |
0.75 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB12LPK-KZ-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
N/A |
0.75 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB12LPK-V-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
N/A |
0.75 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB8LPK-BN-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
N/A |
0.5 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB8LPK-KZ-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
N/A |
0.5 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB8LPK-V-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
N/A |
0.5 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB8XPK-BN-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB8XPK-EPR-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB8XPK-KZ-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB8XPK-V-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB8XPKD-BN-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Diverter |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB8XPKD-EPR-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Diverter |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB8XPKD-KZ-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Diverter |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12F-MAB8XPKD-V-SSP |
10,000 |
3/4" |
3/4" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB12LPK-BN-SSP |
15,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.531 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB12LPK-KZ-SSP |
15,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.531 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB12LPK-V-SSP |
15,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.531 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB8LPK-BN-SSP |
15,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.5 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB8LPK-KZ-SSP |
15,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.5 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB8LPK-V-SSP |
15,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.5 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB8XPK-BN-SSP |
10,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB8XPK-EPR-SSP |
10,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB8XPK-KZ-SSP |
10,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB8XPK-V-SSP |
10,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB8XPKD-BN-SSP |
10,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Diverter |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB8XPKD-EPR-SSP |
10,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Diverter |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB8XPKD-KZ-SSP |
10,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Diverter |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 12MP7-MAB8XPKD-V-SSP |
10,000 |
3/4" |
3/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB12LPK-BN-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
N/A |
0.75 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB12LPK-KZ-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
N/A |
0.75 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB12LPK-V-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
N/A |
0.75 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB8LPK-BN-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
N/A |
0.5 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB8LPK-KZ-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
N/A |
0.5 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB8LPK-V-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
N/A |
0.5 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB8XPK-BN-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB8XPK-EPR-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB8XPK-KZ-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB8XPK-V-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB8XPKD-BN-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Diverter |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB8XPKD-EPR-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Diverter |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB8XPKD-KZ-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Diverter |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16F-MAB8XPKD-V-SSP |
10,000 |
1" |
1" |
N/A |
NPT F |
NPT F |
NPT F |
0.5 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB12LPK-BN-SSP |
12,500 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.688 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB12LPK-KZ-SSP |
12,500 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.688 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB12LPK-V-SSP |
12,500 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.688 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB8LPK-BN-SSP |
12,500 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.5 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB8LPK-KZ-SSP |
12,500 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.5 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB8LPK-V-SSP |
12,500 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.5 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB8XPK-BN-SSP |
10,000 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB8XPK-EPR-SSP |
10,000 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB8XPK-KZ-SSP |
10,000 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB8XPK-V-SSP |
10,000 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB8XPKD-BN-SSP |
10,000 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Diverter |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB8XPKD-EPR-SSP |
10,000 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Diverter |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB8XPKD-KZ-SSP |
10,000 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Diverter |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 16MP7-MAB8XPKD-V-SSP |
10,000 |
1" |
1" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.5 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 2F-MAB3XPK-BN-SSP |
15,000 |
1/8" |
1/8" |
1/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 2F-MAB3XPK-EPR-SSP |
15,000 |
1/8" |
1/8" |
1/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 2F-MAB3XPK-KZ-SSP |
15,000 |
1/8" |
1/8" |
1/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 2F-MAB3XPK-V-SSP |
15,000 |
1/8" |
1/8" |
1/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 2F-MAB3XPKD-V-SSP |
15,000 |
1/8" |
1/8" |
1/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 2F-MAB4LPK-BN-SSP |
15,000 |
1/8" |
1/8" |
N/A |
NPT F |
NPT F |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 2F-MAB4LPK-KZ-SSP |
15,000 |
1/8" |
1/8" |
N/A |
NPT F |
NPT F |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 2F-MAB4LPK-V-SSP |
15,000 |
1/8" |
1/8" |
N/A |
NPT F |
NPT F |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 4F-MAB3XPK-BN-SSP |
15,000 |
1/4" |
1/4" |
1/4" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 4F-MAB3XPK-EPR-SSP |
15,000 |
1/4" |
1/4" |
1/4" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 4F-MAB3XPK-KZ-SSP |
15,000 |
1/4" |
1/4" |
1/4" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 4F-MAB3XPK-V-SSP |
15,000 |
1/4" |
1/4" |
1/4" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 4F-MAB3XPKD-V-SSP |
15,000 |
1/4" |
1/4" |
1/4" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 4F-MAB4LPK-BN-SSP |
15,000 |
1/4" |
1/4" |
N/A |
NPT F |
NPT F |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 4F-MAB4LPK-KZ-SSP |
15,000 |
1/4" |
1/4" |
N/A |
NPT F |
NPT F |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 4F-MAB4LPK-V-SSP |
15,000 |
1/4" |
1/4" |
N/A |
NPT F |
NPT F |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 4MP7-MAB3XPK-BN-SSP |
15,000 |
1/4" |
1/4" |
1/4" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.125 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 4MP7-MAB3XPK-EPR-SSP |
15,000 |
1/4" |
1/4" |
1/4" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.125 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 4MP7-MAB3XPK-KZ-SSP |
15,000 |
1/4" |
1/4" |
1/4" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.125 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 4MP7-MAB3XPK-V-SSP |
15,000 |
1/4" |
1/4" |
1/4" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.125 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 4MP7-MAB3XPKD-V-SSP |
15,000 |
1/4" |
1/4" |
1/4" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.125 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 4MP7-MAB4LPK-BN-SSP |
15,000 |
1/4" |
1/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.125 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 4MP7-MAB4LPK-KZ-SSP |
15,000 |
1/4" |
1/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.125 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 4MP7-MAB4LPK-V-SSP |
15,000 |
1/4" |
1/4" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.125 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6F-MAB3XPK-BN-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 6F-MAB3XPK-EPR-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 6F-MAB3XPK-KZ-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6F-MAB3XPK-V-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6F-MAB3XPKD-BN-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Diverter |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 6F-MAB3XPKD-EPR-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Diverter |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 6F-MAB3XPKD-KZ-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Diverter |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6F-MAB3XPKD-V-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
NPT F |
NPT F |
NPT F |
0.188 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6F-MAB4LPK-BN-SSP |
15,000 |
3/8" |
3/8" |
N/A |
NPT F |
NPT F |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 6F-MAB4LPK-KZ-SSP |
15,000 |
3/8" |
3/8" |
N/A |
NPT F |
NPT F |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6F-MAB4LPK-V-SSP |
15,000 |
3/8" |
3/8" |
N/A |
NPT F |
NPT F |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB3XPK-BN-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB3XPK-EPR-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB3XPK-KZ-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB3XPK-V-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB3XPKD-BN-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Diverter |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB3XPKD-EPR-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Diverter |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB3XPKD-KZ-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Diverter |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB3XPKD-V-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB4LPK-BN-SSP |
15,000 |
3/8" |
3/8" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB4LPK-KZ-SSP |
15,000 |
3/8" |
3/8" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB4LPK-V-SSP |
15,000 |
3/8" |
3/8" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB6XPK-BN-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.25 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB6XPK-EPR-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.25 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB6XPK-KZ-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.25 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB6XPK-V-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.25 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB6XPKD-BN-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.25 |
Three Way |
PEEK |
Diverter |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB6XPKD-EPR-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.25 |
Three Way |
PEEK |
Diverter |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB6XPKD-KZ-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.25 |
Three Way |
PEEK |
Diverter |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 6MP7-MAB6XPKD-V-SSP |
15,000 |
3/8" |
3/8" |
3/8" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.25 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8F-MAB6LPK-BN-SSP |
15,000 |
1/2" |
1/2" |
N/A |
NPT F |
NPT F |
N/A |
0.375 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 8F-MAB6LPK-KZ-SSP |
15,000 |
1/2" |
1/2" |
N/A |
NPT F |
NPT F |
N/A |
0.375 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8F-MAB6LPK-V-SSP |
15,000 |
1/2" |
1/2" |
N/A |
NPT F |
NPT F |
N/A |
0.375 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8F-MAB6XPK-BN-SSP |
15,000 |
1/2" |
1/2" |
N/A |
NPT F |
NPT F |
NPT F |
0.328 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 8F-MAB6XPK-EPR-SSP |
15,000 |
1/2" |
1/2" |
N/A |
NPT F |
NPT F |
NPT F |
0.328 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 8F-MAB6XPK-KZ-SSP |
15,000 |
1/2" |
1/2" |
N/A |
NPT F |
NPT F |
NPT F |
0.328 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8F-MAB6XPK-V-SSP |
15,000 |
1/2" |
1/2" |
N/A |
NPT F |
NPT F |
NPT F |
0.328 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8F-MAB6XPKD-BN-SSP |
15,000 |
1/2" |
1/2" |
N/A |
NPT F |
NPT F |
NPT F |
0.328 |
Three Way |
PEEK |
Diverter |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 8F-MAB6XPKD-EPR-SSP |
15,000 |
1/2" |
1/2" |
N/A |
NPT F |
NPT F |
NPT F |
0.328 |
Three Way |
PEEK |
Diverter |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 8F-MAB6XPKD-KZ-SSP |
15,000 |
1/2" |
1/2" |
N/A |
NPT F |
NPT F |
NPT F |
0.328 |
Three Way |
PEEK |
Diverter |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8F-MAB6XPKD-V-SSP |
15,000 |
1/2" |
1/2" |
N/A |
NPT F |
NPT F |
NPT F |
0.328 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB3XPK-BN-SSP |
15,000 |
1/2" |
1/2" |
1/2" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB3XPK-EPR-SSP |
15,000 |
1/2" |
1/2" |
1/2" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB3XPK-KZ-SSP |
15,000 |
1/2" |
1/2" |
1/2" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB3XPK-V-SSP |
15,000 |
1/2" |
1/2" |
1/2" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB3XPKD-BN-SSP |
15,000 |
1/2" |
1/2" |
1/2" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Diverter |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB3XPKD-EPR-SSP |
15,000 |
1/2" |
1/2" |
1/2" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Diverter |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB3XPKD-KZ-SSP |
15,000 |
1/2" |
1/2" |
1/2" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Diverter |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB3XPKD-V-SSP |
15,000 |
1/2" |
1/2" |
1/2" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB4LPK-BN-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB4LPK-KZ-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB4LPK-V-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB6LPK-BN-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.312 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB6LPK-KZ-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.312 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB6LPK-V-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.312 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB6XPK-BN-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.312 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB6XPK-EPR-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.312 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB6XPK-KZ-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.312 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB6XPK-V-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.312 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB6XPKD-BN-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.312 |
Three Way |
PEEK |
Diverter |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB6XPKD-EPR-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.312 |
Three Way |
PEEK |
Diverter |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB6XPKD-KZ-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.312 |
Three Way |
PEEK |
Diverter |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 8MP7-MAB6XPKD-V-SSP |
15,000 |
1/2" |
1/2" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.312 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB3XPK-BN-SSP |
15,000 |
9/16" |
9/16" |
9/16" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB3XPK-EPR-SSP |
15,000 |
9/16" |
9/16" |
9/16" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB3XPK-KZ-SSP |
15,000 |
9/16" |
9/16" |
9/16" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB3XPK-V-SSP |
15,000 |
9/16" |
9/16" |
9/16" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB3XPKD-BN-SSP |
15,000 |
9/16" |
9/16" |
9/16" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Diverter |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB3XPKD-EPR-SSP |
15,000 |
9/16" |
9/16" |
9/16" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Diverter |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB3XPKD-KZ-SSP |
15,000 |
9/16" |
9/16" |
9/16" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Diverter |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB3XPKD-V-SSP |
15,000 |
9/16" |
9/16" |
9/16" |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.188 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB4LPK-BN-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB4LPK-KZ-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB4LPK-V-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.25 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB6LPK-BN-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.375 |
Two Way |
PEEK |
N/A |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB6LPK-KZ-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.375 |
Two Way |
PEEK |
N/A |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB6LPK-V-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
N/A |
0.375 |
Two Way |
PEEK |
N/A |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB6XPK-BN-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.328 |
Three Way |
PEEK |
Selector |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB6XPK-EPR-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.328 |
Three Way |
PEEK |
Selector |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB6XPK-KZ-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.328 |
Three Way |
PEEK |
Selector |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB6XPK-V-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.328 |
Three Way |
PEEK |
Selector |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB6XPKD-BN-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.328 |
Three Way |
PEEK |
Diverter |
Nitrile Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB6XPKD-EPR-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.328 |
Three Way |
PEEK |
Diverter |
Ethylene Propylene Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB6XPKD-KZ-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.328 |
Three Way |
PEEK |
Diverter |
Highly Fluorinated Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
| 9MP7-MAB6XPKD-V-SSP |
15,000 |
9/16" |
9/16" |
N/A |
MPI Compression Fitting |
MPI Compression Fitting |
MPI Compression Fitting |
0.328 |
Three Way |
PEEK |
Diverter |
Fluorocarbon Rubber |
316 Stainless Steel |
N/A |
|
