Parker Needle Valves

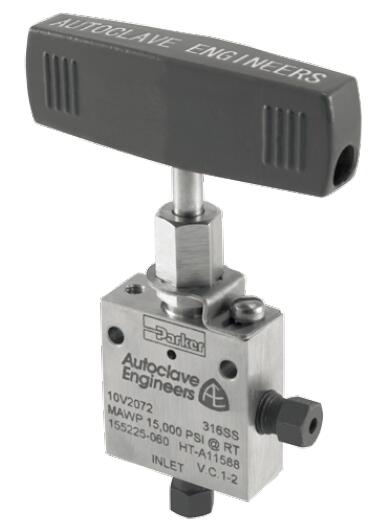

Needle Valves, 10V Series - 15,000 PSI
Parker Autoclave's 10 V Series needle valves are a non-rotating rising stem design, with working pressures to 15,000 psi (1034 bar). These valves are available in 316 Stainless Steel and utilize the proven Speed Bite single ferrule connection.
Parker Autoclave's 10V Series needle valves are a non-rotating rising stem design, working pressures to 15,000 psi (1034 bar). Tubing sizes range from 1/8"" to 1/2"". Tubing connections utilizes Parker Autoclave Engineers Speed Bite single ferrule design. Operating temperatures from 0°F to 650°F (-17.8°C to 343°C). 316 stainless steel construction, other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.
Needle Valves, 10V Series - 15,000 PSI
Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Power
Features/Benefits:
- 10V Series valve design provides in-line tube connections for 1/4” to 1/2” tube sizes.
- Tubing sizes from 1/8” to 1/2”.
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling.
- Metal-to-metal seating achieves bubble-tight shutoff, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Available in five body patterns.
Applications:
- Test Panels
- Medium Pressure Skid Panels
- Chemical Injection
- Medium Pressure Fluid Handling Systems
- Research Systems
Technical Specifications
| Maximum Operating Pressure: |
1,034, 690 bar |
| Tube Outside Diameter: |
1/8, 1/4, 3/8, 1/2 inch |
| Connection Type: |
W125, SW250, SW375 , SW500 |
| Bore Diameter: |
0.094, 0.125, 0.250 inch, 2.39 , 3.18 , 6.35 mm |
Needle Valves, 10V Series - 15,000 PSI 型号
| Part |
Maximum Working Pressure (psi) |
Tube O.D. (mm) |
Stem Type |
Valve Type |
| 10V2071 |
15,000 |
3.18 mm |
VEE |
2-Way Straight |
| 10V2072 |
15,000 |
3.18 mm |
VEE |
2-Way Angle |
| 10V2073 |
15,000 |
3.18 mm |
VEE |
3-Way / 2 on Pressure |
| 10V2074 |
15,000 |
3.18 mm |
VEE |
3-Way / 1 on Pressure |
| 10V2075 |
15,000 |
3.18 mm |
VEE |
3-Way / 2-Stem Manifold |
| 10V2081 |
15,000 |
3.18 mm |
REG |
2-Way Straight |
| 10V2082 |
15,000 |
3.18 mm |
REG |
2-Way Angle |
| 10V2083 |
15,000 |
3.18 mm |
REG |
3-Way / 2 on Pressure |
| 10V2084 |
15,000 |
3.18 mm |
REG |
3-Way / 1 on Pressure |
| 10V2085 |
15,000 |
3.18 mm |
REG |
3-Way / 2-Stem Manifold |
| 10V2872 |
15,000 |
3.18 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 10V2882 |
15,000 |
3.18 mm |
REG |
2-Way Angle / Replaceable Seat |
| 10V4071 |
15,000 |
6.35 mm |
VEE |
2-Way Straight |
| 10V4072 |
15,000 |
6.35 mm |
VEE |
2-Way Angle |
| 10V4073 |
15,000 |
6.35 mm |
VEE |
3-Way / 2 on Pressure |
| 10V4074 |
15,000 |
6.35 mm |
VEE |
3-Way / 1 on Pressure |
| 10V4075 |
15,000 |
6.35 mm |
VEE |
3-Way / 2-Stem Manifold |
| 10V4081 |
15,000 |
6.35 mm |
REG |
2-Way Straight |
| 10V4082 |
15,000 |
6.35 mm |
REG |
2-Way Angle |
| 10V4083 |
15,000 |
6.35 mm |
REG |
3-Way / 2 on Pressure |
| 10V4084 |
15,000 |
6.35 mm |
REG |
3-Way / 1 on Pressure |
| 10V4085 |
15,000 |
6.35 mm |
REG |
3-Way / 2-Stem Manifold |
| 10V4872 |
15,000 |
6.35 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 10V4882 |
15,000 |
6.35 mm |
REG |
2-Way Angle / Replaceable Seat |
| 10V6071 |
15,000 |
9.53 mm |
VEE |
2-Way Straight |
| 10V6072 |
15,000 |
9.53 mm |
VEE |
2-Way Angle |
| 10V6073 |
15,000 |
9.53 mm |
VEE |
3-Way / 2 on Pressure |
| 10V6074 |
15,000 |
9.53 mm |
VEE |
3-Way / 1 on Pressure |
| 10V6075 |
15,000 |
9.53 mm |
VEE |
3-Way / 2-Stem Manifold |
| 10V6081 |
15,000 |
9.53 mm |
REG |
2-Way Straight |
| 10V6082 |
15,000 |
9.53 mm |
REG |
2-Way Angle |
| 10V6083 |
15,000 |
9.53 mm |
REG |
3-Way / 2 on Pressure |
| 10V6084 |
15,000 |
9.53 mm |
REG |
3-Way / 1 on Pressure |
| 10V6085 |
15,000 |
9.53 mm |
REG |
3-Way / 2-Stem Manifold |
| 10V6872 |
15,000 |
9.53 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 10V6882 |
15,000 |
9.53 mm |
REG |
2-Way Angle / Replaceable Seat |
| 10V8071 |
10,000 |
12.70 mm |
VEE |
2-Way Straight |
| 10V8072 |
10,000 |
12.70 mm |
VEE |
2-Way Angle |
| 10V8073 |
10,000 |
12.70 mm |
VEE |
3-Way / 2 on Pressure |
| 10V8074 |
10,000 |
12.70 mm |
VEE |
3-Way / 1 on Pressure |
| 10V8075 |
10,000 |
12.70 mm |
VEE |
3-Way / 2-Stem Manifold |
| 10V8081 |
10,000 |
12.70 mm |
REG |
2-Way Straight |
| 10V8082 |
10,000 |
12.70 mm |
REG |
2-Way Angle |
| 10V8083 |
10,000 |
12.70 mm |
REG |
3-Way / 2 on Pressure |
| 10V8084 |
10,000 |
12.70 mm |
REG |
3-Way / 1 on Pressure |
| 10V8085 |
10,000 |
12.70 mm |
REG |
3-Way / 2-Stem Manifold |
| 10V8872 |
10,000 |
12.70 mm |
VEE |
2-Way Angle / Replaceable Seat |
| 10V8882 |
10,000 |
12.70 mm |
REG |
2-Way Angle / Replaceable Seat |
|
