Parker Needle Valves

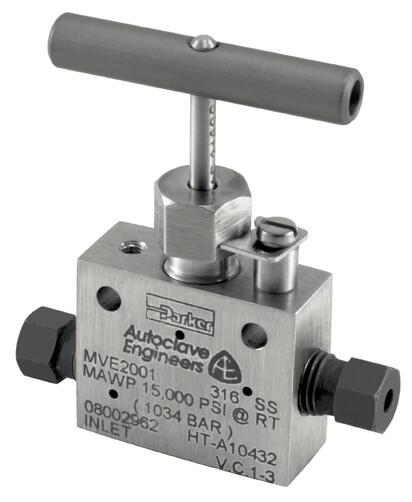

Mini Needle Valves, MVE/MV Series - 15,000 PSI
Parker Autoclave's MVE/MV Mini Needle Valves are designed for laboratory applications and built for safe reliable operation up to 15,000 psi (1,034 bar).
Parker Autoclave's MVE/MV Mini Needle Valve Series needle valves are compact design with working pressures to 15,000 psi (1034 bar). Tubing sizes range from 1/16"" to 1/8"". Tubing connections utilizes Parker Autoclave Engineers Speed Bite single ferrule design. Operating temperatures are from 0°F to 450°F (-17.8°C to 232°C). 316 stainless steel construction, other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.
Mini Needle Valves, MVE/MV Series - 15,000 PSI
Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Power
Features/Benefits:
- Tubing sizes from 1/16” to 1/8”.
- Compact barstock body design.
- Metal-to-metal seating achieves bubble-tight shutoff, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- Adjustable packing below threads provides dependable sealing.
- Choice of Vee or Regulating stem tips.
- Available in five body patterns.
Applications:
- Test Panels
- Medium Pressure Skid Panels
- Medium Pressure Fluid Handling Systems
- Research Systems
Technical Specifications
| Connection Type: |
1/16" SpeedBite, 1/8" SpeedBite |
| Stem Type: |
Vee |
| Body Type: |
2 Way Straight, 2 Way Angle, 3 Way, 2 on Pressure, 3 Way, 1 on Pressure |
| Maximum Operating Pressure: |
15,000 psig |
| Body Material: |
316 Stainless Steel |
| Tube Type: |
3/8" Hex Tubing Gland, 10MM Hex Tubing Gland |
Mini Needle Valves, MVE/MV Series - 15,000 PSI 型号
| Part |
Connection Style |
Stem Type |
Body Type |
Maximum Pressure (psig) |
Body Material |
Tube Type |
| MV1001 |
1/16" SpeedBite |
Vee |
2 Way Straight |
15,000 |
316 Stainless Steel |
10MM Hex Tubing Gland |
| MV1002 |
1/16" SpeedBite |
Vee |
2 Way Angle |
15,000 |
316 Stainless Steel |
10MM Hex Tubing Gland |
| MV1003 |
1/16" SpeedBite |
Vee |
3 Way, 2 on Pressure |
15,000 |
316 Stainless Steel |
10MM Hex Tubing Gland |
| MV1004 |
1/16" SpeedBite |
Vee |
3 Way, 1 on Pressure |
15,000 |
316 Stainless Steel |
10MM Hex Tubing Gland |
| MV2001 |
1/8" SpeedBite |
Vee |
2 Way Straight |
15,000 |
316 Stainless Steel |
10MM Hex Tubing Gland |
| MV2002 |
1/8" SpeedBite |
Vee |
2 Way Angle |
15,000 |
316 Stainless Steel |
10MM Hex Tubing Gland |
| MV2003 |
1/8" SpeedBite |
Vee |
3 Way, 2 on Pressure |
15,000 |
316 Stainless Steel |
10MM Hex Tubing Gland |
| MV2004 |
1/8" SpeedBite |
Vee |
3 Way, 1 on Pressure |
15,000 |
316 Stainless Steel |
10MM Hex Tubing Gland |
| MVE1001 |
1/16" SpeedBite |
Vee |
2 Way Straight |
15,000 |
316 Stainless Steel |
3/8" Hex Tubing Gland |
| MVE1002 |
1/16" SpeedBite |
Vee |
2 Way Angle |
15,000 |
316 Stainless Steel |
3/8" Hex Tubing Gland |
| MVE1003 |
1/16" SpeedBite |
Vee |
3 Way, 2 on Pressure |
15,000 |
316 Stainless Steel |
3/8" Hex Tubing Gland |
| MVE1004 |
1/16" SpeedBite |
Vee |
3 Way, 1 on Pressure |
15,000 |
316 Stainless Steel |
3/8" Hex Tubing Gland |
| MVE2001 |
1/8" SpeedBite |
Vee |
2 Way Straight |
15,000 |
316 Stainless Steel |
3/8" Hex Tubing Gland |
| MVE2002 |
1/8" SpeedBite |
Vee |
2 Way Angle |
15,000 |
316 Stainless Steel |
3/8" Hex Tubing Gland |
| MVE2003 |
1/8" SpeedBite |
Vee |
3 Way, 2 on Pressure |
15,000 |
316 Stainless Steel |
3/8" Hex Tubing Gland |
| MVE2004 |
1/8" SpeedBite |
Vee |
3 Way, 1 on Pressure |
15,000 |
316 Stainless Steel |
3/8" Hex Tubing Gland |
|
