Parker Needle Valves
Needle Valve, Pipe Valve P Series - 15,000 PSI
Parker Autoclave's P Series needle valves offer a diverse line of pipe valves for small bore instrumentation applications in the oil and gas processing industry. These are rated to 15,000 psi (1034 bar) with sizes ranging from 1/4" to 1" pipe.
Parker Autoclave's P Series pipe needle valves are designed to provide a commercial easy to use connection for gas and liquid service. These valves are complemented by a complete line of fittings, tubing and accessories. P Series valve design provides in-line pipe connections for 1/4” to 1” pipe sizes. These pipe valves work in pressures up to 15,000 psi (1034 bar). Operating temperatures can go from -423F to 400°F (-252°C to 204°C) with 316 stainless steel body as standard.
Needle Valve, Pipe Valve P Series - 15,000 PSI
Markets:
- Chemical
- Petrochemical
- Research
- General Industry
- Construction
Features/Benefits:
- P Series valve design provides in-line pipe connections for 1/4” to 1” pipe sizes. 1/8 connections offset.
- Rising stem/bar stock body design.
- Non-rotating stem prevents stem/seat galling (1/8" NPT rotating stem design).
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Operating temperature range from -423°F (-252°C) to 400°F (204°C).
Applications:
- Water Jet Systems
- Medium Pressure Fluid Handling Systems
- Water Blasting
- Research Pilot Systems
Technical Specifications
| Maximum Operating Pressure: |
1034, 690 bar |
| Pipe Outside Diameter: |
1/8, 1/4, 3/8, 1/2, 3/4, 1 inch |
| Connection Type: |
Pipe |
| Bore Diameter: |
0.078, 0.203, 0.219, 0.312, 0.438, 0.562 inch |
Needle Valve, Pipe Valve P Series - 15,000 PSI 型号
| Part |
Maximum Working Pressure (psi) |
Pipe O.D. (mm) |
Stem Type |
Valve Type |
Bore Size (mm) |

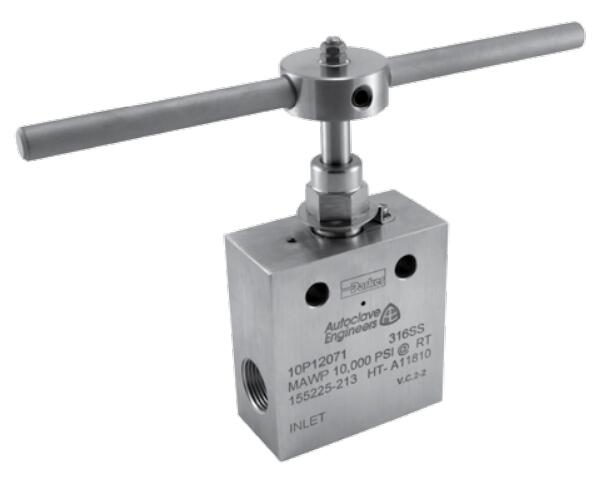

| 10P12071 |
10,000 |
19.05 mm |
2-Way Straight |
VEE |
11.13 mm |
| 10P12072 |
10,000 |
19.05 mm |
2-Way Angle |
VEE |
11.13 mm |
| 10P12073 |
10,000 |
19.05 mm |
3-Way / 2 on Pressure |
VEE |
11.13 mm |
| 10P12074 |
10,000 |
19.05 mm |
3-Way / 1 on Pressure |
VEE |
11.13 mm |
| 10P12075 |
10,000 |
19.05 mm |
3-Way/2-Stem Manifold |
VEE |
11.13 mm |
| 10P12081 |
10,000 |
19.05 mm |
2-Way Straight |
REG |
11.13 mm |
| 10P12082 |
10,000 |
19.05 mm |
2-Way Angle |
REG |
11.13 mm |
| 10P12083 |
10,000 |
19.05 mm |
3-Way / 2 on Pressure |
REG |
11.13 mm |
| 10P12084 |
10,000 |
19.05 mm |
3-Way / 1 on Pressure |
REG |
11.13 mm |
| 10P12085 |
10,000 |
19.05 mm |
3-Way/2-Stem Manifold |
REG |
11.13 mm |
| 10P16071 |
10,000 |
25.4 mm |
2-Way Straight |
VEE |
14.27 mm |
| 10P16072 |
10,000 |
25.4 mm |
2-Way Angle |
VEE |
14.27 mm |
| 10P16073 |
10,000 |
25.4 mm |
3-Way / 2 on Pressure |
VEE |
14.27 mm |
| 10P16074 |
10,000 |
25.4 mm |
3-Way / 1 on Pressure |
VEE |
14.27 mm |
| 10P16075 |
10,000 |
25.4 mm |
3-Way/2-Stem Manifold |
VEE |
14.27 mm |
| 10P16081 |
10,000 |
25.4 mm |
2-Way Straight |
REG |
14.27 mm |
| 10P16082 |
10,000 |
25.4 mm |
2-Way Angle |
REG |
14.27 mm |
| 10P16083 |
10,000 |
25.4 mm |
3-Way / 2 on Pressure |
REG |
14.27 mm |
| 10P16084 |
10,000 |
25.4 mm |
3-Way / 1 on Pressure |
REG |
14.27 mm |
| 10P16085 |
10,000 |
25.4 mm |
3-Way/2-Stem Manifold |
REG |
14.27 mm |
| 15P2001 |
15,000 |
3.18 mm |
2-Way Straight |
VEE |
1.98 mm |
| 15P2002 |
15,000 |
3.18 mm |
2-Way Angle |
VEE |
1.98 mm |
| 15P2011 |
15,000 |
3.18 mm |
2-Way Straight |
REG |
1.98 mm |
| 15P2012 |
15,000 |
3.18 mm |
2-Way Angle |
REG |
1.98 mm |
| 15P4071 |
15,000 |
6.35 mm |
2-Way Straight |
VEE |
5.16 mm |
| 15P4072 |
15,000 |
6.35 mm |
2-Way Angle |
VEE |
5.16 mm |
| 15P4073 |
15,000 |
6.35 mm |
3-Way / 2 on Pressure |
VEE |
5.16 mm |
| 15P4074 |
15,000 |
6.35 mm |
3-Way / 1 on Pressure |
VEE |
5.16 mm |
| 15P4075 |
15,000 |
6.35 mm |
3-Way/2-Stem Manifold |
VEE |
5.16 mm |
| 15P4081 |
15,000 |
6.35 mm |
2-Way Straight |
REG |
5.16 mm |
| 15P4082 |
15,000 |
6.35 mm |
2-Way Angle |
REG |
5.16 mm |
| 15P4083 |
15,000 |
6.35 mm |
3-Way / 2 on Pressure |
REG |
5.16 mm |
| 15P4084 |
15,000 |
6.35 mm |
3-Way / 1 on Pressure |
REG |
5.16 mm |
| 15P4085 |
15,000 |
6.35 mm |
3-Way/2-Stem Manifold |
REG |
5.16 mm |
| 15P6071 |
15,000 |
9.53 mm |
2-Way Straight |
VEE |
5.56 mm |
| 15P6072 |
15,000 |
9.53 mm |
2-Way Angle |
VEE |
5.56 mm |
| 15P6073 |
15,000 |
6.35 mm |
3-Way / 2 on Pressure |
VEE |
5.56 mm |
| 15P6074 |
15,000 |
9.53 mm |
3-Way / 1 on Pressure |
VEE |
5.56 mm |
| 15P6075 |
15,000 |
6.35 mm |
3-Way/2-Stem Manifold |
VEE |
5.56 mm |
| 15P6081 |
15,000 |
9.53 mm |
2-Way Straight |
REG |
5.56 mm |
| 15P6082 |
15,000 |
9.53 mm |
2-Way Angle |
REG |
5.56 mm |
| 15P6083 |
15,000 |
6.35 mm |
3-Way / 2 on Pressure |
REG |
5.56 mm |
| 15P6084 |
15,000 |
9.53 mm |
3-Way / 1 on Pressure |
REG |
5.56 mm |
| 15P6085 |
15,000 |
6.35 mm |
3-Way/2-Stem Manifold |
REG |
5.56 mm |
| 15P8071 |
15,000 |
12.70 mm |
2-Way Straight |
VEE |
7.92 mm |
| 15P8072 |
15,000 |
12.70 mm |
2-Way Angle |
VEE |
7.92 mm |
| 15P8073 |
15,000 |
12.70 mm |
3-Way / 2 on Pressure |
VEE |
7.92 mm |
| 15P8074 |
15,000 |
12.70 mm |
3-Way / 1 on Pressure |
VEE |
7.92 mm |
| 15P8075 |
15,000 |
12.70 mm |
3-Way/2-Stem Manifold |
VEE |
7.92 mm |
| 15P8081 |
15,000 |
12.70 mm |
2-Way Straight |
REG |
7.92 mm |
| 15P8082 |
15,000 |
12.70 mm |
2-Way Angle |
REG |
7.92 mm |
| 15P8083 |
15,000 |
12.70 mm |
3-Way / 2 on Pressure |
REG |
7.92 mm |
| 15P8084 |
15,000 |
12.70 mm |
3-Way / 1 on Pressure |
REG |
7.92 mm |
| 15P8085 |
15,000 |
12.70 mm |
3-Way/2-Stem Manifold |
REG |
7.92 mm |
|
