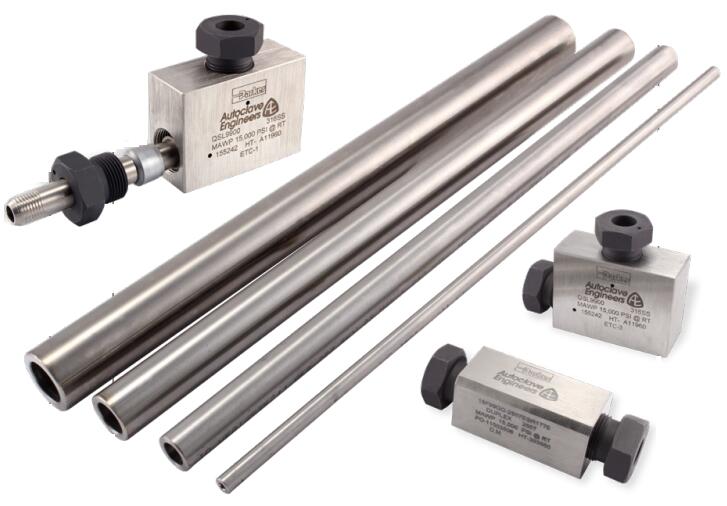

Compression Fitting, 15,000 PSI - QS Series
Parker Autoclave's QS Series are a single ferrule style compression sleeve design. These unique fittings are capable of operating in various applications to 15,000 psi (1034 bar) and range in size from 1/4" to 1" tube size.
Parker Autoclave's QS Series uses a compressor sleeve connection. This single-ferrule compression sleeve connection delivers fast, easy make-up and reduces installation times by at least 50%, as compared to traditional coned and thread installation. Parker Autoclave's QS fittings are rated up to 15,000 PSI (1034 BAR). These tube fittings feature improved compression connections with larger orifices for excellent flow capabilities. Installers will enjoy the reduced make-up torque with the unique, molybdenum disulfide coated nuts.
Compression Fitting, 15,000 PSI - QS Series
Markets:
- Oil and Gas
- Petrochemical
- Research
Features/Benefits:
- Single-ferrule compression sleeve.
- Fast easy make-up of connection
- Connection weep holes for safety and leak detection
- Tubing sizes are 1/4", 3/8", 9/16", 3/4", and 1"
- Fittings manufactured from cold worked 316 stainless steel
- Molybdenum disulfide-coated gland nuts to prevent galling
- Operating temperatures from 0°F (-17.8°C ) to 650°F (343°C)
Applications:
- Chemical Injection Panels
- Subsea Wellhead Control
- Nitrogen Well Pipeline
- FRAC systems
Technical Specifications
| Fitting Type: |
Compression |
| Tube Outside Diameter: |
6.36 , 9.53 , 14.29 , 19.05 mm |
| Maximum Operating Pressure: |
15,000 psi, 1034.2 bar |
| Assembly: |
- |
| Materials of Construction: |
316 Stainless Steel |
Compression Fitting, 15,000 PSI - QS Series 型号
|
