Field Attachable Hydraulic Hose Fitting – 20 Series Fittings

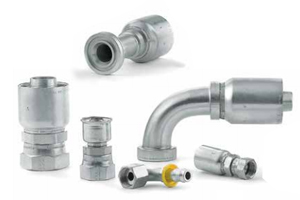

Parker's 20 series fittings are a two-piece field attachable style fitting which enables you to quickly and easily make hose assemblies right on the job site without special tools.
Parker's 20 series fittings are a two-piece field attachable style fitting which enables you to quickly and easily make hose assemblies right on the job site without special tools. The fitting series when coupled with Parker's No-Skive hose provides convenience and shorter assembly time. The 20 series fittings are compatible with transportation, liquefied petroleum gas and marine fuel & brake engine hoses. The 20 series fittings are available from 3/16” to 2-3/8” in a wide variety of end configurations.
Field Attachable Hydraulic Hose Fitting – 20 Series Fittings
Markets:
- Transportation
- Military
- Agriculture
- Material Handling
- Marine
Features/Benefits:
- Can be assembled in field with wrenches
- Imperial HEX
- Wide range of end configurations
- No-Skive technology offers easy, efficient, and safe production processes
Applications:
- Petroleum base hydraulic fluids and lubricating oils
- Gasoline
- Ethanol blends
- Diesel fuels
- Liquefied petroleum gas (LPG)
- Antifreeze solutions
Compatible Hoses:
- 201
- 206
- 266
- 221FR
- SS25UL
Technical Specifications
| Port Size: |
1/8 - 2-1/2 inch |
| Materials of Construction: |
Steel, Brass, and Stainless Steel |
| Shape: |
Straight, 45° Elbow, and 90° Elbow |
| Application: |
Hydraulic |
| Connection Thread Size: |
Varies by part, Varies by part mm |
| Connection Type: |
Various |
| Hose Inside Diameter: |
4.76 - 60.33 mm, 3/16 - 2-3/8 inch |
| Hose I.D. (size): |
-4 to -40 |
| Maximum Operating Pressure: |
Varies by part, Varies by part MPa, Varies by part psi |
| Maximum Operating Temperature: |
Varies by part, Varies by part °F |
| Minimum Operating Temperature: |
Varies by part, Varies by part °F |
| Flange Size: |
1/2 - 2-1/2 inch |
| Product Style: |
Multiple Styles Available |
Field Attachable Hydraulic Hose Fitting – 20 Series Fittings型号
| Part |
Port Connection (inch) |
Hose I.D. (inch) |
Shape |
Material |
Flange Size (inch) |
Style |
Connection Thread Size (inch) |
| 20120-12-10 |
3/4 |
1/2 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
3/4x14 |
| 20120-12-12 |
3/4 |
5/8 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
3/4x14 |
| 20120-12-16 |
3/4 |
7/8 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
3/4x14 |
| 20120-16-16 |
1 |
7/8 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
1x11-1/2 |
| 20120-2-4 |
1/8 |
3/16 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
1/8x27 |
| 20120-2-5 |
1/8 |
1/4 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
1/8x27 |
| 20120-20-20 |
1-1/4 |
1-1/8 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
1-1/4x11-1/2 |
| 20120-24-24 |
1-1/2 |
1-3/8 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
1-1/2x11-1/2 |
| 20120-24-24B |
1-1/2 |
1-3/8 |
Straight |
Brass |
na |
Male NPTF Pipe - Rigid |
1-1/2x11-1/2 |
| 20120-32-32 |
1-1/2 |
1-13/16 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
2x11-1/2 |
| 20120-32-32B |
2 |
1-13/16 |
Straight |
Brass |
na |
Male NPTF Pipe - Rigid |
2x11-1/2 |
| 20120-4-4 |
1/4 |
3/16 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
1/4x18 |
| 20120-4-5 |
1/4 |
1/4 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
1/4x18 |
| 20120-4-6 |
1/4 |
5/16 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
1/4x18 |
| 20120-6-6 |
3/8 |
5/16 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
3/8x18 |
| 20120-6-8 |
3/8 |
13/32 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
3/8x18 |
| 20120-8-10 |
1/2 |
1/2 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
1/2x14 |
| 20120-8-8 |
1/2 |
13/32 |
Straight |
Steel |
na |
Male NPTF Pipe - Rigid |
1/2x14 |
| 20320-10-10 |
5/8 |
1/2 |
Straight |
Steel |
na |
Male JIC 37° - Rigid |
7/8x14 |
| 20320-12-12 |
3/4 |
5/8 |
Straight |
Steel |
na |
Male JIC 37° - Rigid |
1-1/16x12 |
| 20320-16-16 |
1 |
7/8 |
Straight |
Steel |
na |
Male JIC 37° - Rigid |
1-5/16x12 |
| 20320-4-4 |
1/4 |
3/16 |
Straight |
Steel |
na |
Male JIC 37° - Rigid |
7/16x20 |
| 20320-6-6 |
3/8 |
5/16 |
Straight |
Steel |
na |
Male JIC 37° - Rigid |
9/16x18 |
| 20320-8-8 |
1/2 |
13/32 |
Straight |
Steel |
na |
Male JIC 37° - Rigid |
3/4x16 |
| 20420-4-4 |
1/4 |
3/16 |
Straight |
Steel |
na |
Male SAE 45° - Rigid |
7/16x20 |
| 20420-6-6 |
3/8 |
5/16 |
Straight |
Steel |
na |
Male SAE 45° - Rigid |
5/8x18 |
| 20420-8-8 |
1/2 |
13/32 |
Straight |
Steel |
na |
Male SAE 45° - Rigid |
5/8x18 |
| 20620-10-10 |
5/8 |
1/2 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
7/8x14 |
| 20620-10-10C |
5/8 |
1/2 |
Straight |
Stainless Steel |
na |
Female JIC 37° - Swivel |
7/8x14 |
| 20620-10-12 |
5/8 |
5/8 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
7/8x14 |
| 20620-10-8 |
5/8 |
13/32 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
7/8x14 |
| 20620-12-12 |
3/4 |
5/8 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
1-1/16x12 |
| 20620-12-12C |
3/4 |
5/8 |
Straight |
Stainless Steel |
na |
Female JIC 37° - Swivel |
1-1/16x12 |
| 20620-16-16 |
1 |
7/8 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
1-5/16x12 |
| 20620-16-16C |
1 |
7/8 |
Straight |
Stainless Steel |
na |
Female JIC 37° - Swivel |
1-5/16x12 |
| 20620-20-20 |
1-1/4 |
1-1/8 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
1-5/8x12 |
| 20620-24-24 |
1-1/2 |
1-3/8 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
1-7/8x12 |
| 20620-32-32 |
2 |
1-13/16 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
2-1/2x12 |
| 20620-4-4 |
1/4 |
3/16 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
7/16x20 |
| 20620-4-4C |
1/4 |
3/16 |
Straight |
Stainless Steel |
na |
Female JIC 37° - Swivel |
7/16x20 |
| 20620-4-5 |
1/4 |
1/4 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
7/16x20 |
| 20620-5-5 |
5/16 |
1/4 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
1/2x20 |
| 20620-6-5 |
3/8 |
1/4 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
9/16x18 |
| 20620-6-6 |
3/8 |
5/16 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
9/16x18 |
| 20620-6-6C |
3/8 |
5/16 |
Straight |
Stainless Steel |
na |
Female JIC 37° - Swivel |
9/16x18 |
| 20620-8-10 |
1/2 |
1/2 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
3/4x16 |
| 20620-8-6 |
1/2 |
5/16 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
3/4x16 |
| 20620-8-8 |
1/2 |
13/32 |
Straight |
Steel |
na |
Female JIC 37° - Swivel |
3/4x16 |
| 20820-10-10 |
5/8 |
1/2 |
Straight |
Steel |
na |
Female SAE 45° - Swivel |
7/8x14 |
| 20820-12-12 |
3/4 |
5/8 |
Straight |
Steel |
na |
Female SAE 45° - Swivel |
1-1/16x14 |
| 20820-4-4 |
1/4 |
3/16 |
Straight |
Steel |
na |
Female SAE 45° - Swivel |
7/16x20 |
| 20820-5-5 |
5/16 |
1/4 |
Straight |
Steel |
na |
Female SAE 45° - Swivel |
1/2x20 |
| 20820-6-6 |
3/8 |
5/16 |
Straight |
Steel |
na |
Female SAE 45° - Swivel |
5/8x18 |
| 20820-8-10 |
1/2 |
1/2 |
Straight |
Steel |
na |
Female SAE 45° - Swivel |
3/4x16 |
| 20820-8-8 |
1/2 |
13/32 |
Straight |
Steel |
na |
Female SAE 45° - Swivel |
3/4x16 |
| 21120-8-8 |
1/2 |
13/32 |
Straight |
Steel |
na |
Male Ferulok Flareless - Rigid - (24° Cone with Nut and Ferrule) |
3/4x16 |
| 21520-20-20 |
1-1/4 |
1-1/8 |
Straight |
Steel |
1-1/4 |
SAE Code 61 Flange Head |
na |
| 21720-20-20 |
1-1/4 |
1-1/8 |
45° Elbow |
Steel |
1-1/4 |
SAE Code 61 Flange Head |
na |
| 21920-32-32 |
2 |
1-13/16 |
90° Elbow |
Steel |
2 |
SAE Code 61 Flange Head |
na |
| 21920-40-40 |
2-1/2 |
2-3/8 |
90° Elbow |
Steel |
2-1/2 |
SAE Code 61 Flange Head |
na |
| 22820-10-10 |
5/8 |
1/2 |
Straight |
Steel |
na |
Male Inverted SAE 45° - Swivel |
7/8x18 |
| 22820-4-4 |
1/4 |
3/16 |
Straight |
Steel |
na |
Male Inverted SAE 45° - Swivel |
7/16x20 |
| 22820-5-5 |
5/16 |
1/4 |
Straight |
Steel |
na |
Male Inverted SAE 45° - Swivel |
1/2x20 |
| 22820-6-6 |
3/8 |
5/16 |
Straight |
Steel |
na |
Male Inverted SAE 45° - Swivel |
5/8x18 |
| 22820-8-8 |
1/2 |
13/32 |
Straight |
Steel |
na |
Male Inverted SAE 45° - Swivel |
3/4x18 |
| 23220-16-16 |
1 |
7/8 |
Straight |
Steel |
na |
Female PTT 30° - Swivel |
1-5/16x14 |
| 23720-10-10 |
5/8 |
1/2 |
45° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
7/8x14 |
| 23720-12-12 |
3/4 |
5/8 |
45° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
1-1/16x12 |
| 23720-16-16 |
1 |
7/8 |
45° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
1-5/16x12 |
| 23720-20-20 |
1-1/4 |
1-1/8 |
45° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
1-5/8x12 |
| 23720-4-4 |
1/4 |
3/16 |
45° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
7/16x20 |
| 23720-5-5 |
5/16 |
1/4 |
45° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
1/2x20 |
| 23720-6-6 |
3/8 |
5/16 |
45° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
9/16x18 |
| 23720-8-6 |
1/2 |
5/16 |
45° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
3/4x16 |
| 23920-10-10 |
5/8 |
1/2 |
90° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
7/8x14 |
| 23920-12-12 |
3/4 |
5/8 |
90° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
1-1/16x12 |
| 23920-16-16 |
1 |
7/8 |
90° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
1-5/16x12 |
| 23920-20-20 |
1-1/4 |
1-1/8 |
90° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
1-5/8x12 |
| 23920-24-24 |
1-1/2 |
1-3/8 |
90° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
1-7/8x12 |
| 23920-4-4 |
1/4 |
3/16 |
90° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
7/16x20 |
| 23920-5-5 |
1/4 |
1/4 |
90° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
1/2x20 |
| 23920-6-6 |
3/8 |
5/16 |
90° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
9/16x18 |
| 23920-8-8 |
1/2 |
13/32 |
90° Elbow - Short Drop |
Steel |
na |
Female JIC 37° - Swivel |
3/4x16 |
| 24120-10-10 |
5/8 |
1/2 |
90° Elbow - Long Drop |
Steel |
na |
Female JIC 37° - Swivel |
7/8x14 |
| 24120-12-12 |
3/4 |
5/8 |
90° Elbow - Long Drop |
Steel |
na |
Female JIC 37° - Swivel |
1-1/16x12 |
| 24120-4-4 |
1/4 |
3/16 |
90° Elbow - Long Drop |
Steel |
na |
Female JIC 37° - Swivel |
7/16x20 |
| 24120-6-6 |
3/8 |
5/16 |
90° Elbow - Long Drop |
Steel |
na |
Female JIC 37° - Swivel |
9/16x18 |
| 24120-8-8 |
1/2 |
13/32 |
90° Elbow - Long Drop |
Steel |
na |
Female JIC 37° - Swivel |
3/4x16 |
| 26120-10-10 |
5/8 |
1/2 |
Straight |
Steel |
na |
Male SAE Compression Seat - (without Nut or Sleeve) |
13/16x18 |
| 26720-4-4 |
1/4 |
3/16 |
45° Elbow |
Steel |
na |
Male Inverted SAE 45° - Swivel |
7/16x24 |
| 26720-5-5 |
5/16 |
1/4 |
45° Elbow |
Steel |
na |
Male Inverted SAE 45° - Swivel |
1/2x20 |
| 26720-6-6 |
3/8 |
5/16 |
45° Elbow |
Steel |
na |
Male Inverted SAE 45° - Swivel |
5/8x18 |
| 26720-8-8 |
1/2 |
13/32 |
45° Elbow |
Steel |
na |
Male Inverted SAE 45° - Swivel |
3/4x18 |
| 26920-4-4 |
1/4 |
3/16 |
90° Elbow |
Steel |
na |
Male Inverted SAE 45° - Swivel |
7/16x24 |
| 26920-5-5 |
5/16 |
3/16 |
90° Elbow |
Steel |
na |
Male Inverted SAE 45° - Swivel |
1/2x20 |
| 26920-6-6 |
3/8 |
5/16 |
90° Elbow |
Steel |
na |
Male Inverted SAE 45° - Swivel |
5/8x18 |
| 26920-8-8 |
1/2 |
13/32 |
90° Elbow |
Steel |
na |
Male Inverted SAE 45° - Swivel |
3/4x18 |
| 27720-6-6 |
3/8 |
5/16 |
45° Elbow |
Steel |
na |
Female SAE 45° - Swivel |
5/8x18 |
| 27920-10-10 |
5/8 |
1/2 |
90° Elbow |
Steel |
na |
Female SAE 45° - Swivel |
7/8x14 |
| 27920-4-4 |
1/4 |
3/16 |
90° Elbow |
Steel |
na |
Female SAE 45° - Swivel |
7/16x20 |
| 27920-6-6 |
3/8 |
5/16 |
90° Elbow |
Steel |
na |
Female SAE 45° - Swivel |
5/8x18 |
| 27920-8-8 |
1/2 |
13/32 |
90° Elbow |
Steel |
na |
Female SAE 45° - Swivel |
3/4x16 |
| 28120-6-6 |
3/8 |
5/16 |
90° Elbow - Long Drop |
Steel |
na |
Female SAE 45° - Swivel |
5/8x18 |
| 2J120-6-6 |
3/8 |
5/16 |
90° Elbow - Long Drop |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2J120-8-8 |
1/2 |
13/32 |
90° Elbow - Long Drop |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2J720-10-10 |
5/8 |
1/2 |
45° Elbow |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2J720-4-4 |
1/4 |
3/16 |
45° Elbow |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2J720-6-6 |
3/8 |
5/16 |
45° Elbow |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2J720-8-8 |
1/2 |
13/32 |
45° Elbow |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2J920-10-10 |
5/8 |
1/2 |
90° Elbow - Short Drop |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2J920-12-12 |
3/4 |
5/8 |
90° Elbow - Short Drop |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2J920-4-4 |
1/4 |
3/16 |
90° Elbow - Short Drop |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2J920-6-6 |
3/8 |
5/16 |
90° Elbow - Short Drop |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2J920-8-8 |
1/2 |
13/32 |
90° Elbow - Short Drop |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2JS20-10-10 |
5/8 |
1/2 |
Straight - Long |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2JS20-12-12 |
3/4 |
5/8 |
Straight - Long |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2JS20-4-4 |
1/4 |
3/16 |
Straight - Long |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2JS20-6-6 |
3/8 |
5/16 |
Straight - Long |
Steel |
na |
Female Seal-Lok - Swivel |
na |
| 2JS20-8-8 |
1/2 |
13/32 |
Straight - Long |
Steel |
na |
Female Seal-Lok - Swivel |
na |
|
