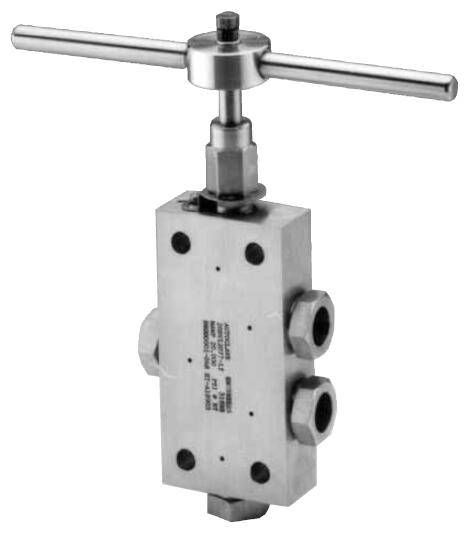

Needle Valve, Diverter 20DV Series - 20,000 PSI

Parker Autoclave's 20DV Series diverter valves are built to operate safely and reliably up to 20,000 psi (1379 bar). This compact valve is used to divert flow from one inlet to two outlets permitting flow direction change and/or mixing of processes.

Parker Autoclave's 20DV Series diverter needle valves are designed with a non-rotating rising stem valve, with working pressures to 20,000 psi (1379 bar). This diverter valve uses the Parker Autoclave tubing in sizes ranging from 9/16"" to 1"". Diverter valves provide the ability to direct incoming flow to one of two outlets. Flow is changed by rotating the handle in or out causing a double-ended stem to block the flow path to the outlet not needed.

Diverter valves eliminate the need for multiple valves and the possibility of error in flow direction changes. The 20DV series uses Parker Autoclave Engineers' medium pressure connection. This coned and threaded connection provides a reliable bubble-tight seal for dependable performance in a variety of applications.

Needle Valve, Diverter 20DV Series - 20,000 PSI

Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Research Facilities

Features/Benefits:
- Diverts incoming flow to one of two outlet lines.
- Tubing sizes from 9/16” to 1”.
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling. Valves
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.

Applications:
- High Pressure Process Panels
- Mixing Systems
- High Pressure Fluid Handling Systems

Technical Specifications

Needle Valve, Diverter 20DV Series - 20,000 PSI 型号
