Parker Instrumentation Valves

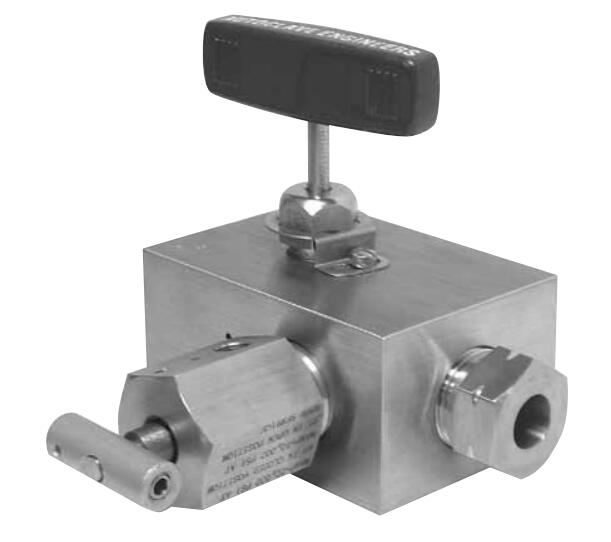

Wellhead Bleed and Gauge Valve, 30,000 PSI

Parker Autoclave's BV Series wellhead bleed and gauge valves are ideal for instrumentation calibration or sampling. The BV Series is standard in 316 stainless steel material and will perform up to 30,000 PSI. These valves comply with NACE MR0175

Parker Autoclave's BV and GV Series bleed and gauge valves are a non-rotating rising stem design, working pressures to 30,000 psi (2068 bar). Tubing sizes are 3/8" and 9/16" and are designed to utilize the parker Autoclave Tubing. These valves are 316 stainless steel construction with other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.
Parker Autoclave Engineers wellhead gauge valves are ideal for instrument calibration and process sampling. The main applications are found in oil and gas drilling, and production, but other markets use these as well. Standard components are offered for normal field service where H2S is not present and type "SOG" for service where H2S is present. Parker Autoclave Engineers type SOG components are available with standard API test and gauge connection (Parker Autoclave Engineers F562C).

Wellhead Bleed and Gauge Valve, 30,000 PSI

Markets:
- Oil and Gas
- Petrochemical
- Chemical


Features/Benefits:
- Tubing sizes are 3/8" and 9/16"
- One inlet and three outlet ports, all 9/16" ports are API test and gauge connection ports
- Non-rotating stem design prevents stem/seat galling
- Metal-to-metal seating for bubble-tight shut-off
- Bleed valve is one piece hex construction allowing easy installation
- Anti-blowout stem design

Applications:
- Process Sampling
- Instrument Calibration
- High Pressure Skid Panels

Technical Specifications

Wellhead Bleed and Gauge Valve, 30,000 PSI 型号
