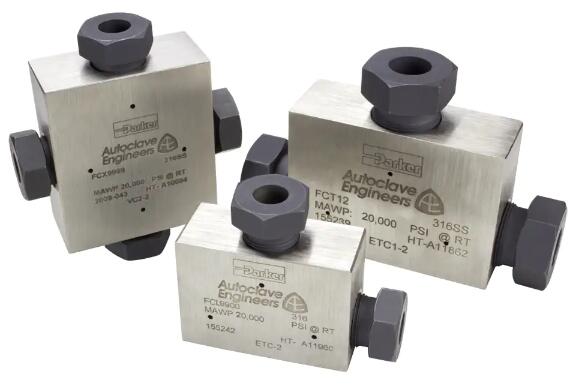

Compression Fitting, 22,500 PSI - FCC Series

Parker Autoclave's FCC Series utilizes the make-up and installation simplicity of compression style connections with the strength of cone and thread. It uses a dual high integrity metal-to-metal seal connection that is suitable up to 22,500 PSI.





Parker Autoclave's Flared Cone Connection (FCC) technology combines the make-up and installation simplicity of compression style connections with the strength of cone and thread. It uses a single compression sleeve and a flared tube end to create a dual high integrity metal-to-metal seal connection that is suitable for a wide range of medium pressure applications up to 22,500 PSI (1,550 bar). The design incorporates an anti-ejection features and also is vibration proof as standard – eliminating any need for an anti-vibration gland assembly.

FCC series 22,500 PSI compression sleeve fittings are available in 1/4", 3/8”, 9/16”, 3/4" and 1” connection sizes. The range includes:

- Gland, plug and sleeve components (supplied with all FCC valves)
- Elbow, tee and cross fittings
- Straight and bulkhead couplings

The FCC fittings are manufactured from cold worked 316 stainless steel as standard, with 2507 super duplex versions optionally available. All 316SS fittings have a pressure rating of 20,000 PSI (1,379 bar) and an operating temperature range of -73 to 316?C (-100 to 600?F), and all 2507 Super Duplex fittings are rated at 22,500 PSI (1,550 bar) with a temperature range of -45 to 316?C (-50 to 600?F).

FCC compression sleeves are manufactured from Inconel 718, and the gland nuts are coated with molybdenum disulfide to prevent galling.



Compression Fitting, 22,500 PSI - FCC Series



Markets:
- Oil and Gas
- Petrochemical
- Research
- Chemical

Features:
- 22,500 psi (2507 SD) or 20,000 psi (316 SS) working pressures
- Flared Tubing Prevents Tube Extraction
- Redundant Metal to Metal Sealing Surfaces
- First Seal is on ID of Tube Flare
- Second Seal is Between Compression Sleeve and Fitting or Valve body
- Wide Temperature Range from -100°F (-73°C) to 600°F (316°C), and -50°F (-45°C) for 2507 SD
- Single Inconel 718 Compression Sleeve Reduces Assembly Errors
- No Anti-vibration gland fitting needed - vibration is controlled in the standard design

Applications:
- High Pressure Test Panels
- Offshore Skid Panels
- Chemical Injection
- High Pressure Gas Systems



Technical Specifications

Fitting Type: Compression
Application: Instrumentation
Pressure Rating: 20 000 (316 Stainless Steel as standard)/ 22 500 PSI (optional 2507 Super Duplex material) psi
Sleeve Material: IN718
Connection Type: FLC250, FLC375, FLC562, FLC750, FLC1000
Tube O.D.: 1/4" , 3/8" , 9/16" , 3/4" , 1",
Shape: Elbow, Tee, Cross, Straight, Bulkhead



Compression Fitting, 22,500 PSI - FCC Series 型号

Part Tube O.D. Connection Type Shape
20BF12F 3/4" FLC750 Bulkhead
20BF16F 1" FLC1000 Bulkhead
20BF44FF 1/4" FLC250 Bulkhead
20BF66FF 3/8" FLC375 Bulkhead
20BF99FF 9/16" FLC562 Bulkhead
20F12F 3/4" FLC750 Straight
20F16F 1" FLC1000 Straight
20F44FF 1/4" FLC250 Straight
20F66FF 3/8" FLC375 Straight
20F99FF 9/16" FLC562 Straight
FCL12 3/4" FLC750 Elbow
FCL16 1" FLC1000 Elbow
FCL4400 1/4" FLC250 Elbow
FCL6600 3/8" FLC375 Elbow
FCL9900 9/16" FLC562 Elbow
FCT12 3/4" FLC750 Tee
FCT16 1" FLC1000 Tee
FCT4400 1/4" FLC250 Tee
FCT6600 3/8" FLC375 Tee
FCT9900 9/16" FLC562 Tee
FCX12 3/4" FLC750 Cross
FCX16 1" FLC1000 Cross
FCX4400 1/4" FLC250 Cross
FCX6600 3/8" FLC375 Cross
FCX9900 9/16" FLC562 Cross
